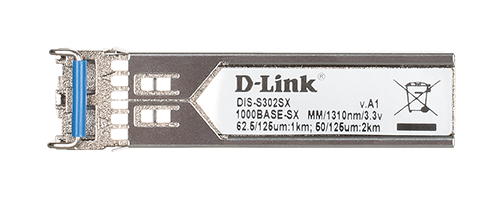

1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode 2km Fibre Transceiver

DIS-S302SX

  • Product Status: Live
  • 1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode Fibre Transceiver
  • up to 2 km
  • -40 ~ 85°C operating temperature


Download the datasheet.

Where to buy

Related Products

Industrial Gigabit Unmanaged Switch
DIS-100G-5W
Find out more
Industrial Gigabit Unmanaged Switch with SFP slot
DIS-100G-5SW
Find out more
Industrial Gigabit Unmanaged PoE Switch with SFP slot
DIS-100G-5PSW
Find out more
Industrial Gigabit Managed Switch with SFP slots
DIS-300G-12SW
Find out more
Industrial Gigabit Managed PoE Switch with SFP slots
DIS-300G-8PSW
Find out more

Features

  • Hot Pluggable
  • MSA Compliant
  • RoHS Compliant

Standard

Compliant Standard

  • IEEE802.3z
  • 1000BASE-SX

Transceiver Type

  • SFP

Fiber Media support

  • Multi-Mode

Distance

  • Max. Distance or other supported cable type
    • 62.5/125um fiber: 1km
    • 50/125um fiber: 2km
    • 62.5/125um OM1 1km
    • 50/125um OM2 1km
    • 50/125um OM3 2km
    • 50/125um OM4 2km

Speed

  • 1.25Gbps

Interface

Connector

  • Duplex LC Connector

Direction

  • Single-direction

Wavelength

  • 1310 nm

Output Optical Power (TX Optical Power)

  • Max. (dBm) -3dBm
  • Min. (dBm) -9dBm

Input Optical Power (RX Optical Power)

  • Max. (dBm) -3dBm
  • Min. (dBm) -22dBm

Sensitivity (dBm)

  • -22dBm

Cable Type

  • Multi-mode 50/125um or 62.5/125um fiber

Operating

Power (V)

  • 3.3V

Max Input Current (mA)

  • 300mA

Power Budget (MIN Power Budget) (dB)

  • 13dB

MAX Power Budget (dB)

  • 19dB

Heat Generated (kJ/h)

  • 2.376 kJ/h

MTBF (hours)

  • 224,167 hours

Physical & Environment

Operation Temperature (°C)

  • -40-85°C

Storage Temperature (°C)

  • -40-85°C

Operating Humidity (%)

  • 5% ~ 95%

Storage Humidity (%)

  • 5% ~ 95%

Dimension ( W x D x H)

  • 13.7mm x 55.4mm x 8.5mm

Weight

  • 20g

Bail latch colour

  • Blue

Certifications

Emission (EMI)

  • FCC Class B
  • CE Class B
  • VCCI Class B

Safety

  • LVD
  • EN 60825-1
