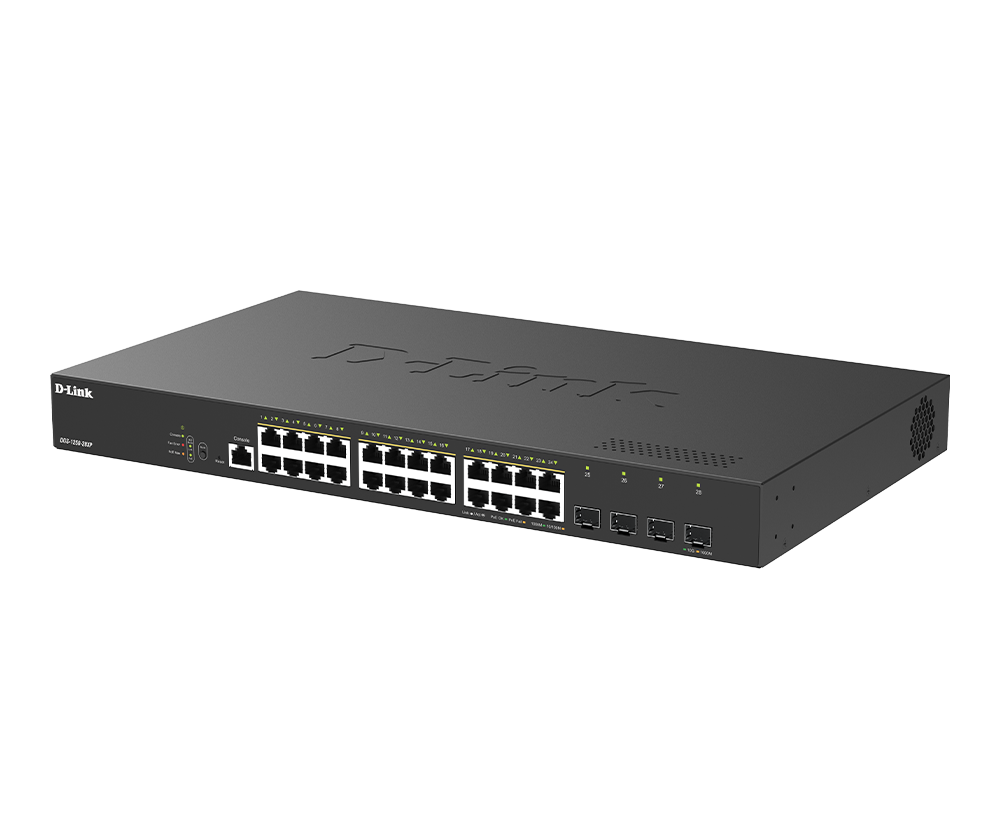

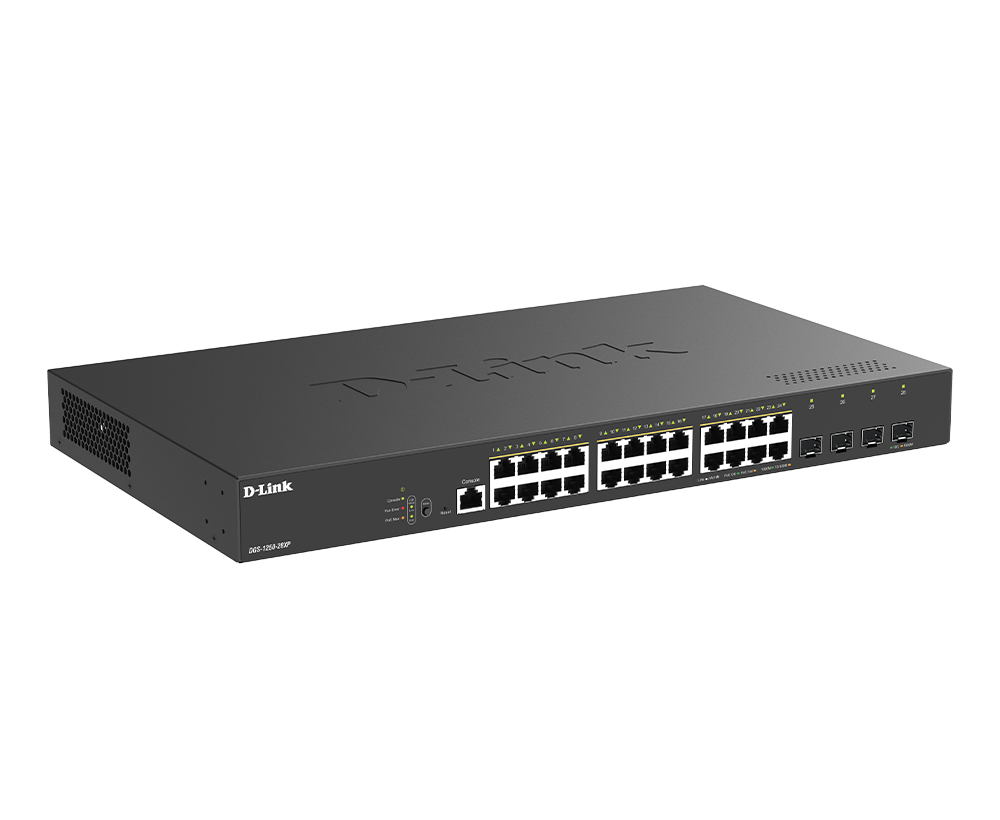

28-Port Gigabit Smart Managed PoE Switch

DGS-1250-28XP

  • Product Status: Live
  • 24 Ports Gigabit for downlink
  • 4 Ports 10G SFP+ for uplink
  • PoE IEEE802.3af/at options, power budget 375W
  • 6kV surge protection on all Gigabit Ethernet ports
  • 5-speed smart fan auto-adjusts for optimal cooling
  • Spanning Tree Protocol (STP/RSTP/MSTP)
  • Access Control List (ACL) feature
  • Support Static Route and Layer 3 features
  • Full command line support via console port
  • Manage through the Nuclias Network Controller
Where to buy

User Benefits​

Flexible Connectivity

The 10G SFP+ modules enable versatile network configurations that can scale to support growing data traffic

PoE Features

Delivers up to 30W per port with a higher total power budget of 375W, supporting Perpetual PoE, Fast PoE, and PD-Alive

6kV Surge Protection

Effectively guards against power surges, minimizing downtime and costs, ideal for unstable regions

Advanced Security for Access

Provides versatile, advanced features to strengthen and safeguard network security for modern environments

Smart Traffic Control

ACLs protect the network by allowing trusted access and blocking unauthorized traffic effectively

Simplified Management

Nuclias Network Controller enables centralized control for flexible and multiple device management

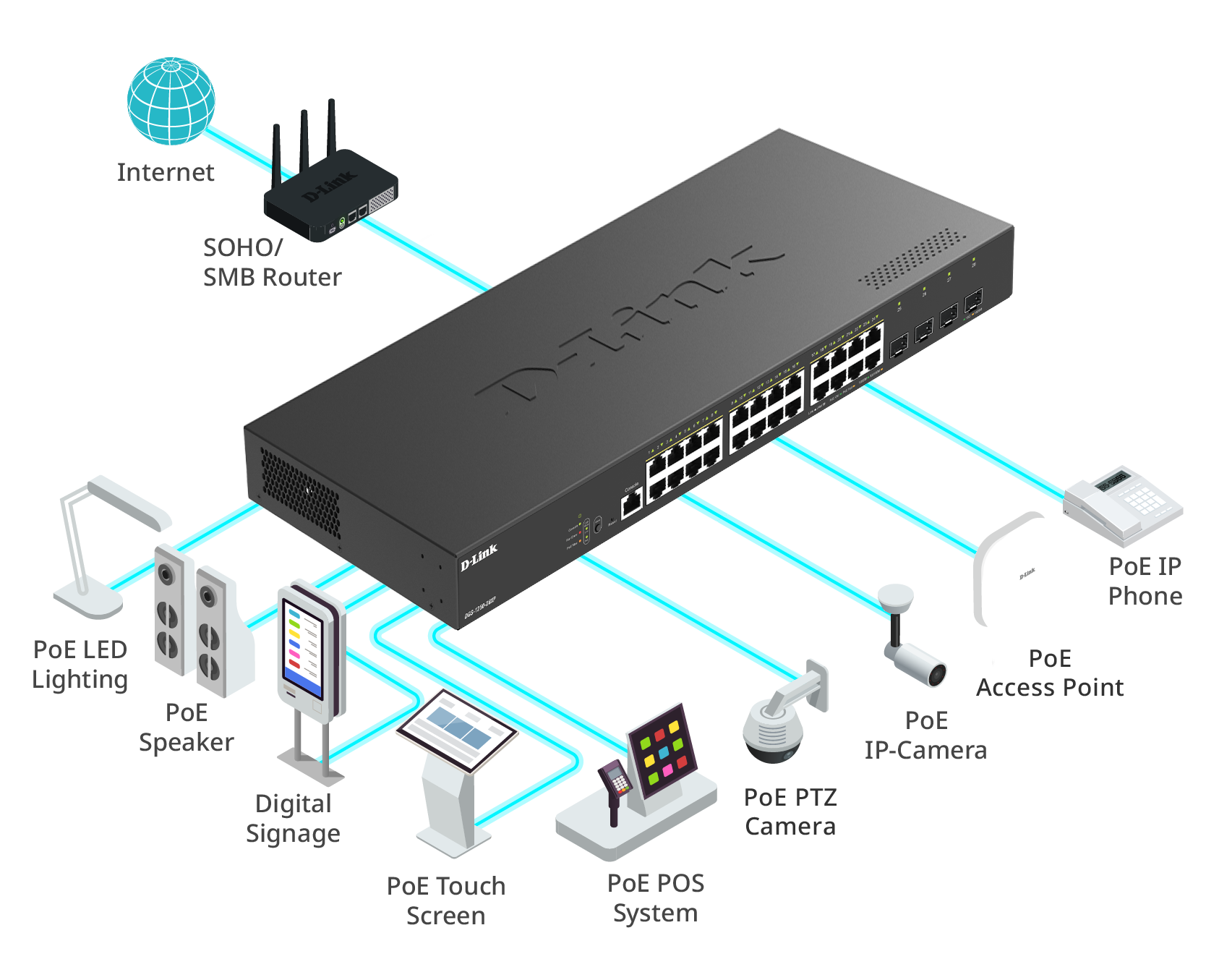

Unified Power and Data

Gigabit PoE ports provide both high-speed connectivity and power via a single cable, enabling the efficient deployment of Wi-Fi 6 access points, IP cameras, and IoT devices. A robust 375W PoE budget ensures simple installation and supports scalable expansion.

6kV Surge Protection for All Ethernet Ports

The DGS-1250-28XP switch delivers enhanced 6kV surge protection across all Gigabit Ethernet access ports, ensuring a resilient network and safeguarding connected devices from electrical surges and power spikes. This robust protection helps prevent hardware damage and maintains reliable operations even in regions with unstable power conditions.

Enhanced Layer 2 Capabilities

The DGS-1250-28XP switch offers a comprehensive set of Layer 2+ capabilities, including:

  • ERPS
  • GVRP
  • ISM VLAN
  • VLAN Translation
  • Double VLAN (Q-in-Q)
  • Spanning Tree Protocol (STP/MSTP/RSTP)
  • Link Aggregation Control Protocol (LACP)
  • IGMP and MLD Snooping

Traffic Prioritization with QoS

The DGS-1250-28XP switch accelerates deployment with Auto Surveillance and Voice VLANs, utilizing QoS prioritization to ensure seamless, reliable VoIP and video traffic while automatically segmenting streams and maintaining optimal performance in high-traffic environments.

Nuclias Network Controller

The DGS-1250-28XP switch supports the Nuclias Network Controller for centralized management, simplifying device configuration and enhancing network efficiency. Features like device discovery, real-time monitoring, and updates ensure robust control and optimized operations.

Related Products

52-Port Gigabit Smart Managed PoE Switch
DGS-1250-52XP
Find out more
28-Port Gigabit Smart Managed Switch
DGS-1250-28X
Find out more
52-Port Gigabit Smart Managed Switch
DGS-1250-52X
Find out more

Applications

K-12 School (Education)

Learn More

Hotel (Buildings)

Learn More

Office (Enterprise)

Learn More

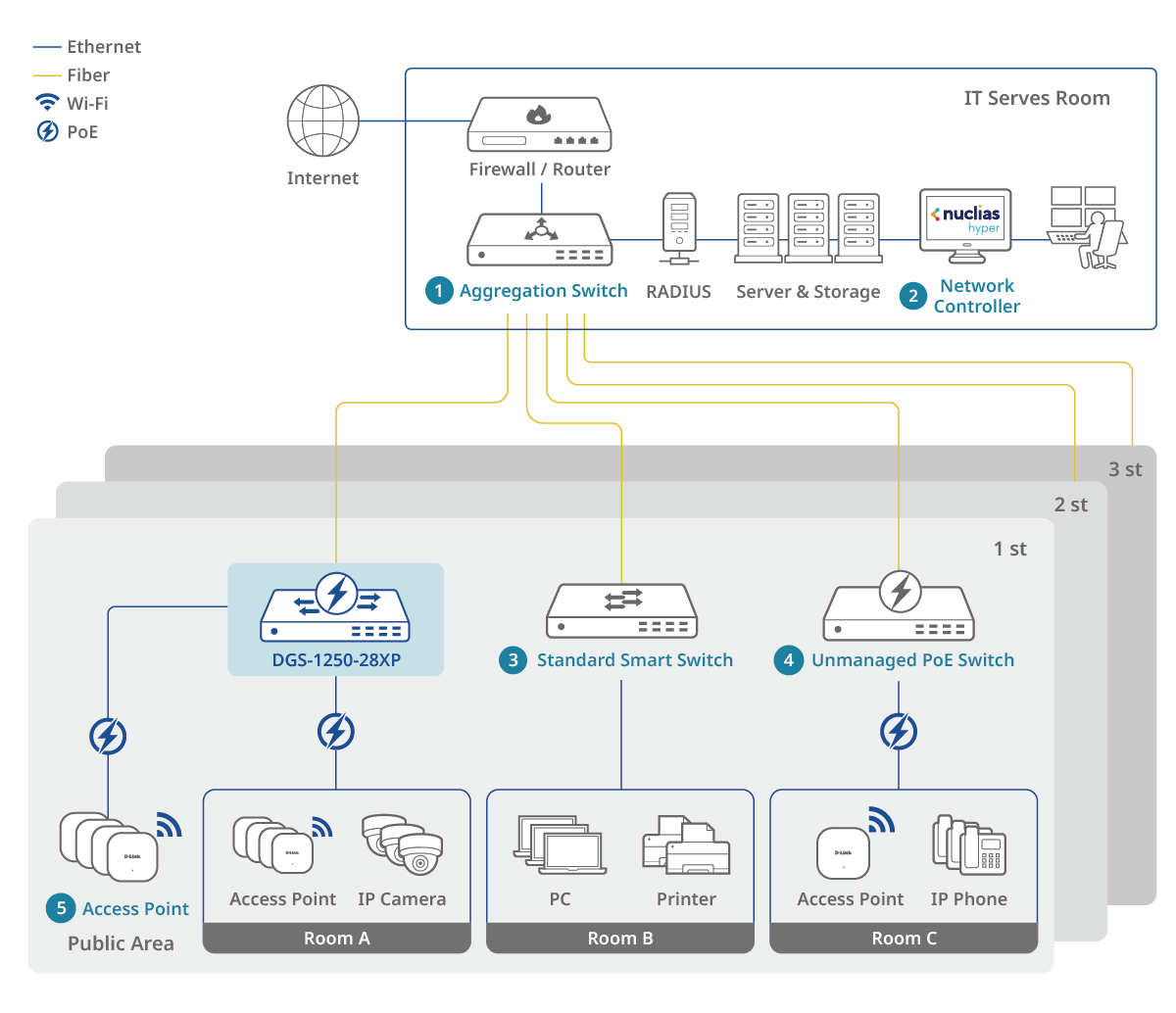

K-12 School (Education)

User benefits :

  • 10G uplinks for fast server connectivity
  • Scales easily to meet growing network demands
  • Advanced features for enhanced network security
  • Simplified management for greater efficiency
  • Redundant power for uptime and PoE boost

Learn more :

  1. Aggregation Switch : DXS-3130-32S
  2. Network Controller : DNH-1000
  3. Standard Smart Switch : DGS-1250 Series
  4. Unmanaged PoE Switch : DGS-1018P
  5. Access Point : DAP-X2810

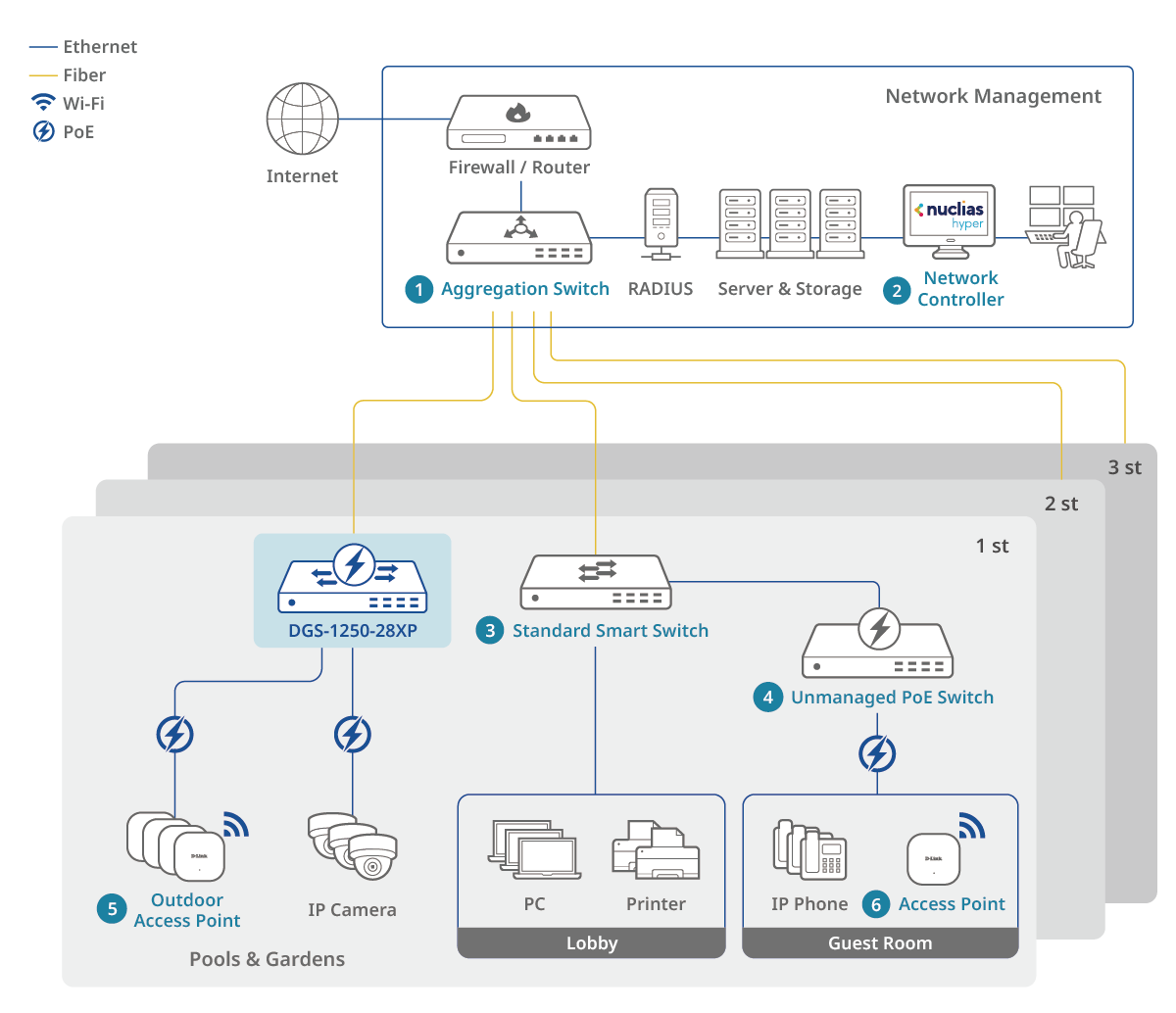

　Hotel (Buildings)

User benefits :
  • High-bandwidth uplinks for fast, stable connections
  • Rapid fault recovery for reliable performance
  • Comprehensive security to protect critical data
  • Supports long-distance connectivity
  • VLAN and QoS to optimize the learning experience

Learn more :

  1. Aggregation Switch : DXS-3130-32S
  2. Network Controller : DNH-3000
  3. Standard Smart Switch : DGS-1250 Series
  4. Unmanaged PoE Switch : DGS-1008P
  5. Outdoor Access Point : DAP-X3060OU
  6. Access Point : DAP-X2810

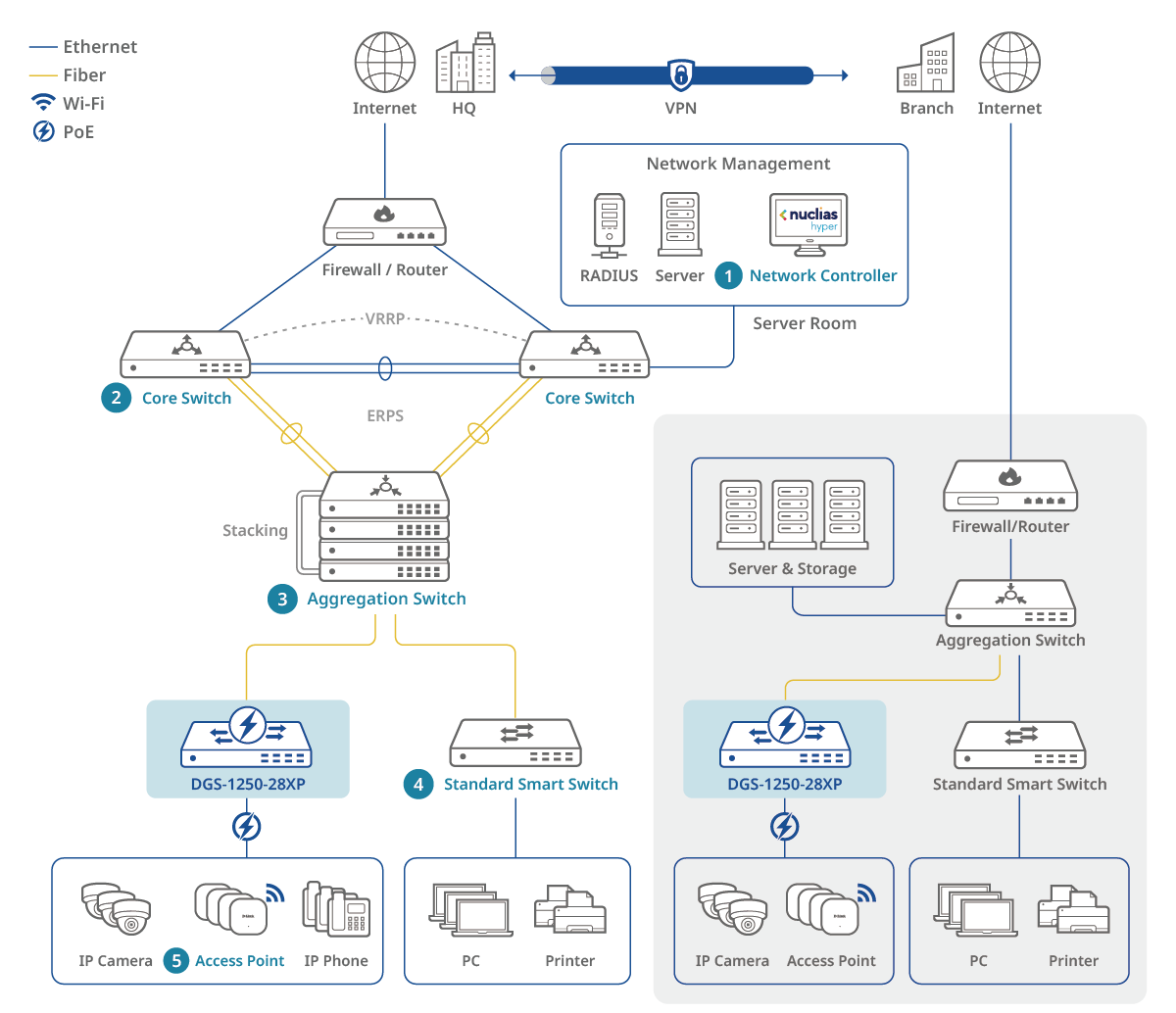

Office (Enterprise)

User benefits :
  • Scalable for future network growth
  • Centralized switch management reduces IT complexity
  • Redundant power for uninterrupted uptime
  • OAM tools streamline issue detection and resolution
  • 6kV surge protection for enhanced reliability

Learn more :

  1. Network Controller : DNC-5000
  2. Core Switch : DXS-3610-54S
  3. Aggregation Switch : DGS-1530 Series
  4. Standard Smart Switch : DGS-1250 Series
  5. Access Point : DAP-X2810

Specification

Interfaces
24 x 1GE
4 x 10G SFP+
Switch Capacity
128 Gbps
Max. Packet Forwarding Rate
95.24 Mpps
Max Power Consumption
PoE On:
      452.52 W/100 V
      432.36 W/240 V
PoE Off:
      31.7 W/100 V
      31.33 W/240 V
Dimensions
440 x 140 x 44 mm (17.32 x 5.51 x 1.73 in)
Weight
3.93 kg (8.44 lbs)
Surge Protection
All Ethernet RJ-45 ports support IEC61000-4-5 6 kV surge protection
FAN
1 Smart Fan
Operating Temperature
-5°C to 50°C (23°F to 122°F)
Storage Temperature
-20˚C to 70˚C (-4˚F to 158˚F)
Operating Humidity
0% to 95% relative humidity
Storage Humidity
0% to 95% relative humidity
Console Port
RJ-45 console port
Power Supply Type
Internal

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
