Offer high speed, low latency and long-distance transmission
Dual power supply redundancy minimizes downtime and boosts system reliability
6kV surge protection keeps all Ethernet ports unharmed from the surge
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Fanless design reduces the risk of component failure impacting MTBF, reducing maintenance and downtime costs
Energy Efficient Ethernet (EEE) reduces power consumption, helps save cost, especially in always-on environments

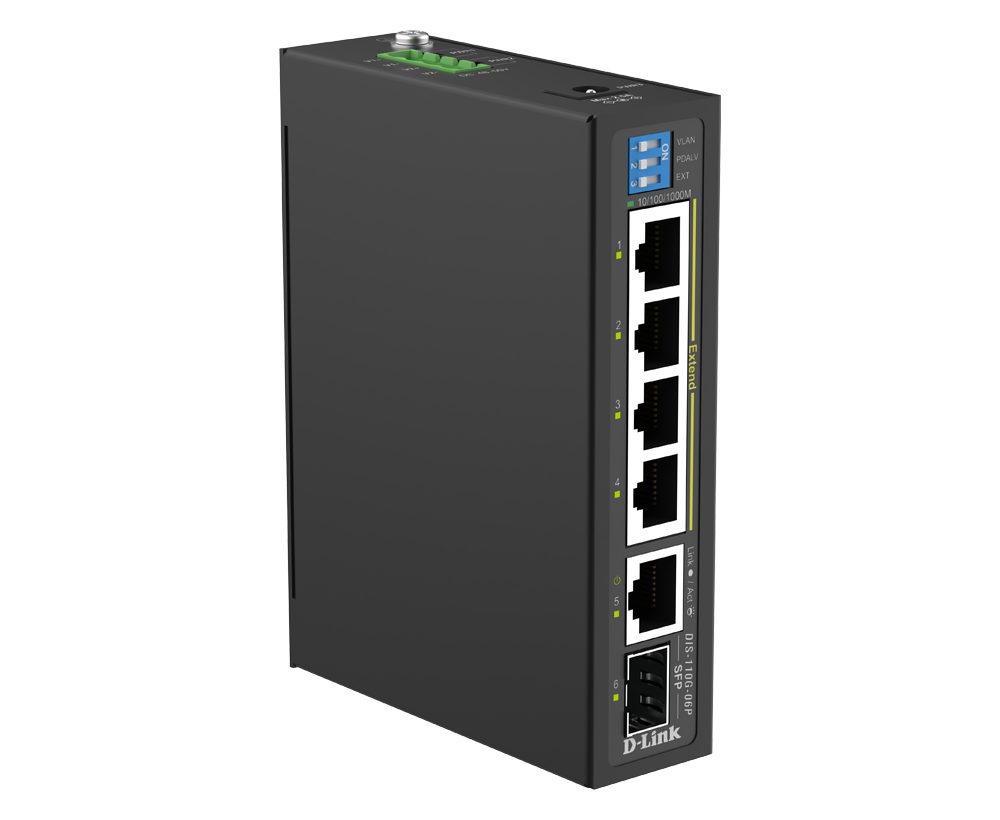

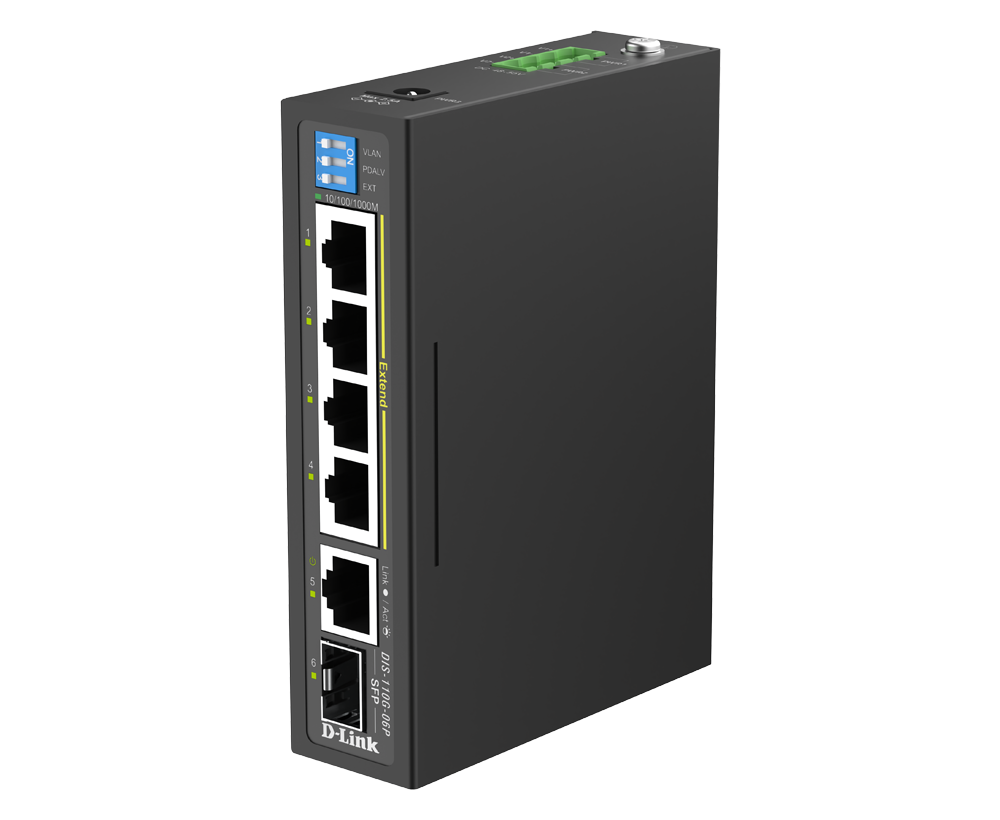

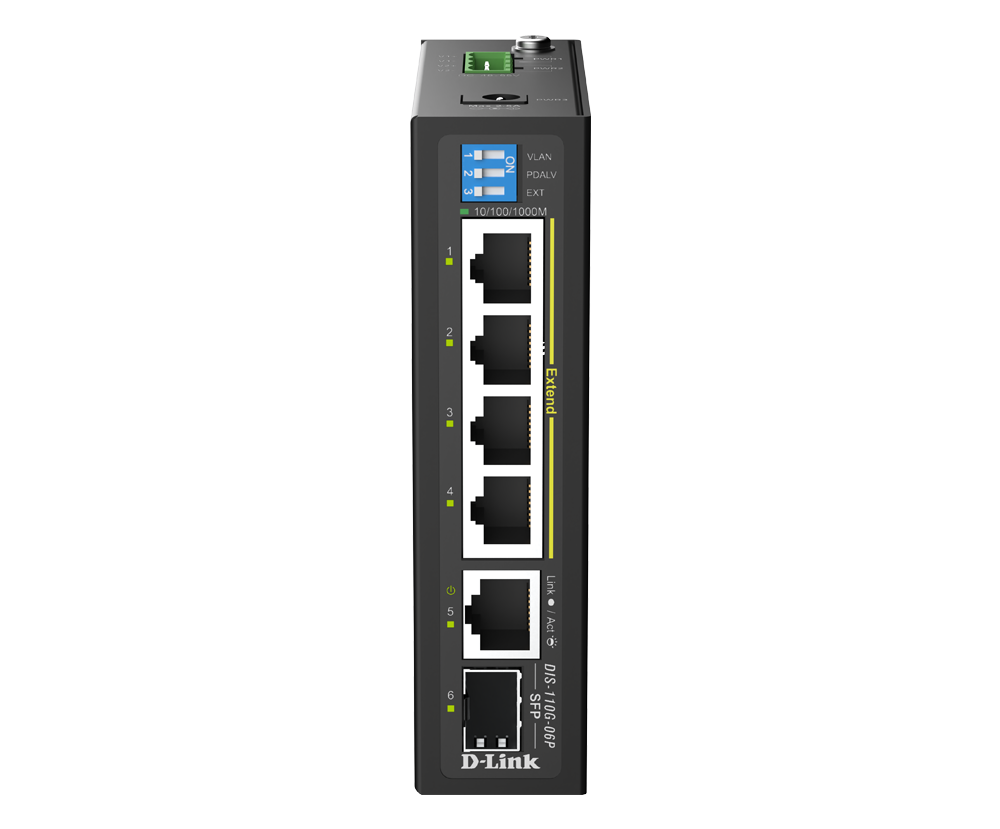

The DIS-110G-06P features four built-in PoE ports that comply with IEEE 802.3af/at standards, delivering both data and power over a single Ethernet cable. With a total power budget of up to 120W, each port can supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.
The DIS-110G-06P features SFP port that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

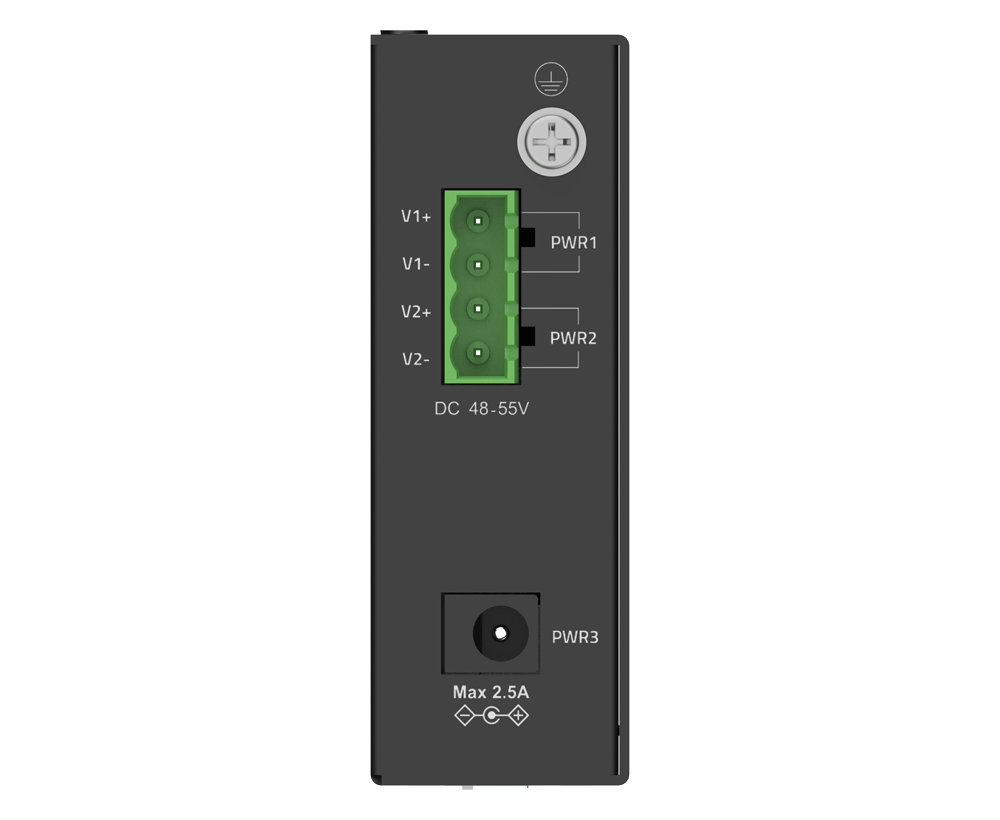

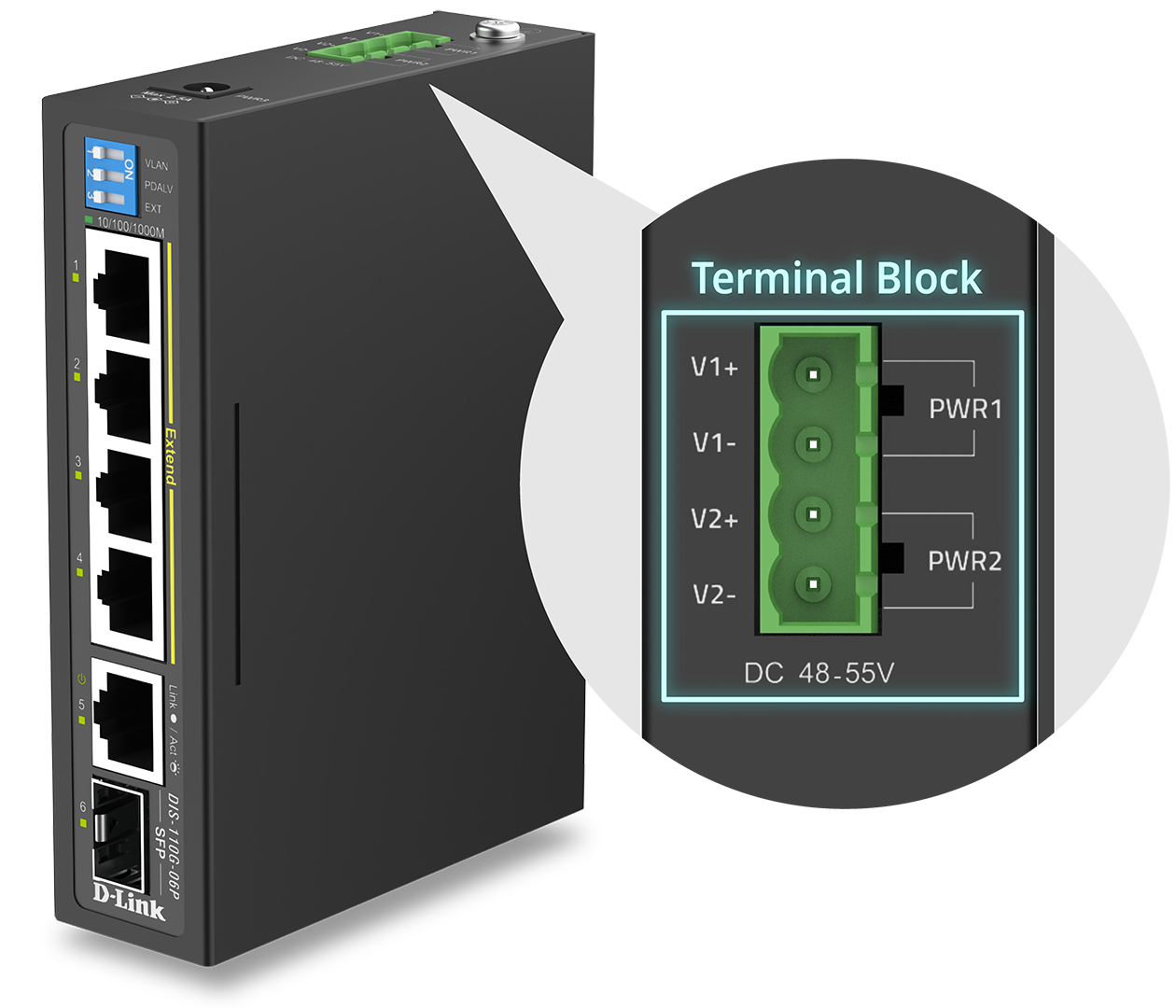

The DIS-110G-06P is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 48 – 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Wide
Voltage
Redundancy Power Supply
Overcurrent Protection
Anti-Reverse Protection
Firm
Connection

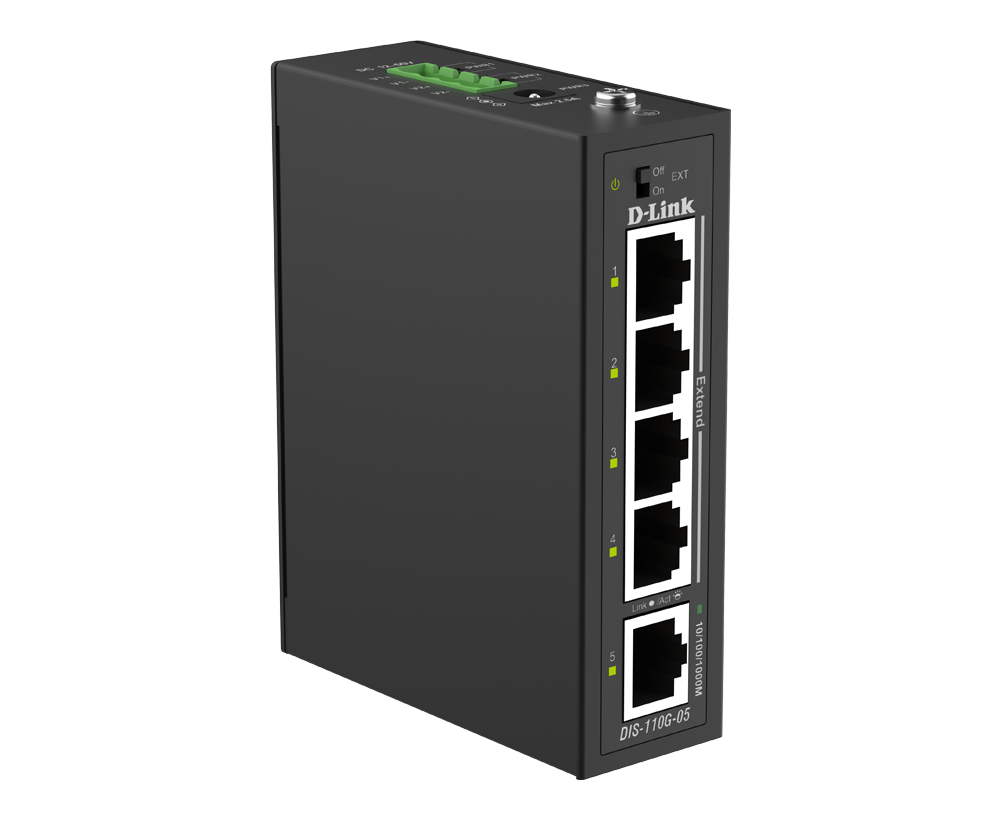

The DIS-110G-05 is an industrial unmanaged switch equipped with four 1G ports and two SFP ports, providing plug-and-play simplicity deployment. The SFP ports support long-range data transmission, removing the distance limitations of traditional Ethernet cabling. With reliable, high-performance operation, it ensures real-time data transfer and seamless connectivity for applications such as Kiosk, digital signage, LED displays, and more.
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Access
Point
City Surveillance
Building Automation
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Power Supply Type
|
DC:48~55V Dual input |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
|
Type of Uplink Ports
|
1G SFP |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
