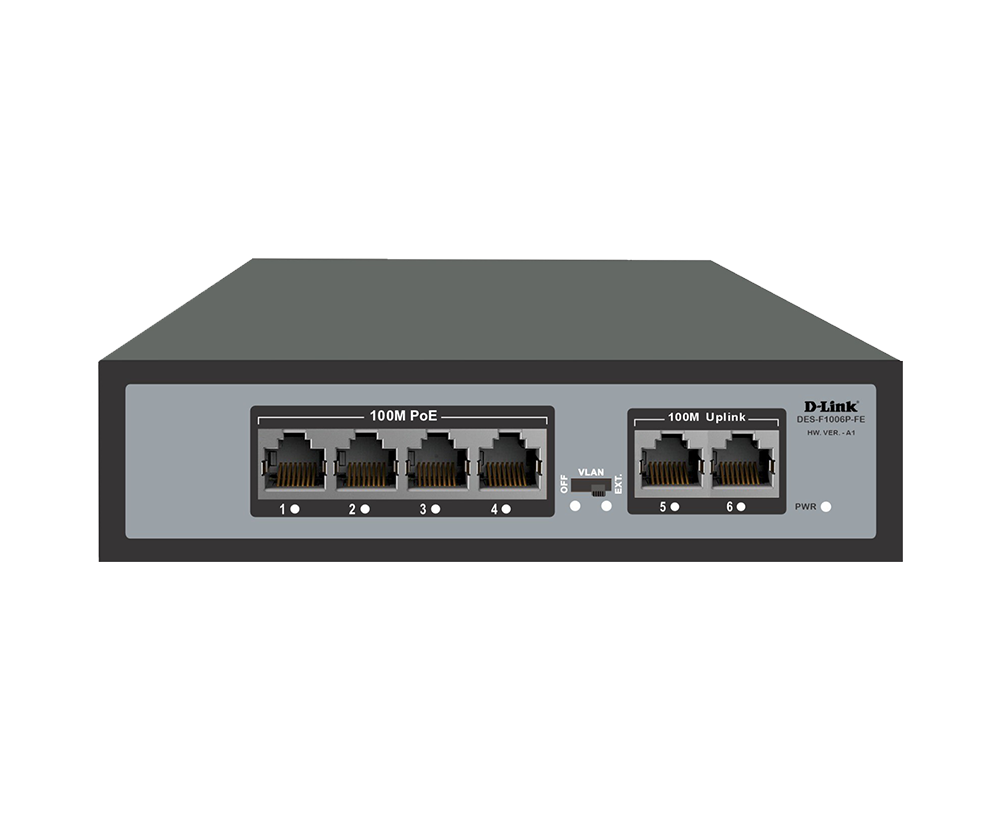

4 + 2 100Mbps 250m PoE Switch

DES-F1006P-FE

Support upward port auto MDI/MDIX.
Adopted storage forward switch system
Smart power and minimum consumption guarantee PD requirement.
With power supply circuit protection function and protection back-end device safety
Automatically provide the adaptive device
Fanless design, energy saving and environmental protection.
4 10/100 Mbps POE port
10/100/100 Mbps uplink port
Support saving power function when port connection

Network Interface	4 10/100 Mbps PoE RJ45 port (port 1 ~port 4) 2 10/100 Mbps non-PoE RJ45 port (port 5~port 6)
Transmission Rate	10/100 Mbps Each port supports MDI / MDIX auto-flip and auto- Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45 port
Protocols and Standards	IEEE802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T ANSI/IEEE 802.3 NWay auto-negotiation IEEE802.3x Flow Control IEEE 802.3af/at standard
Performance	Bandwidth: 1.2 Gbps (no block) Network delay (100 to 100M bps): maximum 20 μs (using 64byte packet) Frame filtering and transmission rate 10M: 14,800pps 100M: 148,800pps
LEDs Indicator	Power LINK/ACT, POE
POE Pin	1/2(+) 3/6(-);
Power	Total Power: 65W
Lightning protection	6KV
Physical specifications	Dimensions (LxWxH): 137mm x 122mm x 33mm Weight: 0.40kg
Environmental norms	Operating Temperature: 0°C~40°C Storage Temperature: -10°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
EMC	CE
