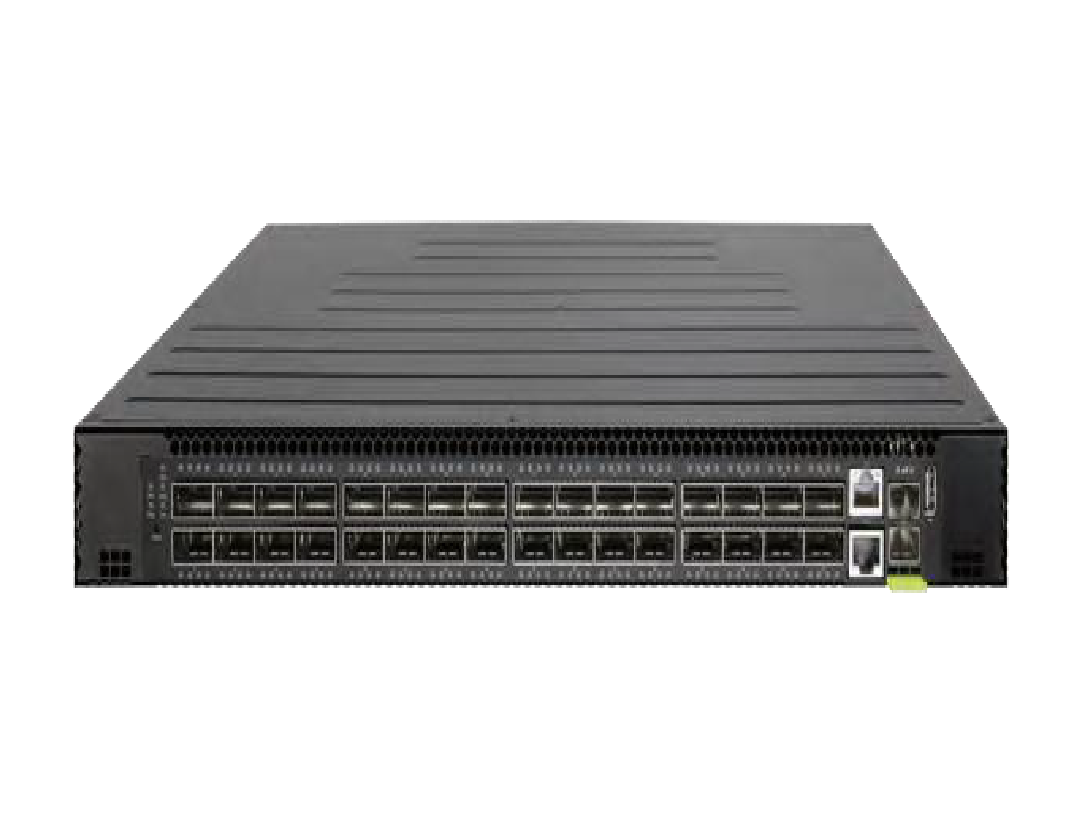

100 Gig Data Center Switch
DTS-F5000-32ZS
- Product Status (Revision IN): Live
- 32 x 100G QSFP28 ports
- Wire-speed, ultra-low latency switching
- Supports Open Network Install Environment (ONIE) for zero-touch installation of network OS
- SDN-enabled with OpenFlow 1.3 support
- Dual AC/DC hot-swappable power supply modules for 1+1 redundancy and load sharing
- Modular, 5+1 hot-swappable fan design
Where to buy
D-LinkNOS Software Features
Built on SONiC’s modular architecture - open, automatable, and cloud-scale ready. Powered by D-LinkNOS (enterprise SONiC), the DTS-F5000-32ZS delivers spine-class throughput and reliability for cloud-scale fabrics. Supports VXLAN, BGP-EVPN, EVPN multihoming, RoCEv2, and DCBX/PFC/ETS for predictable low-latency performance in AI and enterprise cores.
Specification
| Interfaces | 32 x 100G QSFP28 ports, 1x USB Type A |
|---|---|
| Console Port | 1 x RJ-45 console port |
| Switching Capacity | 3.2 Tbps |
| Management Port | 11 x RJ-45 1000BASE-T management 2 x SFP+ 10G management ports |
| Max. Forwarding Rate | 1.52 Bpps |
| Packet Buffer Memory | 32 MB |
| MAC Address Table | 32K min./288K max. |
| Maximum Power Consumption | 550 W |
