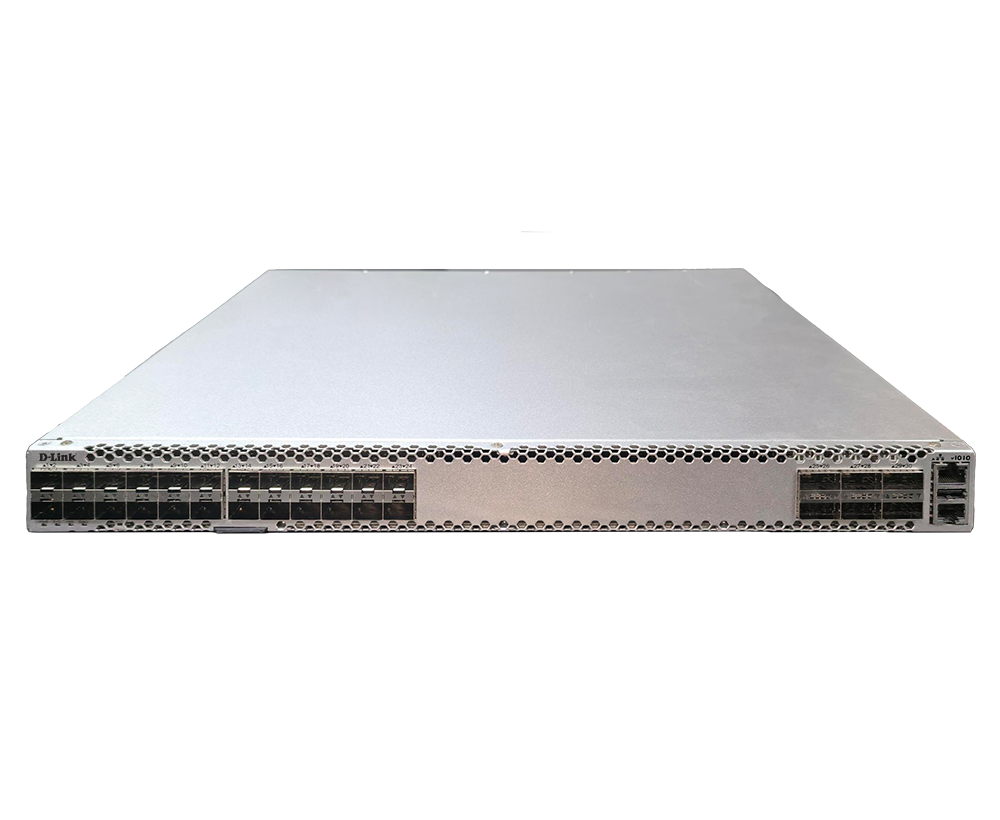

24 x 10G SFP + 6 x 100G QSFP28 Optical L3 Manage Switch
DXS-F3400-28SC (B1 version)
- Product Status (DXSF3400_B1_IN): Live
- Flexible Port Mix - 24×10G SFP+ for access and 6×100G QSFP28 for uplinks, supporting mixed NIC-speed environments
- Multi-domain Role - VXLAN EVPN, VRF segmentation, MC-LAG
- VSF Stacking - Stack up to 6 units into a single logical chassis for simplified management and redundancy

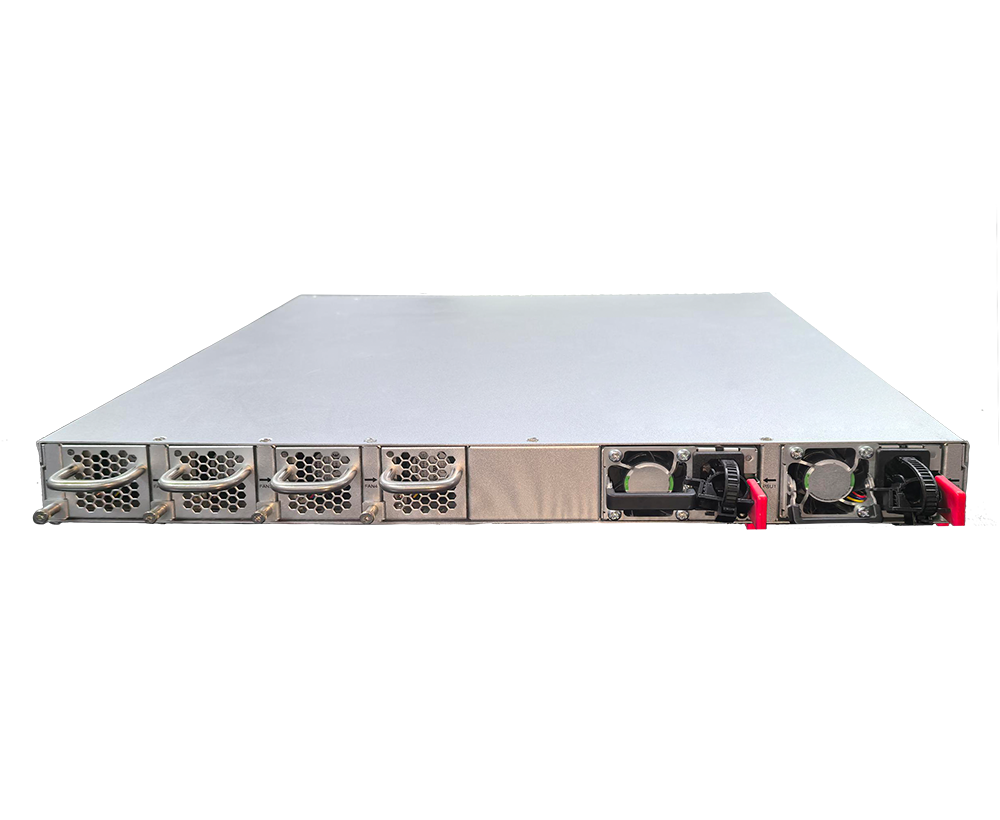

- High Availability - M-LAG, ERPS, and hot-swappable power and fans for carrier-grade uptime
- Open & Automated - ZTP, Netconf, SNMP, and telemetry-ready for network automation
Where to buy
Key Specifications at a Glance
| Metric | Value |
|---|---|
| Ports | 24 × 10G SFP+ & 6 × 100G QSFP28 |
| Switching Capacity | 1.7 Tbps |
| Forwarding Rate | 1,249.92 Mpps |
| Packet Buffer | 6 MB |
| Stacking (VSF) | Up to 6 units — single logical chassis |
| High Availability | M-LAG · ERPS · Hot-swap PSU & fans |
Platform Highlights
A compact, high-density switch engineered for high availability, open automation and service-level operations — across campus, data center and carrier edge.
Flexible Port Mix
24×10G SFP+ for dense server and access connectivity, plus 6×100G QSFP28 for spine and uplink — ideal for mixed-speed environments.
Multi-domain Role
VXLAN EVPN overlays, VRF tenant segmentation, M-LAG active-active resiliency and MPLS-ready operation — campus core, leaf or compact PE from one SKU.
VSF Stacking
Stack up to 6 units into a single logical chassis with unified management and resilient forwarding — simplifying campus scale-out and lifecycle operations.
Carrier-grade Availability
M-LAG for active-active multi-chassis LAG, ERPS ring protection and hot-swappable redundant power and fans for mission-critical uptime.
Open & Automated
ZTP for zero-touch provisioning, Netconf, SNMP and integration points for modern automation toolchains and controller-driven environments.
Transit & Industrial Ready
Carrier OAM, multicast optimisations and hardened management features for CCTV, public address and rail transit network deployments.
D-LinkNOS Software Stack
Runs D-LinkNOS exposing modern management, full L2/L3 features and overlay support — enabling traditional and programmable network models from the same hardware.
Fabric & Overlay
- VXLAN / EVPN VTEP (BGP EVPN control-plane)
- Host and prefix distribution — Type-2 / Type-5
- M-LAG for active-active multi-chassis link aggregation
- ERPS (G.8032) ring protection — sub-50ms recovery
- VRF for multi-tenant segmentation
- VSF stacking — up to 6 units logical chassis
L2 / L3 Foundation
- BGP, OSPF, IS-IS, static routing
- ECMP load balancing
- QoS — DSCP/CoS, WRED, shaping & policing
- IGMP snooping, PIM multicast
- Jumbo frames, LLDP, STP/RSTP/MSTP
- ACLs, storm control
Management & Automation
- CLI, Web GUI, SNMPv1/v2c/v3
- ZTP zero-touch provisioning
- NETCONF
- sFlow, Syslog,
- AAA, TACACS+, RADIUS
High Availability
- VSF — single-pane chassis management
- M-LAG — active-active forwarding
- ERPS — sub-50ms ring recovery
- Hot-swap PSU and fan modules
- Warm reboot and graceful restart
Use Cases
Five distinct deployment scenarios demonstrating the DXS-F3400-28SC's ability to span campus, data center and service-provider responsibilities without changing hardware.
Use Case 1 — Small / Medium Campus Core (VSF)
Overview: Stack multiple DXS-F3400-28SC units as a single VSF logical chassis to form the campus core. A unified management and forwarding plane simplifies distribution and services — ideal for education campuses, corporate sites and branch aggregation where operational simplicity and resilience are both critical.
Business value: Simplified single-pane management, resilient forwarding and scale-out without complexity.
| Topology Element | Details |
|---|---|
| Core device | DXS-F3400-28SC VSF stack (up to 6 units) |
| Uplinks to WAN/Core | 100G QSFP28 |
| Downlinks to distribution | 10G SFP+ |
| Key protocols | VSF, M-LAG, ERPS, BGP, OSPF |
Use Case 2 — Distribution Leaf (M-LAG or VSF Dual-homed)
Overview: Deploy in M-LAG pairs at the distribution layer to give access switches active-active forwarding and predictable convergence. Where single-pane management is preferred, VSF-based distribution simplifies lifecycle operations across multi-building campus networks.
Business value: Active-active forwarding, graceful convergence and reduced operational complexity across multi-building sites.
| Topology Element | Details |
|---|---|
| Distribution device | DXS-F3400-28SC M-LAG pair or VSF cluster |
| Uplinks to campus core | 100G QSFP28 |
| Downlinks to access | 10G SFP+ — dual-homed |
| Key protocols | M-LAG, VSF, ERPS, STP/RSTP |
Use Case 3 — Border Leaf (Micro Data Center or Testbed)
Overview: Serves as an excellent border leaf for micro-data centers, lab environments and testbeds. Provides policy demarcation, telemetry collection and high-capacity 100G uplinks — enabling fast service rollout and secure separation between test and production zones.
Business value: Policy demarcation, fast telemetry and 100G uplinks for secure zone separation and rapid service iteration.
| Topology Element | Details |
|---|---|
| Border leaf device | DXS-F3400-28SC |
| Uplinks to internet/core | 100G QSFP28 — eBGP peers |
| Downlinks to DC zones | 10G SFP+ — VRF-isolated segments |
| Key protocols | VXLAN EVPN, VRF-Lite, BGP, policy routing |
Use Case 4 — Server-farm / ToR (M-LAG Dual-homed or VSF)
Overview: Deploy as ToR for 10G server racks with 100G uplinks to spine. Use M-LAG dual-homed pairs for classic high-availability ToR with active-active server connectivity, or in VSF clusters for a virtual ToR model with simplified lifecycle operations and single-pane management.
Business value: High-availability ToR with active-active server connectivity and 100G spine uplinks — M-LAG or VSF depending on operational preference.
| Topology Element | Details |
|---|---|
| ToR device | DXS-F3400-28SC M-LAG pair or VSF cluster |
| Uplinks to spine | 100G QSFP28 — dual-homed to Spine-1 & Spine-2 |
| Downlinks to servers | 10G SFP+ — dual-homed active-active |
| Key protocols | VXLAN EVPN, M-LAG, VTEP, ECMP |
D-LinkNOS Portfolio
The complete DC fabric stack. Every layer covered — from ToR to spine. All running D-LinkNOS.
| Model | Description | Role |
|---|---|---|
| DXS-F3400-28SC | 24×10G SFP+ · 6×100G · VSF · M-LAG · MPLS | Campus Core / Leaf / PE |
| DXS-F3610-54S | ToR 48×10G SFP+ · 6×100G uplinks | DC Leaf · Border Gateway |
| DQS-5F000-56ZS | 25G Leaf · 100G uplinks · MC-LAG | 25G DC Leaf |
| DTS-F5000-32ZS | Spine · 32×100G · 3.2 Tbps | Spine / Aggregation |
Specification
| Ports | 24 × 10G SFP+ & 6 × 100G QSFP28 |
|---|---|
| Console Port | RJ-45 console ports for out-of-band CLI management |
| Management Port | 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management |
| USB Port | 1*2.0 port |
| Switching Capacity | 1.7 Tbps |
| Packet Buffer Memory | 6 MB |
| MAC Address Table | Up to 32K entries |
| Power input | 100 to 240 V AC, 50Hz ± 10% (Hot-Swap)*2 |
| Dimensions | 440 x 410 x 44 mm |
| Operating Temperature | 0° to 40° C |
| Flash | 1 GB - NAND FLASH/ MMC - 8GB |
| Dram | 4 GB |
| Power Consumption | No Load: 45W, Full Load: 70W |
| MTBF (H) | >200 000 |
| Stackability | VSF (up to 6 Units) |
