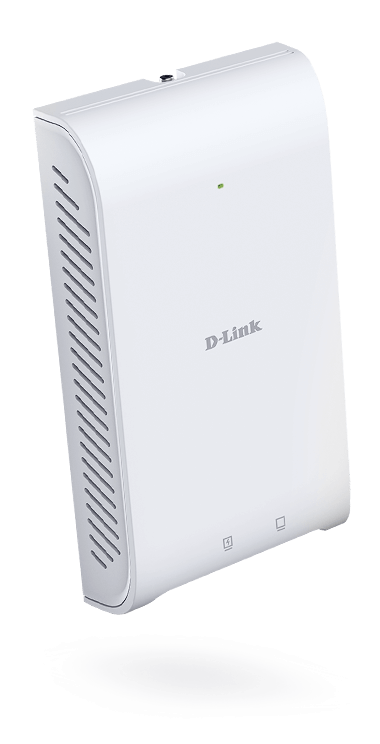

Wireless AC1200 Wave 2 Wall-Plated PoE Access Point
DAP-2622
- Product Status (Revision A1_v1.00): Live
- Compatible with Nuclias Connect for centralised network management
- IEEE 802.11ac Wave 2 wireless, Up to 1200 Mbps
- MU-MIMO with beamforming
- Gigabit LAN port & supports 802.3at PoE
- Wall-plate design for installation on Ethernet wall sockets
- WPA/WPA2 Personal/Enterprise encryption
Where to buy
Business Wi-Fi that’s simple to install and simple to manage.
Plug this Nuclias Connect Access Point into any Ethernet wall socket and deliver high-speed AC Wave 2 Wi-Fi on a network that you can manage remotely. Fewer wires and powerful management with guest-access make Nuclias Connect the perfect solution for any professional environment.

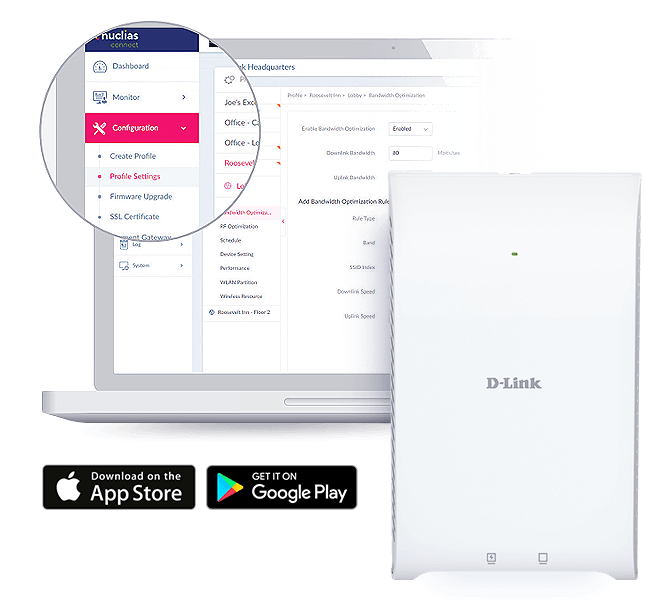

Manage your business network with ease
The DAP-2622 works with Nuclias Connect - a software-based management platform (with optional hardware controller) that can be used on-premises, or as a cloud solution hosted on a public cloud service. Admin tasks can be swiftly carried out from the Nuclias Connect app, or server/PC-based software for easy access, easy automation, and easy network scalability.
Easily manage your network with Nuclias Connect
Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.
Minimise the hassle of admin tasks
Empower admins to work efficiently & effectively with role-based options that enable delegated access across your network. You can deploy, configure, update and expand rapidly, even across multiple sites, and utilise the intuitive dashboard to keep issues to an absolute minimum.
Free-to-download software & app
Nuclias Connect software and mobile app are free to download and there are no licensing or support fees. Easily manage your network, anytime, anywhere.
Flexible installation with PoE
Supports Power over Ethernet (802.3at) for a simpler installation with less cable clutter & includes a wall-plate design for installation on Ethernet wall sockets.
Super-fast Wireless AC Performance
New generation IEEE 802.11ac Wave 2 wireless with high-speed 1200 Mbps throughput1 and dual-band 2x2 MIMO technology with band steering.
x3 LAN ports
Three LAN ports offer the option to expand your wired network, including the option to connect and power an additional PoE device, such as a VoIP phone.
Multiple Operation Modes
Supports multiple AP modes for performance optimisation based on your network’s needs.
The reliable performance that your business deserves
Designed to support a network that you can count on, the DAP-2622 utilises 802.11ac Wave 2 which not only provides fast wireless speeds, but also enhances your network efficiency by prioritising traffic for an all-round smoother and uninterrupted Wi-Fi experience.

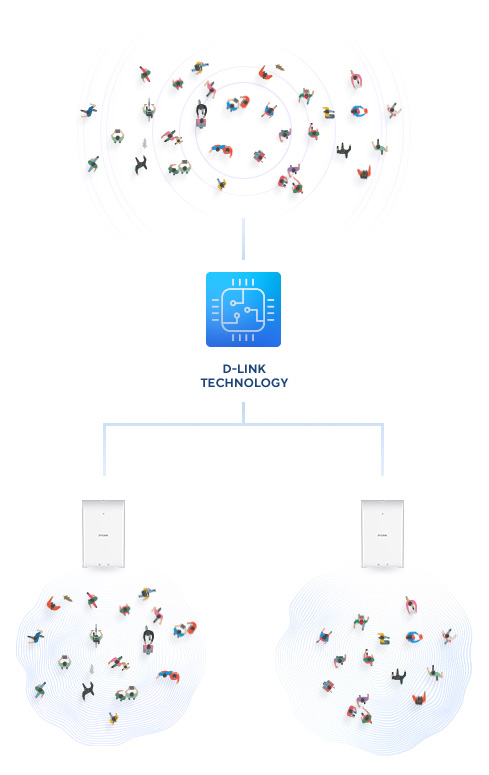

Seamless and self-sufficient networking
The DAP-2622 supports Band steering, MU-MIMO and beamforming - all designed to work together to alleviate congestion by automatically routing devices based on Internet usage, so your network won’t be slowed down by devices performing intense tasks.
This Access Point also supports Load Balancing and Airtime Fairness technology, meaning that it plays well with other APs by distributing workloads between them for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.

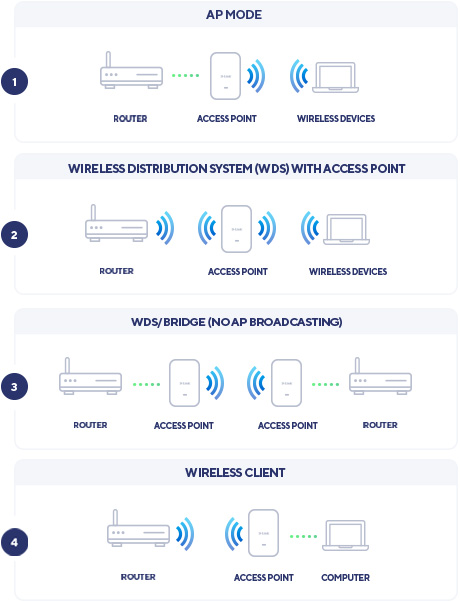

Multiple Operation Modes
To maximise total return on investment, the DAP-2622 can be configured to optimise network performance based on any one of its multiple operation modes: access point, wireless distribution system (WDS) with access point, WDS/bridge (no AP broadcasting), and wireless client.

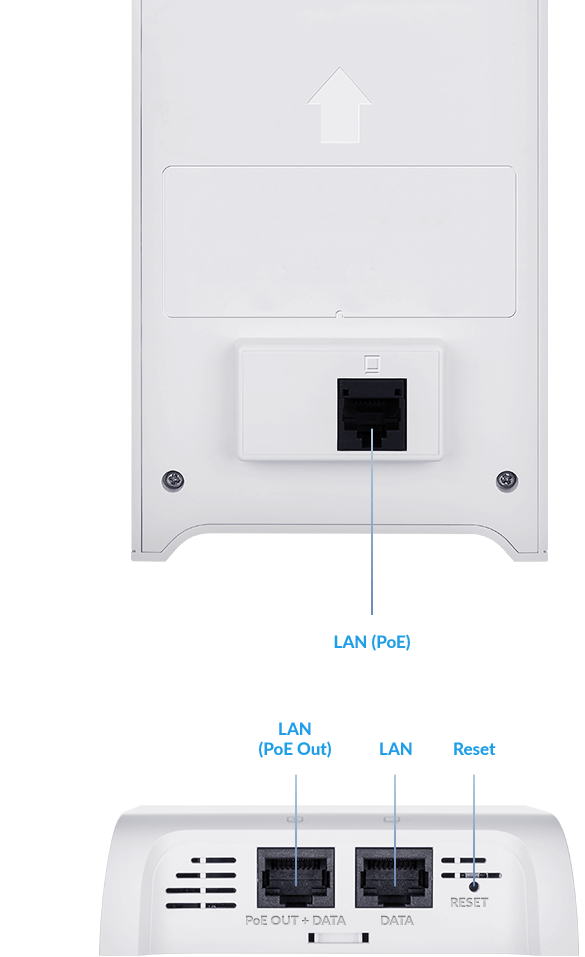

Convert any Ethernet socket into a high-speed Wi-Fi hotspot
The DAP-2622 is equipped with two PoE ports (x1 input and x1 output), which are able to power an external device (such as an IP phone), as well as a LAN port if a wired connection is necessary.
The low-profile design, together with the lack of cable clutter allows for an easy and elegant installation over existing Ethernet sockets.
Network management, refreshed.
Automate, monitor, manage and scale your network without the complexity or cost.
Minimise the hassle of deployments, configurations and admin tasks.
Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access and an intuitive dashboard make life easier for network admins, whilst functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.
Nuclias Connect offers tremendous flexibility compared to traditional hardware-based unified management systems.
Ease-of-Use
Centralised management capabilities, easy setup, access from anywhere, comprehensive admin tools, and the intuitive dashboard functionality make life easy for network admins, whilst its functionality makes life uncomplicated for network users.
Flexibility
Nuclias Connect offers the flexibility to thrive in a variety of scenarios and can utilise legacy equipment, or be implemented as a total solution. Networks can be managed from anywhere and both our management software and reports are customisable.
Value
All Access Points (APs) are license-free and allow for inexpensive network expansion thanks to centralised configuration. Our management software is free to download and provides a comprehensive set of technical features that reduce admin costs.

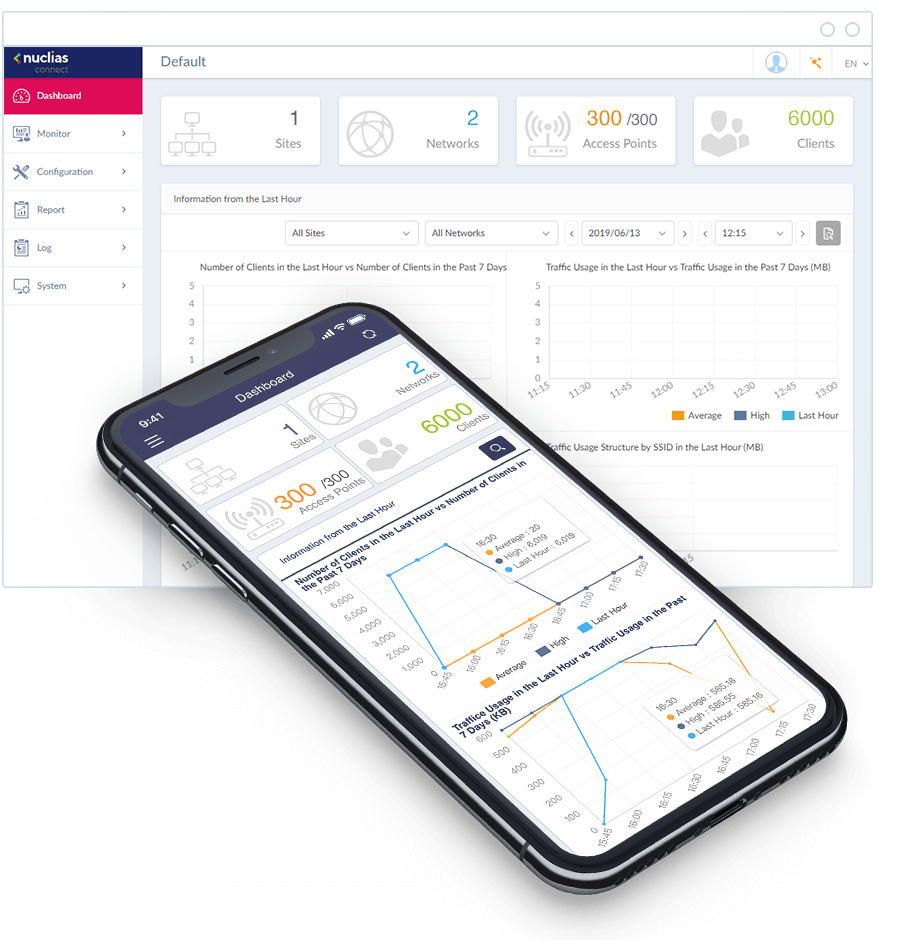

Manage your business network, like never before.
Nuclias Connect enables you to manage and control your network from anywhere with an internet connection. It provides an extensive understanding of your network and its users through traffic analytics and status reports, which can be viewed at a glance through an intuitive interface on PC, or phone via our app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network, to the level of a single AP.

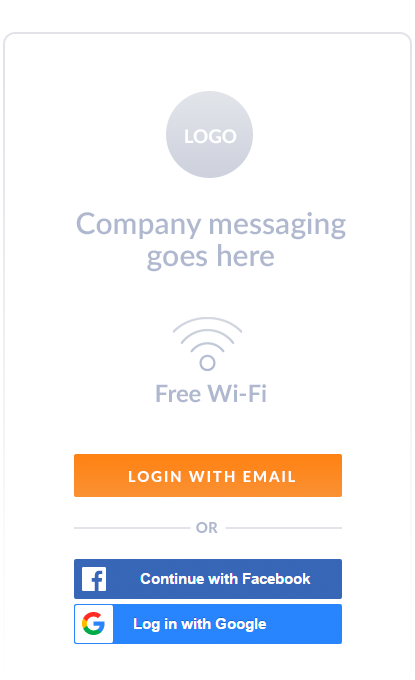

Your Guests Online in No Time with a Captive Portal
With your dual-band Wi-Fi up and running, it is time to get everyone connected. A captive portal is an immensely easy method for getting users online quickly. Simplify further with Social Login so guests can get online whichever way suits them best.
And not only does it also increase brand recognition, but businesses can collect valuable data to better understand users.

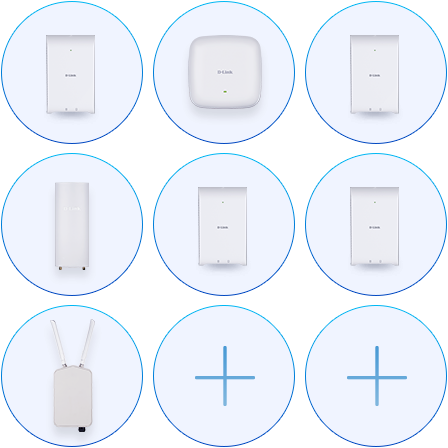

Scale your network alongside your business
Nuclias Connect gives you the financial and technical flexibility to grow your network as your business does, whilst retaining a robust and centralised management system, of up to 1,000 APs.
Adding a new site or expanding an existing one is quick as Nuclias Connect makes it easy to scale the network as new access points are automatically discovered, allowing them to be quickly managed and deployed.
Nuclias Connect use-cases:
SMB & SME
Gain valuable insights into your business, manage multiple sites, ensure critical data doesn't leave your premises, and customise the network to your needs.
Retail Chains
Create a secure and reliable wireless network for retailers of any size. Connect all POS devices and create fast Guest Wi-Fi networks for customers, ensuring business runs smooth.
Universities
Provide a scalable and robust network for students, with full web control and filtering. Keep management centralised and data secured on your premises.
Hotels
Delight guests with in-room high-capacity, fast Wi-Fi. Drive customers to your marketing funnel, and increase re-engagement and customer loyalty.
Efficient hardware, dedicated to Nuclias Connect.
The new Nuclias Connect Hub (DNH-100) is an optional hardware controller that’s small and comes pre-installed with Nuclias Connect. It provides an inexpensive, ready-made solution, and makes AP configurations fast and easy. It removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
Specification
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless AC Wave 2 |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
300 Mbps 2.4 GHz 867 Mbps 5 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
2.8 dBi for 2.4 GHz 4.1 dBI for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
2 x Gigabit Ethernet LAN |
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Management platform
|
Nuclias Connect |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
SSH
|
Supported
|
