DWM-321 4G LTE In-Vehicle Hotspot

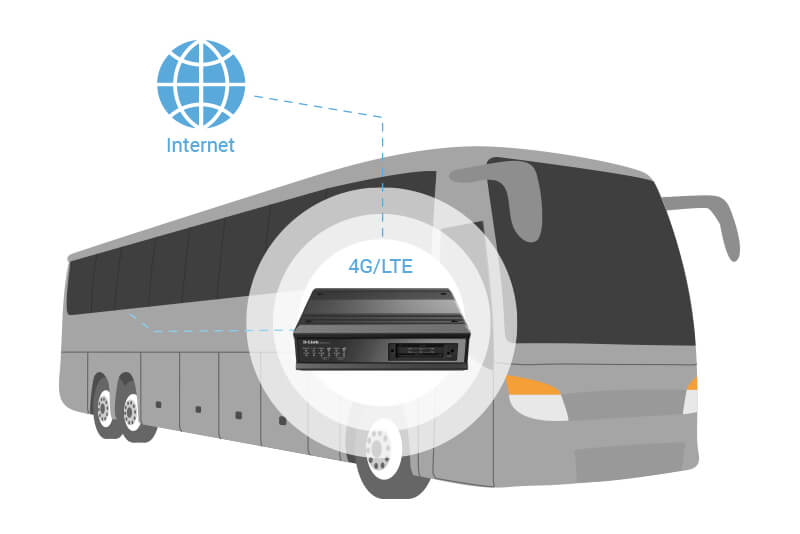

Connectivity in Transit

The D-Link 4G LTE In-Vehicle Hotspot acts as a hotspot gateway that lets vehicular passengers connect to fast 4G/LTE, with fast downlink speeds of up to 150Mbps, and uplink speeds up to 50Mbps.

It allows multiple users to access e-mail and stream music and video all at the same time, while its configurable dual-SIM fallback provides reliability and flexibility in mixed network environments.

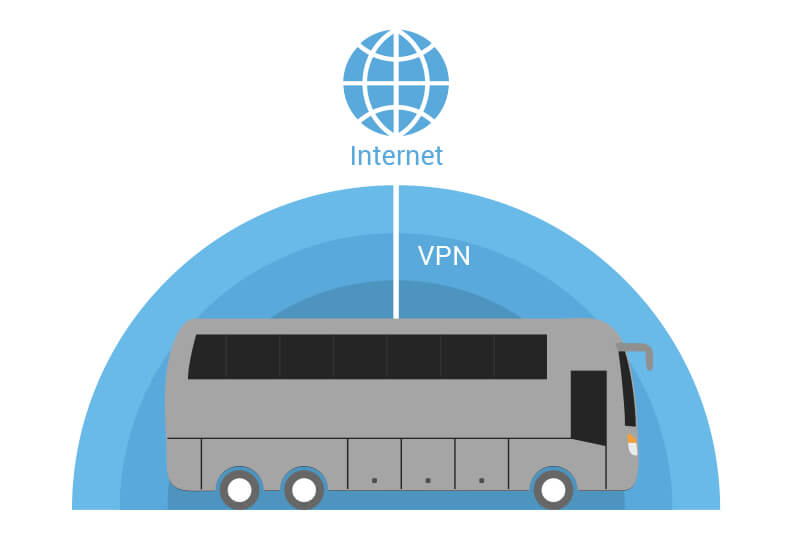

Reliable VPN

The D-Link 4G LTE In-Vehicle Hotspot lets you create a high-speed, highly-customizable Virtual Private Network (VPN) for remote or local access. It supports different tunneling technologies such as IPSec, OpenVPN, L2TP (over IPSec), PPTP, and GRE.

Advanced functions such as full tunnel, tunnel failover, tunnel load balance, NetBIOS over IPSec, NAT Traversal, and Dynamic VPN are also supported.

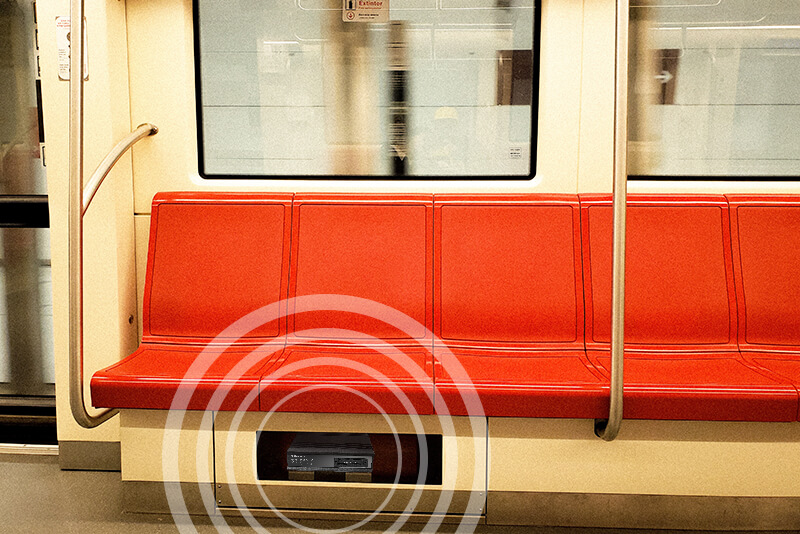

Robust Build Quality

The industrial-grade zinc casing provides reliable high-speed connectivity even in extreme conditions and protecting the device against the rigors of life on the road. Wall mounts allow the 4G LTE In-Vehicle Hotspot to be mounted in a range of locations around the vehicle.

Network Agility for Enterprise IoT Management

D-Link offers the latest advanced EaaS (Edge as a Service) cloud computing platform to enable flexible, secure and low latency network for mission critical operations.

With fast, flexible deployment and having full control and visibility over your network, the D-ECS D-Link Edge Cloud Solution platform offers extensive functionality enabling device management, traffic analytics, security, cost-management and more.

Learn More

Specification

Advanced Features	DMZ & Pass Through Port Forwarding QoS engine (Quality of Service) SNMP Support TR-069 CPE WAN Management Protocol Virtual Server Web-based UI
Data Throughput	LTE TDD: 130 Mbps (DL) / 30 Mbps (UL) DC-HSDPA/HSUPA: 42 Mbps (DL) / 5.76 Mbps (UL) EDGE: 296 Kbps (DL) /236.8 Kbps (UL) GPRS: 107 Kbps (DL) / 85.6 Kbps (UL) LTE FDD: 150 Mbps (DL) / 50 Mbps (UL) WCDMA: 384 Kbps (DL ) / 384 Kbps (UL)
Dimensions	160 x 125 x 47 mm (6.30 x 4.92 x 1.85 in)
Interfaces	1 x 10/100/1000 Fast Ethernet WAN/LAN port 1 x DC power input 2 x 10/100/1000 Ethernet LAN port 4 x SIM slots (Two are optional) DI/DO/TX/RX/Grounding ports IGN (Ignition Sense) Power Control function
Power Input	DC 9 V / 2.7 A ~ 36 V / 0.7 A
Standards	IEEE 802.11ac/n/g/b/a
Weight	865 g
