4G M2M Router
DWM-530-T
- Product Status (Revision AX_v1.11): Live
- 4G LTE speeds of up to 150 Mbps1 for fast Internet access and data transfer
- Wi-Fi speeds of up to 300 Mbps1 to connect multiple Wi-Fi devices
- 1 x Micro SD card slot is specifically designed for data log storage
- 1 x Fast Ethernet WAN/LAN port configurable as wired WAN access
- 3 x Fast Ethernet LAN ports for reliable wired connectivity
- 2 x SIM slots for cellular WAN failover redundancy
- 1 x GNSS for GPS/GLONASS
- No set up required, simply plug it in and your network is ready to go
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- DIN-rail mounting allows for optimal device placement
Where to buy
User Benefits
Dual-SIM Failover
Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.
Ethernet & 4G Redundancy
Seamless failover between Ethernet WAN and 4G for reliable connectivity.
SMS Event Management
Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices from anywhere via the D-ECS management platform.

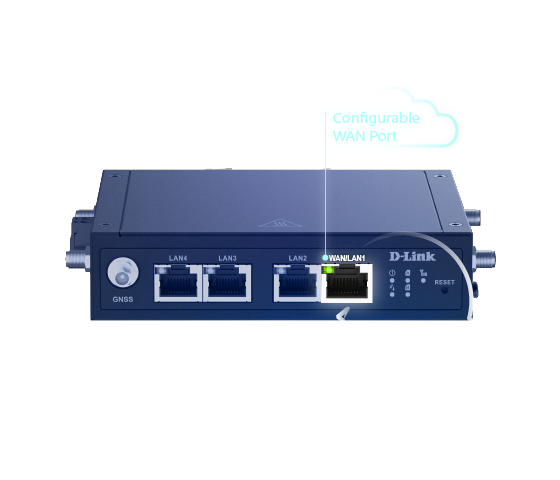

Carrier Diversity and Network Redundancy
The DWM-530-T 4G M2M Router ensures continuous service with Dual SIM (Micro-SIM 3FF) support for enhanced carrier diversity and network redundancy. Reliable connectivity even in locations with limited coverage is now possible. Additionally, it includes four LAN ports, one configurable as a WAN, giving you flexible options to seamlessly switch between Ethernet WAN and LTE connections, ensuring you always have the best network access.
Secure Your Network with VPN
The DWM-530-T 4G M2M Router boosts network security with robust VPN support, offering protocols such as IPSec, OpenVPN, PPTP, L2TP, and GRE. These features enable encrypted connections, versatile tunneling, and secure remote access to protect sensitive data effectively. Ideal for retail operations, small shops, pop-up booths, and smart parking systems, the DWM-530-T ensures that financial transactions and customer information are securely managed and transmitted.
Robust Build Quality
The DWM-530-T is designed to maximize M2M connection reliability and availability, featuring a corrosion-resistant zinc-plated steel casing, wide voltage input range, wide operating temperature range and humidity tolerance, making it suitable for the most demanding M2M applications in virtually any environment. Convenient DIN-rail mounting allows the DWM-530-T to be mounted virtually anywhere to optimize signal quality.
Related Products

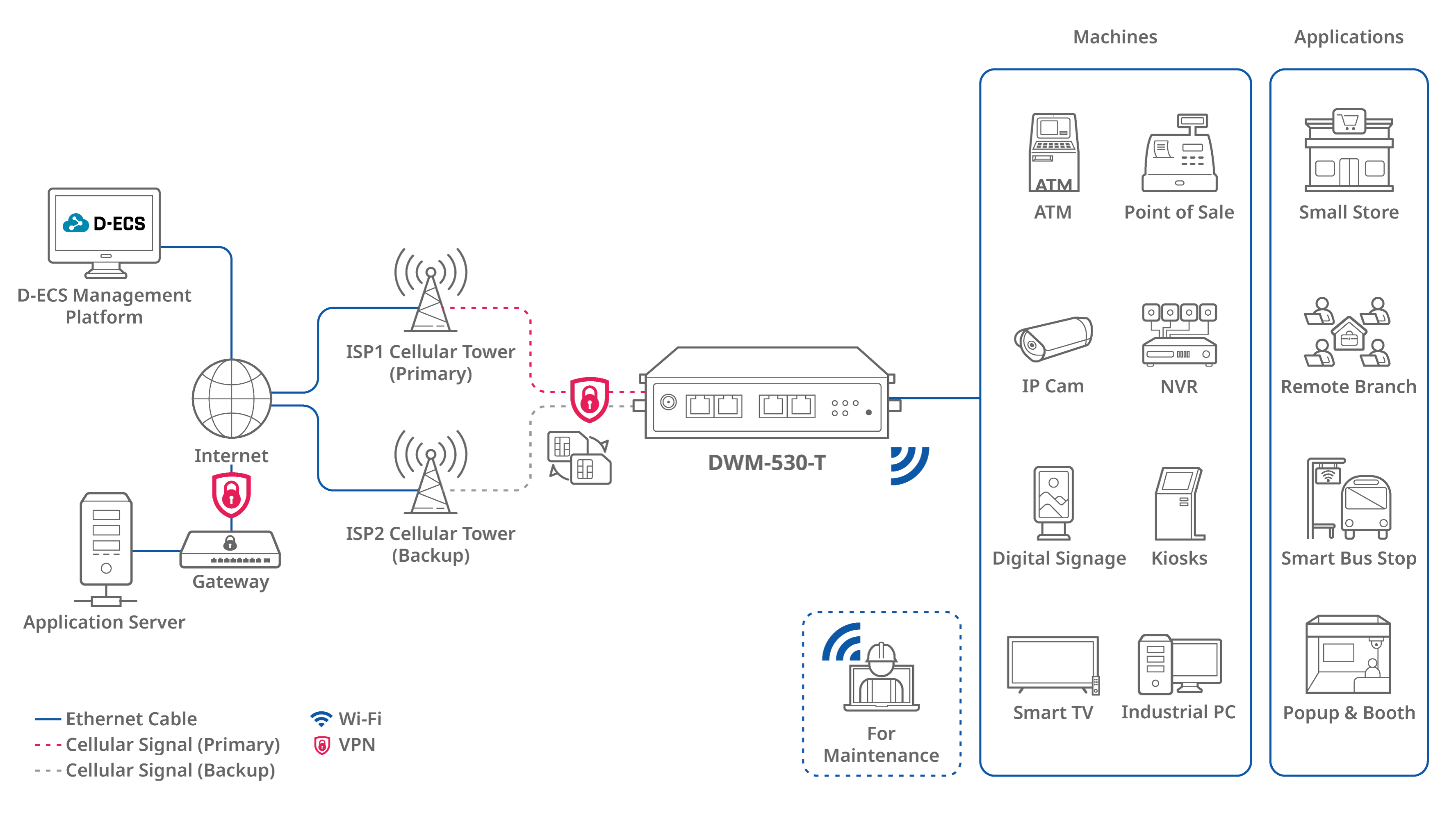

Reliable Wired & Wireless Connectivity For Virtually Any Device
Discover the DWM-530-T M2M Router, designed for robust IoT connectivity. It offers dual cellular networks for reliable connections, even during network outages, and features VPN for secure data transfers. Centralized management is simplified via the D-ECS platform.
Ideal for various applications including ATMs, NVRs, kiosks, and industrial PCs, this router supports extensive IoT needs in sectors like retail stores and mobile offices. Its versatility and reliable performance make it suitable for both small and large IoT deployments, ensuring efficient operations and security.
Versatile Applications
Kiosk
Remote access for kiosks ensures secure and continuous operation while minimizing service interruptions.
EV Charger
Remote management of charging information and usage status to optimize operations.
Smart Bus Stop
Remote access for real-time bus info and ad updates, enhancing commuter experience.
Vending Machine
Remote access to inventory and sales data optimizes machine status monitoring and restocking efficiency.
Specification
|
4G Antenna Connectors
|
2 x SMA antennas |
|---|---|
|
Wi-Fi Antenna Connectors
|
2 x SMA antenna |
|
Micro SD card Slot
|
Yes |
|
Bridge Mode
|
Yes |
|
Cellular Module
|
4G LTE Cat. 4 |
|
Ethernet Interface
|
1 x WAN/LAN FE 3 x LAN FE |
|
IPv6
|
Cellular IPv6 |
|
LAN
|
DHCP Server/Relay |
|
Local Management
|
Web UI/SSH |
|
Maximum Cellular Data Throughput
|
LTE: 150 Mbps (DL) / 50 Mbps (UL) |
|
Network Address Translation (NAT)
|
Yes |
|
OpenVPN
|
Yes |
|
Port Forwarding
|
Yes |
|
Power Input
|
2-pin TB for DC 9V-36V |
|
Remote Management
|
D-ECS |
|
SIM Slot
|
2 x 3FF Micro-SIM |
|
SMS Notification
|
Yes |
|
Temperature
|
Operating -30 to 70 ˚C |
|
WAN
|
Cellular/Ethernet |
