5G NR M2M Gateway
DWM-3010
- Statut produit (Revision A1_v100): Live
- 1 x 10/100/1000 Ethernet WAN/LAN Ports
- 2 x 10/100/1000 Ethernet LAN port
- Roll out a high-speed dual-band Wi-Fi network capable of Gigabit-plus speeds
- Reap the full benefits of 5G NR, experiencing lightning-fast downloads, ultra-low latency and reduced congestion
- Dual SIM slots allow multiple providers, eliminating dead zones and offering cellular failover
- Supports WPA2™ — Wi-Fi security for more protection
- Supports a range of professional VPN options, incl.: IPSec/OpenVPN/L2TP/PPTP/GRE
- Effortless remote management with the D-Link Edge Cloud Solution
- Connect up to 50 devices simultaneously to your Wi-Fi network
- Ruggedized design for wide-temperature operation
Voir la liste de nos partenaires
Delivering Secure Wired & Wireless Connectivity For Virtually Any Device
Delivering Secure Wired & Wireless Connectivity For Virtually Any Device
The all new 5G NR M2M Gateway from D-Link throws open the doors for industries to utilize IoT technologies, accelerate their digital transformation and embrace Industry X.0.
Why you Want it
Blazing Fast 5G
Next-gen, Gigabit-plus speeds ensure the highest throughput and reliability for IoT applications
Ultra-Low Latency
Near-instantaneous communications, essential for large-scale IoT deployments
High Efficiency IoT M2M Communication Protocols
Field communication protocols such as Virtual COM, Modbus and MQTT help IoT devices communicate more efficiently
Rugged Design
Specifically designed for harsher environments and wide temperature ranges
Dual SIM Slots
Bolster your network’s reliability with a backup SIM providing WAN failover
Centralized Management
With D-ECS, preconfigure, deploy and manage your devices, wherever you are
Blazing Fast 5G
5G is the absolute cutting edge in mobile broadband connectivity, designed to connecting everyone and everything.
Delivering multi-Gigabit speeds, ultra-low latency, greater reliability and unbeatable network capacity, 5G’s empowering industries in ways that LoRa or NB-IoT cannot.
The Catalyst for IoT in Industry X.0
Industry X.0 demands large-scale deployment of sensors and monitors throughout smart factories, warehouses and other industrial settings. The DWM-facilitates private network deployments to ensure low latency for near-instantaneous M2M communications.
Support for Industry Standard IoT/M2M
Communication Protocols
Communication Protocols
Field communication protocols such as Virtual COM, Modbus and MQTT enable an extensive range of IoT devices
communicate efficiently with one another.

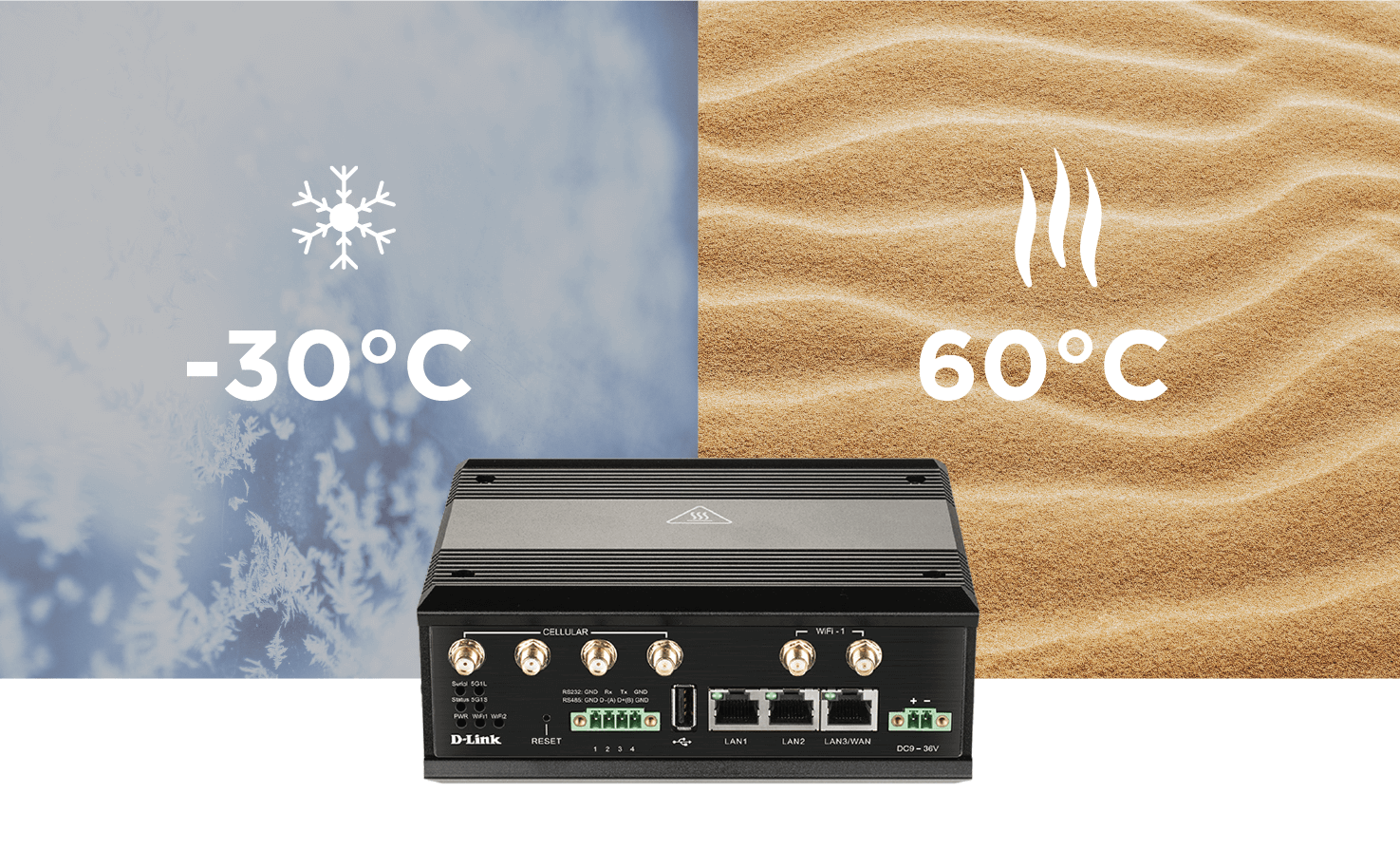

Rugged Design, Enhanced Durability
The DWM-3010 can withstand wide temperature ranges from a chilly -30°C up to a sweltering 60°C. The robust and
rugged design is perfect for smart industrial applications.
Potential Applications

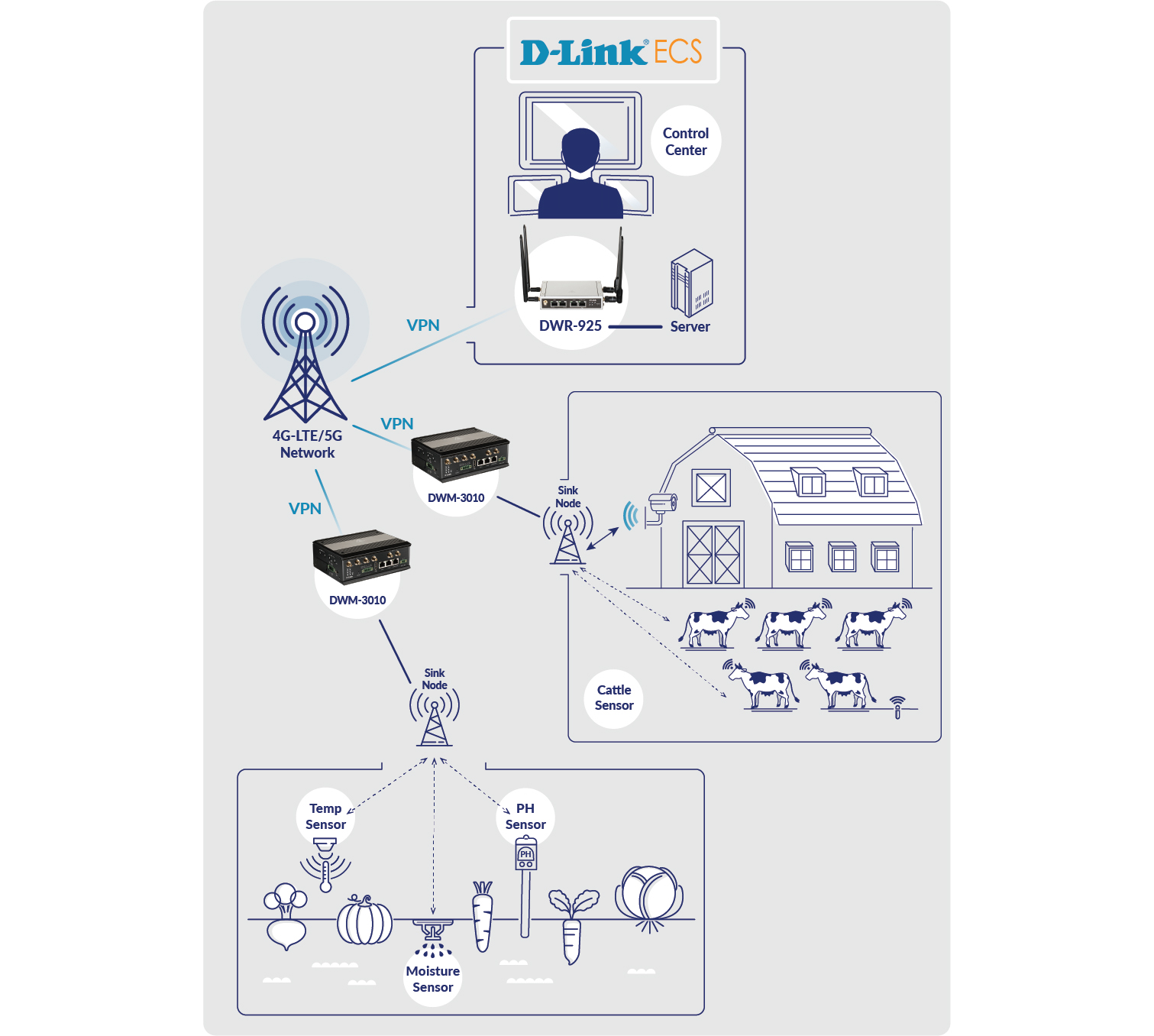

Centralized Management
Mission-critical applications are downtime intolerant. Automated network task services alleviate administrators of routine tasks, allotting more time for network monitoring and preventive maintenance. D-ECS also features automatic failure detection and alerts to resolve network issues quickly and efficiently.
- Map Display of Network Nodes
- GPS Location & Route History
- Event Filtering
- Searchable Event Log
Produits apparentés
Specification
|
Advanced Features
|
DMZ & Pass Through Port Forwarding QoS engine (Quality of Service) SNMP Support Virtual Server Web-based UI |
|---|---|
|
Antenna
|
2 x Male type jack for Wi-Fi 4 x Female type jack for 5G NR/LTE |
|
Data Throughput
|
5G NR: 900 Mbps (DL, Ethernet) / 150 Mbps (UL, Ethernet) Up to 300 Mbps with 802.11n clients Up to 866 Mbps with 802.11ac clients |
|
Dimensions
|
62 x 125 x 160 mm (w/o mounting kit) |
|
Interfaces
|
1 x 10/100/1000 Fast Ethernet WAN/LAN port 2 x 10/100/1000 Ethernet LAN port 2 x SIM slots DI/DO/TX/RX/Grounding ports USB 3.0 miniPCIe |
|
Power Input
|
DC 9 V / 2.7 A ~ 36 V / 0.7 A |
|
Product Description
|
5G NR M2M Gateway |
|
Standards
|
IEEE 802.11ac/n/g/b/a |
|
Weight
|
1.15 kg |
