Nuclias Wireless AC1300 Wave 2 Outdoor IP67 Cloud Managed Access Point

DBA-3621P

  • Product Status (Revision A1): End of Sale

Cloud-managed outdoor Wi-Fi.

Manage your outdoor wireless network from anywhere with this Nuclias Cloud ruggedised outdoor access point. Designed to give you Wi-Fi connectivity in outdoor spaces, it’s ideal for education, retail and hospitality and a great option for managed service providers. Deliver high-combined data rates of up to 1,300 Mbps2 over 2 dedicated wireless bands with the latest WPA3 wireless security.

Network management has never been this easy.

Nuclias Cloud is our simplest solution available and allows any organisation with any level of IT resources to quickly set up, manage and troubleshoot the entire network via a web browser, or the dedicated Nuclias Cloud app.

Nuclias cloud-based network management

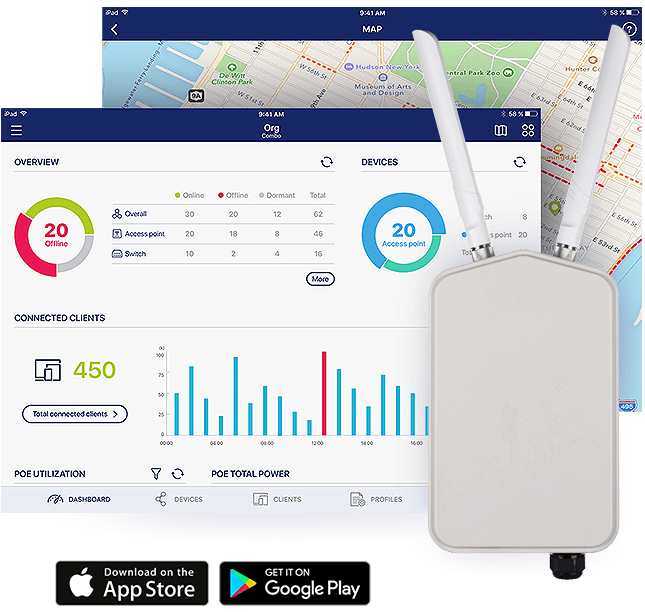

Manage your network from one place from a browser or through the tablet app, anywhere, anytime.1

Ruggedised outdoor design

IP67-rated weatherproof design with a wide -40 to 50°C operating temperature range.

WPA3-säkerhet

Skydda ditt trådlösa nätverk med den senaste Wi-Fi krypteringstekniken.

Obegränsad skalbarhet

Du betalar bara för det du behöver, med möjlighet att skala ner eller expandera, i takt med verksamhetens krav.

Zero-Touch Provisioning

Plug and play, cloud-based auto-configuration.

License included

1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.

Enkel installation med PoE

Stödjer Power over Ethernet (802.3af) för enklare installation med en enda kabel.

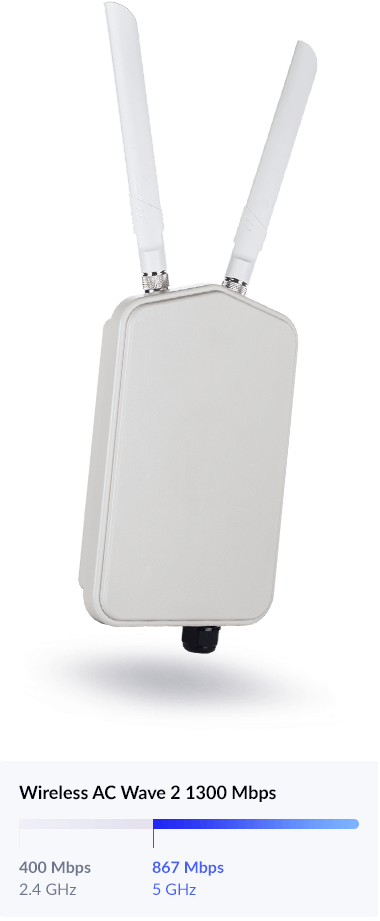

Exceptional connectivity, exceptional performance

The DBA-3621P delivers reliable, high-speed AC1300 Wave 2 Wi-Fi with maximum combined wireless speeds of up to 1.3 Gbps2. Band steering, MU-MIMO, beamforming and load balancing support further enhance the overall connectivity performance.

A more effective and efficient network

When multiple access points are deployed in the same location, Nuclias Cloud supports automatic load balancing between them without the need for additional hardware or configuration. This ensures the Wi-Fi network performs optimally, all the time.

Reliable connectivity, even in extreme outdoor conditions

Its IP67-rated weather-proof metal housing offers dust, rain, heat, snow and rust protection, even during extreme summers or freezing winters between -40 to 60°C.

Dust

Weather
Dust Resistant
Total protection against all dust.
Water Resistant
Protected against rain and temporally immersion of up to 1 metre.

Network management, refreshed.

Automate, monitor, manage and scale your network without the complexity or cost.

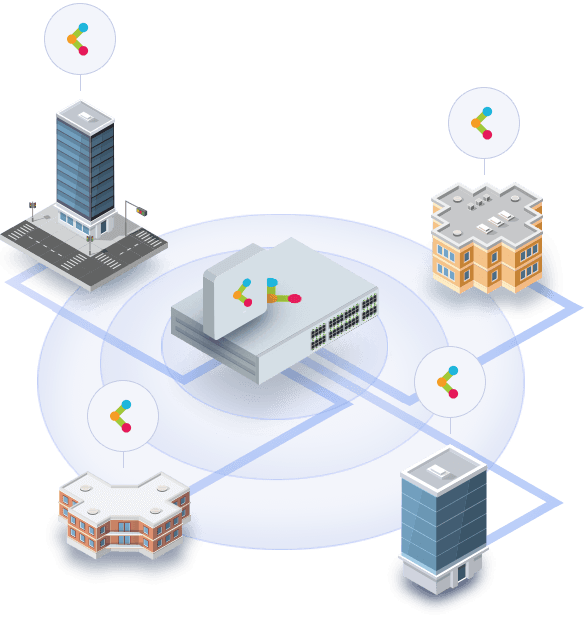

Get your networks up and running from anywhere easily and quickly.

The DBA-3621P can be deployed without the need to send IT engineers on-site. With Nuclias Cloud’s Zero Touch Provisioning, you can power-up the access points on site, connect them to the network, and remotely set up and manage them through the Nuclias Cloud portal.

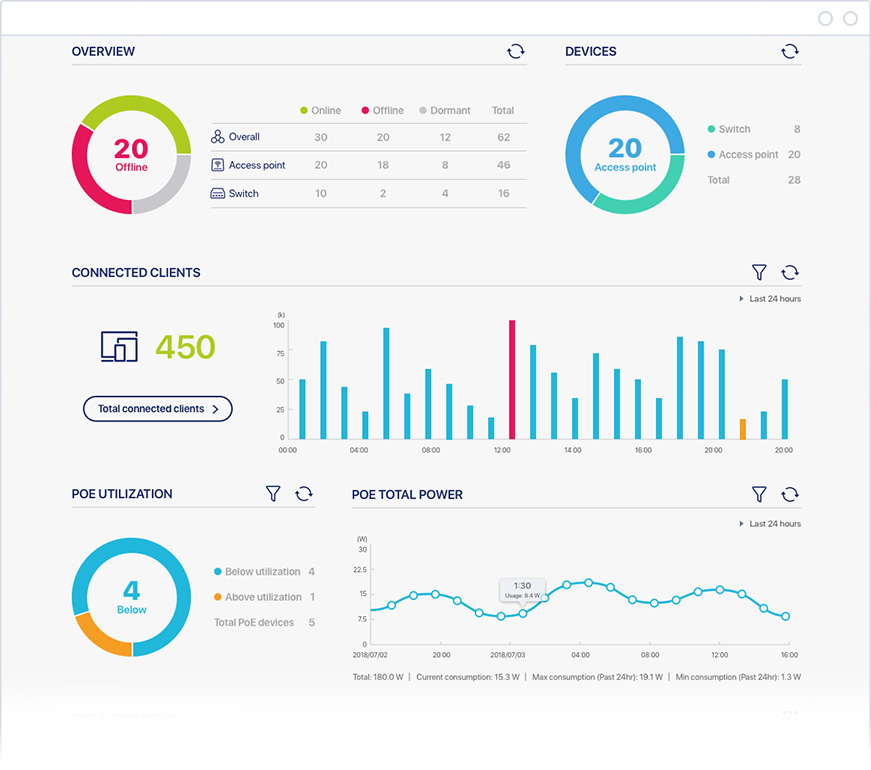

Complete control over your network

With D-Link Nuclias Cloud, businesses can organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. This enables you to focus more on providing reliable connectivity and services and spend less time managing devices.

  • Intuitive app
  • Real-time network information
  • Manage multiple sites and devices
  • Over-the-air firmware updates

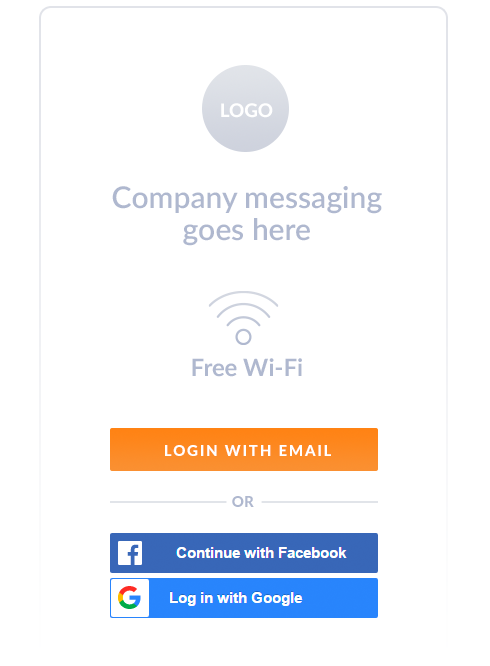

Your Guests Online in No Time with a Captive Portal

Get your guests online quickly and easily with a captive portal. Not only can you let them connect using just their email address, Facebook or Google account, it also gives your business the opportunity to increase brand awareness and advertise promotions. At the same time, it can provide user insights that allow businesses to better understand their customers.

Scale your Wi‑Fi alongside your business.

Nuclias Cloud is designed with unlimited scalability, so you can always tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points being ready to deploy straight out of the box.

Butikskedjor

Realtidsanalys hjälper dig att skräddarsy kundens Wi-Fi-upplevelse, samt att ytterligare driva försäljningen.

Små affärer

Installera ett effektivt nätverk byggt för framtiden. Hantera enkelt flera webbplatser och se detaljerade rapporter.

Gästfrihet

Skapa en säker och snabb Wi-Fi-upplevelse för alla dina gäster i alla dina lokaler.

Utbildning

Säkerställ onlinesäkerhet för personal och elever samtidigt som de stödjer en digital inlärningsupplevelse.

Budget-friendly renewals


All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.

Vi är här för att hjälpa dig

Över 35 år inom nätverksbranschen

Innovativa heltäckande lösningsexperter för småföretag till stora koncerner över hela världen.

Det är enkelt att prata med oss

Kompetent lokal support i 16 länder. Våra supportteam är redo att hjälpa dig.

D-Link Begränsad Livstidsgaranti

Kvaliteten och tillförlitligheten hos D-Links produkter gör att vi kan tillhandahålla en branschledande begränsad livstidsgaranti vid varje registrering.

Related Products

Nuclias Wireless AC1300 Wave 2 Outdoor Cloud‑Managed Access Point
DBA-3620P
Find out more
Nuclias AX3600 Wi-Fi 6 Cloud-Managed Access Point
DBA-X2830P
Find out more
Nuclias Cloud-Managed Switches
DBS-2000-10, DBS-2000-10MP, DBS-2000-28, DBS-2000-28P, DBS-2000-28MP, DBS-2000-52, DBS-2000-52MP
Find out more
Nuclias AX1800 Wi-Fi 6 Moln baserad Access Punkt
DBA-X1230P
Find out more
Type
Cloud-managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
400 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
2 detachable omni-directional antennas
Antenna gain
3.5 dBi for 2.4 GHz
5 dBi for 5 GHz
Wired interface
1 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Outdoor
Type of housing
Metal
IP rating
IP67
Wireless modes
Access Point (AP)
Advanced features
802.11k/r Roaming
MU-MIMO
Maximum number of SSIDs
16
Auto channel selection
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
WPA/WPA2-Personal/Enterprise
Supported
WPA3-Personal/Enterprise
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
IPv6
Supported
Management platform
Nuclias Cloud Networking Solution

1 Active D-Link Nuclias account and valid device license required. 1-year license included.
2 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

FAQ

This product was phased out on: 11/05/2022
This product's last date of support is on: 10/05/2027
