![](/se/sv/-/media/product-pages/dxs/5000/assets/dxs5000_01_highavailability.png)
High Availability
MLAG support. Hot-swappable power supplies and fans.
![](/se/sv/-/media/product-pages/dxs/5000/assets/dxs5000_02_leafspine.png)
Leaf-Spine, Top-of-Rack, End-of-Row
10G and 40G port combinations for high bandwidth Leaf-Spine, ToR, or EoR network architecture topologies.
![](/se/sv/-/media/product-pages/dxs/5000/assets/dxs5000_03_opennetwork.png)
Open Network Switching (ONS)
ONIE provides the option to install a preferred Network Operating System, such as Pluribus Netvisor OS, or activate the pre-loaded D-Link OS.
![](/se/sv/-/media/product-pages/dxs/5000/assets/dxs5000_icon_sdn.png)
SDN-enabled
Supports OpenFlow v1.0/1.3 and Software-Defined Networks, like Cumulus Networks.
![](/se/sv/-/media/product-pages/dxs/5000/assets/dxs5000_04_management.png)
Convenient Management
Mini-USB console port. RJ-45 dedicated management port. USB-2.0 port. Industry-standard full CLI.
![](/se/sv/-/media/product-pages/dap/3315/assets/dap3315_08_icon_warranty.png)
Begränsad livstidsgaranti
Registrera dig och få support med begränsad livstidsgaranti från en av de globala ledarna i branschen.

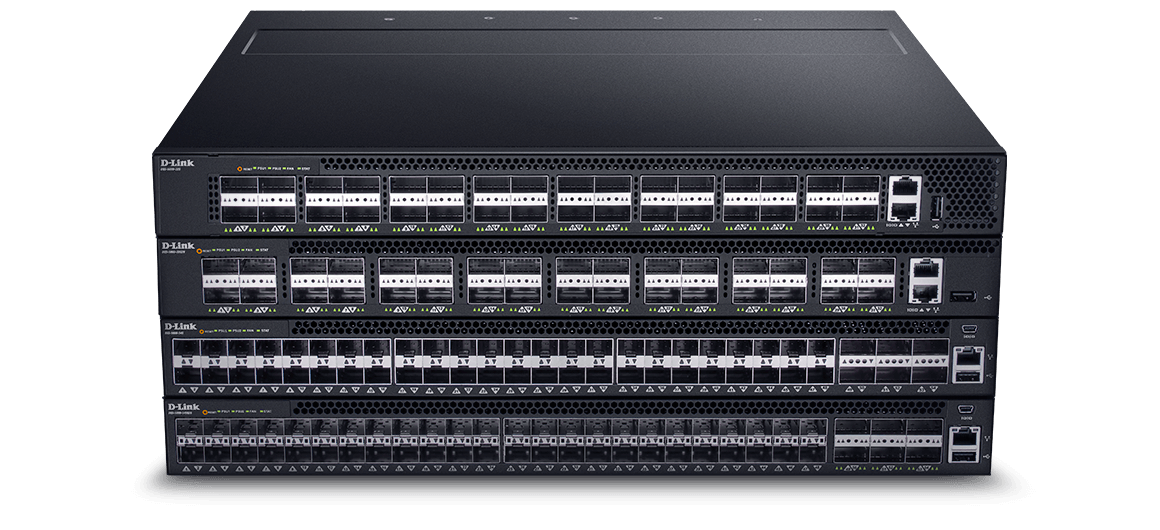

Future-proof your network.
Designed with up to 1.44 Tbps of simultaneous high throughput, high port density, and ultra-low latency to accommodate scale and requirements. Ideal as aggregation switches in enterprise environments, as well as Top-of-Rack, Leaf-Spine, or End-of-Rack core Ethernet switches in data centers.
![](/se/sv/-/media/product-pages/dxs/5000/assets/dxs5000_05_intro.png?h=530&w=1160&la=sv-SE&hash=B18ACD11F0E493017B493322ED5F7EED)

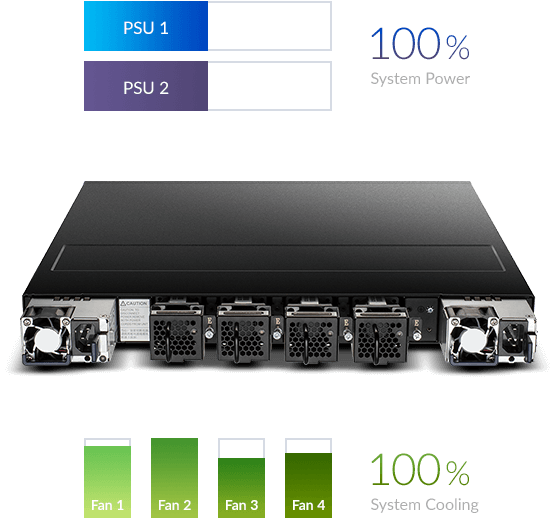

High Availability and Reliability
Both the fans and PSUs are hot-swappable to increase uptime, and front-to-back airflow allows the creation of optimal cooling configurations.
MLAG enables efficient network topologies that also increase uptime with dual-management, control planes, and upgrades that don’t affect services.
Load Sharing
Enables both PSUs to evenly distribute the load to increase reliability and lifetime.
1+1 redundancy
Maintains uptime even if a power supply fails.
![](/se/sv/-/media/product-pages/dxs/5000/assets/dxs5000_06_diagram.png?h=520&w=560&la=sv-SE&hash=4261E51C6913A1815B6548DAE4763921)

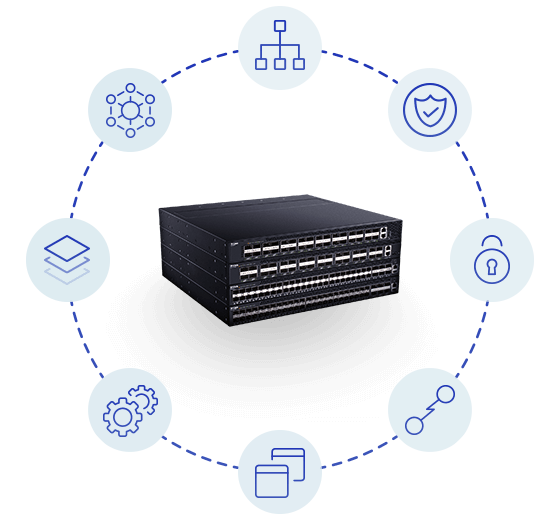

Comprehensive Layer 2 & Layer 3 Capabilities
L2 features include L2 switching, L2 multicast, advanced Quality of Service (QoS), and robust security features.
Advanced L3 routing for enterprise integration, including OSPF, BGP, Graceful Restart, Bidirectional Forwarding Detection (BFD), and L3 multicast.
And support for MLAG, MLD Snooping, IP interface, DVMRP v3, PIM-DM, and includes data center features like 802.1Qaz, 802.1Qau, and 802.1Qbb.
![](/se/sv/-/media/product-pages/dxs/5000/assets/dxs5000_010_diagram.png?h=520&w=560&la=sv-SE&hash=F4CCD253F749163B0A8ADAE9A918D90B)
Virtualisation and Data Center Features
VXLAN allows deployments of larger and more flexible VLAN architectures by using a 24-bit ID, which enables deployments of up to 16 million isolated logical networks across Layer 3 subnets to accommodate the increasing scale of virtualized cloud environments.
24-bit ID VXLAN Uses this network identifier to address L2 segments. |
16 million |

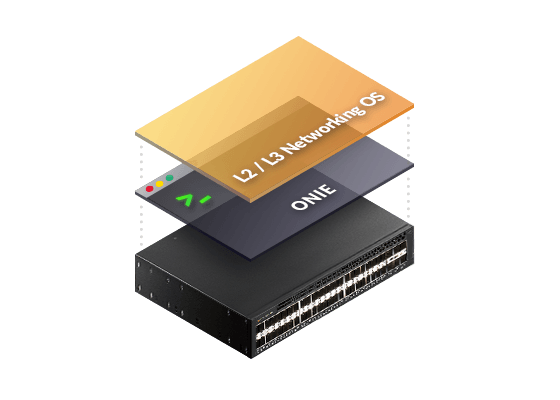

Bare Metal and Open Networking Switches
The DXS-5000 supports Open Networking, which provides innovative third-party operating systems and software options. This lowers costs by separating software from hardware and increases network agility and flexibility.
ONIE gives you the option to install a preferred Network OS, such as the Pluribus Netvisor OS, or activate the pre-loaded D-Link OS.
With support for standards-based tools and standards-based applications, Open Networking simplifies scalability and future-proofs the network.
![](/se/sv/-/media/product-pages/dxs/5000/assets/dxs5000_012_opennetworking.png?h=400&w=560&la=sv-SE&hash=84B2988C055C350DE51B8BB424490079)
Vi är här för att hjälpa dig
![](/se/sv/-/media/product-pages/common/callouts/icon_35years.png?h=113&w=142&la=sv-SE&hash=8674FDB248E2FF73AECD96AD48CC56DE)
Över 35 år inom nätverksbranschen
Innovativa heltäckande lösningsexperter för småföretag till stora koncerner över hela världen.
![](/se/sv/-/media/product-pages/common/callouts/icon_support.png?h=113&w=86&la=sv-SE&hash=61CCBBDCB0DDEA8C898286A9B0297EAD)
Det är enkelt att prata med oss
Kompetent lokal support i 16 länder. Våra supportteam är redo att hjälpa dig.
![](/se/sv/-/media/product-pages/common/callouts/icon_limitedlifetime_warranty.png?h=113&w=108&la=sv-SE&hash=F342835FFD466C254239935AADA1C07B)
D-Link Begränsad Livstidsgaranti
Kvaliteten och tillförlitligheten hos D-Links produkter gör att vi kan tillhandahålla en branschledande begränsad livstidsgaranti vid varje registrering.
Related Products
![](/se/sv/-/media/product-pages/dxs/3400/dxs340024tcsc-front.png?h=100&w=178&la=sv-SE&hash=67707776861843760F46F69D24C4FE60)
![](/se/sv/-/media/product-pages/dxs/1210/b1/dxs121010ts12tc12sc16tcb1image-lfront.png?h=100&w=191&la=sv-SE&hash=77B6214B30F4C2D700E2F2AA698D3F75)
Specs
Type
|
Managed SDN |
---|---|
Number of ports
|
48 to 54 ports |
Layer
|
Layer 3 |
Main type of ports
|
10GbE SFP+ |
Type of uplink ports
|
40GbE QSFP+ |
Switching capacity
|
1.44 Tbps |
Form Factor
|
Rackmountable |
Jumbo frame
|
Supported
|
MAC address
|
288K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Link aggregation
|
802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
Port-based |
Advanced VLAN
|
Double VLAN (Q-in-Q) ISM VLAN |
IPv4/IPv6 routing table
|
IPv4 - 8K IPv6 - 2K |
IPv4/IPv6 forwarding table
|
IPv4 - 2K IPv6 - 2K |
IP interfaces
|
128 |
Static route for IPv4/IPv6
|
IPv4 - 64 IPv6 - 64 |
IPv6 tunneling
|
Supported
|
Multicasting
|
Supported
|
PIM-SM
|
Supported
|
OSPF
|
Supported
|
BGP
|
Supported
|
OSPFv3
|
Supported
|
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
1% of port speed minimum granularity |
ACL type
|
Egress Ingress VLAN-based |
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH |
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1
|
Supported
|
sFlow
|
Supported
|
LLDP
|
Supported
|
LLDP-MED
|
Supported
|
