Industrial 16-Port 1GE + 4-Port 1G SFP + 4-Port 10G SFP+ Managed Switch
DIS-310G-24X
- Product Status (DIS 310G 24X_A1_Datasheet_v1 00_WW): Live
- 4 x 10G SFP+ ports for aggregated throughput
- 4 x 1G SFP ports for easy network expansion
- 16 x Gigabit Ethernet ports for fast data transmission
- Dual power inputs provide power redundancy
- -40°C to 75°C operation for harsh environments
- 6KV surge protection on Gigabit Ethernet ports
- Fanless and IP40-rated design enhances reliability
- Support L3 management by static & dynamic routing
- Support Ethernet Ring Protection Switching (ERPS)
- Support proactive OAM: Y.1731 / 802.1ag / 802.3ah
Where to buy
High Capacity & Flexibility
Flexible 10G/1G SFP ports ready for aggregation & redundant topologies
Dual Power Input
Dual power supply redundancy minimizes downtime and boosts system reliability
Industrial-Grade Durability
Hardened casing and design ensures reliable operation in rough environments
L3 Advanced Static and Dynamic Routing
Supports static and dynamic routing to reduce latency, control traffic, and improve network scalability and efficiency
Operations Administration and Maintenance (OAM)
Enables real-time performance monitoring, proactive maintenance, and simplified network management
Ethernet Ring Protection Switching (ERPS)
ERPS ensures fast recovery, reliable connectivity, and seamless network restoration
Unleash Extreme Speeds with 10G Aggregation & L3 Routing
The DIS-310G-24X features four 10G SFP+ and four 1G SFP ports, allowing regional network aggregation and routing at the edge that enhances network performance, efficiency, and management. By combining multiple smaller networks or data streams into a larger, unified entity, it streamlines routing, reduces overhead, and improves overall network resilience.

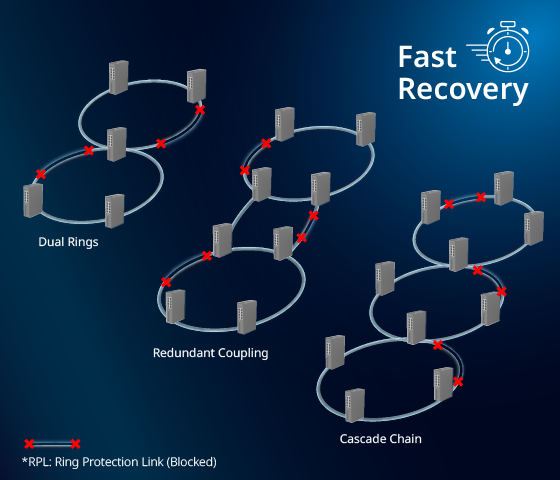

Recover in a Blink with ERPS
The DIS-310G-24X supports ERPS v1 and v2, enabling multiple ring topologies that prevent network loops while providing redundant paths for continuous connectivity. This ensures high network resilience, fast failover, and easy scalability.
As a standardized protocol, ERPS v1/v2 ensures interoperability with other switch brands, allowing the DIS-310G-24X to integrate seamlessly into existing networks.
Ethernet Operations, Administration, and Maintenance (OAM)
The DIS-310G-24X supports comprehensive OAM functions (Y.1731, IEEE 802.1ag, and IEEE 802.3ah) to continuously monitor physical links and service paths. This enables network administrators and service providers to quickly identify faults, verify connection status, and maintain high service quality.

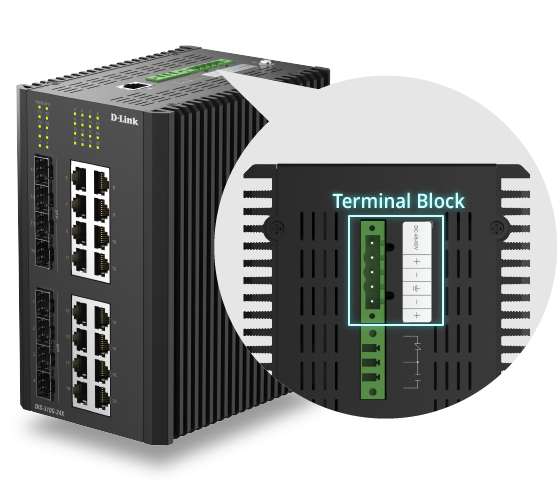

Uninterrupted Power Redundancy
The DIS-310G-24X supports dual power supplies, and each is capable of independently powering the device. The redundancy ensures continuous operation when one power source fails, which minimizes shutdown risk and maintains network performance.
Redundancy
Power Supply
Overcurrent
Protection
Anti-reverse
Protection
Firm
Connection
Built Tough for Demanding Conditions
The DIS-310G-24X is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6KV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

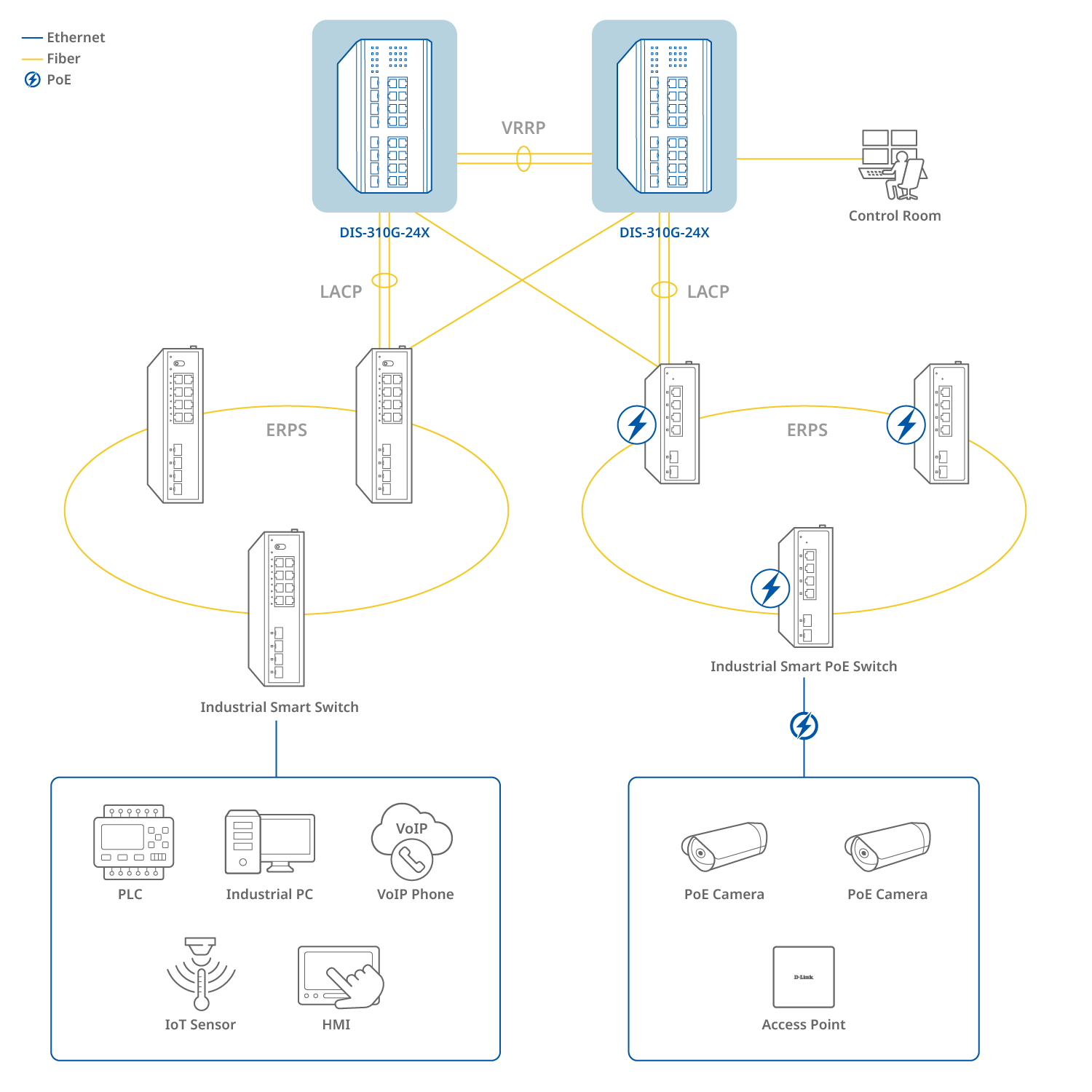

Connection Diagram
The DIS-310G-24X is an industrial managed switch featuring sixteen 1GE ports, four 1G SFP ports, and four 10G SFP+ uplinks for high-performance aggregation and network backbone connectivity. The SFP interfaces support long-distance transmission, rapid failover, and high-capacity traffic aggregation, while built-in Layer 3 management with static and dynamic routing enables efficient traffic control and scalable network design.
Industrial
Switch
Access
Point
Applications
Industrial Automation
City Surveillance
Industrial Automation
User benefits :
Learn more :
- Industrial Smart PoE Switch : DIS-210G-06P
- Industrial Smart PoE Switch : DIS-210G-12UP
- Industrial Smart Switch : DIS-210G-06
- Access Point : DAP-X3060

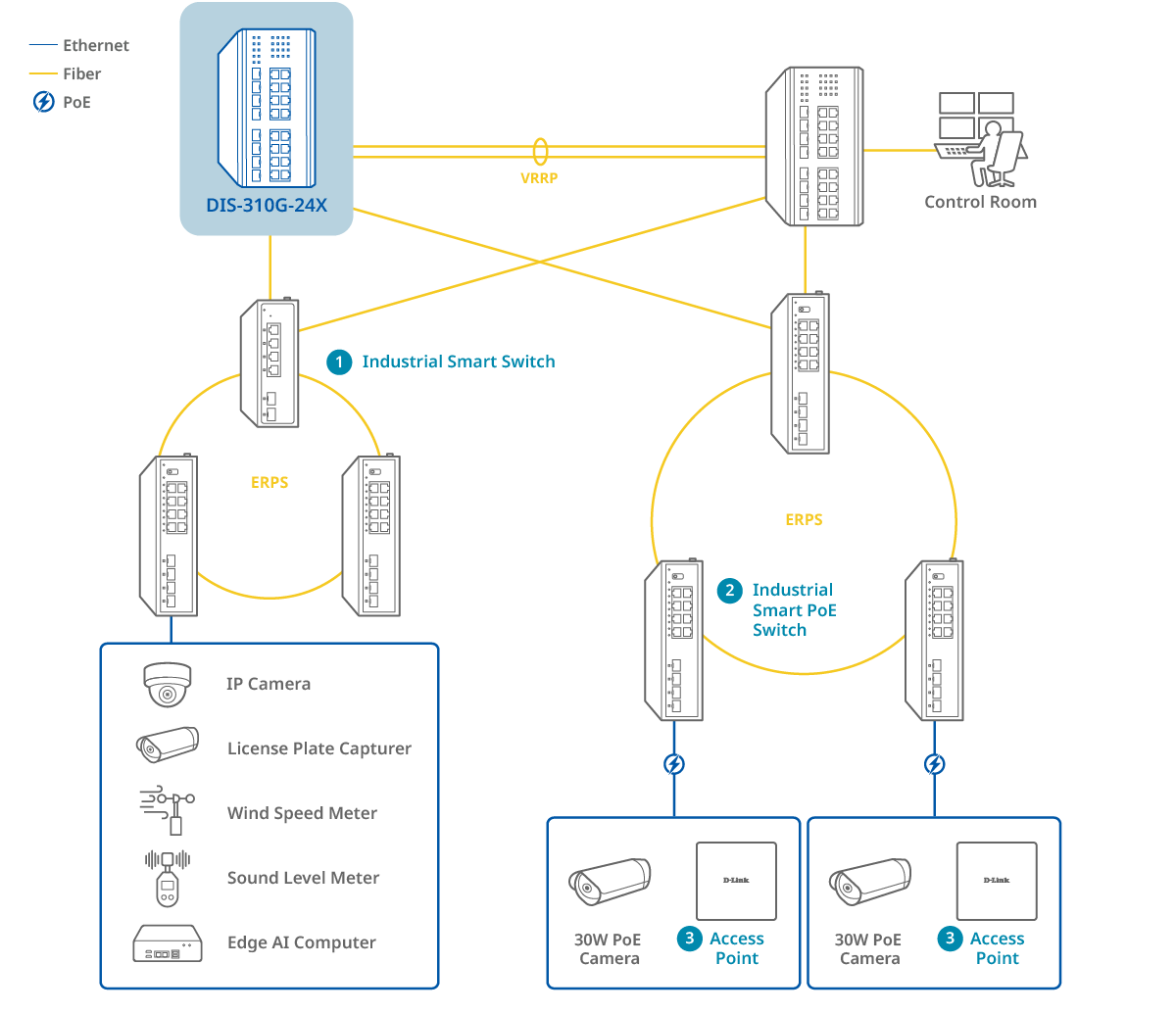

City Surveillance
User benefits :
Learn more :
- Industrial Smart Switch DIS-210G-06
- Industrial Smart PoE Switch : DIS-210G-12P
- Access Point : DAP-X3060OU
產品規格
|
Category
|
Managed Industrial Switches |
|---|---|
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Ingress Protection
|
IP40 |
|
802.1D STP, 802.1w RSTP, 802.1s MSTP
|
Supported
|
|
Ethernet ring protection switching (ERPS)
|
Supported
|
|
Port/VLAN Basis GVRP
|
Supported
|
|
802.1X, RADIUS
|
Supported
|
|
LLDP, LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
|
OAM by 802.3ah, 802.1ag, ITU-T Y.1731
|
Supported
|
|
Command Line Interface (CLI)
|
Supported
|
|
Console Port
|
RJ-45 console port |
|
實際效能可能因設定、線纜、溫度、網路配置、介面、設備相容性、環境和現場條件以及其他類似因素而有所不同。有關功率、訊號或處理速度、訊號範圍或距離、資料加密、儲存容量、顯示特性或其他效能指標的說明均基於業界標準得出的最佳條件，僅供參考。規格如有變更，恕不另行通知。 |
|
