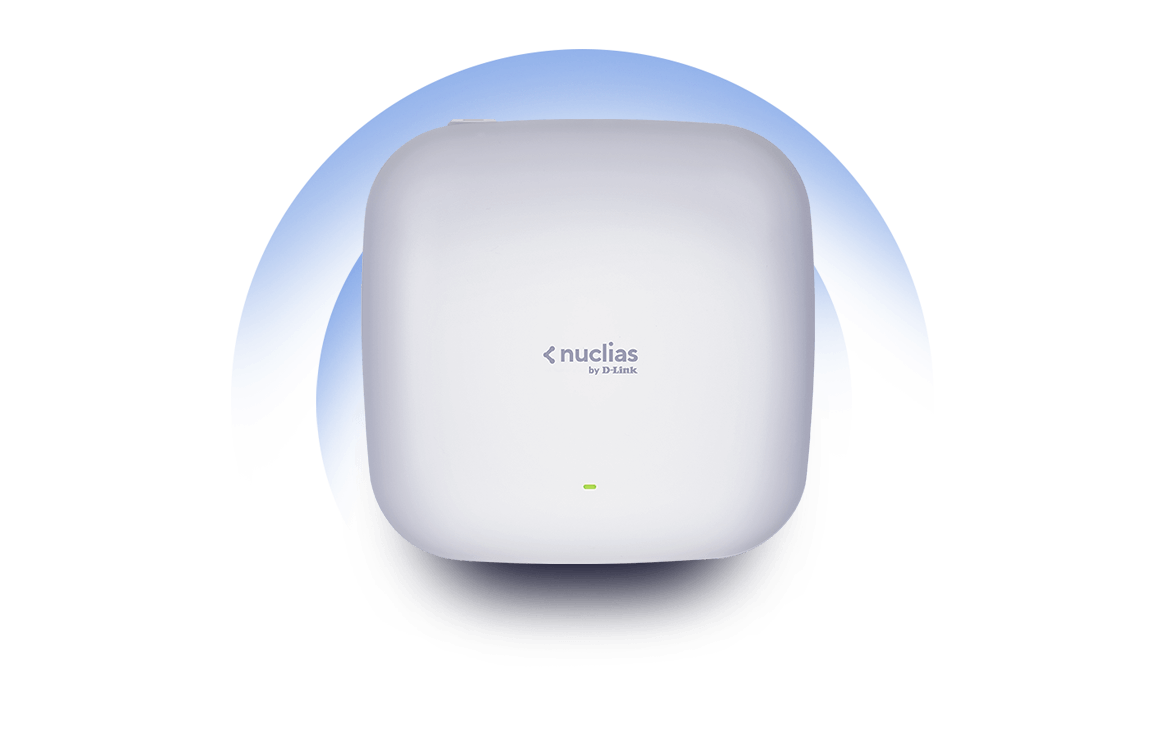

AX1800 Wi-Fi 6 Cloud-Managed Access Point

DBA-X1230P

  • Product Status (Revision A1): Live
  • Centralised cloud-based management via browser & app
  • Dual-band Wi-Fi 6 speeds of up to 1.8Gbps
  • Band Steering with Airtime Fairness & MU-MIMO
  • Power over Ethernet 802.3at
  • Zero-Touch Deployment with plug & play installation
  • WPA3 encryption

Download the datasheet.

Where to buy

Business-class Wi-Fi 6.

Manage your wireless network from anywhere in the world with the Nuclias AX1800 Wi-Fi 6 Cloud-Managed Access Point. Designed to give you the latest technology and efficiency in any setup, it’s ideal for SMB, retailers, hospitality, campuses, and managed service providers.

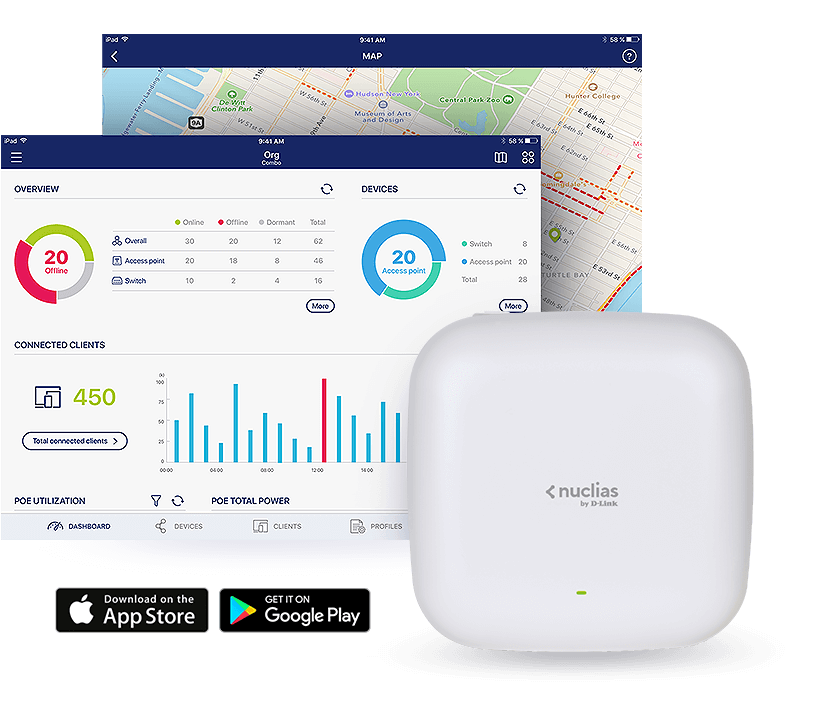

Network management has never been this easy.

Nuclias Cloud is our simplest solution available and allows any organisation with any level of IT resources to quickly set up, manage and troubleshoot the entire network via a web browser, or the dedicated Nuclias Cloud app.

Learn more
Nuclias cloud-based network management

Automate, monitor, manage and scale your network without the complexity or cost. FREE 1yr Nuclias Cloud licence included.

Next-gen Wi-Fi 6

Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards

WPA3 Security

Keep your wireless network secure with the latest Wi-Fi encryption technology.

Unlimited scalability

Easy to add or scale back in line with demand.

Plug and Play with Zero-Touch Deployment

Cloud-based auto-configuration allows for swift plug-and-play installation and eliminates the need for on-site setup.

Free Nuclias Cloud app

Manage your network from one place from a browser or through the tablet app, anywhere, anytime.

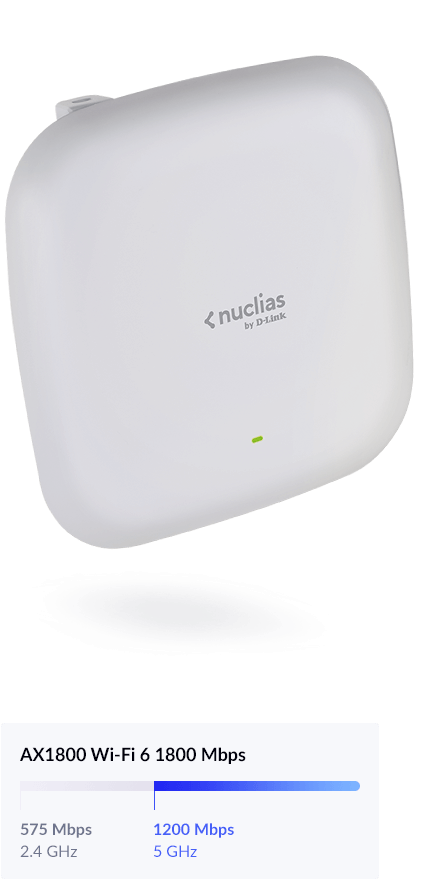

Exceptional connectivity, exceptional performance

With combined Wi-Fi 6 speeds of up to 1,800 Mbps with MU-MIMO and dual-band technology, The DBA-X1230P provides lightning-fast access to cloud-based applications, fast data transfer, smooth voice and video streaming, even in highly congested environments.

Learn more about Wi-Fi 6

  • Band steering
  • MU-MIMO
  • Beamforming

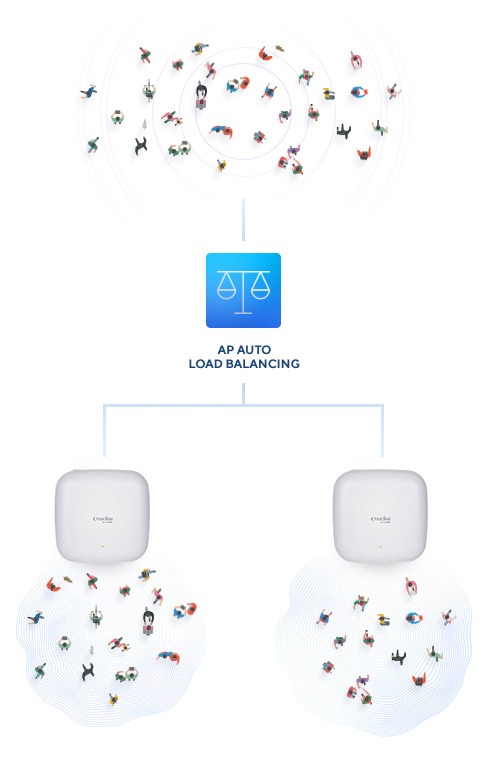

A more effective and efficient network.

When multiple access points are deployed in the same location, Nuclias Cloud supports automatic load balancing between them without the need for additional hardware or configuration. This ensures the Wi-Fi network performs optimally, all the time. And BSS Colouring, OFDMA, and MU-MIMO all increase wireless network capacity and efficiency.

Simple and clean installation, anywhere.

It can be ceiling-mounted, wall-mounted, or placed on a desk. The DBA-X1230P’s PoE function allows for easy installation and a simple, clean setup. No need to run extra power lines, and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

Network management, refreshed.

Automate, monitor, manage and scale your network without the complexity or cost.

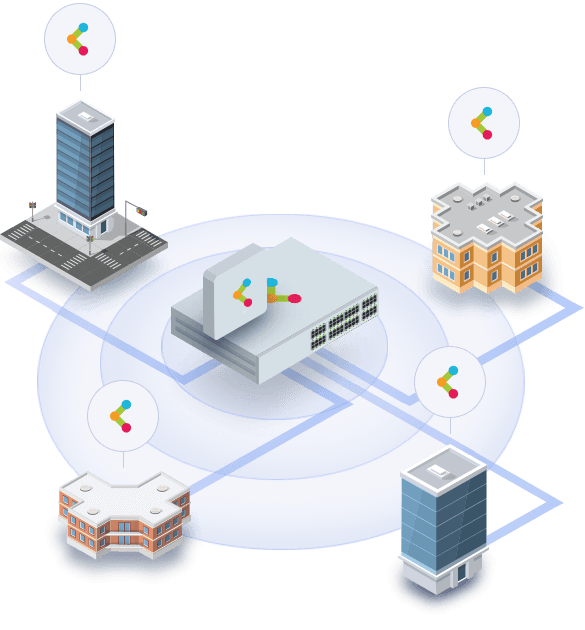

Get your networks up and running from anywhere, easily and quickly.

The DBA-X1230P can be deployed without the need to send IT engineers on-site. With Nuclias Cloud’s Zero Touch Provisioning, you can power-up the access points on site, connect them to the network, and remotely set up and manage them through the Nuclias Cloud portal.

Learn more

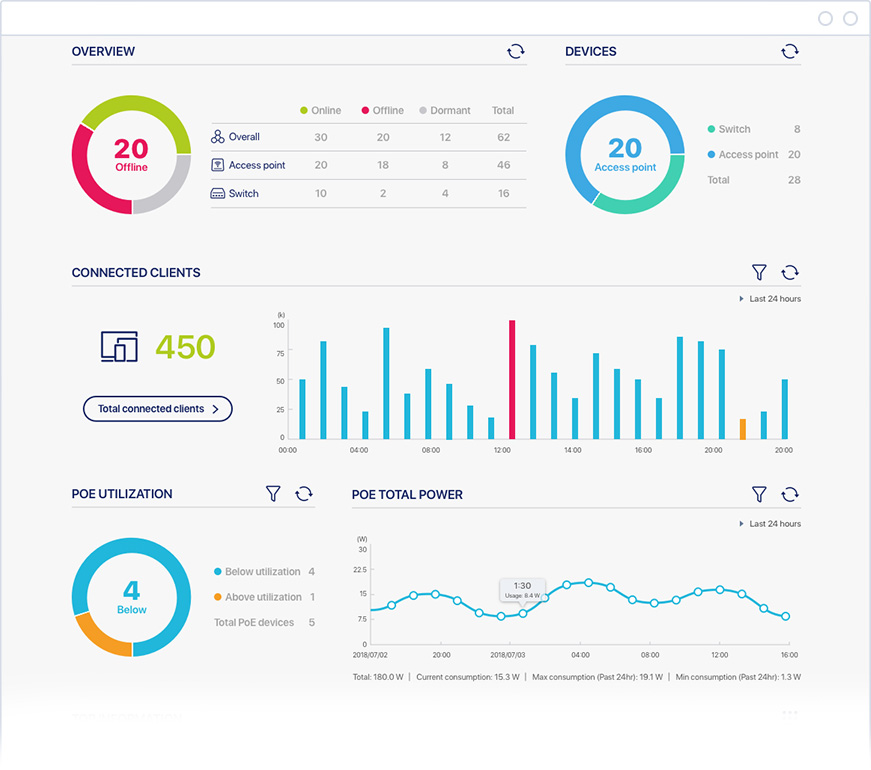

Complete Control over your Network

With D-Link Nuclias Cloud, businesses can organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. Now you can focus more on providing reliable connectivity and services and spend less time managing devices.

  • Intuitive app
  • Real-time network information
  • Manage multiple sites and devices
  • Over-the-air firmware updates

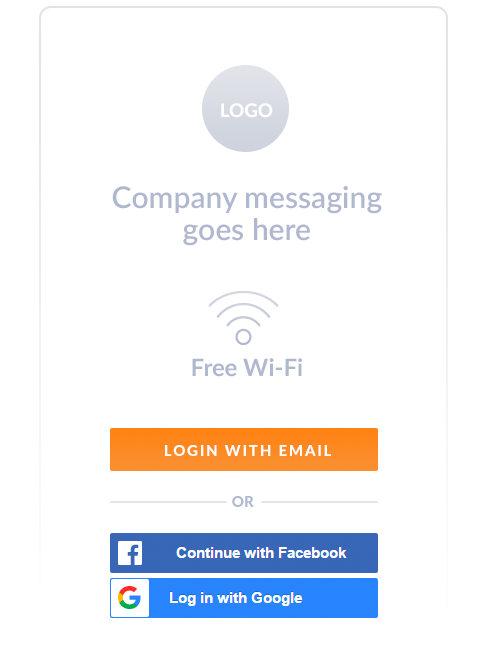

Your Guests Online in No Time with a Captive Portal

Get your guests online quickly and easily with a captive portal. Not only can you let them connect using just their email address, Facebook or Google account, it also gives your business the opportunity to increase brand awareness and advertise promotions. At the same time, it can provide user insights that allow businesses to better understand their customers.

Scale your Wi-Fi alongside your business

Nuclias Cloud is designed with unlimited scalability, so you can always tailor to the demands of your business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points being ready to deploy straight out of the box.

Budget-friendly renewals


All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.

Retail

Real time analytics help you tailor customer’s Wi-Fi experience, as well as further drive sales.

Small businesses

Deploy an efficient network built for the future. Easily manage multiple sites, and see detailed reports.

Hospitality

Create a secure and fast Wi-Fi experience for all your guests throughout all your premises.

Education

Ensure staff and student online safety while supporting a digital learning experience.

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Nuclias AX3600 Wi-Fi 6 Cloud-Managed Access Point
DBA-X2830P
Find out more
Nuclias Wireless AC2600 Cloud-Managed Access Point
DBA-2820P
Find out more
Nuclias Wireless AC1900 Wave 2 Cloud-Managed Access Point
DBA-2520P
Find out more
Nuclias Wireless AC1300 Wave 2 Cloud-Managed Access Point
DBA-1210P
Find out more
Nuclias Cloud-Managed Switches
DBS-2000-10, DBS-2000-10MP, DBS-2000-28, DBS-2000-28P, DBS-2000-28MP, DBS-2000-52, DBS-2000-52MP
Find out more
Type
Cloud-managed AP
Wireless standard
802.11ax Wi Fi 6
Frequency band mode
Dual-band simultaneous
Wireless speed
1200 Mbps 5 GHz
574 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz
4 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
Advanced features
802.11k/r Roaming
MU-MIMO
Maximum number of SSIDs
16
Auto channel selection
Supported
AP traffic load balance
Supported
WPA/WPA2-Personal/Enterprise
Supported
WPA3-Personal/Enterprise
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
Management platform
Nuclias Cloud Networking Solution

FAQ

Version Date Type File Size
Datasheet EN - PDF 1.66mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 2.04 RevA1 Firmware 09.03.2023 - Download
FW 2.03.001 RevA1 Firmware 16.11.2022 - Download
Version Description Date
CE doc UKCA 1.00 RevA1 CE document 12.08.2021 Download
