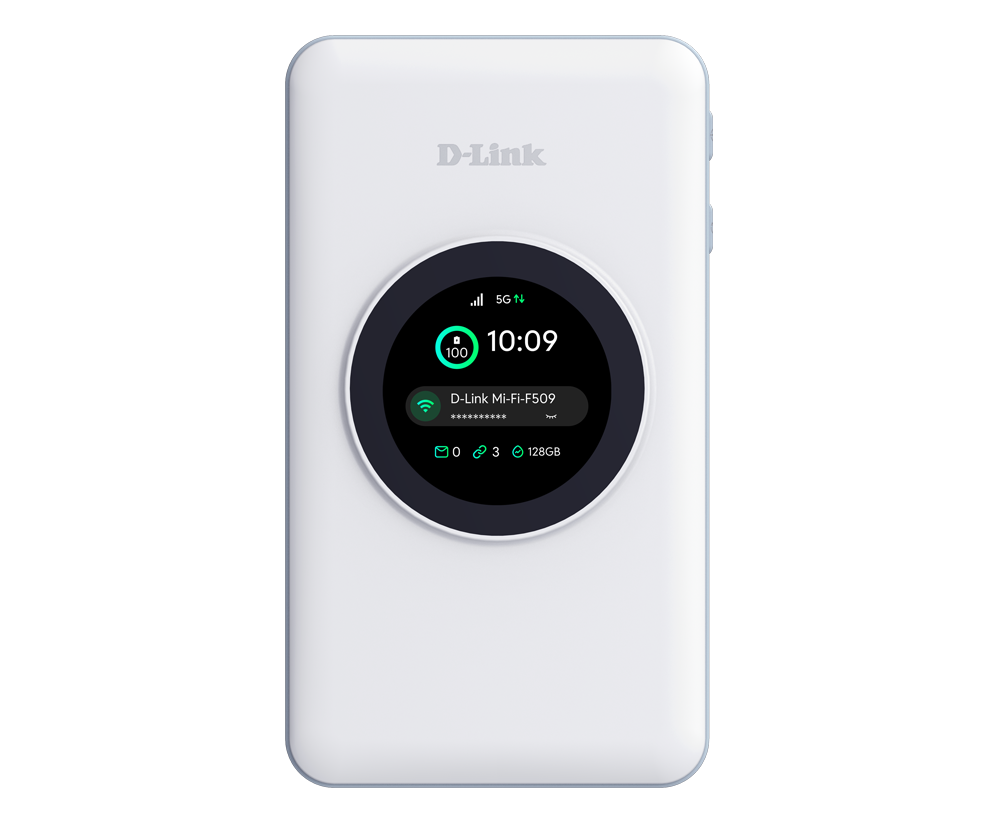

5G NR AX900 Wi-Fi 6 Mobile Hotspot

F509

  • Product Status (F509 A1 Datasheet v1 01 WW): Live
  • 5G Connectivity5: Delivers Internet access anywhere with 5G NR speeds up to 3.27 Gbps for fast downloads with lower latency and backward compatible with 4G1
  • Flexible eSIM Support: Supports both physical Nano SIM and digital eSIM, with up to three profiles you can switch between directly on the touchscreen3
  • Up to 18 Hours Runtime: Powered by a 4650 mAh battery with USB-C PD 3.0 fast charging, delivering up to 18 hours of continuous connectivity with smart standby power saving to extend daily use4
  • Smart Wi-Fi Sharing: Wi-Fi 6 AX900 helps enable smoother dual-band connections, supporting up to 16 devices for families or teams2
  • 1.5-Inch Color Touchscreen: Enables easy network management and data monitoring
  • Enhanced Security: Supports the latest WPA3 security protocols to help protect your data and privacy
  • Elegant, Travel-Ready Design: Features smooth contours, a comfortable grip, and a compact form factor that's designed to move effortlessly with you

Download the datasheet.

Where to buy

Stay Out,
Stay Online on 5G.



Reliable 5G with eSIM flexibility and up to 18 hours of continuous runtime—all in your pocket.

1000empty

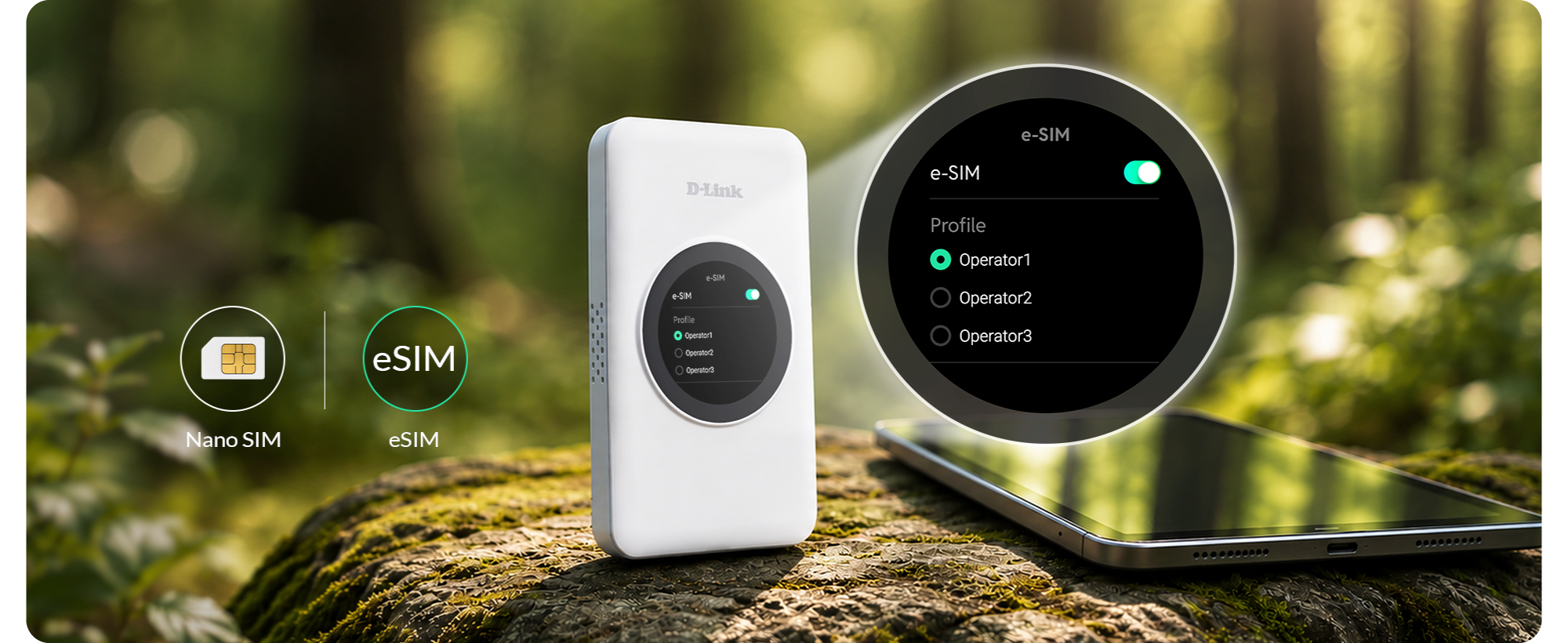

Connect Your Way: eSIM or Nano SIM

Enjoy seamless connectivity on your terms. Insert a physical Nano SIM, or go digital with up to three eSIM profiles you can switch between right on the touchscreen.
Either way, you pick the plan that fits wherever you are.3

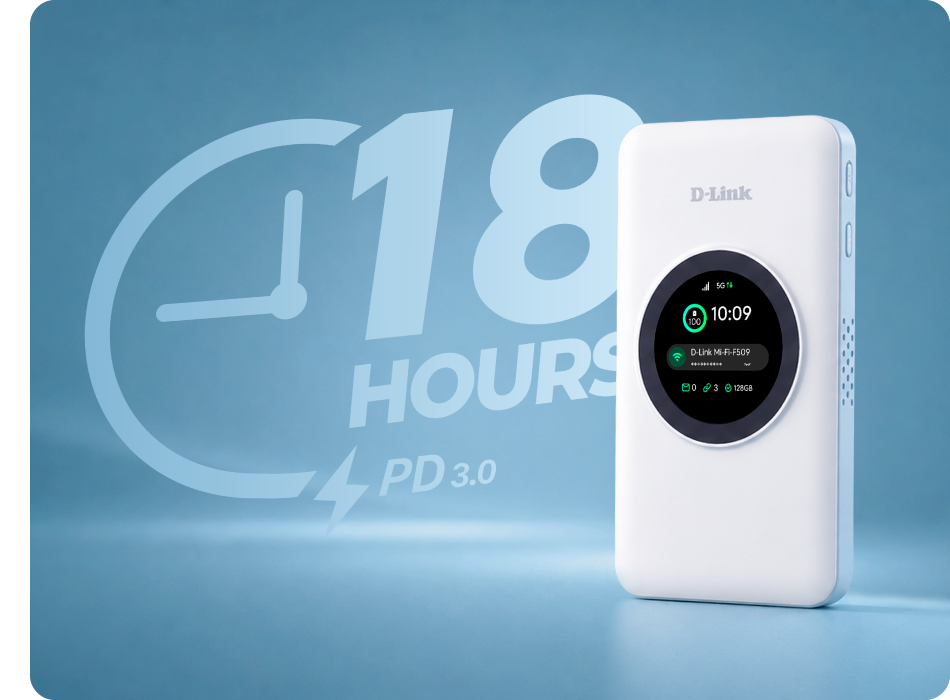

All-day Performance.
Fast Power When You Need It.

Up to 18 hours of continuous runtime from a 4650 mAh battery gets you through a full travel day. When it does run low, USB-C PD 3.0 fast charging gets you back online quickly.4

Control at Your Fingertips

Stay informed and in control with the intuitive 1.5-inch color touchscreen. View network status, manage settings, and share your Wi-Fi with a scannable QR code.

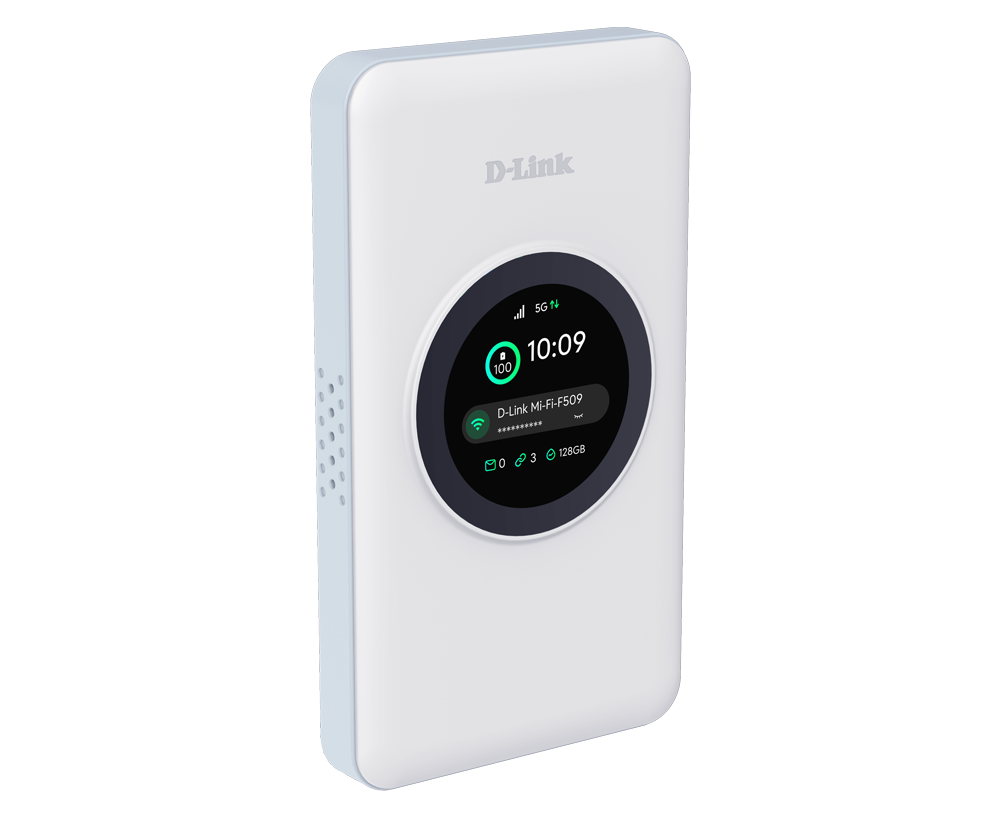

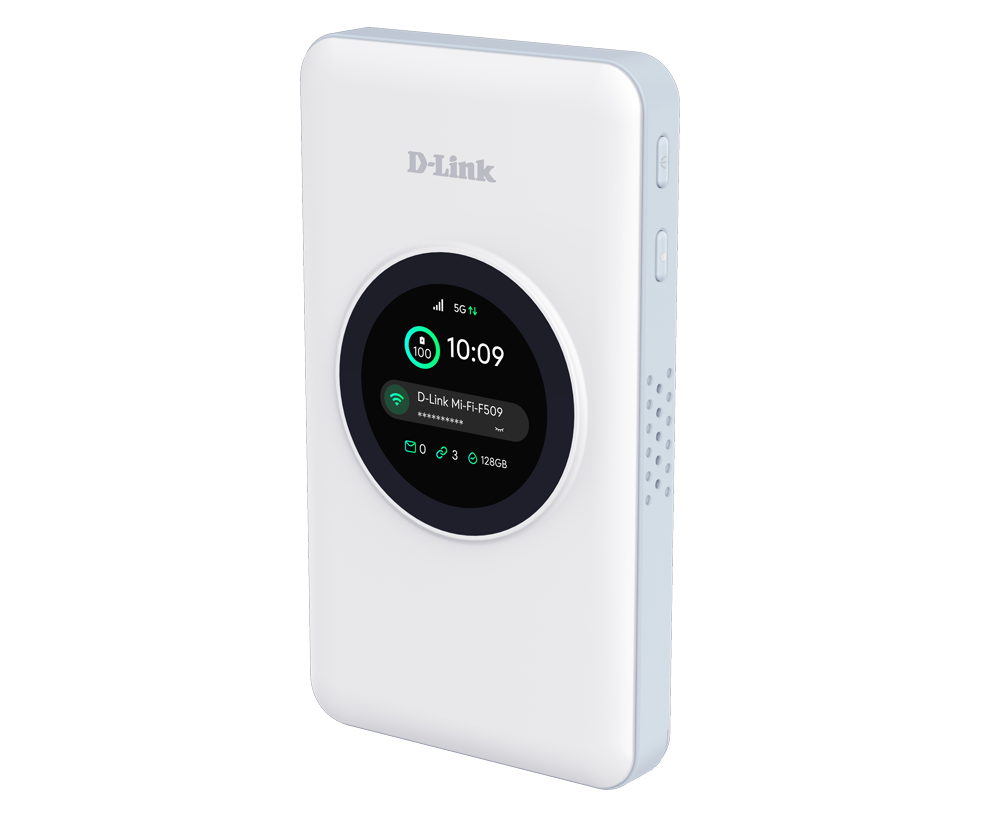

Premium Feel.
Effortless Portability.

The F509 blends sophisticated styling with exceptional portability. Featuring a slim profile, smooth curves, and a soft-touch exterior, it fits comfortably in your hand and travels effortlessly wherever your day takes you.

Out All Day, Online All Day

Whether you're working from a café, streaming on a long drive, or joining a call from somewhere with no Wi-Fi, the F509 keeps up. Work, streaming, gaming, video calls, all on one connection that lasts the day.

Business Travel


Family Trips


Remote Work Outdoors


Commuting


  1. Theoretical maximum data rate. Actual speeds will vary and are dependent on a range of factors including network configuration, network capacity, signal strength, and the conditions of your mobile broadband service plan.
  2. Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
  3. eSIM functionality requires a compatible data plan with a supported carrier. Data plan and physical SIM card are not included and must be purchased separately. Supported carriers and availability may vary by region. Up to three eSIM profiles can be stored on the device; one profile is active at a time.
  4. The actual battery runtime may vary depending on several factors, such as network conditions, connected devices, and streaming content.
  5. 5G availability varies by region and carrier. Coverage not guaranteed in all areas. Product specifications, size, and shape are subject to change without notice.

Specification

Download the datasheet.

Antenna
6 x cellular internal antennas
1 x Wi‑Fi 2.4/5 GHz internal antenna
Dimensions
122.5 x 68.9 x 16.9 mm (4.82 x 2.71 x 0.67 in)
Interfaces
1 x Nano SIM card slot (4FF)

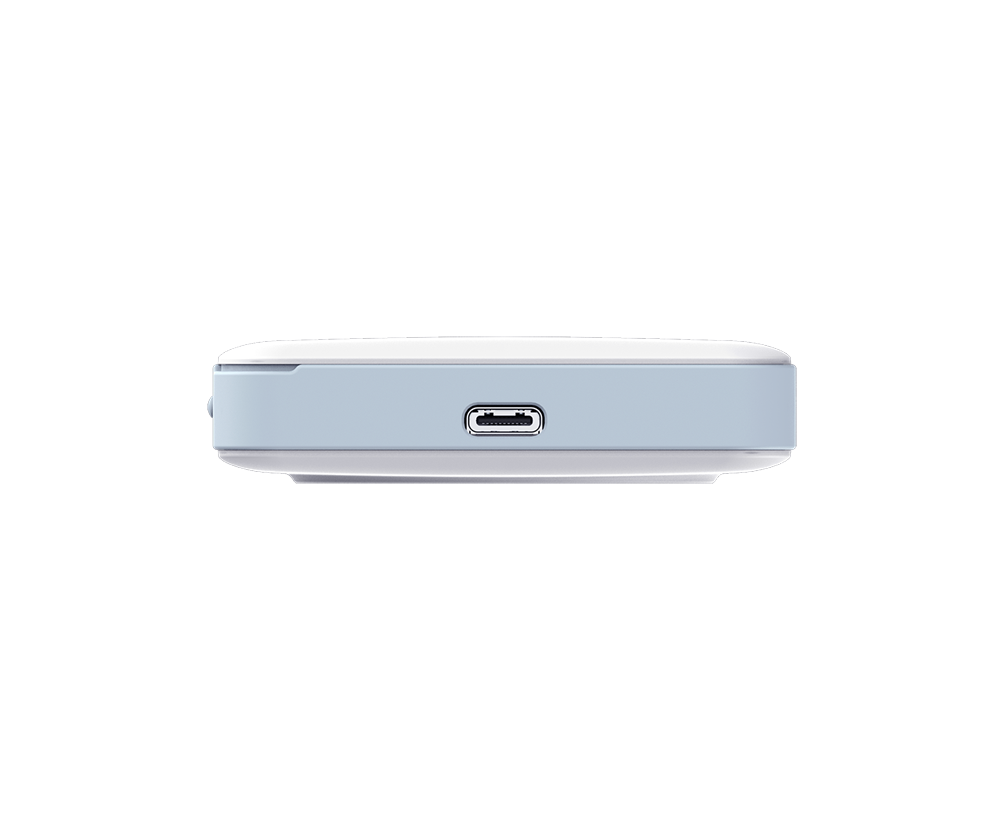

1 x USB 3.0 Type-C with PD 3.0 (input 5-9 V up to 18 W)
eSIM
Embedded, up to 3 stored profiles
LCD
1.5-Inch Color Touchscreen
Mobile Data Rates
NR SA Mode:
• Downlink: 3.27 Gbps
• Uplink: 1.25 Gbps
NR NSA Mode:
• Downlink: 2.5 Gbps
• Uplink: 1.25 Gbps
LTE Mode:
• Downlink: 400 Mbps
• Uplink: 211 Mbps
WCDMA Mode:
• Downlink: 42.2 Mbps
• Uplink: 11.5 Mbps
Power Input
USB Type-C (5V or 9V/2A) with USB PD 3.0 fast charging
Battery
4650 mAh, up to 18 hours of operation
Weight
168 g (5.93 oz)
Wireless Encryption
WPA2™ / WPA3™
Wireless Speed
900 Mbps (5 GHz up to 600 Mbps / 2.4 GHz up to 287 Mbps)
Wireless Standard
IEEE 802.11ax
IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g/b/a
