Wireless Controller
DWC-2000
- Product Status (Revision A): Live
D-Link's DWC-2000 Unified Wireless Controller is a cost-effective wireless management solution suitable for large Access Point deployments. Capable of managing 64 Unified Wireless Access Points Out of the box, it provides a Reliable, Secure, Self-Healing, Scalable wireless network suitable for education, hospitality and businesses of any size.
Where to buy
D-Link Managed Wireless
Big company wireless at small company prices. With a wide selection of Access Points and technologies, D-Link’s Wireless Solution is the perfect choice for any business.
![DWC 1000 Front](/xk/sq/-/media/product-pages/dwc/2000/dwc2000_unified_wireless.jpg?h=359&w=861&la=sq-XK&hash=6E224F4012DDD13EEBF8E0CF41DE6BC5)
Business Benefits
- Simplified wireless LAN management enhanced user experience
- Segment guest and corporate access with multiple SSIDs, Guest Captive Portal, and standard based VLAN configurations
- Free Integrated Payment Gateway
- Optimise network with automatic RF channel settings and adjustments of AP output power setting

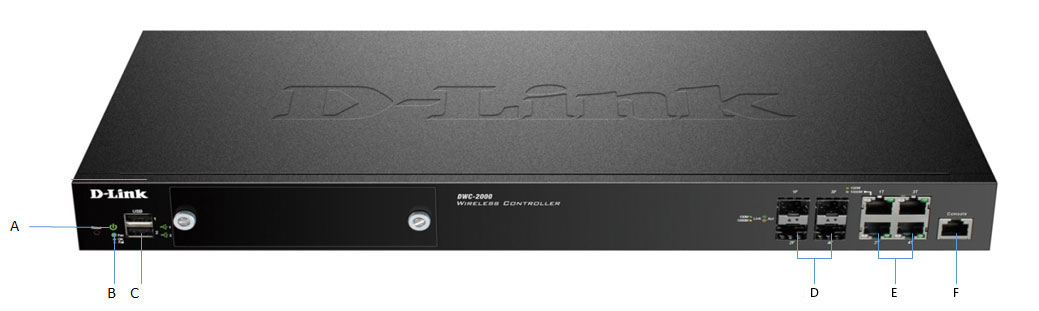

Product Features
![DWC 1000 Front](/xk/sq/-/media/product-pages/dwc/2000/dwc2000_product_features.jpg?h=311&w=1039&la=sq-XK&hash=9C3730D1DF0126483D8B38CB9D76E484)
A | Power LED |
B | Fan LED |
C | USB Ports to Upgrade Firmware and export configuration |
D | Gigabit LAN SFP ports (1-4) |
E | Gigabit LAN RJ-45 ports (1-4) |
F | Console/Management Ports |

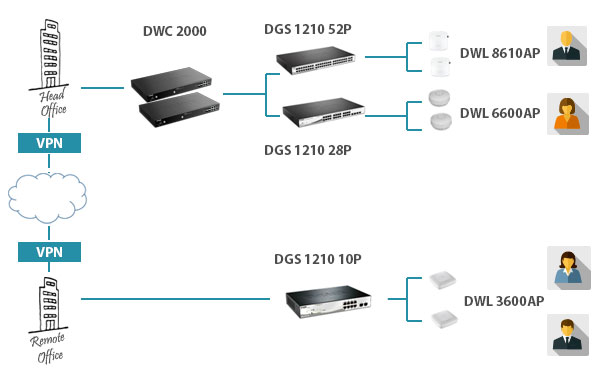

Centralised Monitoring and Management
Whether you intend to use a single Access Point or roll out a large corporate network, all compatible D-Link Unified Wireless Access Points* can be managed using a D-Link Wireless Controller.
![DWC 1000 Front](/xk/sq/-/media/product-pages/dwc/2000/dwc2000_cetralised_monitoring.jpg?h=378&w=599&la=sq-XK&hash=E4E398DF693F9236C9A0B608F2B49AB0)

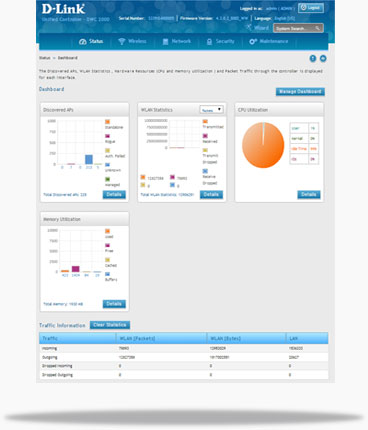

Functionality without Complexity
Simplified and Intuitive GUI with integrated configuration wizards make deployment and monitoring a simple task.
![DWC 1000 Front](/xk/sq/-/media/product-pages/dwc/2000/dwc2000_functionality.jpg?h=430&w=368&la=sq-XK&hash=8A4CC99CAFDDD346DCA5BE4990857253)

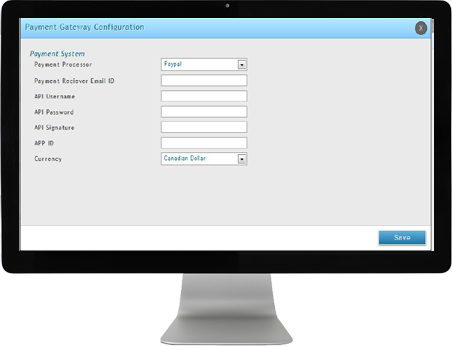

Integrated Payment Gateway
Monetising your wireless investment is simple using the integrated payment gateway. D-Link’s Family of Wireless Controllers enable you to charge for Wireless access by using one of the integrated payments services making PCI-DSS compliance easy.
![DWC 1000 Front](/xk/sq/-/media/product-pages/dwc/2000/dwc2000_payment.png?h=346&w=452&la=sq-XK&hash=87729C2A22E65DBBE8738B39DD0A1997)
Self-Healing Wireless
With D-Link’s Self-Healing Wireless network, the Wireless Controller can detect if a surrounding access point has failed and boost their power output to compensate for the failure, minimising the effect of the failed AP.
![DWC 1000 Front](/xk/sq/-/media/product-pages/dwc/2000/dwc2000_auto_healing.gif?h=338&w=600&la=sq-XK&hash=5800FE56DE3B351BA3E1005384FD7F71)
Scalability
The ideal solution for businesses of any size, starting with just 8 Access Points and scaling to support 1024 APs in a clustered configuration. The DWC-2000 is the perfect solution for any business looking to enhance their wireless network with the minimal service disruption. With an extensive range of D-Link Unified Access Points and simplified management and monitoring tools the DWC-2000 is deployable anywhere, across any geography.
![DWC 1000 Front](/xk/sq/-/media/product-pages/dwc/2000/dwc2000_scalability.jpg?h=400&w=709&la=sq-XK&hash=513982E53CCAC97C7EA0B535151DDF3E)

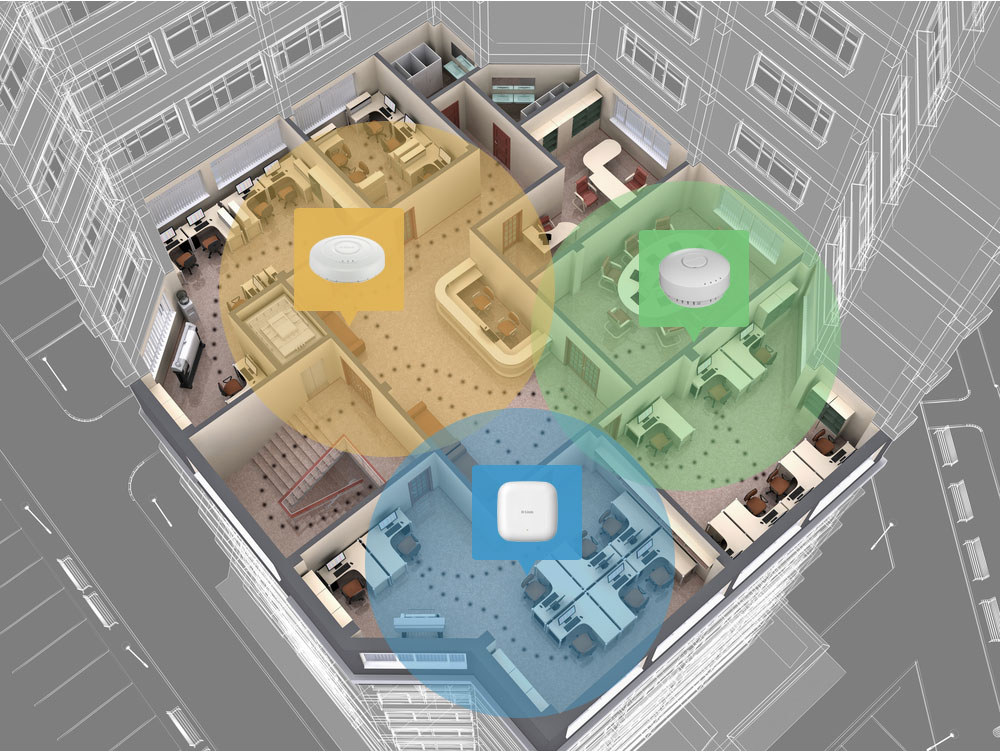

Fast Seamless Roaming
Combining a Unified Access Point with a DWC-2000 Unified Wireless Controller enables you to create a wireless network that enables you to roam around a building or even outside without affecting your video call.
![DWC 1000 Front](/xk/sq/-/media/product-pages/dwc/2000/dwc2000_roaming.jpg?h=751&w=1000&la=sq-XK&hash=5EA3F92F18F445AEB3E256995F421A7A)
* Selected D-Link Access Points Only
Related Products
![](/xk/sq/-/media/product-pages/dwc/1000/hwc/dwc1000c1imagelfront.png?h=100&w=178&la=sq-XK&hash=D65D5055254C7D2CD6332ECE9DEB3087)
![](/xk/sq/-/media/product-pages/dwl/7620ap/dwl_7620ap_front.png?h=100&w=172&la=sq-XK&hash=818FDD64A2C8745828AD69819D8CEC01)
![](/xk/sq/-/media/product-pages/dwl/6620aps/dwl_6620aps_front.png?h=100&w=160&la=sq-XK&hash=CDDC718C0CD0C27C87ABD7A59742AA36)
![](/xk/sq/-/media/product-pages/dwl/6610ape/dwl6610apea1imagehfront.png?h=100&w=178&la=sq-XK&hash=D70BDF6569124FFAF60F1E890F7B3A9C)
![](/xk/sq/-/media/product-pages/dwl/6610ap/b1/dwl6610apb1image-lfront.png?h=100&w=178&la=sq-XK&hash=7EE7D8C6EA596EC86C7269AADA782F40)
Specs
Number of ports
|
5 to 14 ports |
---|---|
Layer
|
Layer 3 |
Main type of ports
|
1000BASE-T Gigabit Ethernet SFP |
Type of uplink ports
|
Combo 1000BASE-T/SFP |
Management platform
|
Hardware |
Access point management - number supported per unit (default/upgradeable)
|
64/256 APs |
Supported access points
|
DWL-2600AP DWL-3610AP DWL-6600AP DWL-6610AP DWL-6610APE DWL-6620APS DWL-6700AP DWL-7620AP DWL-8610AP DWL-8620AP DWL-8620APE DWL-8710AP DWL-8720AP |
Maximum number of device clustering per group
|
4 |
Access point management - number supported per cluster (default/upgradeable)
|
256/1024 |
AP auto discovery and monitoring
|
Supported
|
AP authentication by local database and external RADIUS
|
Supported
|
Auto channel and power management
|
Supported
|
Centralised AP firmware upgrade
|
Supported
|
Fast roaming
|
L2 |
WPA/WPA2-personal/enterpise
|
Supported
|
TKIP/AES encryption
|
Supported
|
Rogue AP/Client detection and mitigation
|
Supported
|
WIDS
|
Supported
|
VLAN group (max static)
|
255 |
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
Advanced VLAN
|
Double VLAN (Q-in-Q) Voice VLAN |
Routing table size
|
2048 |
Number of QoS queues per port
|
4 |
CoS based on contents
|
Supported
|
Bandwidth control
|
64 Kbps minimum granularity |
WMM
|
Supported
|
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
802.1X access control
|
Supported
|
External user databae - POP3 and LDAP
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
Captive portal
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
Support
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet EN | - | 0.34mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
QIG 5.00 RevA2 | Quick installation guide |
1.6.2021 | - | - | Download |
QIG 4.00 RevA2 | Quick installation guide |
5.3.2021 | - | - | Download |
QIG 3.00 RevA2 | Quick installation guide |
23.7.2020 | - | - | Download |
QIG 2.00 Revision A2 | Quick installation guide |
23.8.2018 | - | - | Download |
1.00 | Quick installation guide |
14.9.2015 | 3.32mb | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | Type | |
---|---|---|---|---|
FW 4.7.6.1 Revision Ax | Firmware Release notes included |
27.12.2021 | - | Download |
FW 4.7.4.2 Revision Ax | Firmware Release notes included |
18.6.2020 | - | Download |
FW 4.7.2.1 Revision Ax | Firmware Release notes included |
15.4.2019 | - | Download |
FW 4.7.1.1 Revision Ax | Firmware Release notes included |
6.9.2018 | - | Download |
FW 4.7.0.3 Revision A2 | Firmware Release notes included |
4.5.2018 | - | Download |
Firmware Release notes included 4.6.0.2 | Firmware Release notes included |
22.5.2017 | - | Download |
Firmware Release notes included 4.5.0.2 | Firmware Release notes included |
8.12.2016 | - | Download |
Version | Description | Date | |
---|---|---|---|
CE doc 6.00 RevA2 | CE declaration | 2.3.2021 | Download |
CE doc 5.00 RevA2 | CE declaration | 19.11.2020 | Download |
CE doc 4.01 RevA2 | CE declaration | 2.6.2020 | Download |
CE doc 4.00 RevA2 | CE declaration | 2.8.2019 | Download |
CE doc 3.10 Revision A2 | CE declaration | 17.9.2018 | Download |
CE doc 3.00 | CE declaration | 23.8.2018 | Download |
DEU_CE_Doc_RevA1 | CE declaration | 14.9.2015 | Download |
