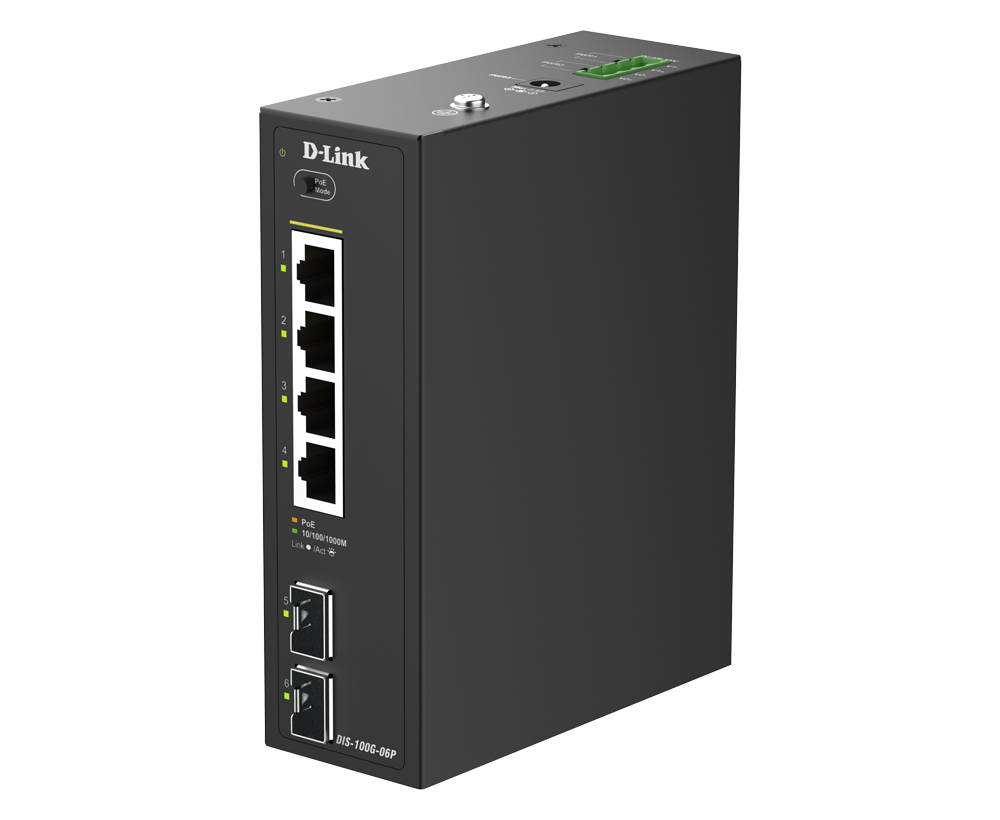

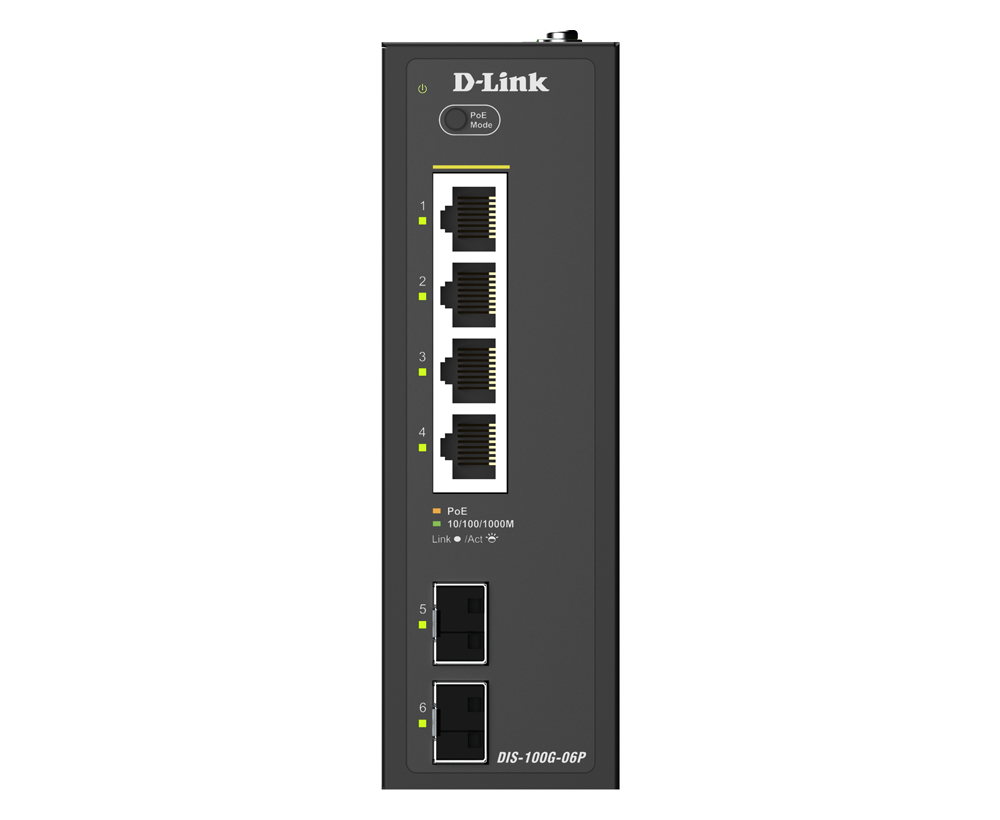

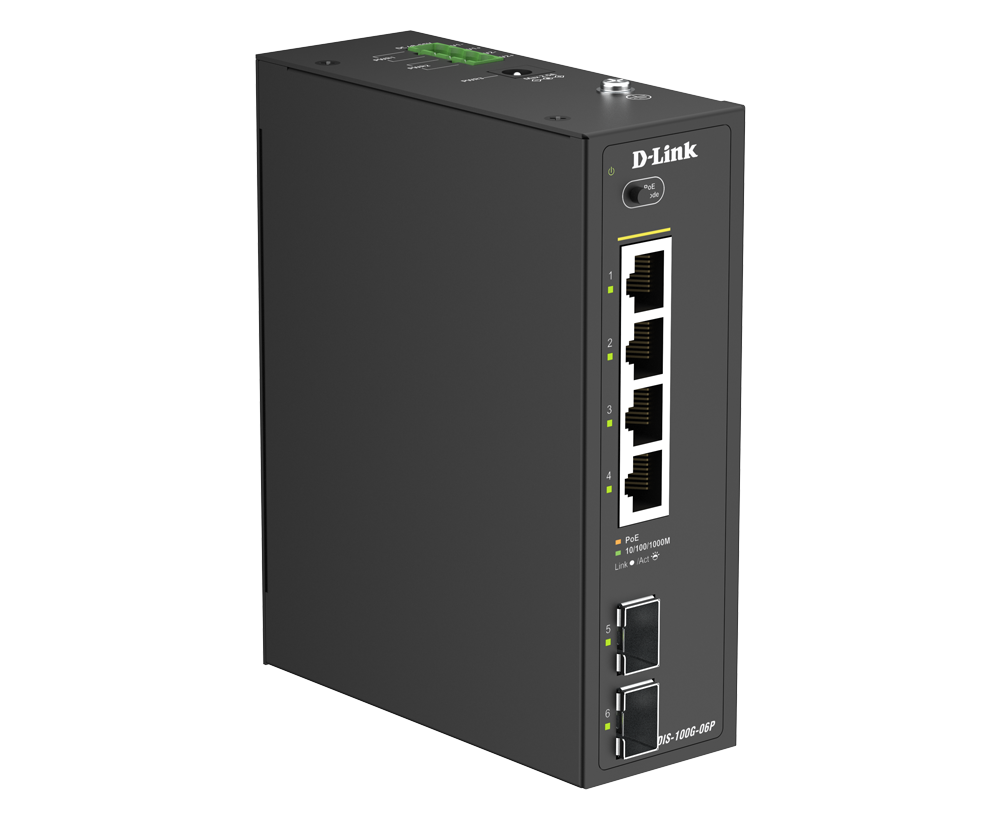

Industrial 4-Port 1G PoE+ + 2-Port 1G SFP Unmanaged PoE Switch
DIS-100G-06P
- Statut produit (A1): Live
- 4 x Gigabit PoE ports for fast data transmission
- 2 x 1G SFP ports for easy network expansion
- IEEE 802.3af/at with 120W PoE power budget
- Dual power inputs provide power redundancy
- Wide voltage compatible with various power sources
- -40°C to 75°C operation for harsh environments
- 6kV surge protection on Gigabit Ethernet ports
- DIN-rail and plug-and-play simplified installation
- Fanless and IP40-rated design enhance reliability
- Support 802.3az Energy Efficient Ethernet (EEE)
Télécharger la fiche technique.
Voir la liste de nos partenaires
Fiber Interface
Offer high speed, low latency and long-distance transmission
Dual Power Input
Dual power supply redundancy minimizes downtime and boosts system reliability
Protection contre les surtensions 6 kV
Protection 6 kV : vos ports Ethernet restent intacts face aux surtensions
Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Fanless
Fanless design reduces the risk of component failure impacting MTBF, reducing maintenance and downtime costs
Green Ethernet
Energy Efficient Ethernet (EEE) reduces power consumption, helps save cost, especially in always-on environments
High Power with PoE+
The DIS-100G-06P features four built-in PoE ports that comply with IEEE 802.3af/at standards, delivering both data and power over a single Ethernet cable. With a total power budget of up to 120W, each port can supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.
Connect Far, Transmit Fast
The DIS-100G-06P features two SFP ports that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

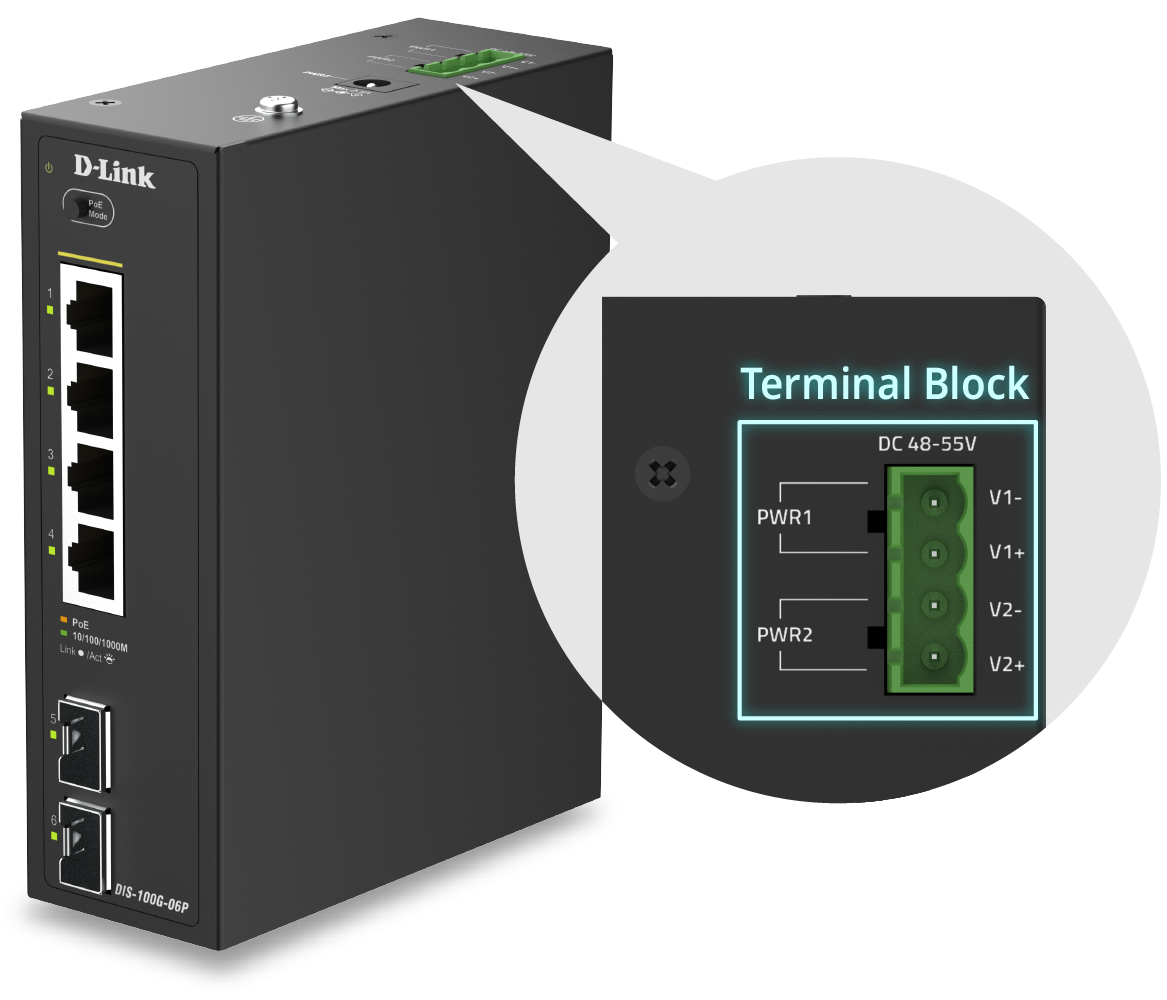

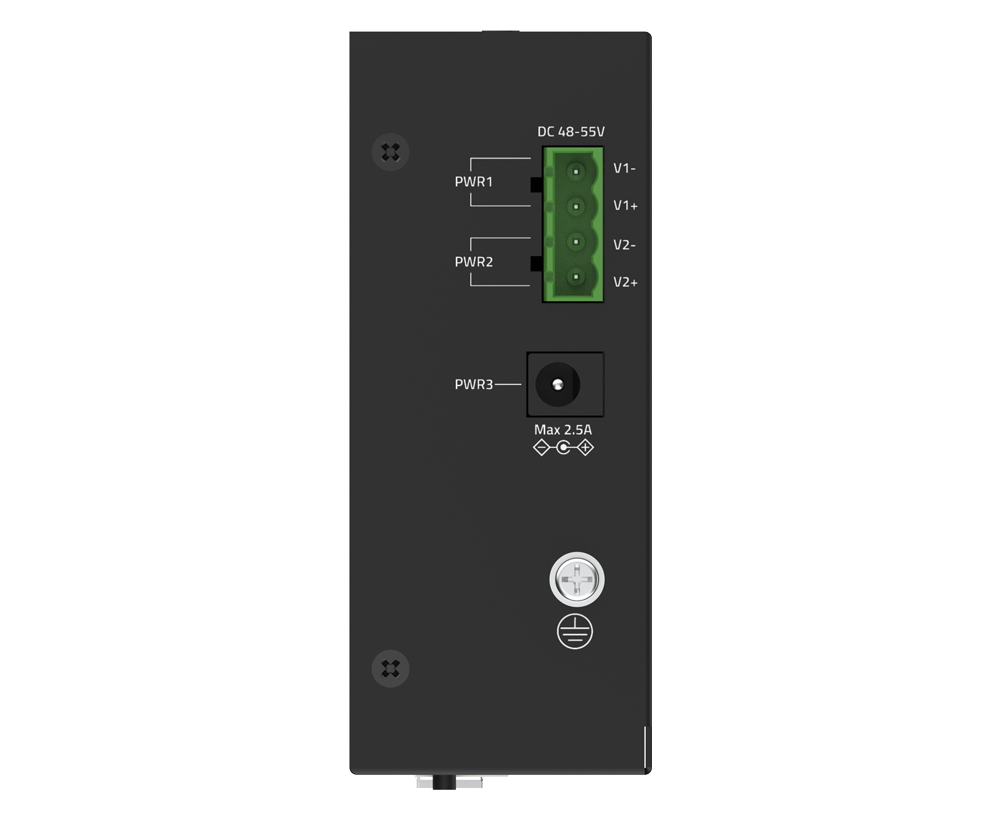

Uninterrupted Power Redundancy
The DIS-100G-06P is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 48 - 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Wide
Voltage
Redundancy Power Supply
Overcurrent Protection
Anti-Reverse Protection
Firm
Connection
Built Tough for Demanding Conditions
The DIS-100G-06P is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable, and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.
Produits apparentés

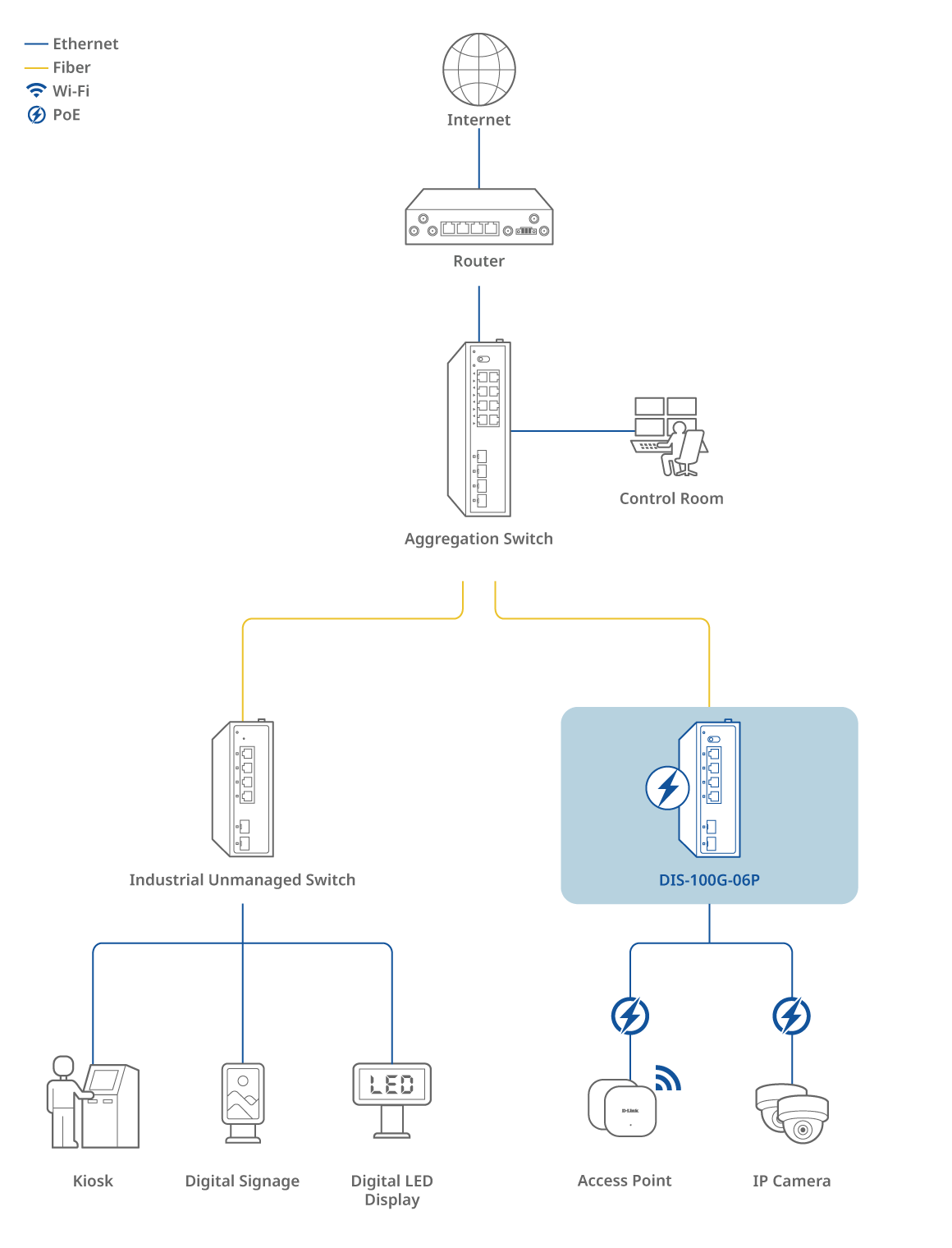

Connection Diagram
The DIS-100G-06P is an industrial unmanaged switch equipped with four 1G PoE ports and two SFP ports, providing plug-and-play simplicity deployment. The SFP ports support long-range data transmission, removing the distance limitations of traditional Ethernet cabling. With reliable, high-performance operation, it's well-suited for edge deployments in applications like HD surveillance, wireless access points and more.
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Access
Point
|
Type of Downlink Ports
|
1G SFP |
|---|---|
|
Type of Uplink Ports
|
1G SFP |
|
Number of Gigabit ports
|
4 |
|
Number of SFP ports
|
2 |
|
Capacité de commutation
|
12 Gbps |
|
Ports compatibles PoE
|
Port 1-4, up to 30 W |
|
Budget PoE
|
120W |
|
PoE Ports
|
802.3af, 802.3at |
|
Number of PoE Ports
|
4 |
|
Sans ventilateur
|
Supported
|
|
802.3az EEE
|
Supported
|
|
Type d’alimentation électrique
|
DC:48~55V Dual input |
|
Installation
|
DIN-Rail |
|
Température de fonctionnement
|
-40°-75°C |
|
Protection contre les surtensions
|
6kV |
|
Dimensions
|
138 x 108 x 44 mm |
|
Ingress Protection
|
IP40 |
|
Trame Jumbo
|
9K |
|
MAC Address
|
Up to 8K |
|
Les performances peuvent varier selon les paramètres utilisés, le câblage, la température ambiante, la configuration réseau, les interfaces, la compatibilité des appareils et les conditions environnementales ou spécifiques au site. Les données relatives à la puissance, à la vitesse de traitement ou de signal, à la portée, au chiffrement, à la capacité de stockage, à l’affichage ou à tout autre indicateur de performance sont fournies à titre indicatif, sur la base de conditions optimales définies par les standards du secteur. Les caractéristiques techniques sont susceptibles d’être modifiées sans préavis. |
|
