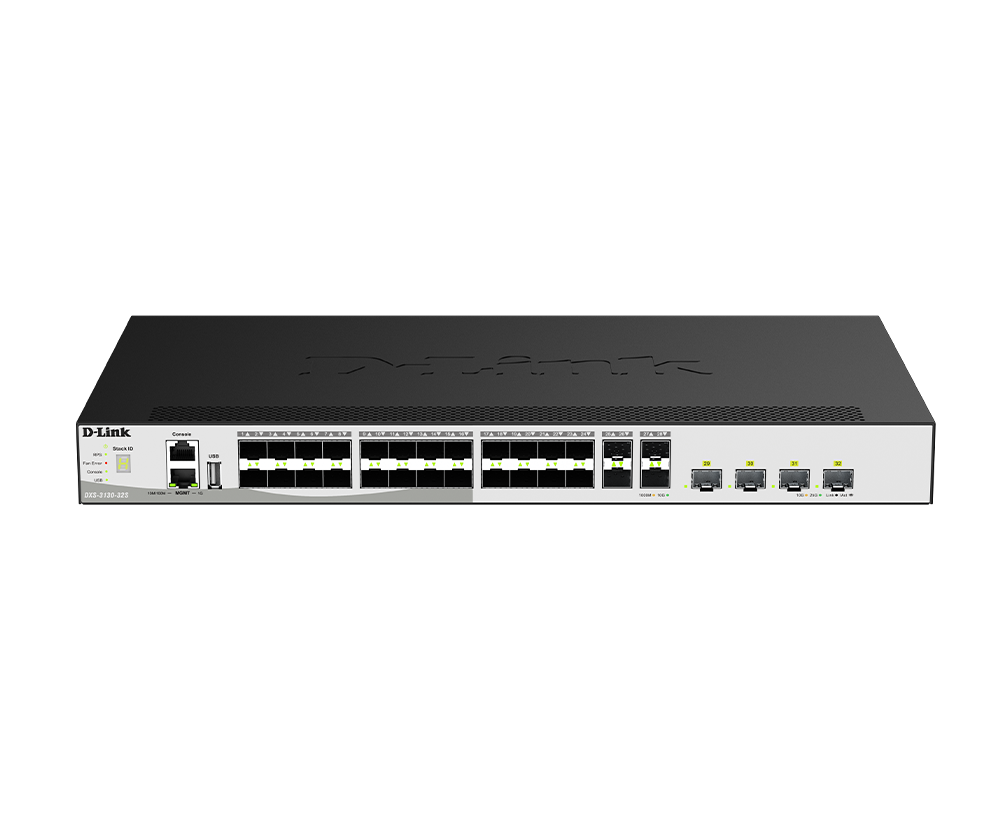

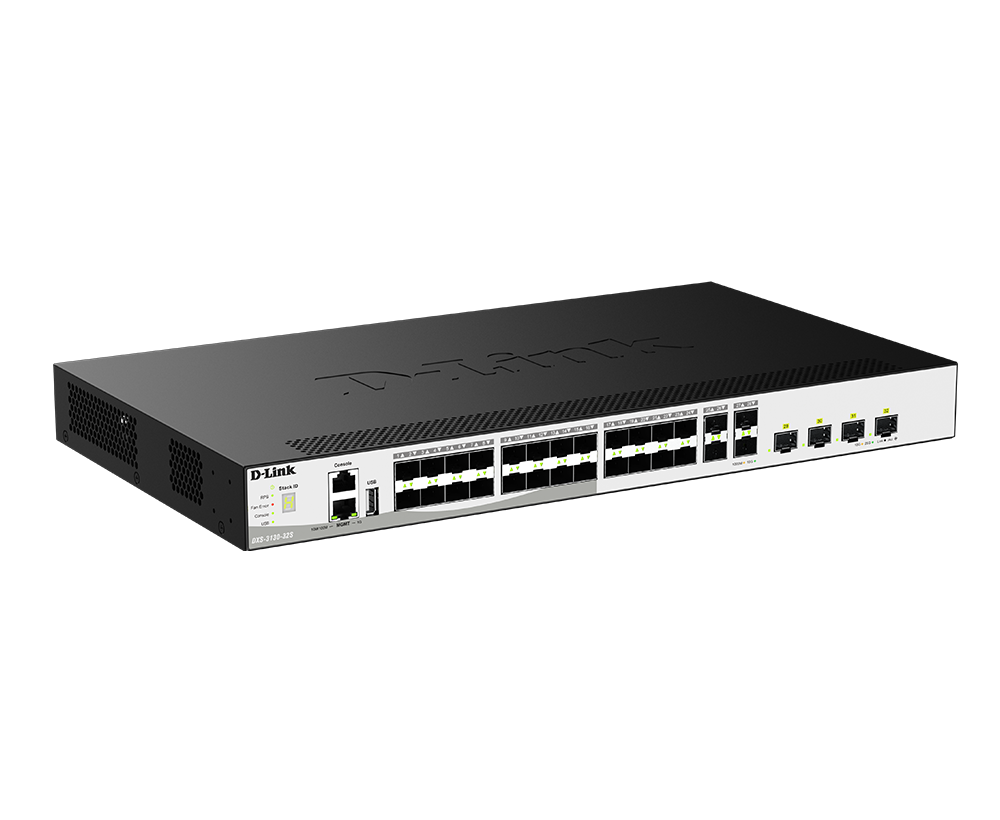

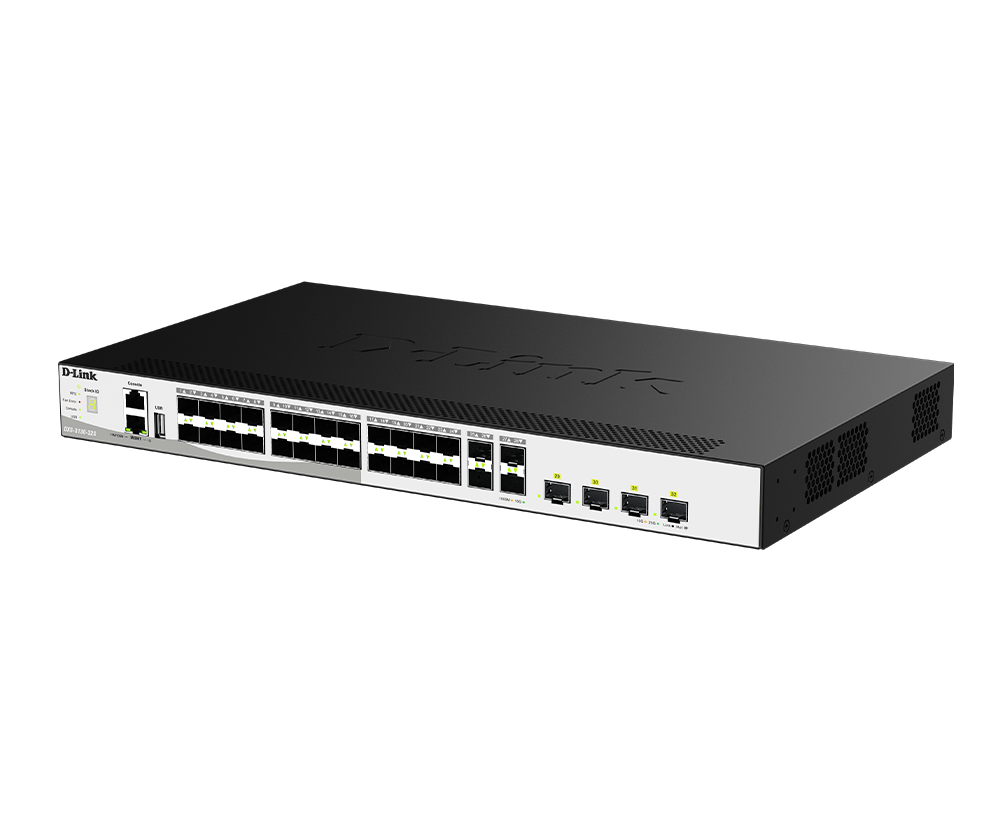

32-Port 10G Layer 3 Stackable Aggregation Managed Fiber Switch
DXS-3130-32S
- Product Status (EU RevA): Live
- 28 Ports 10G/multi-Gigabit for downlink
- 4 Ports 10/25G SFP28 for uplink
- Physical stack of up to 9 units via four 25G ports
- 200 Gbps per-device physical stacking bandwidth
- Ethernet Ring Protection Switching (ERPS)
- RIP/RIPng, OSPFv2/v3, VRRP for L3 routing
- Support 802.1X and Web/MAC-based access control
- IEEE 802.1ag for Connectivity Fault Management
- Green features for reduced power consumption
- Manage through the Nuclias Network Controller
Alle Verkooppunten
User Benefits
Veelzijdig traffic management.
Optimaliseert kritieke services met QoS, traffic shaping, multicast support en ISM VLAN voor een verbeterde efficiëntie
Vereenvoudigd beheer
De SIM-functie maakt het mogelijk om meerdere switches als een virtuele stack met één IP te beheren, ondersteunt door diverse management tools
Verbeterde Netwerk Betrouwbaarheid
AC- of DC RPS-opties zorgen voor een ononderbroken werking en verhogen de betrouwbaarheid van de switch door stroomonderbrekingen te voorkomen
Geavanceerde Toegangsbeveiliging
Ondersteunt authenticatiemechanismen zoals 802.1X, Web/MAC-gebaseerde access control voor eenvoudige implementatie
Hoge beschikbaarheid en betrouwbaarheid
Stack tot 9 switches met 200 Gbps bandbreedte en unified IP voor vereenvoudigde controle, snelle failover en solide redundancy
Efficiënte Layer 3 Routing
Maakt Layer 3-routing tussen verschillende delen van uw netwerk mogelijk, waardoor de efficiëntie wordt verbeterd door verkeer naar de optimale bestemming te sturen
High-Speed Versatile Switching
Featuring flexible combinations of 10G SFP+ and 10GBase-T downlink ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic. The full optical interface design optimizes speed and handles heavy traffic.
Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.

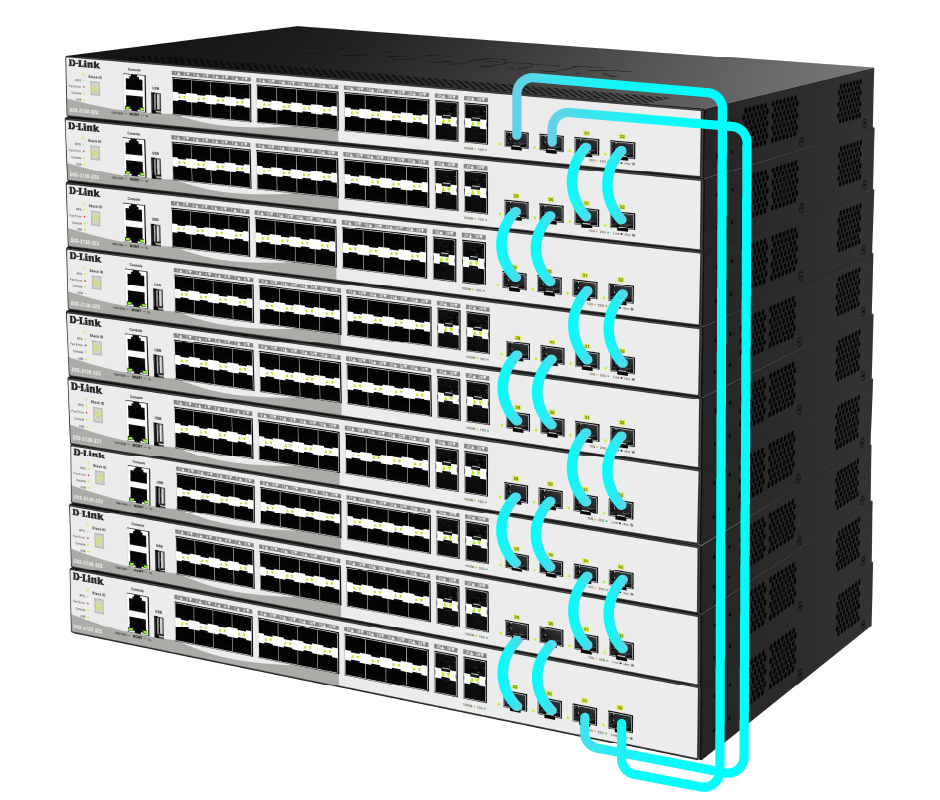

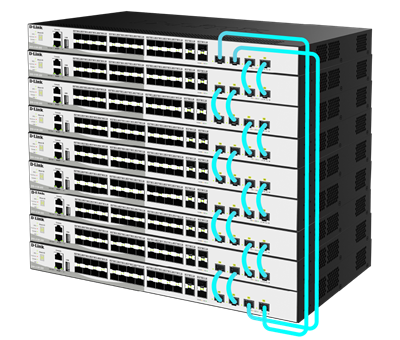

Unified the Power, Stack for Success
Scale your network with the DXS-3130 series by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.

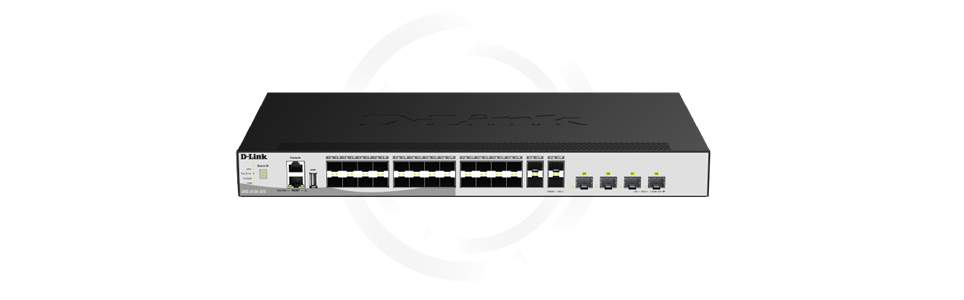

Built for Unbreakable Networks
The DXS-3130-32S ensures continuous uptime with redundant power and stacking. It's 50ms ERPS recovery minimizes downtime, loopback detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.
Optimized Performance for Critical Services
The DXS-3130-32S switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.
Geavanceerde QoS/CoS
Geeft prioriteit aan kritiek verkeer zoals VoIP en video, wat zorgt voor soepele prestaties en minimale latentie voor tijdgevoelige toepassingen
IGMP/MLD Snooping
Multicast-traffic wordt alleen naar de beoogde ontvangers gestreamd, waardoor onnodig bandbreedtegebruik wordt verminderd en de netwerkefficiëntie wordt verbeterd
ISM VLAN
Regelt multicast over VLAN's om het verkeer te verminderen en de beveiliging en prestaties op het grootschalige netwerk te verbeteren
Gerelateerde Producten

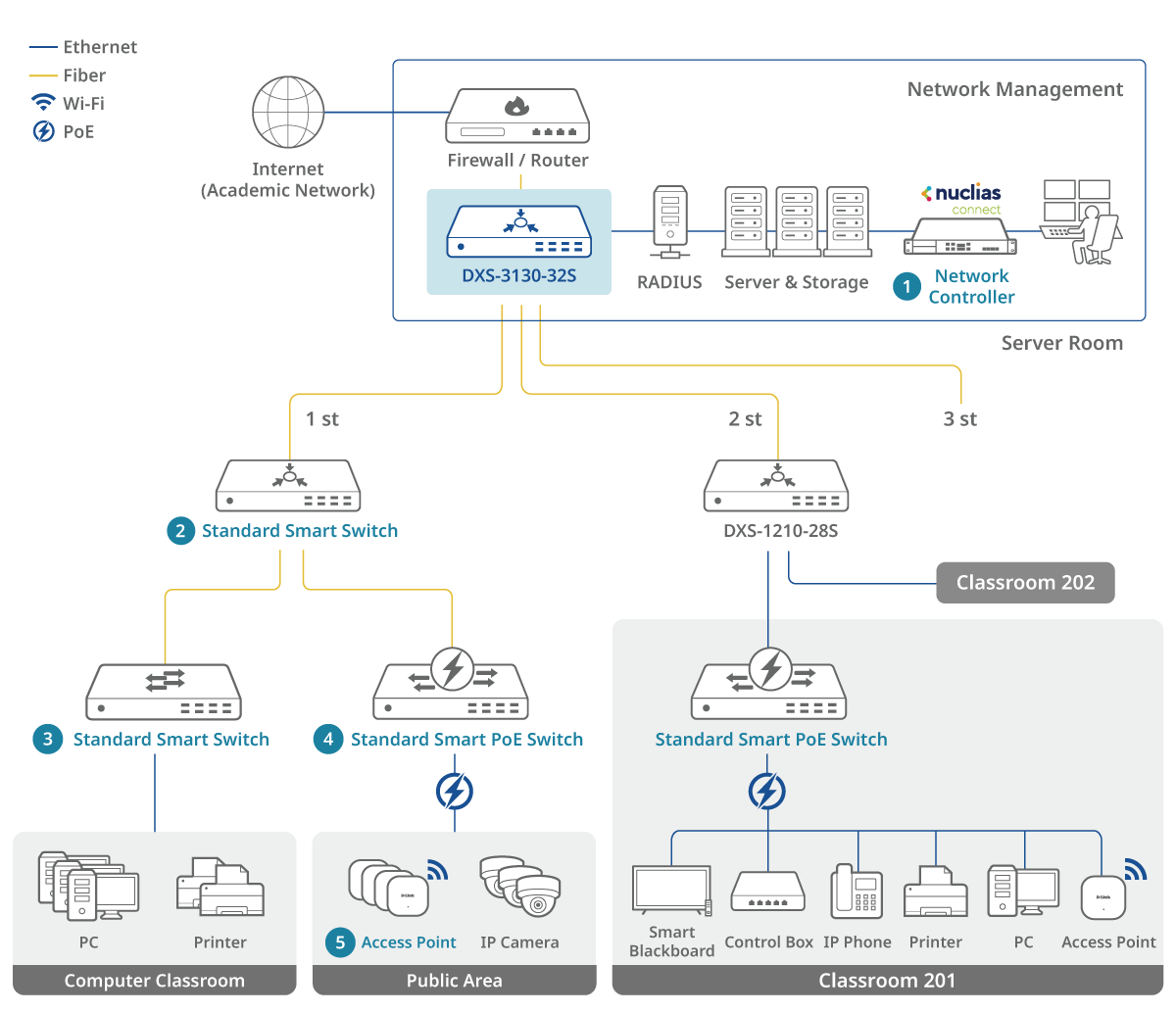

K-12 School (Education)
User benefits :
- VLAN and QoS for smarter traffic control
- Scalable design to grow network demands
- Easy management for streamlined administration
- Advanced security to protect against threats
Learn more :
- Network Controller : DNH-1000
- Standard Smart Switch : DXS-1210-28S
- Standard Smart Switch : DMS-1250-18
- Standard Smart PoE Switch : DMS-1250-18P
- Access Point : DAP-X3060

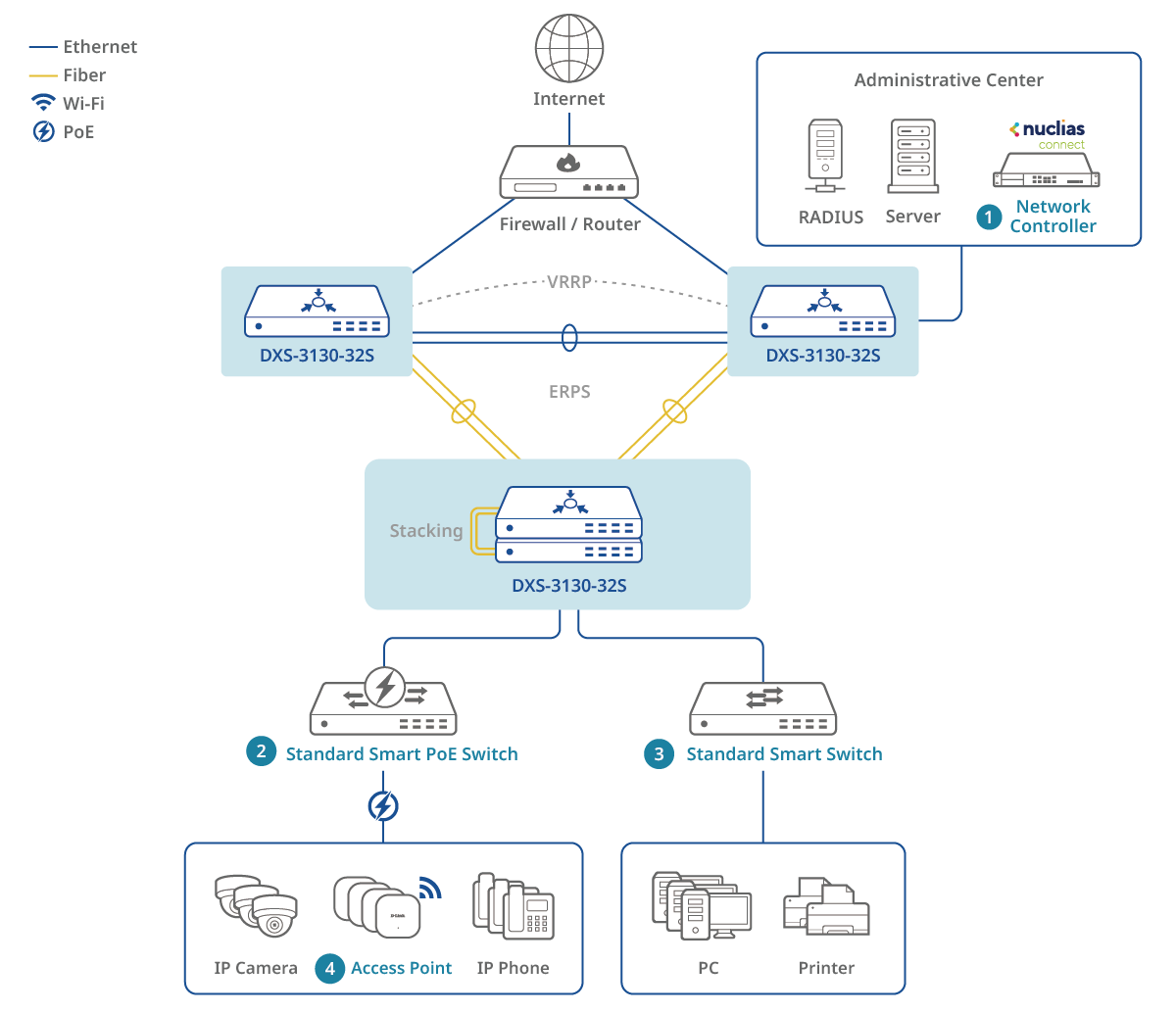

Office (Enterprise)
- Router offloading to boost efficiency
- Fast recovery for always-on connectivity
- Strong security to protect critical data
- Smart traffic Control for efficient data flow
Learn more :
- Network Controller : DNH-3000
- Standard Smart PoE Switch : DXS-1250-28YP
Standard Smart Switch : DXS-1210-12TC
Access Point : DAP-E9560

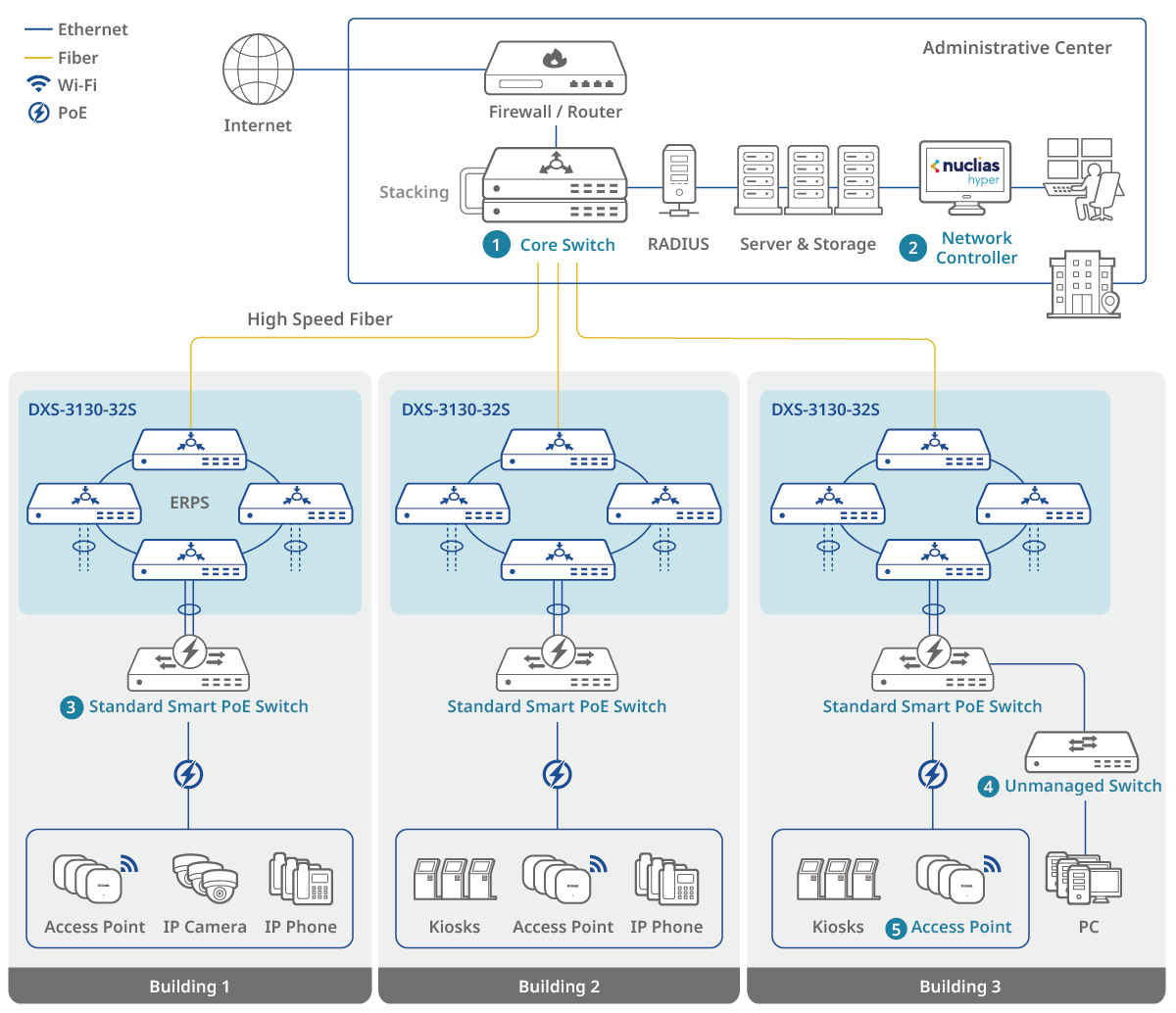

High-Rise Community (Buildings)
- Easy maintenance to minimize downtime
- 10G speed to handle growing bandwidth demands
- Strong security for reliable protection
- Scalable design for seamless expansion
Learn more :
- Core Switch : DQS-3630-56S ( Coming Soon )
- Network Controller : DNC-5000
Standard Smart PoE Switch : DMS-1250-18P
Unmanaged Switch : DMS-1016
Access Point : DAP-X3060
Specs
|
Interfaces
|
28 x 10GE SFP+ 4 x 10/25G SFP28 |
|---|---|
|
Switch Capacity
|
760 Gbps |
|
Max. Packet Forwarding Rate
|
560.44 Mpps |
|
Max Power Consumption
|
66.5W |
|
Dimensions
|
440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in) |
|
FAN
|
3 x Smart fans |
|
Operating Temperature
|
0 to 50 °C (32 to 122 °F) |
|
Storage Temperature
|
-40 - 70°C (-40 - 158 °F) |
|
Operating Humidity
|
10% to 90% relative humidity |
|
Storage Humidity
|
5% to 90% relative humidity |
|
Console Port
|
Yes |
|
Power Supply Type
|
Internal |
|
