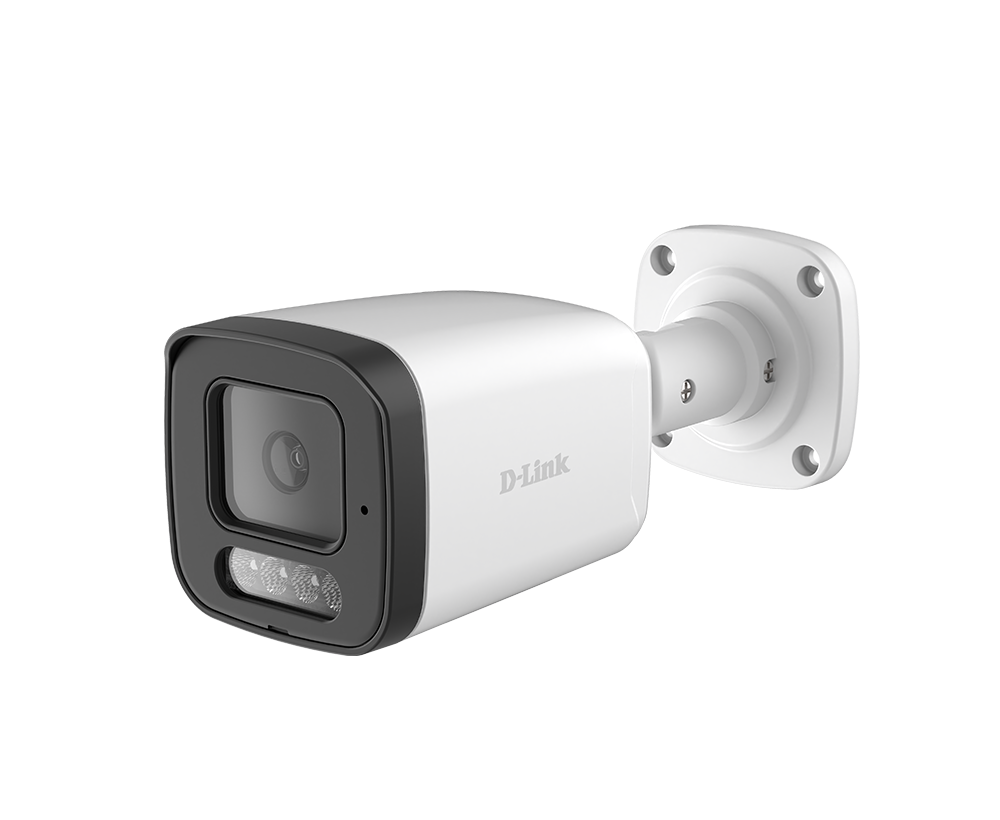

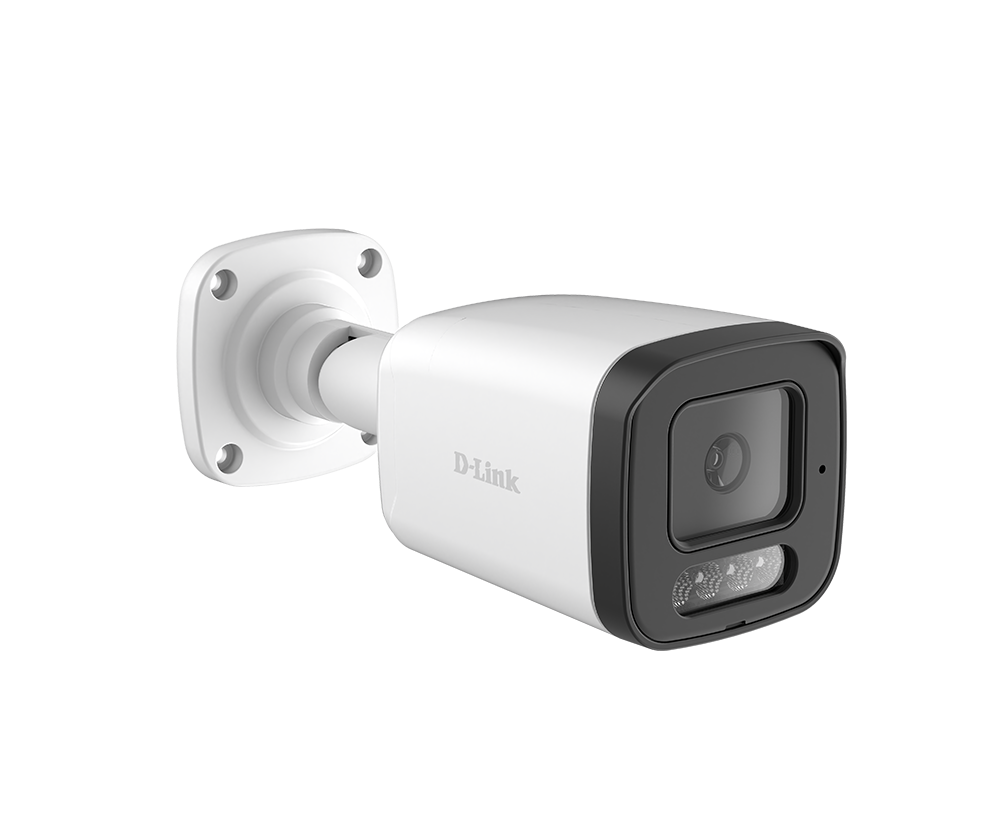

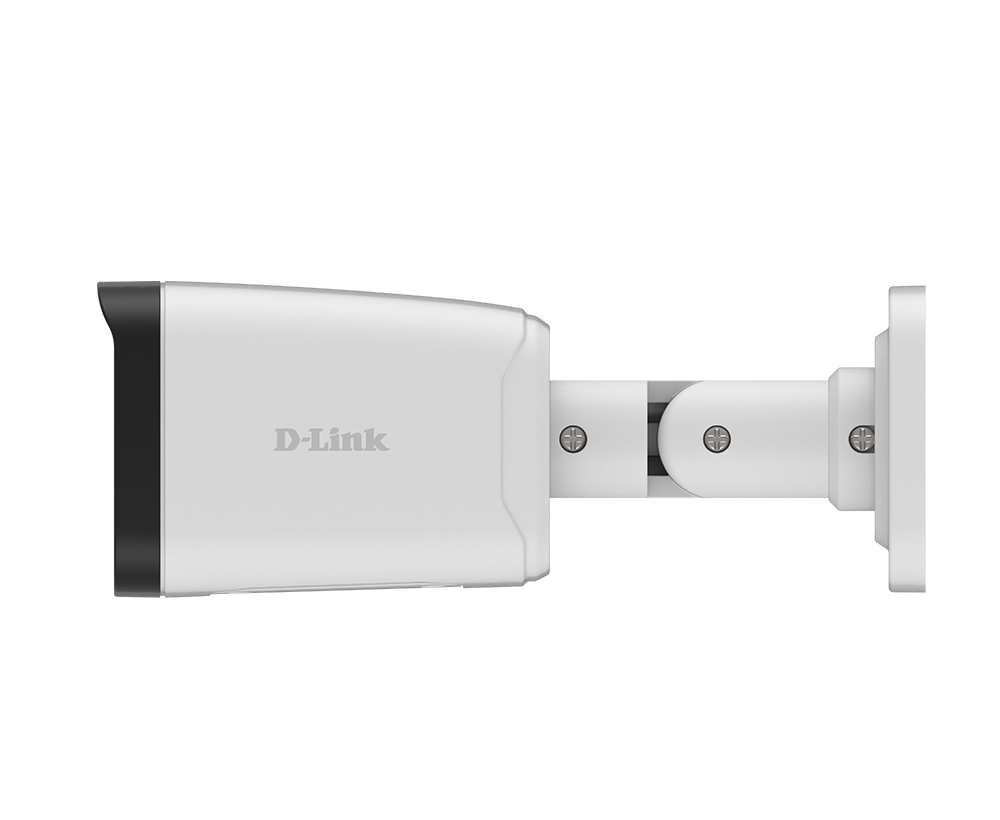

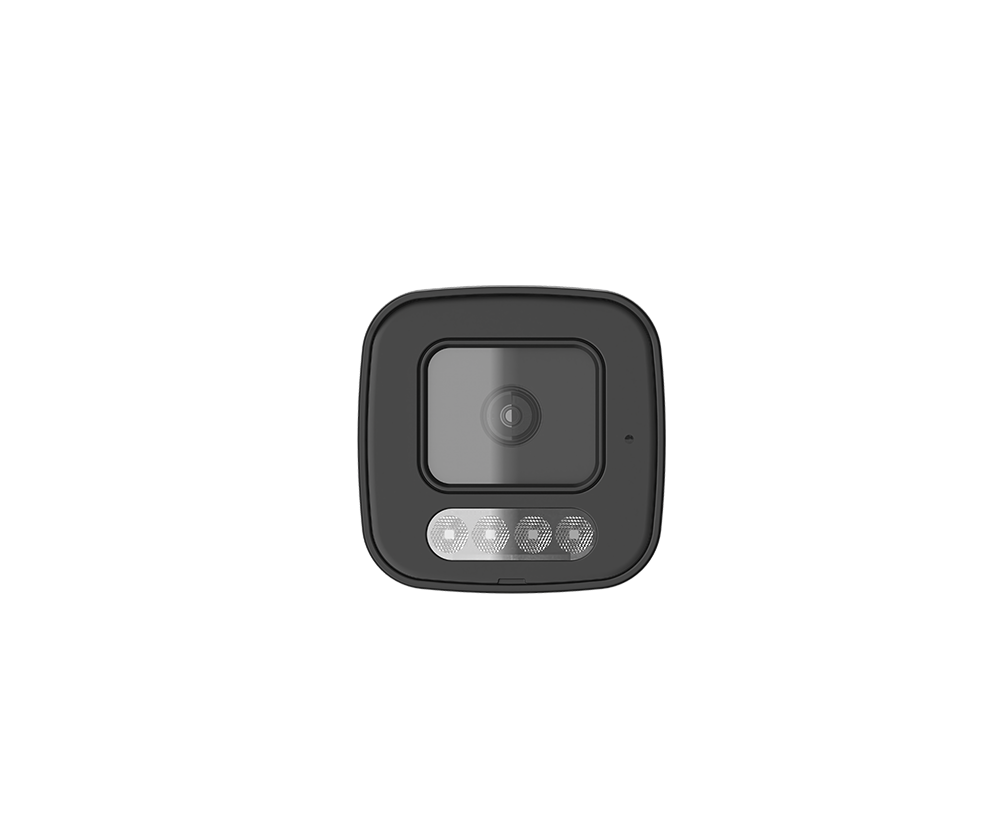

2 Megapixel H.265 Outdoor Bullet Camera
BCB-P01
- Dostupnost produktu (Rev A): Live
- 2MP Progressive CMOS Sensor
- IR Illumination Range up to 30 m
- Minimum Object Distance of 1 m
- IP66 Weatherproof Protection
- 10/100 Fast Ethernet with 802.3af PoE
- microSD Card Support up to 1 TB
- Human, Vehicle, Motion, and IVS Detection
- Built-in People Counting Support
- ONVIF Profile S/T Compliant
Seznam prodejců
User Benefits

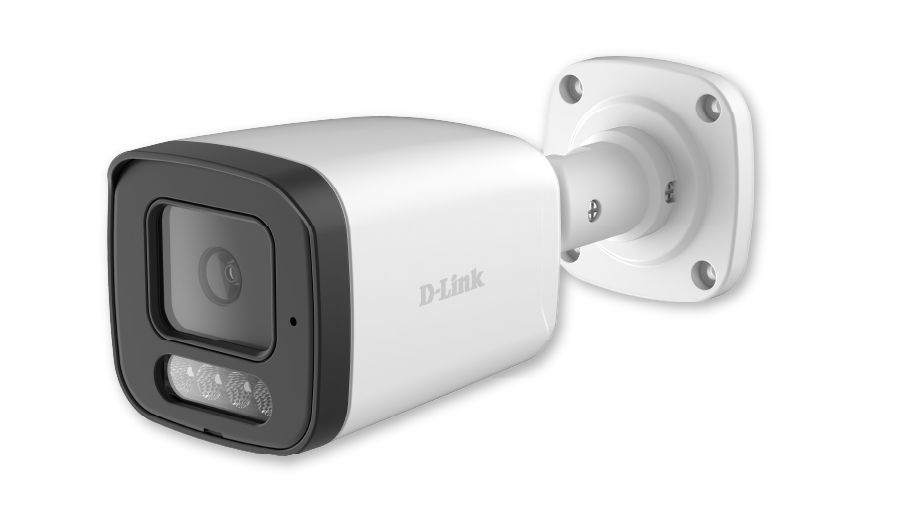

Clear High-Definition Video
Delivering crisp, high-definition video to ensure every frame is sharp, vivid, and reliable in any environment
Intelligent Video Analytics
Advanced video analytics reduce false alarms to deliver real-time precision and smarter, proactive monitoring

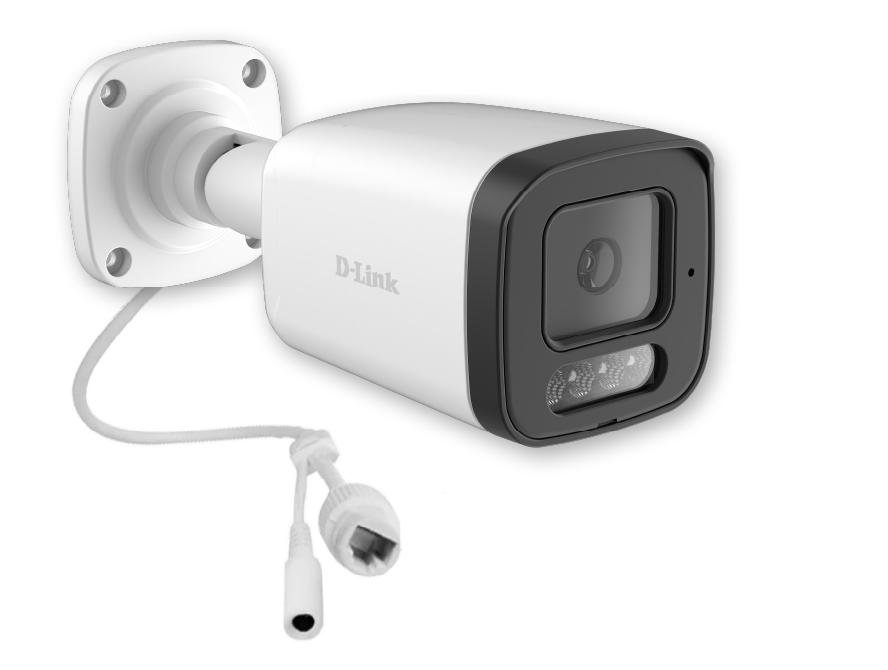

Simplified Cabling Installation
PoE enabling both power and data transmission through a single cable, reducing installation complexity and cost
3D NR (Noise Reduction)
Enables cleaner, high-fidelity video by eliminating digital noise in challenging low-light environments
Digital Wide Dynamic Range
Precisely capture objects in challenging environments, ensuring optimal visibility in both bright highlights and deep shadows
IP66 Weather-Proof
IP66-rated weatherproofing guarantees durability against dust and water jets, even in the harshest outdoor conditions
See Everything, Miss Nothing
Single-Cable Integration
Smart Event Detection
Transform your surveillance from passive recording to proactive protection.The BCB-P01 features built-in Intelligent Video Analytics that go beyond simple motion detection, identifying specific events and behaviors in real-time. By filtering out environmental noise, it delivers the precise insights needed to enhance site safety and operational efficiency.
Motion Detection
Detects motion events by analyzing changes in the video scene and triggers alarms when movement is identified.

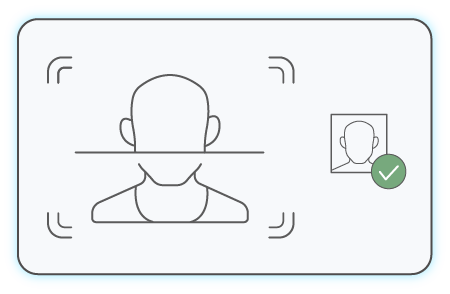

Person Detection
Automatically identify and classify human objects within the video stream with high precision.
Vehicle Detection
Detects and classifies vehicles, including cars and motorcycles, within the monitored area.

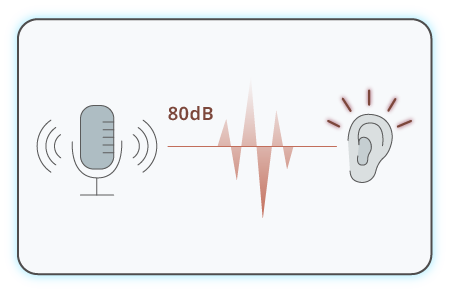

Sound Detection
Triggers instant alerts when ambient sound levels exceed your customized decibel threshold.

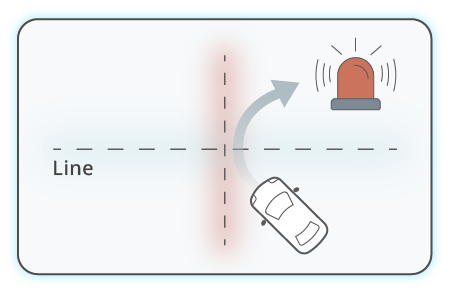

Line-Crossing Detection
Triggers instant alerts when subjects cross a customizable virtual line, securing restricted areas with precision.

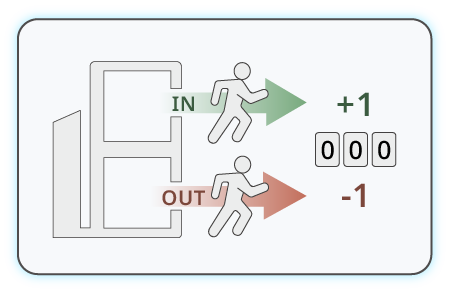

People Counting
Counts the number of people entering and exiting a defined area based on video analytics.
Wrong-Way Detection
Detects objects moving in a direction opposite to the predefined allowed direction and triggers an alert.

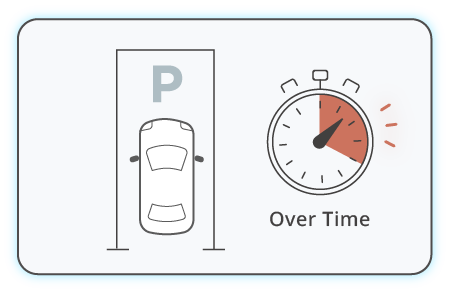

Illegal Parking Detection
Triggers an alarm when a vehicle remains stationary beyond the configured parking duration.
3D NR (Noise Reduction)
Eliminate visual static and motion blur. 3D NR intelligently filters grain in poor lighting conditions, delivering the high-fidelity detail required for reliable monitoring and evidence gathering.
Související produkty

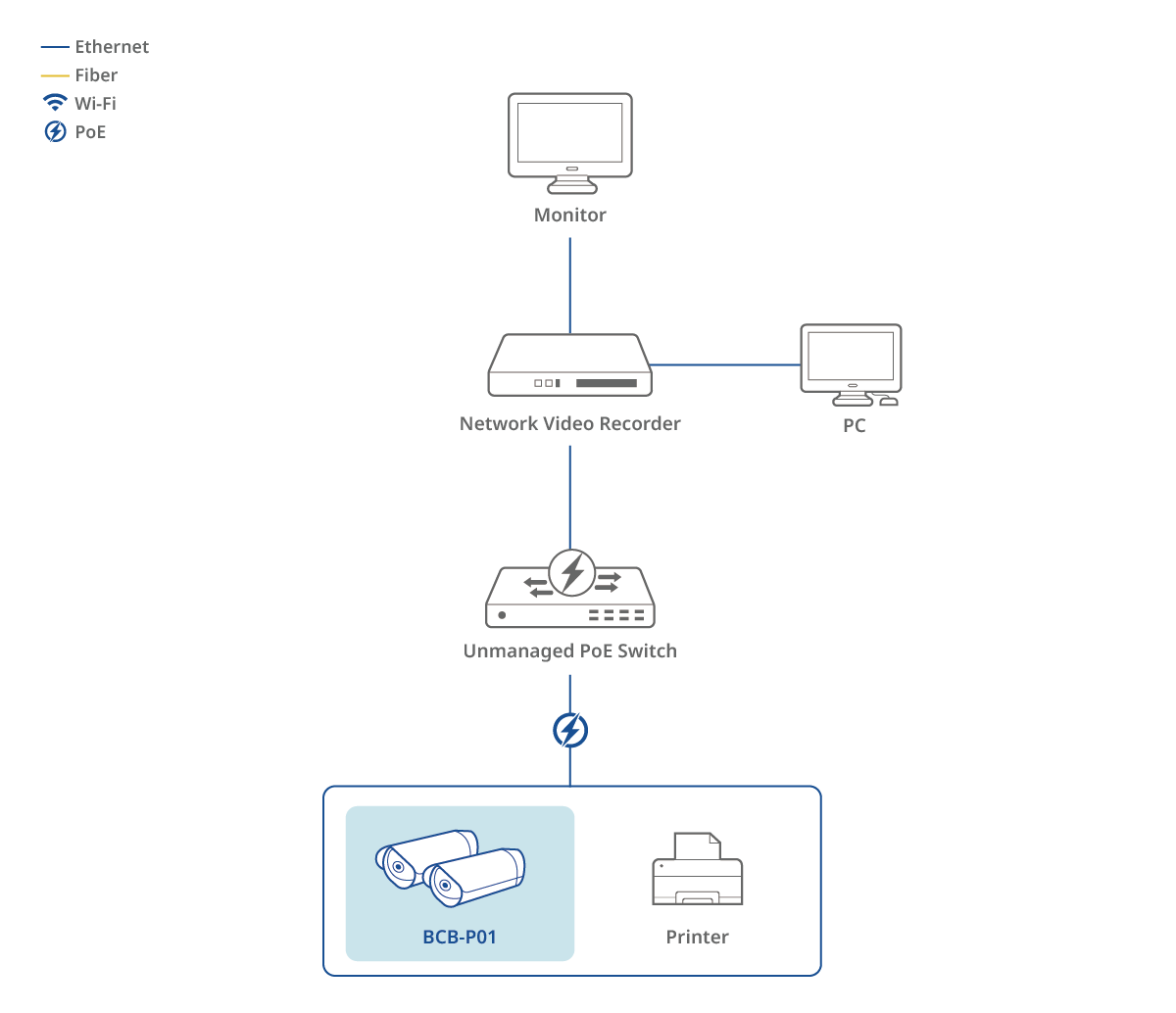

Connection Diagram
Tailored for SMBs, the BCB-P01 integrates seamlessly with NVRs and PoE switches to create a robust security foundation. With simplified PoE installation and true plug-and-play functionality, it is the ideal choice for enhancing safety and operational efficiency in small office, a retail store, a restaurant, or a coffee shop.
Unmanaged PoE Switch

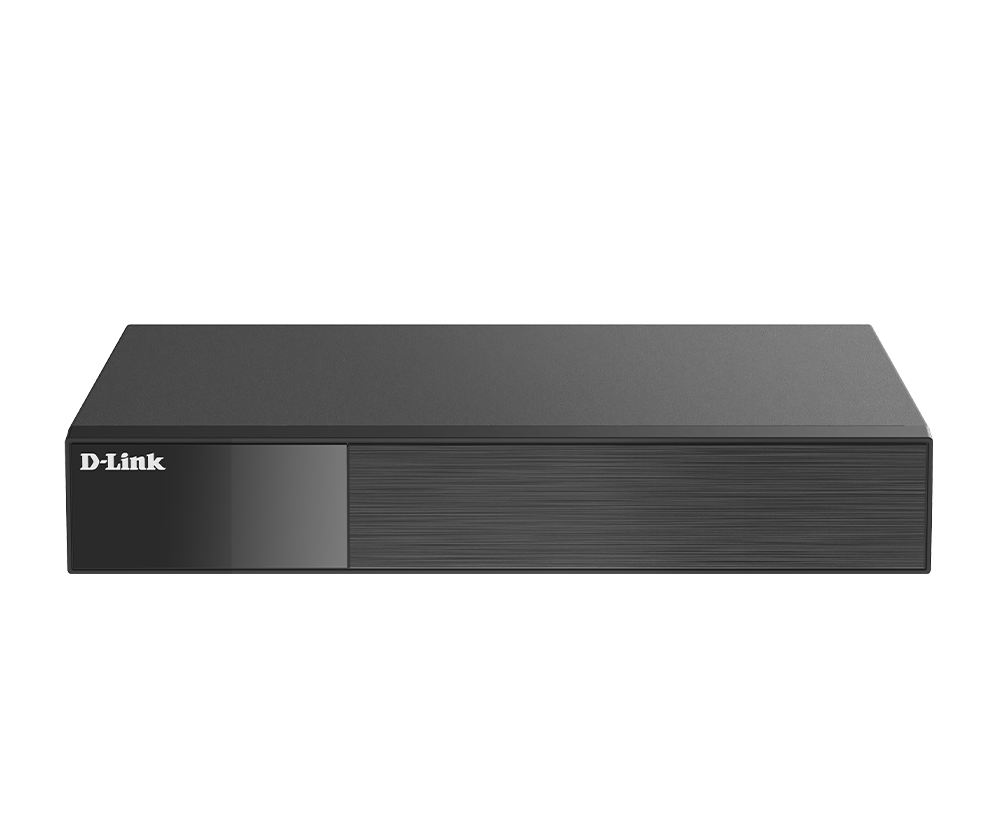

Network Video Recorder

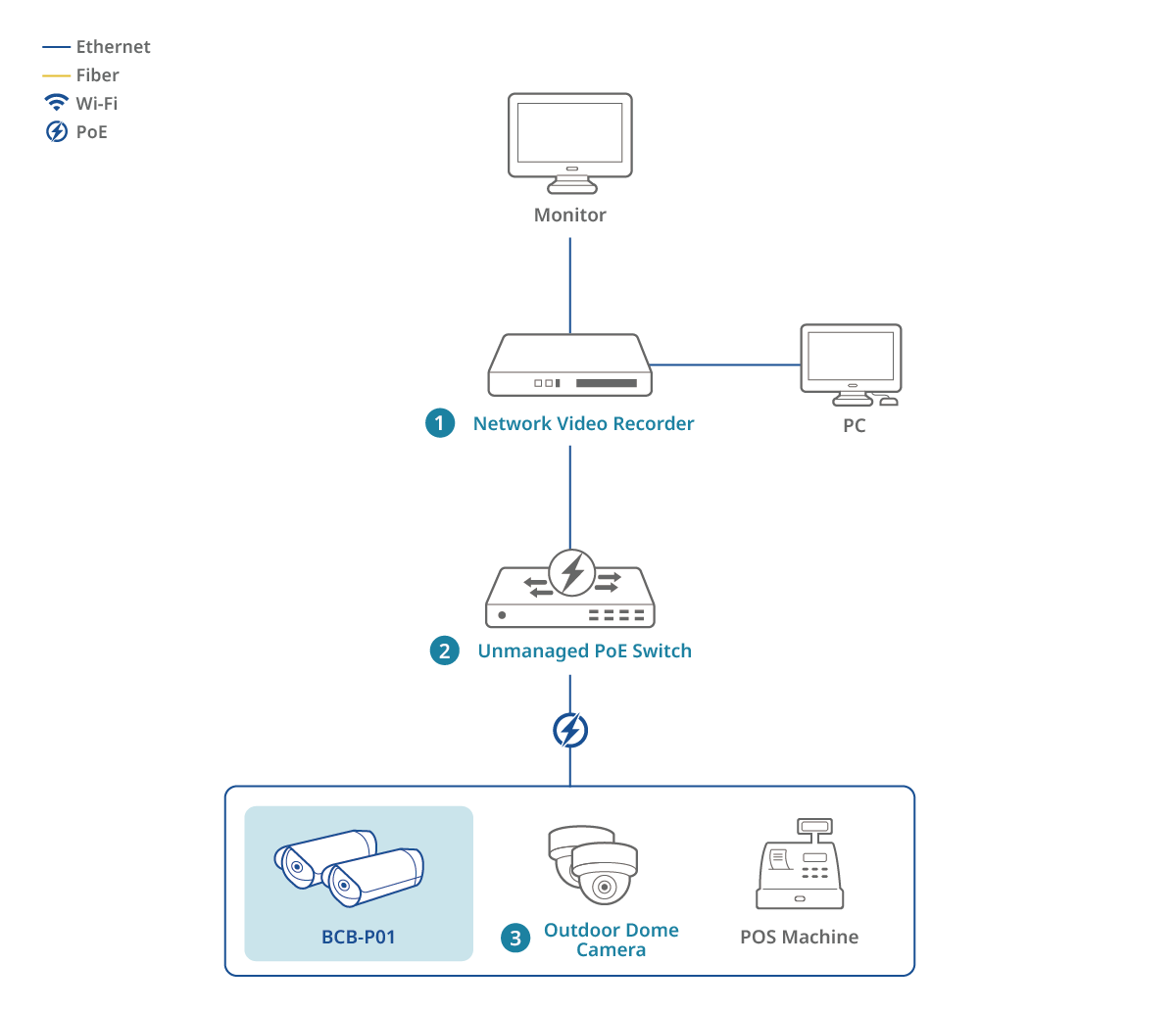

Restaurant
User benefits :
- PoE support for power and data through a single cable.
- Clear HD video for reliable monitoring in various conditions.
- Intelligent video analysis for event monitoring and false alarms.
Learn more :

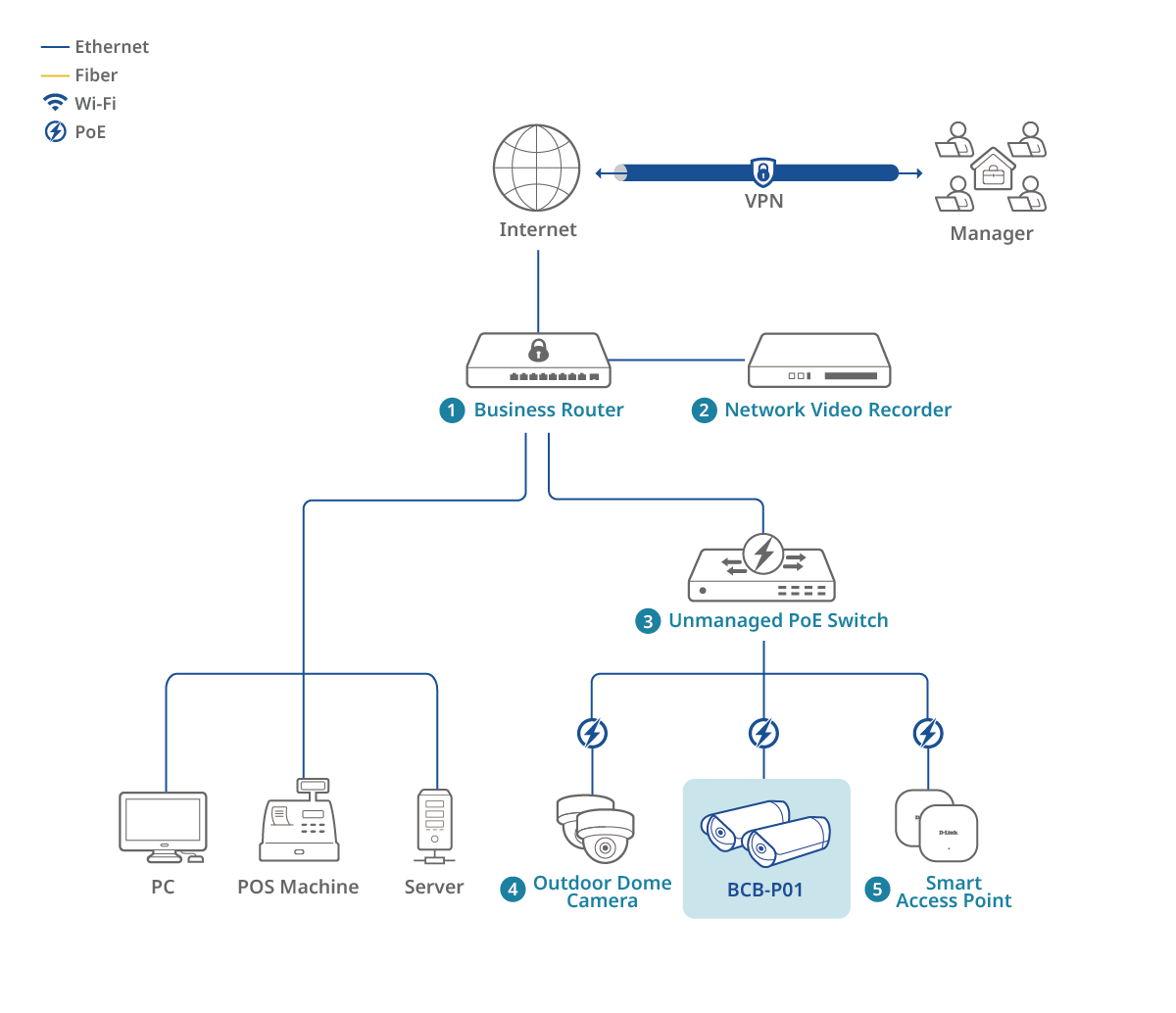

Retail Store
- Stable on-site recording without internet dependency.
- Reliable PoE connectivity for remote camera access.
- Real-time video streaming for instant response.
Learn more :
- Business Router : DBR-700
- Network Video Recorder : BNR-008
- Unmanaged PoE Switch : DGS-1008P

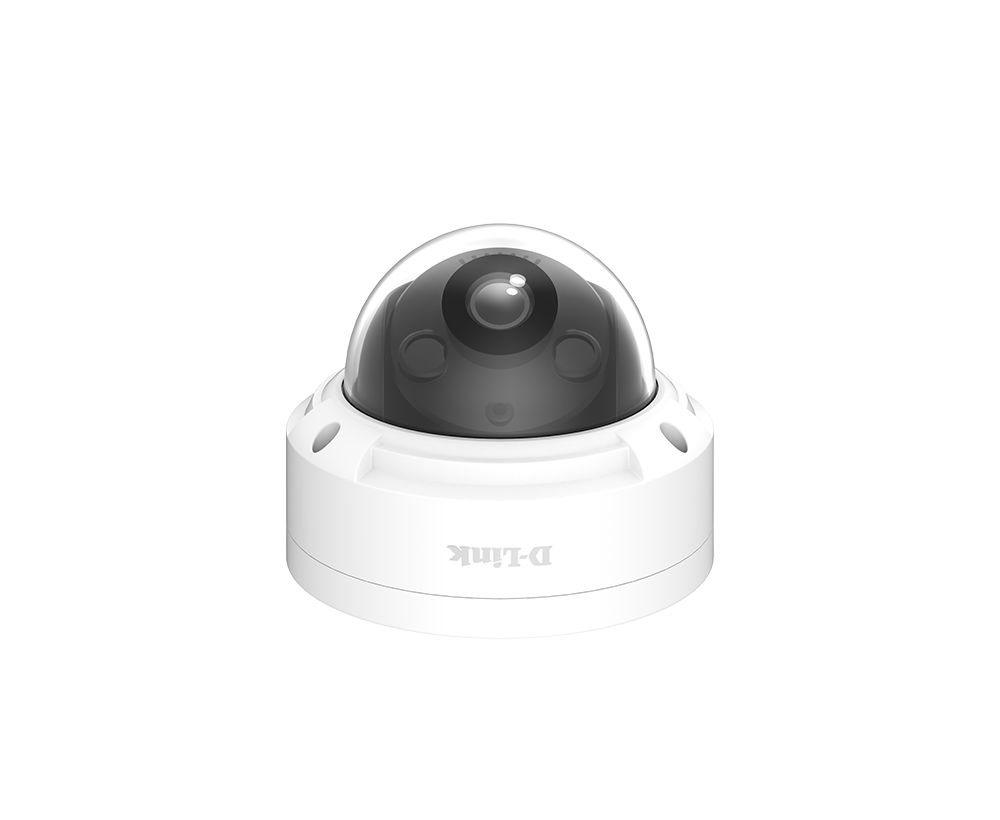

- Outdoor Dome Camera : BCD-P01
- Smart Access Point : DBR-X3000-AP
Technické specifikace produktu
|
Maximum Resolution
|
2 Megapixel |
|---|---|
|
Camera Hardware Profile
|
Illuminator: LED Number 4 (IR LED) IR Illumination Distance: up to 30 meters Minimum illumination: Color: 0.05 lux @(F2.0, AGC ON) B/W: 0 lux with light Built-in Infrared-Cut Removable (ICR) Filter Minimum object distance 1 m Focal length: 2.8 mm Aperture: F2.0 Fixed Lens Mount Angle of view: (H) 96°/ (V) 53° 3-axis adjustment angle (non-motorized): Pan: 0°-360°, Tilt: 0°-90° Rotate: 0° - 360° |
|
Audio
|
Built-in mic |
|
Camera Housing
|
Outdoor, IP66 certified weatherproof housing |
|
Video Compression
|
H.265/H.264/MJPEG |
|
Max Resolution and Frame Rate
|
Stream 1: 1920 x 1080, 1280 x 720 @ 25/30 fps Stream 2: D1, VGA, CIF @ 25/30 fps Stream 3: VGA, CIF, QVGA @ 25/30 fps |
|
External Device Interfaces
|
Reset button microSD card slot (up to 1 TB) 10/100 Base-TX Fast Ethernet port (supports 802.3af PoE Class 3) |
|
Max Concurrent Streams
|
3 streams |
|
Event Trigger from IP Camera
|
Motion detection Smart Motion - Person/vehicle detection Single Line-crossing detection Double Line-crossing detection Multi-Loitering detection Wrong-way detection Illegal parking detection People counting |
|
Requirements for Web Interface
|
Chrome MS-Edge |
|
ONVIF Compliant
|
Profile S, T |
|
Weight
|
380 g ± 5% |
|
Power Input
|
12 VDC/PoE (802.3af) |
|
Max Power Consumption
|
3.5W ± 5% (12 VDC) 4.4W ± 5% (PoE) |
|
Operating Temperature
|
-25˚ C to 55 ˚C (-13 to 131 °F) |
|
Storage Temperature
|
-25˚ C to 55 ˚C (-13 to 131 °F) |
|
Humidity
|
Less than 90% RH (non-condensing) |
|
Dimensions
|
179.1 x 68.36 x 68.36 mm (7.05 x 2.69 x 2.69 in) |
|
Skutečný výkon se může lišit v závislosti na nastavení, kabeláži, teplotě, konfiguraci sítě, rozhraní, kompatibilitě zařízení, podmínkách prostředí a na místě a dalších podobných faktorech. Odkazy na výkon, rychlost signálu nebo zpracování, dosah signálu nebo vzdálenost, šifrování dat, úložnou kapacitu, vlastnosti displeje nebo jiné metriky výkonu jsou založeny na optimálních podmínkách odvozených z průmyslových standardů a jsou poskytovány pouze pro informační účely. Specifikace se mohou změnit bez předchozího upozornění. |
|
