New

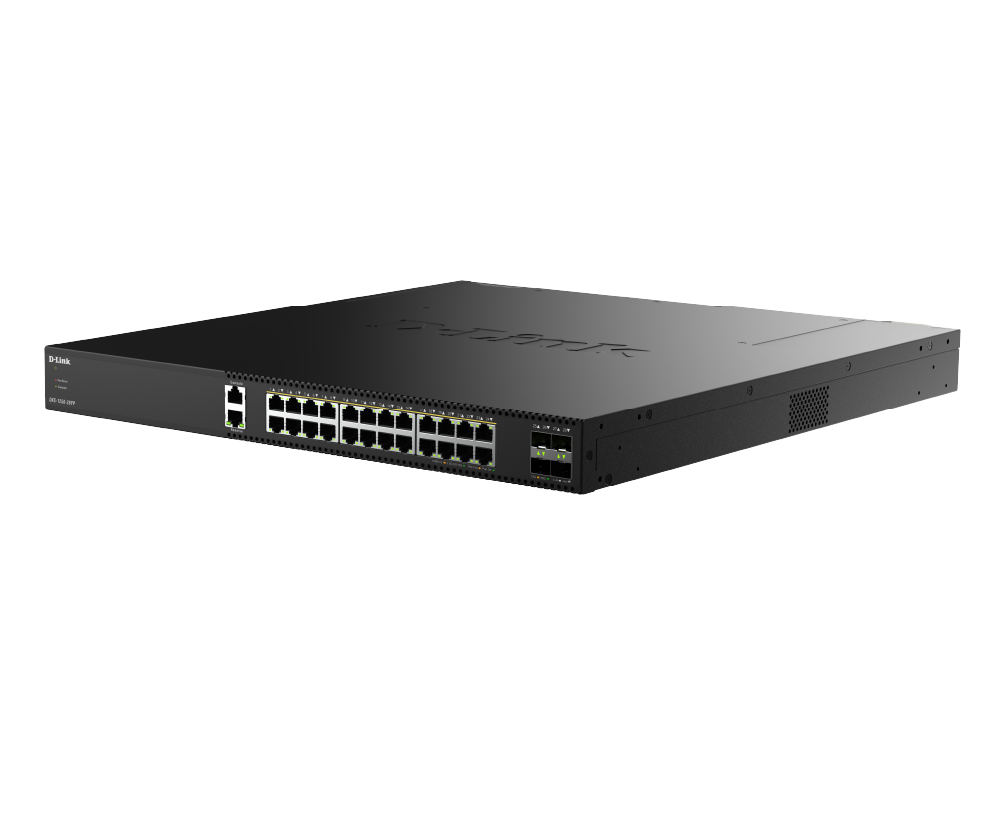

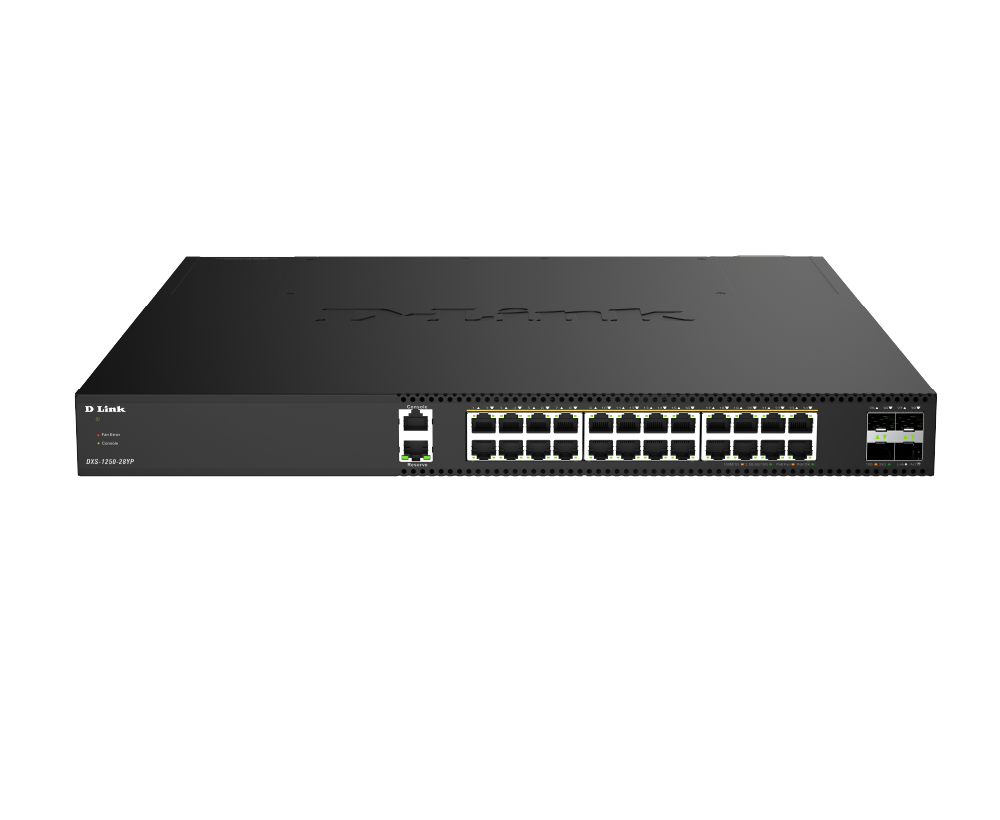

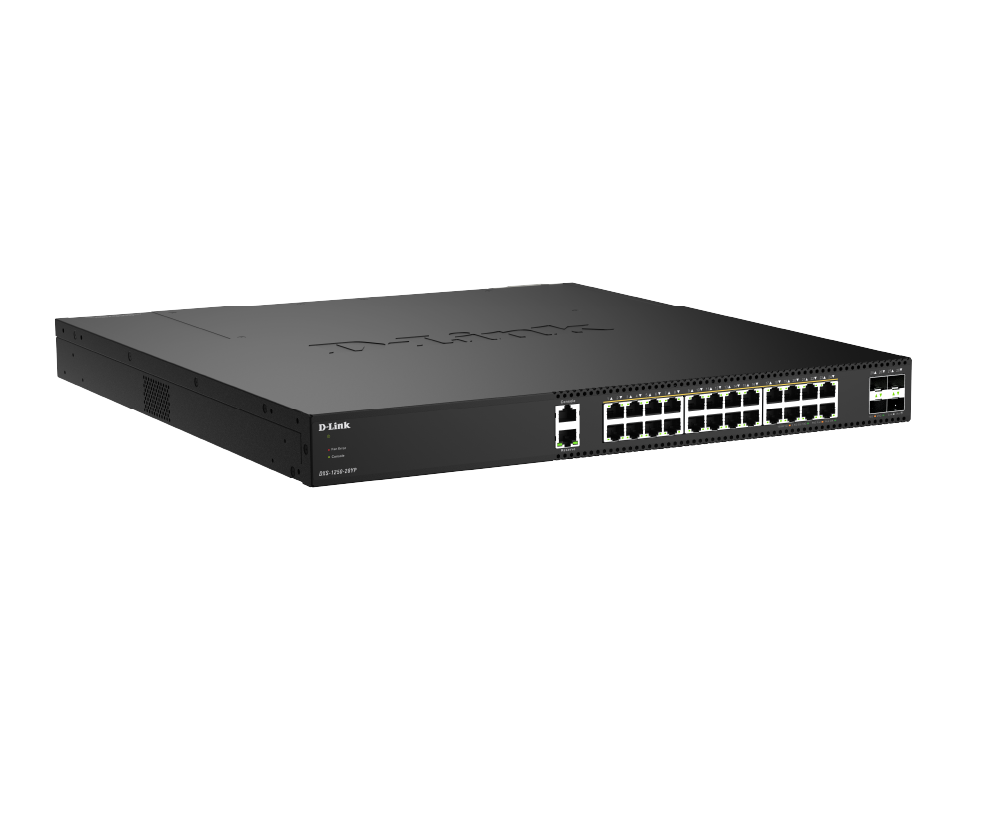

28-Port 10G Smart Managed PoE Switch

DXS-1250-28YP

  • Dostupnost produktu (A1_v100 WW): Live
  • 24 Ports 10G/Multi-Gigabit for downlink
  • 4 Ports 10/25G SFP28 for uplink
  • PoE IEEE 802.3af/at/bt options, power budget 470W
  • 6kV surge protection on 10G Ethernet ports
  • Support LACP 802.3ad Link Aggregation
  • Support Spanning Tree Protocol (STP/RSTP/MSTP)
  • Support Static Routing & Loopback Detection
  • AAA support for RADIUS/TACACS+
  • Green features to reduce power consumption
  • Manage through the Nuclias Network Controller

Stáhnout datasheet.

Seznam prodejců

User Benefits​

Flexible Connectivity

Supports diverse physical interfaces, enabling flexible and high-capacity network connectivity

Simplified Management

Nuclias Network Controller enable centralised control for flexible and multiple device management

6kV Surge Protection

Safeguards against power surges, ensuring continuous uptime and lower costs perfect for unstable power conditions

Digital Signatures

D-Link implements digital signatures to protect firmware and software, ensuring integrity and trusted source verification

Smart Traffic Control​

Access Control List secures the network by permitting trusted users, applications, and protocols while blocking unauthorised traffic

Static Routing

Static routing processes inter-VLAN and inter-subnet traffic locally, improving performance and overall network efficiency

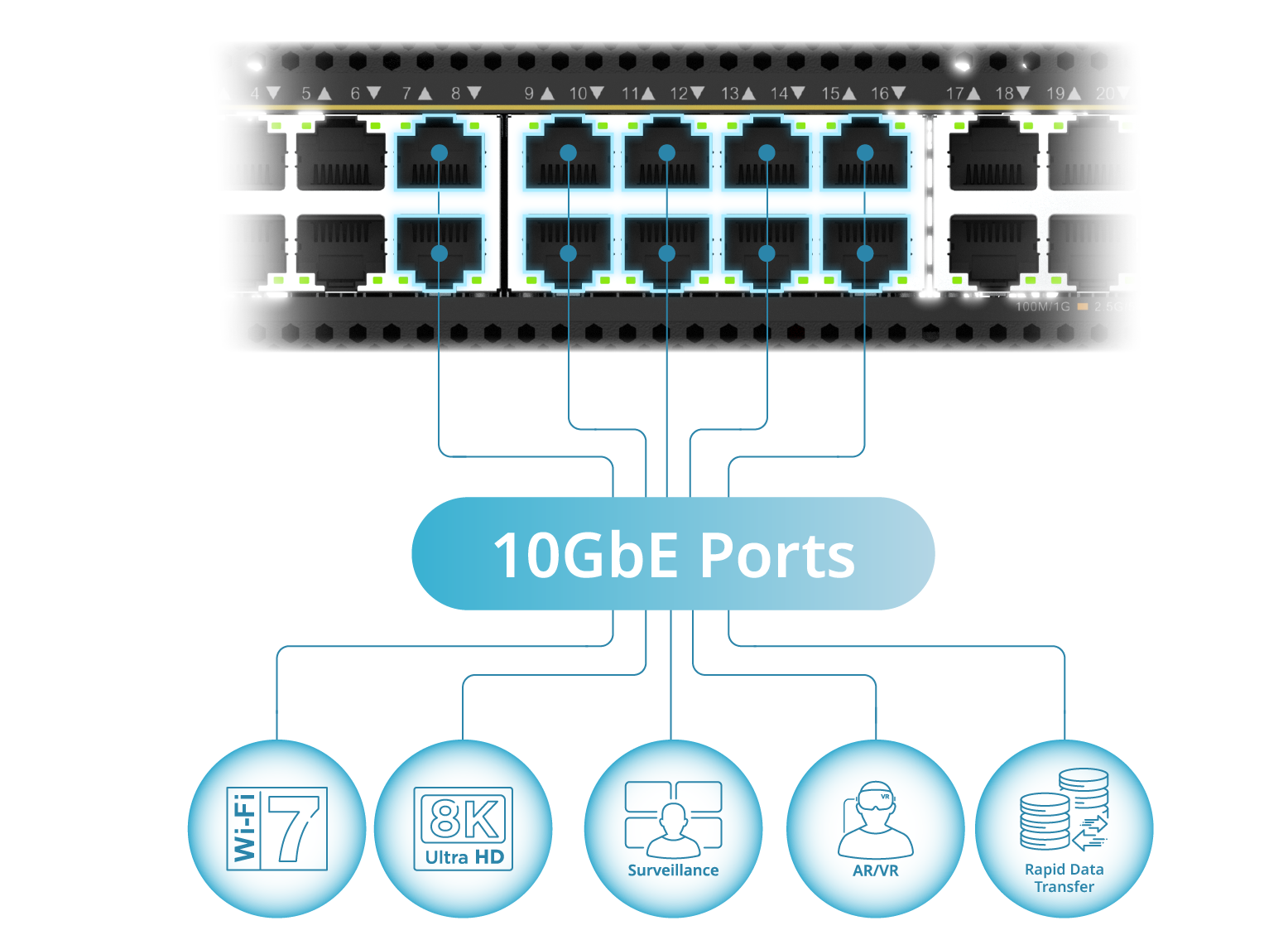

Experience Wi-Fi 7 at 10 Gbps

Wi-Fi 7 offers ultra-fast speeds and low latency, but Gigabit Ethernet can bottleneck performance. 10G Ethernet eliminates this, enabling seamless 4K/8K streaming, HD video surveillance, lag-free AR/VR, and rapid data transfers. With 10 Gbps speeds, it delivers fast, reliable, and future-ready connectivity—unlocking Wi-Fi 7’s full potential.

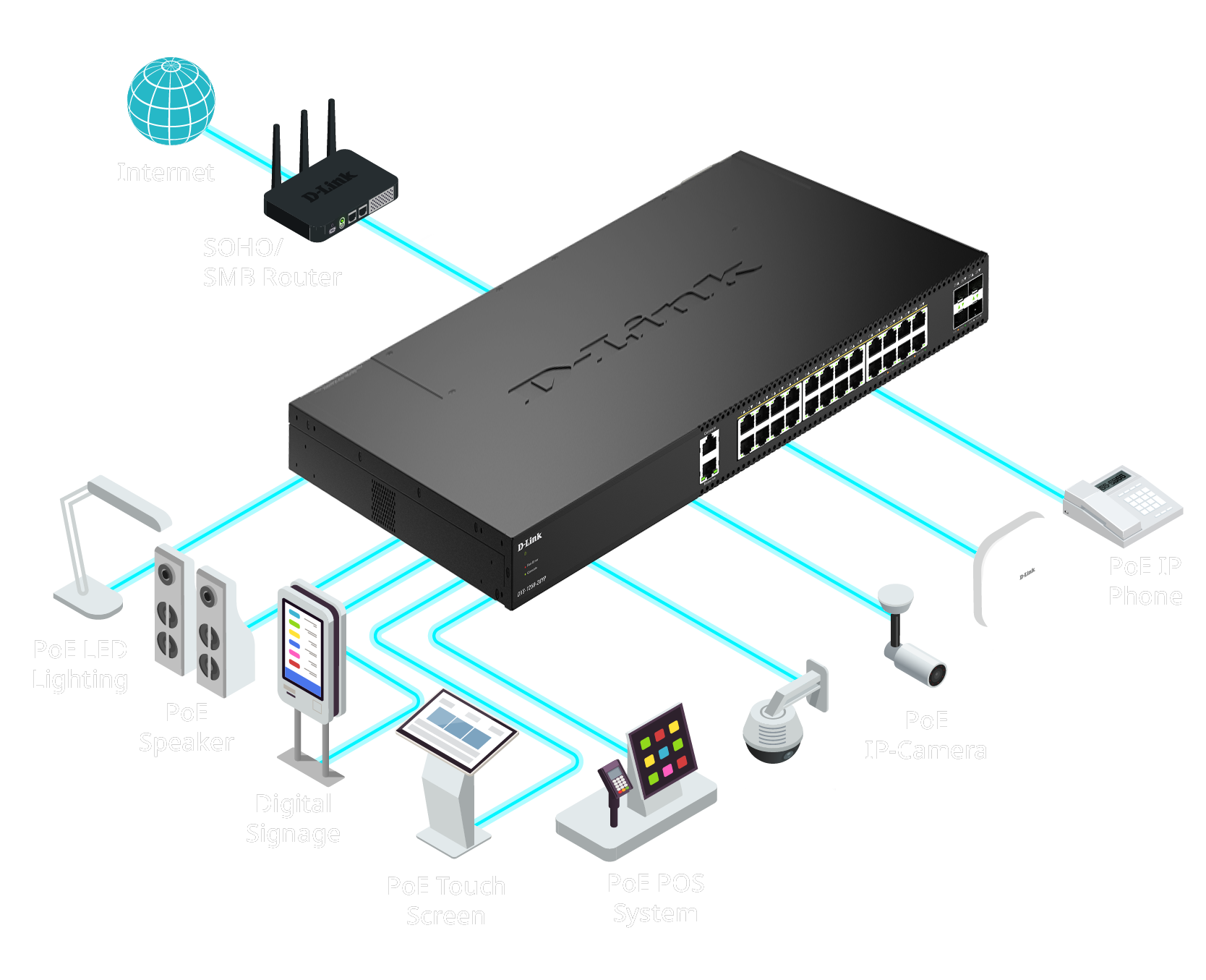

Power and Data in One Cable

10G PoE ports deliver high-speed data and power over a single cable—ideal for Wi-Fi 7 access points, IP cameras, and IoT devices. With up to 470W total PoE power, they remove bottlenecks, simplify deployment, and ensure scalable growth.

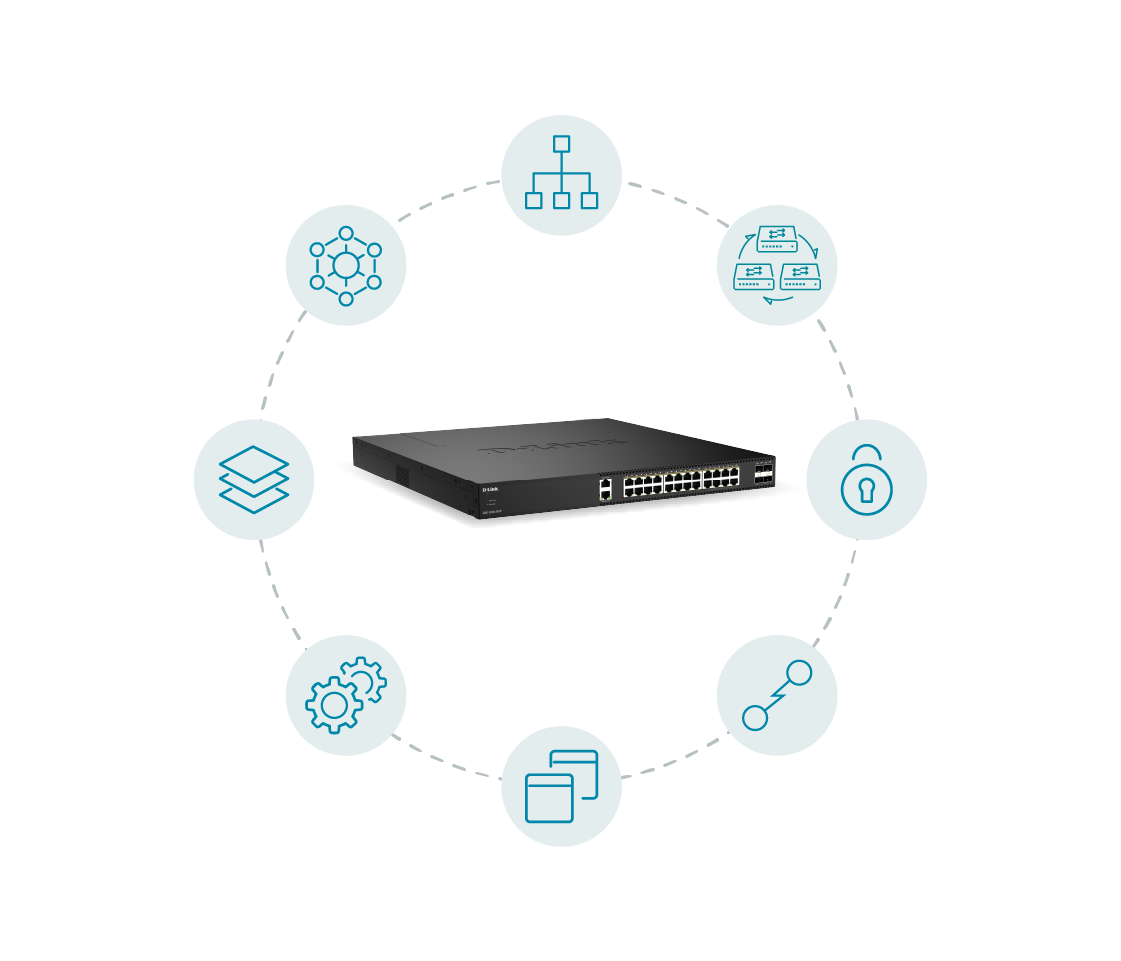

Advanced Layer 2+ Networking​

The DXS-1250-28YP switch delivers a full suite of Layer 2+ features, including VLANs, QoS, link aggregation, and static routing, providing businesses with enhanced control, optimised traffic management, and greater network efficiency.

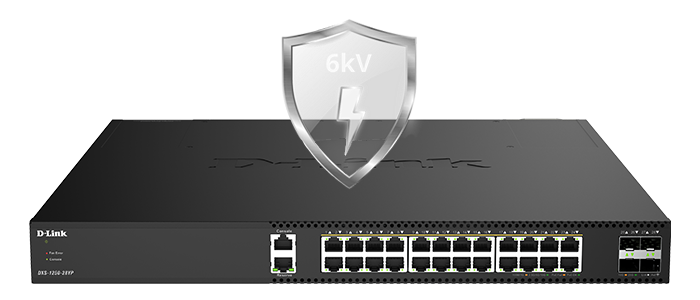

6kV Surge Protection for All Ethernet Ports

The DXS-1250-28YP switch offers enhanced 6kV surge protection on all 10G Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.

Nuclias Network Controller

The DXS-1250-28YP switch supports the Nuclias Network Controller for centralised management, simplifying device configuration and enhancing network efficiency. Features like device discovery, real-time monitoring, and updates ensure robust control and optimised operations.

Applications

Startup Office (Enterprise)

Learn More

Dormitory (Building)

Learn More

Transnational University (Education)

Learn More

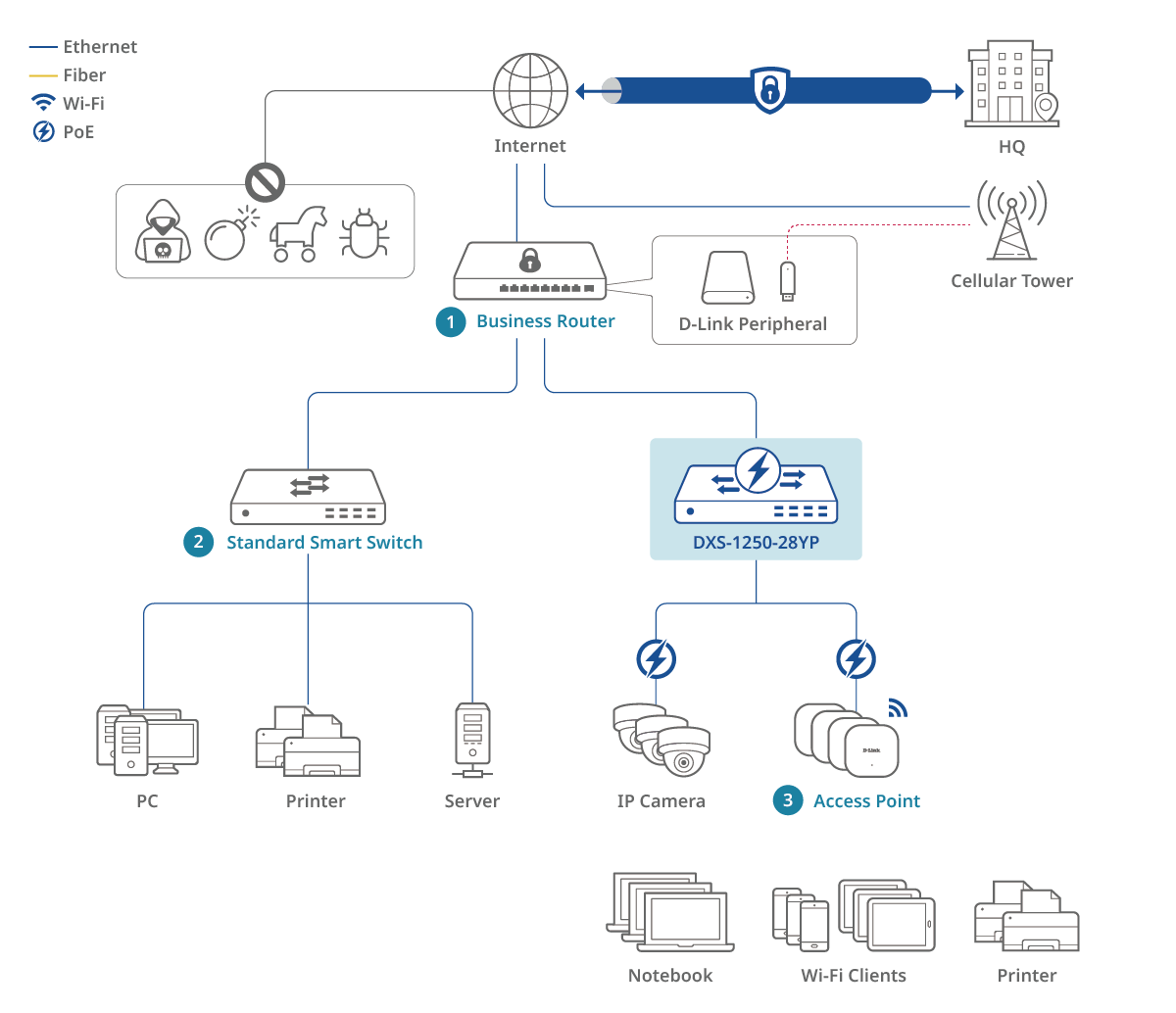

Startup Office (Enterprise)

User benefits :

  • High-speed connections for intensive tasks
  • Simplify network deployment and management
  • Power devices with PoE++ for flexible deployment
  • Enable future-proof network upgrades
  • Enhance bandwidth and redundancy

Learn more :

  1. Business Router : DBR-700
  2. Standard Smart Switch : DMS-1250 Series
  3. Access Point : DAP-E9560

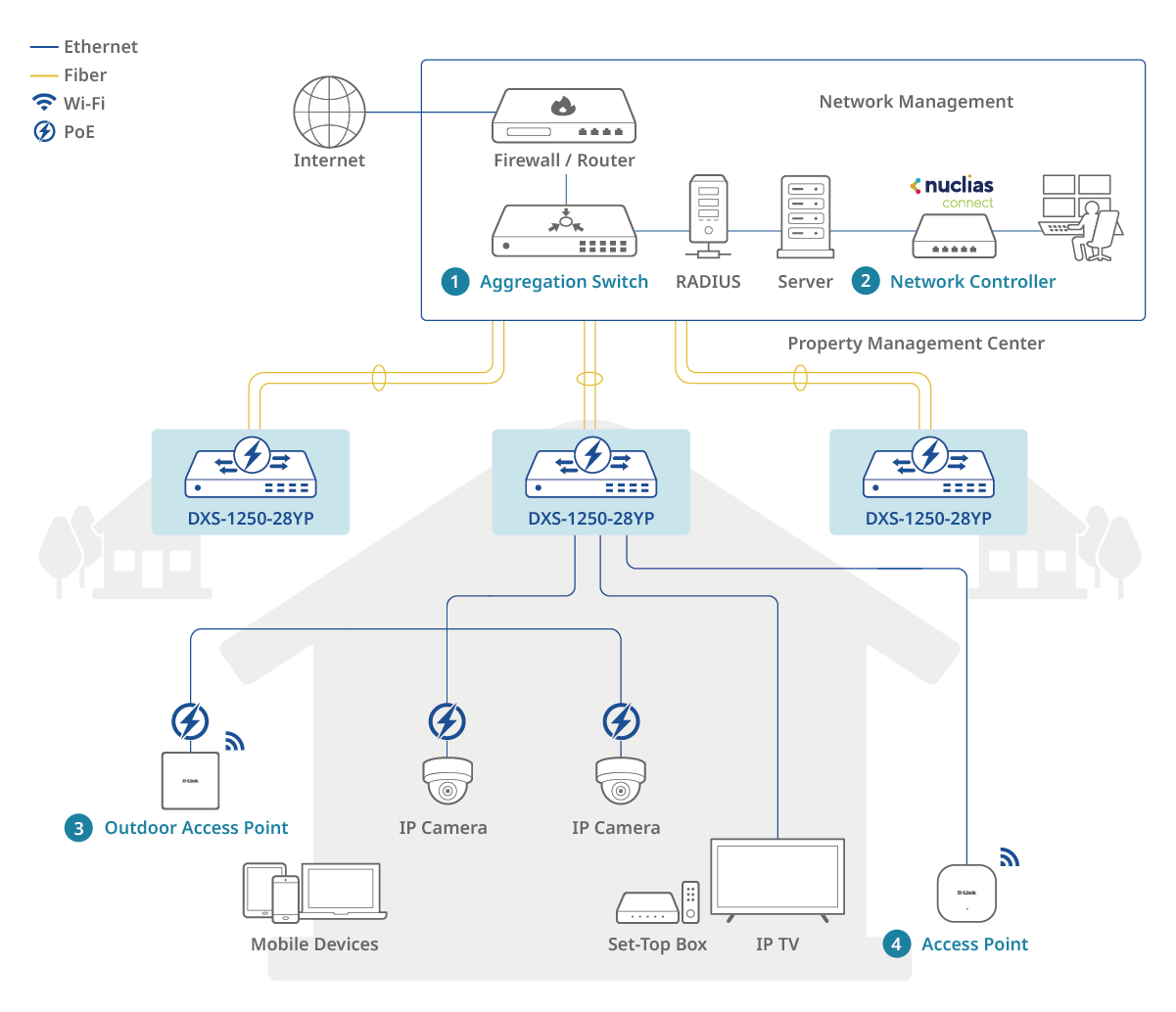

　Dormitory (Building)

User benefits :
  • Provide high-bandwidth connectivity for all residents
  • Power devices with PoE++ for flexible deployment
  • Smooth 4K/8K streaming and online gaming
  • Prevent network disruption with loop-back detection
  • Simplify network management with intuitive tools

Learn more :

  1. Aggregation Swtich : DXS-3130-32S ( Coming Soon )
  2. Network Controller : DNH-1000
  3. Outdoor Access Point : DAP-X3060OU

  4. Access Point : DAP-E9560

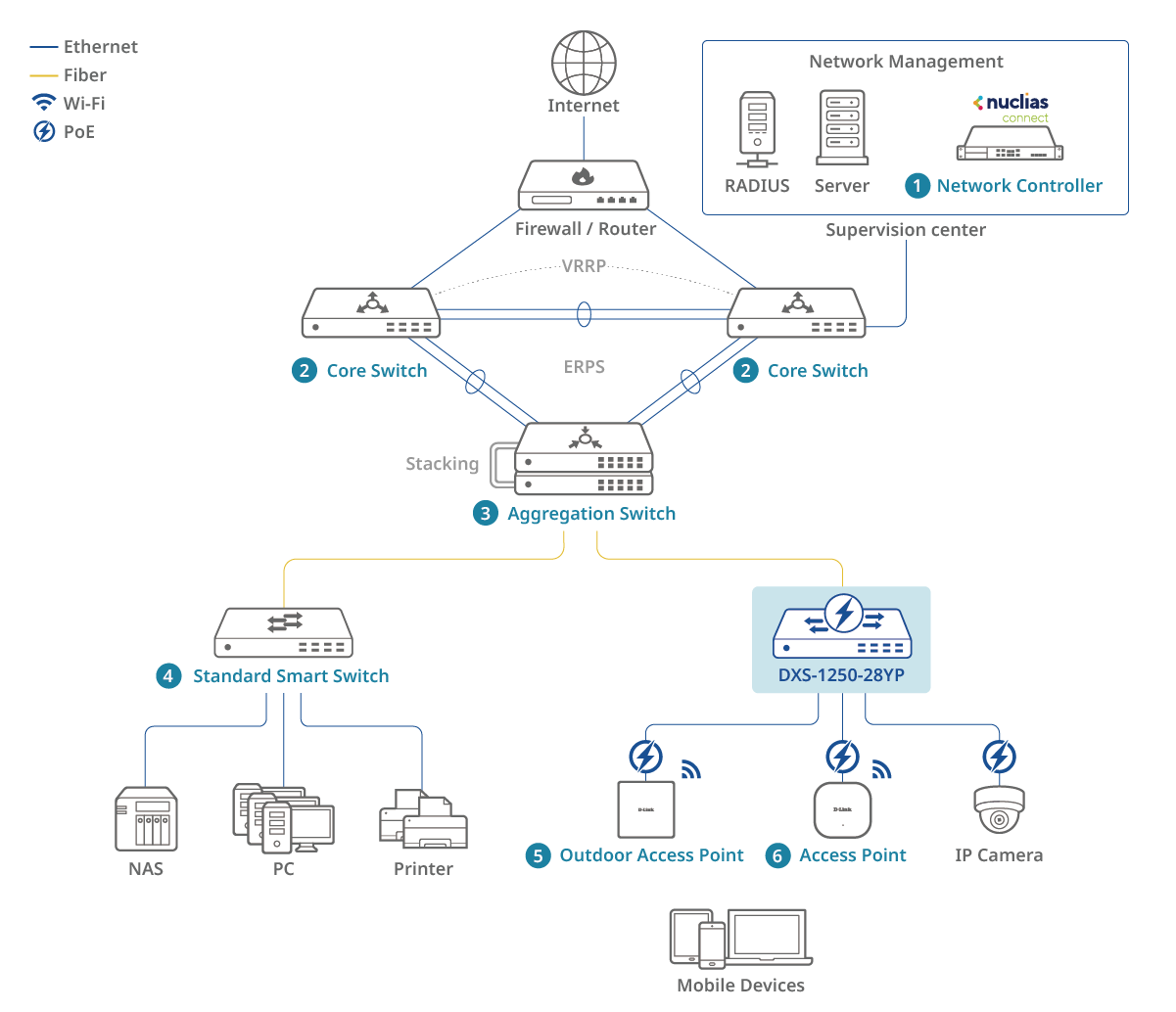

Transnational University (Education)

User benefits :

  • Deliver fast and reliable seamless connectivity
  • Improve stability with STP and AAA security
  • Power every PoE devices efficiently with PoE++
  • Simplify network expansion with 25G uplinks
  • Centralised management for efficient control

Learn more :

  1. Network Controller : DNH-3000
  2. Core Switch : DXS-3610-54S
  3. Aggregation Switch : DXS-3130-32S ( Coming Soon )

  4. Standard Smart Switch : DMS-1250 Series

  5. Outdoor Access Point : DAP-X3060OU

  6. Access Point : DAP-E9560

Technické specifikace produktu

Stáhnout datasheet.

Interfaces
24 x 10GE PoE
4 x 25G SFP28
Switch Capacity
680 Gbps
Max. Packet Forwarding Rate
505.92 Mpps
PoE Standard
IEEE 802.3af/at/bt
PoE Power Budget
470W
Max Power Consumption
630.92W (PoE on)
Dimensions
440 x 470 x 44 mm
Weight
6.483 kg
Surge Protection
IEEE61000-4-5 surge protection compliance
6kV surge protection on all 2.5-Gigabit Ethernet ports
FAN
2 Internal Fans
Operating Temperature
0 to 50 °C (32 to 122 °F)
Storage Temperature
-40 - 70°C (-40 - 158 °F)
Operating Humidity
10% to 90% relative humidity
Storage Humidity
5% to 90% relative humidity
Console Port
Supported
Power Supply Type
Internal

Skutečný výkon se může lišit v závislosti na nastavení, kabeláži, teplotě, konfiguraci sítě, rozhraní, kompatibilitě zařízení, podmínkách prostředí a na místě a dalších podobných faktorech. Odkazy na výkon, rychlost signálu nebo zpracování, dosah signálu nebo vzdálenost, šifrování dat, úložnou kapacitu, vlastnosti displeje nebo jiné metriky výkonu jsou založeny na optimálních podmínkách odvozených z průmyslových standardů a jsou poskytovány pouze pro informační účely. Specifikace se mohou změnit bez předchozího upozornění.
