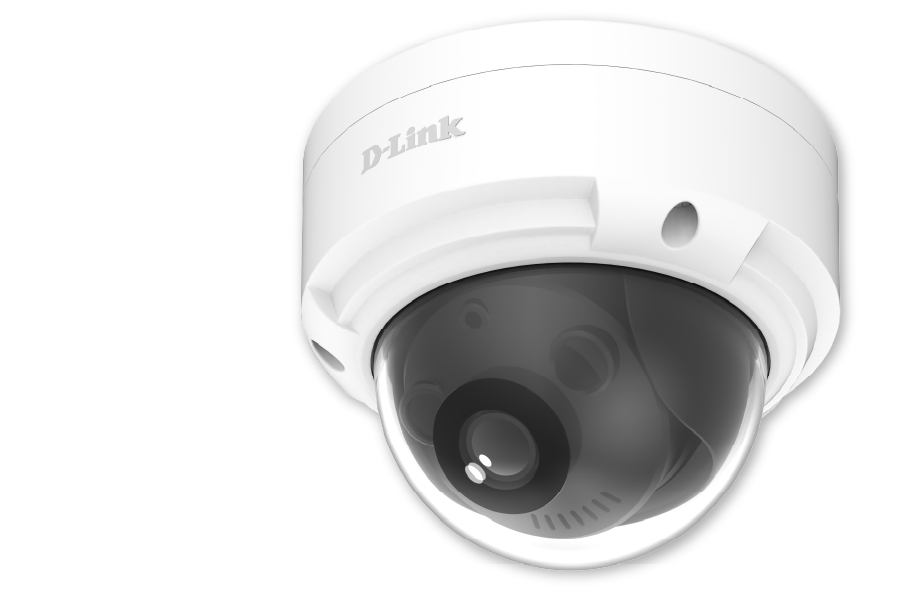

Delivering crisp, high-definition video to ensure every frame is sharp, vivid, and reliable in any environment
Advanced video analytics reduce false alarms to deliver real-time precision and smarter, proactive monitoring

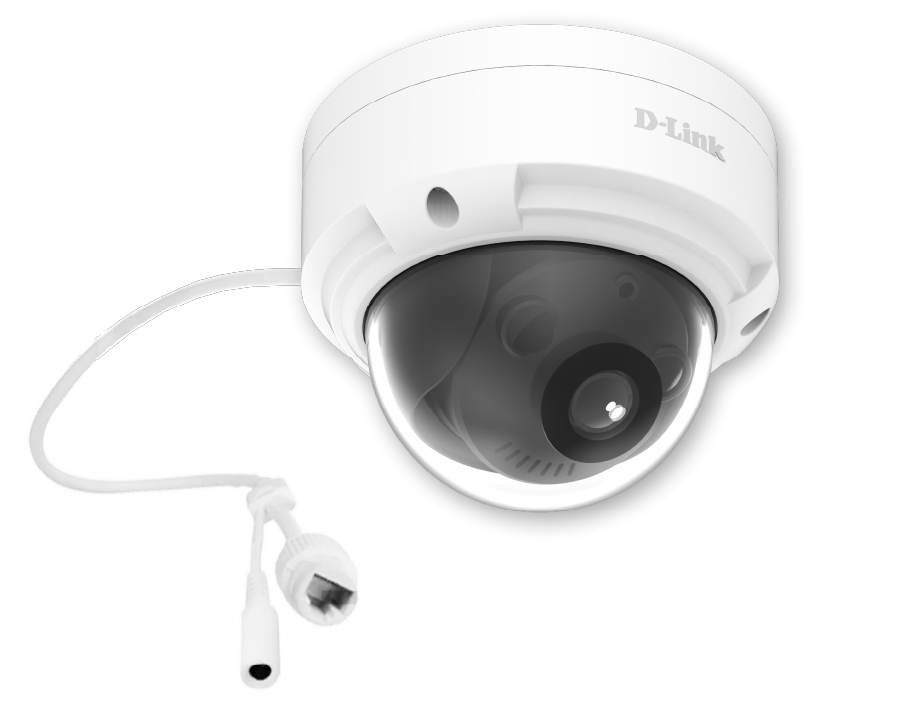

PoE enabling both power and data transmission through a single cable, reducing installation complexity and cost
Achieves the highest impact rating (IK10), making the camera impervious to heavy blows and attempted vandalism
Precisely capture objects in challenging environments, ensuring optimal visibility in both bright highlights and deep shadows
IP66-rated weatherproofing guarantees durability against dust and water jets, even in the harshest outdoor conditions
Transform your surveillance from passive recording to proactive protection.The BCD-P01 features built-in Intelligent Video Analytics that go beyond simple motion detection, identifying specific events and behaviors in real-time. By filtering out environmental noise, it delivers the precise insights needed to enhance site safety and operational efficiency.
Motion Detection
Detects motion events by analyzing changes in the video scene and triggers alarms when movement is identified.
Person Detection
Automatically identify and classify human objects within the video stream with high precision.
Vehicle Detection
Detects and classifies vehicles, including cars and motorcycles, within the monitored area.
Sound Detection
Triggers instant alerts when ambient sound levels exceed your customized decibel threshold.
Line-Crossing Detection
Triggers instant alerts when subjects cross a customizable virtual line, securing restricted areas with precision.
People Counting
Counts the number of people entering and exiting a defined area based on video analytics.
Wrong-Way Detection
Detects objects moving in a direction opposite to the predefined allowed direction and triggers an alert.
Illegal Parking Detection
Triggers an alarm when a vehicle remains stationary beyond the configured parking duration.

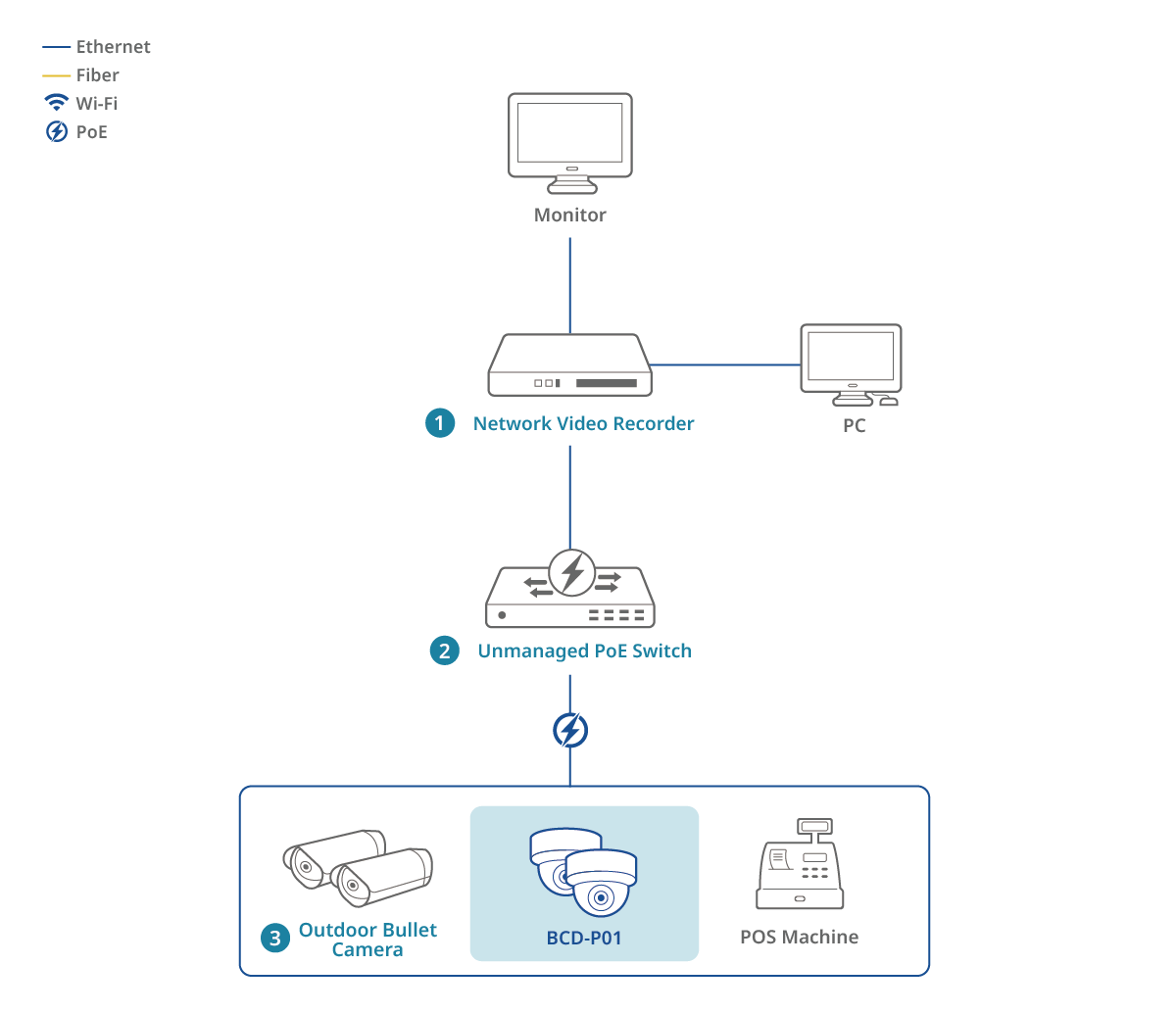

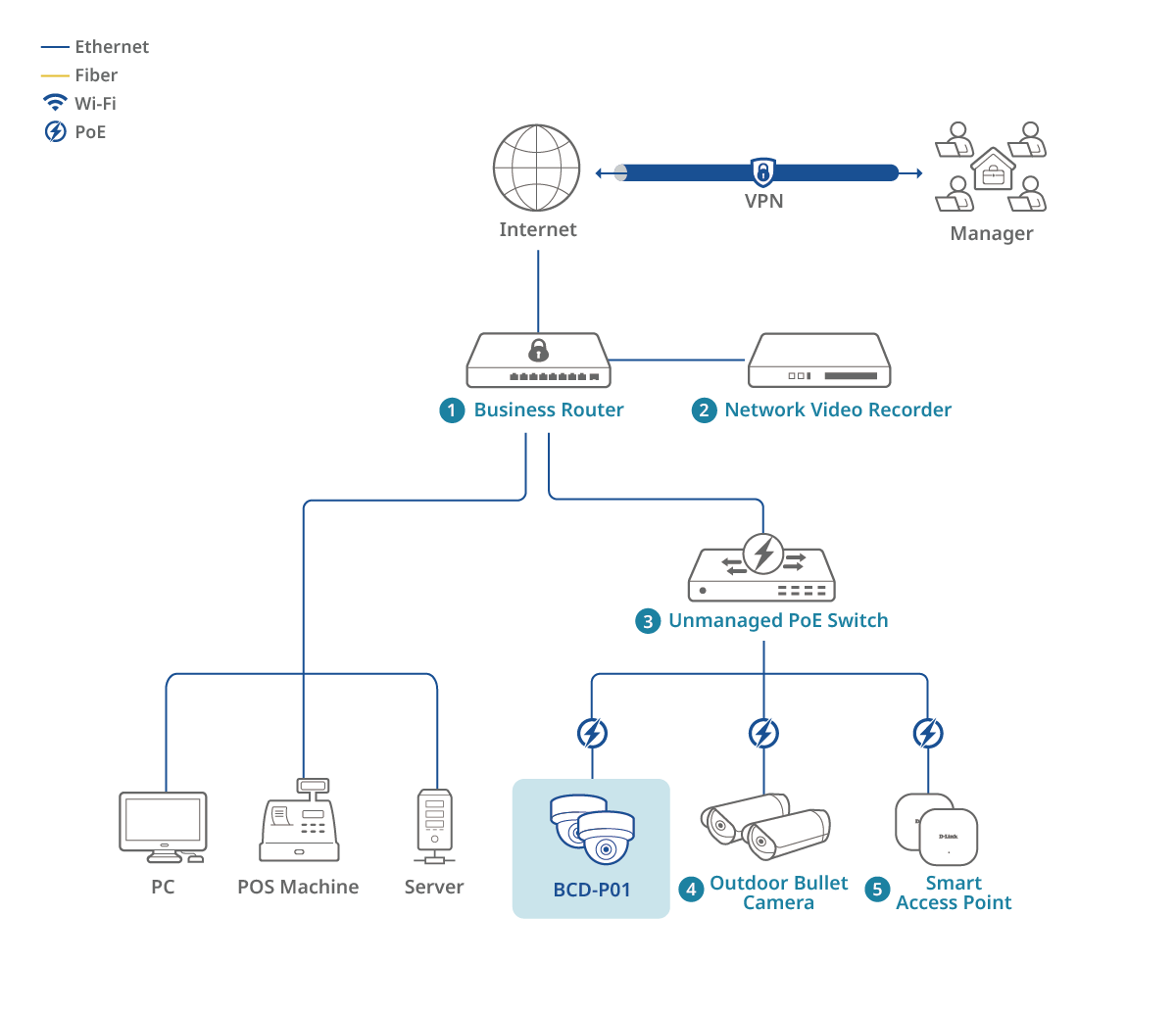

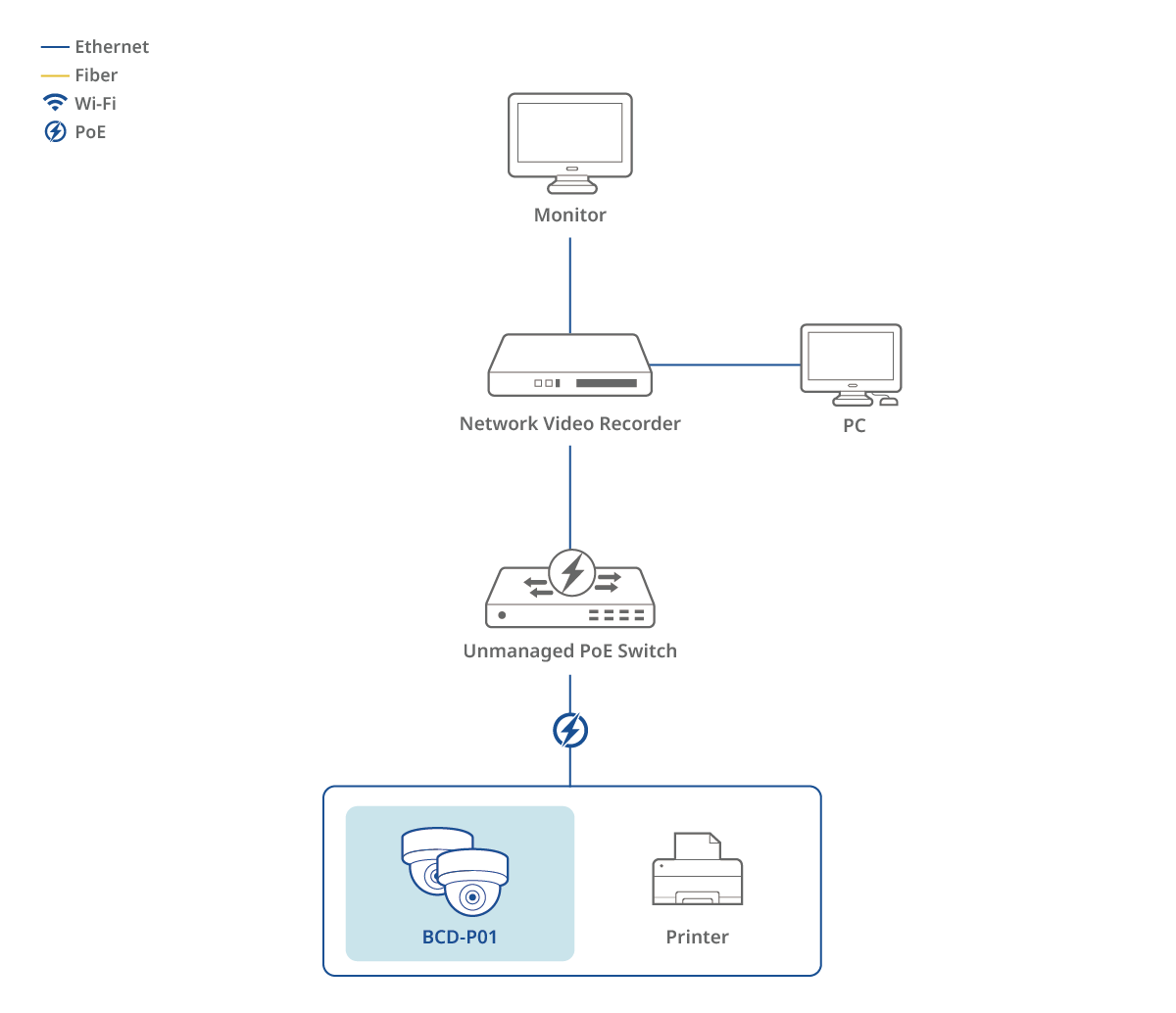

Tailored for SMBs, the BCD-P01 integrates seamlessly with NVRs and PoE switches to create a robust security foundation. With simplified PoE installation and true plug-and-play functionality, it is the ideal choice for enhancing safety and operational efficiency in small office, a retail store, a restaurant, or a coffee shop.
Unmanaged PoE Switch
Network Video Recorder
User benefits :
Learn more :
Learn more :
|
Maximum Resolution
|
2 Megapixel |
|---|---|
|
Camera Hardware Profile
|
Illuminator: LED Number 2 (IR LED) IR Illumination Distance: up to 30 meters Minimum illumination: Color: 0.05 lux @(F2.0, AGC ON) B/W: 0 lux with light Built-in Infrared-Cut Removable (ICR) Filter Minimum object distance 1 m Focal length: 2.8 mm Aperture: F2.0 Fixed Lens Mount Angle of view: (H) 93.1°/ (V) 52.2° 3-axis adjustment angle (non-motorized): Pan: 0°-355°, Tilt: 0°-75° Rotate: 0° - 350° |
|
Audio
|
Built-in mic |
|
Camera Housing
|
Outdoor, IP66 certified weatherproof housing Supports IK10 standard |
|
Video Compression
|
H.265/H.264/MJPEG |
|
Max Resolution and Frame Rate
|
Stream 1: 1920 x 1080, 1280 x 720 @ 25/30 fps Stream 2: D1, VGA, CIF @ 25/30 fps Stream 3: VGA, CIF, QVGA @ 25/30 fps |
|
External Device Interfaces
|
Reset button microSD card slot (up to 1 TB) 10/100 Base-TX Fast Ethernet port (supports 802.3af PoE Class 3) |
|
Max Concurrent Streams
|
3 streams |
|
Event Trigger from IP Camera
|
Motion detection Smart Motion - Person/vehicle detection Single Line-crossing detection Double Line-crossing detection Multi-Loitering detection Wrong-way detection Illegal parking detection People counting |
|
Requirements for Web Interface
|
Chrome MS-Edge |
|
ONVIF Compliant
|
Profile S, T |
|
Weight
|
405 g ± 5% |
|
Power Input
|
12 VDC/PoE (802.3af) |
|
Max Power Consumption
|
3.5W ± 5% (12 VDC) 4.4W ± 5% (PoE) |
|
Operating Temperature
|
-25˚ C to 55 ˚C (-13 to 131 °F) |
|
Storage Temperature
|
-25˚ C to 55 ˚C (-13 to 131 °F) |
|
Humidity
|
Less than 90% RH (non-condensing) |
|
Dimensions
|
Ø 110 x 85.4 mm (Ø 4.33 x 3.36 in) |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
