Continuous video recording, 24 hours a day, 7 days a week for uninterrupted security surveillance
Centralized control of cameras, recording schedules, and system settings through one easy interface
Triggers event-based recording from IP cameras with supported intelligent video analytics
Monitors various system abnormal conditions such as video loss, disk errors, and IP address conflicts
Supports ONVIF Profile S for easy integration with IP cameras across multiple brands
Automatically overwrites the oldest recordings when disk storage reaches full capacity
The BNR-008 integrates seamlessly with IP cameras, triggering automated recording based on intelligent video analytics.
*For full functionality, the BNR-008 must be paired with D-Link BCB or BCD series cameras
Motion Detection
Detects motion events by analyzing changes in the video scene and triggers alarms when movement is identified.
Person Detection
Automatically identify and classify human objects within the video stream with high precision.
Vehicle Detection
Detects and classifies vehicles, including cars and motorcycles, within the monitored area.
Sound Detection
Triggers instant alerts when ambient sound levels exceed your customized decibel threshold.
Line-Crossing Detection
Triggers instant alerts when subjects cross a customizable virtual line, securing restricted areas with precision.
People Counting
Counts the number of people entering and exiting a defined area based on video analytics.
Wrong-Way Detection
Detects objects moving in a direction opposite to the predefined allowed direction and triggers an alert.
Illegal Parking Detection
Triggers an alarm when a vehicle remains stationary beyond the configured parking duration.

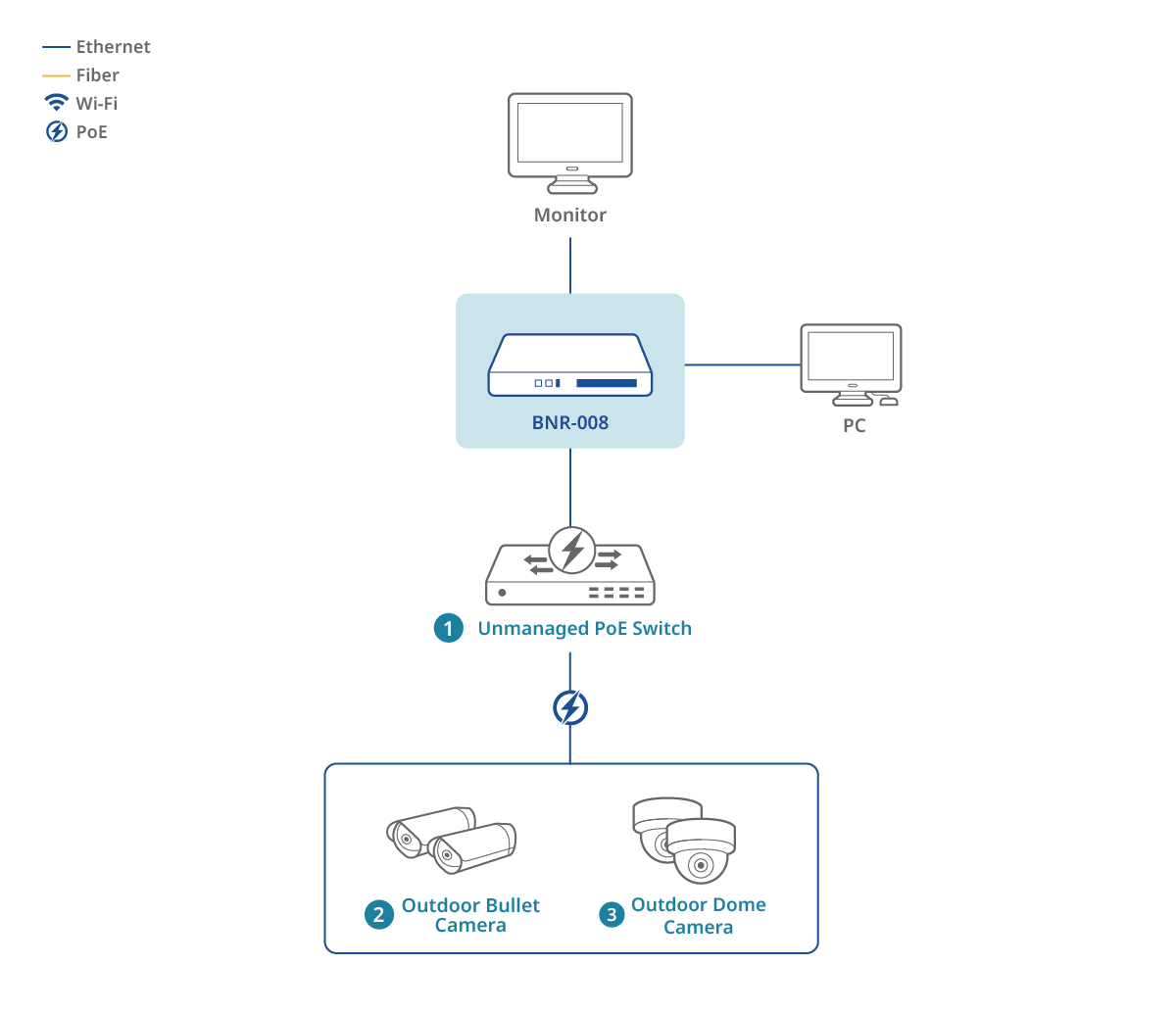

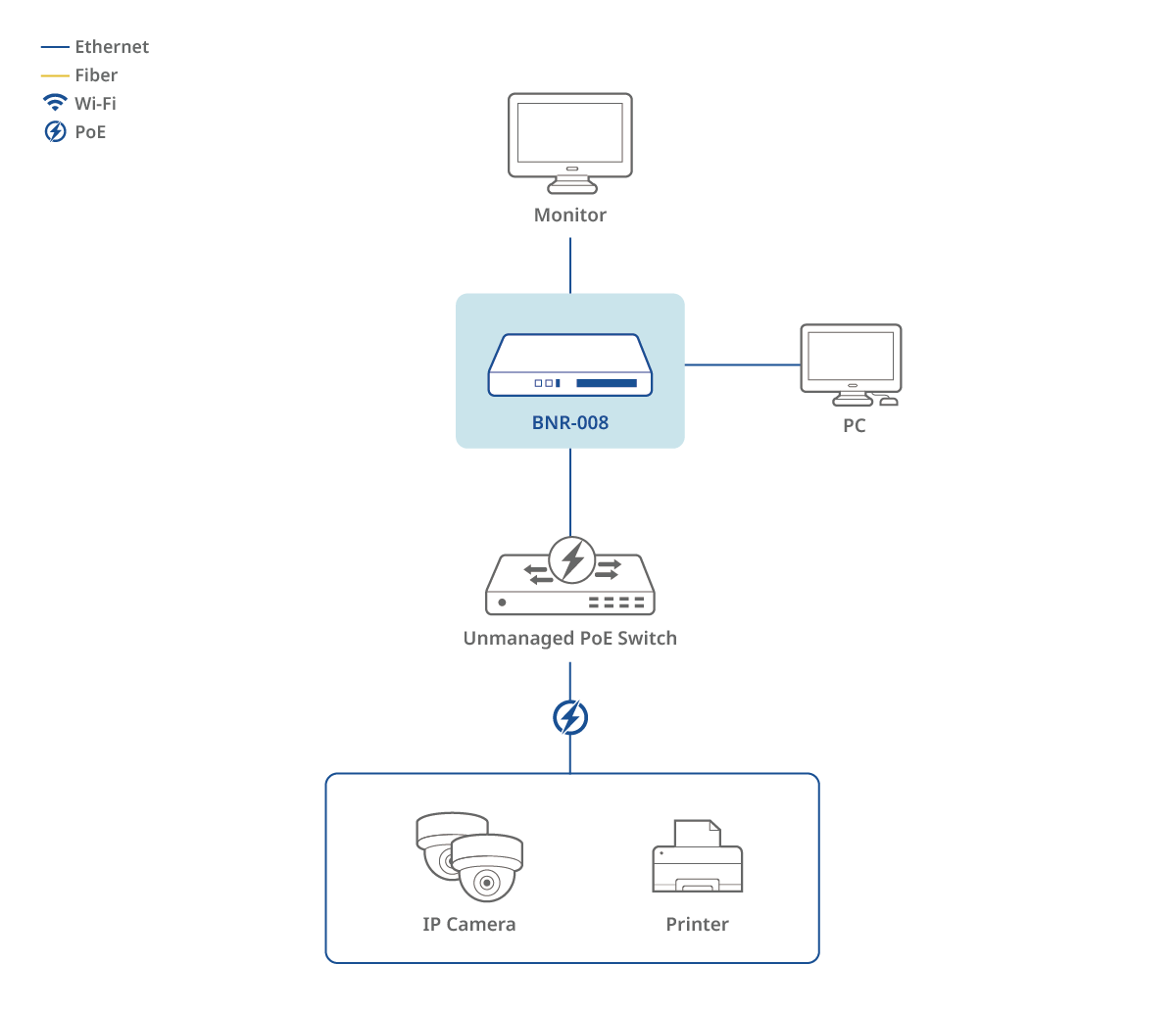

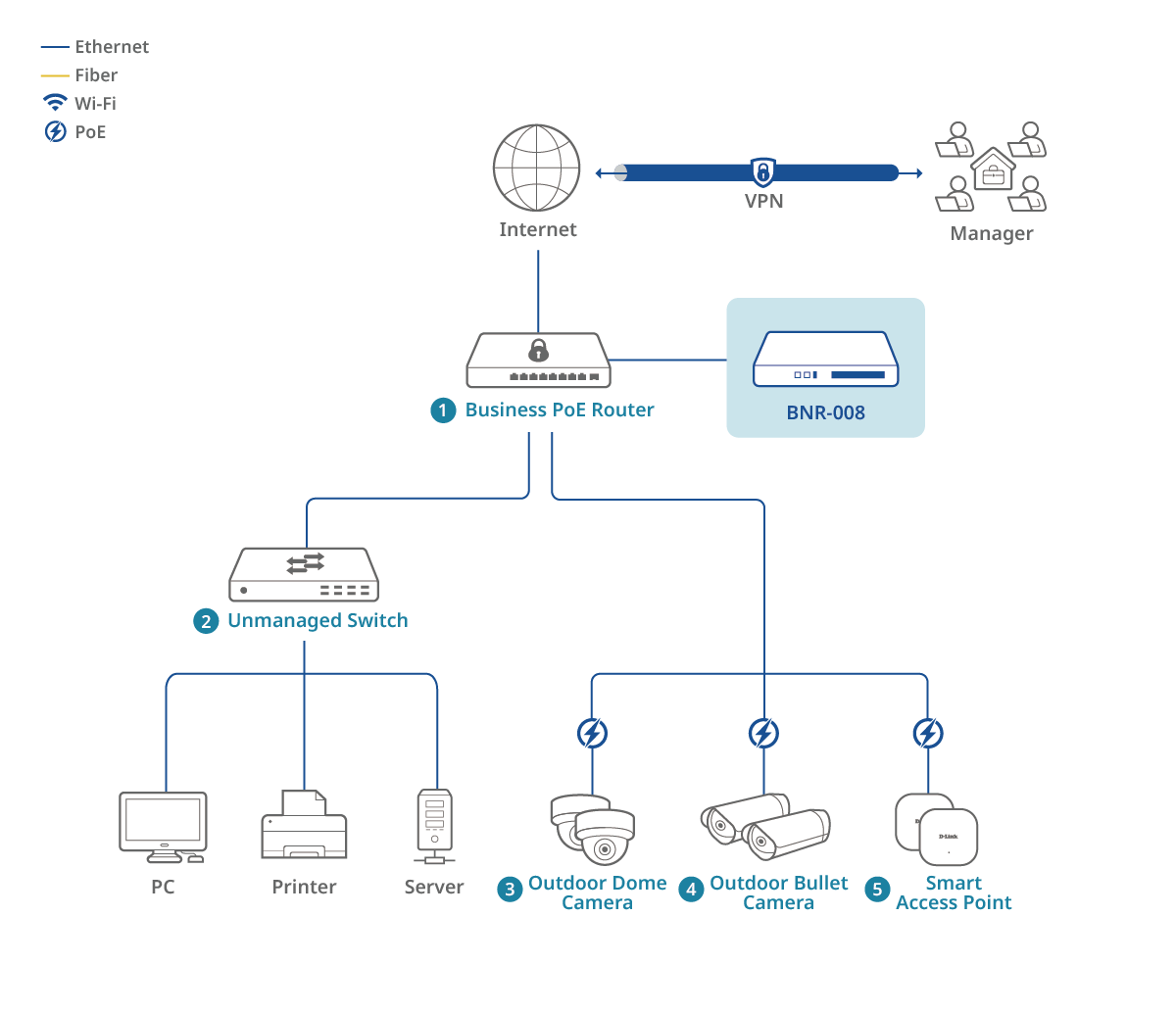

The BNR-008 serves as the backbone in the surveillance ecosystem. By integrating seamlessly with PoE switches and IP cameras, it establishes a reliable foundation for continuous 24/7 recording and high-definition monitoring across the entire business.
Unmanaged Switch
IP Camera
User benefits :
Learn more :
Learn more :
|
Standards
|
IEEE 802.3x/u Auto MDI/MDI-X SATA I/II/III |
|---|---|
|
HDD Bay
|
1 |
|
Maximum HDD Capacity
|
Up to 8 TB |
|
Reset Button
|
Reset through web GUI |
|
Interfaces
|
1 x Fast Ethernet port (10/100 Mbps) |
|
I/O Ports
|
1 x HDMI port (supports 1080P resolution) 1 x VGA (supports 1080P resolution) 1 x 10/100 Base-T RJ-45 port 2 x USB 2.0 ports |
|
Video Channel
|
8 |
|
Live View/Playback
|
HDMI port max output resolution: 1080P VGA port max output resolution: 1080P |
|
Decoding Capacity
|
1ch 8MP 8ch D1@30fps |
|
System Requirements for Web Interface
|
MS-Edge Chrome Opera |
|
Recording Performance
|
Max recording bitrate: 64 Mbps |
|
Compression Format
|
H.264 H.265 MJPEG |
|
Event Trigger from IP Camera
|
Motion detection Smart Motion - Person/vehicle detection Single Line-crossing detection Double Line-crossing detection Multi-Loitering detection Wrong-way detection Illegal parking detection People counting |
|
User Interface
|
Web browser Local Control HDMI/VGA |
|
Weight
|
0.62 kg (1.37 lb) (Not Include HDD) |
|
Power Input
|
12V DC/2A |
|
Power Consumption
|
< 10W (without HDD) |
|
Operating Temperature
|
-10 ˚C to 50 ˚C (14 ˚F to 122 ˚F) |
|
Storage Temperature
|
-10 ˚C to 50 ˚C (-14 ˚F to 122 ˚F) |
|
Humidity
|
Less than 90% RH (non-condensing) |
|
Dimensions
|
254.5 x 224.4 x 43.9 mm (10.02 x 8.83 x 1.73 in) |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
