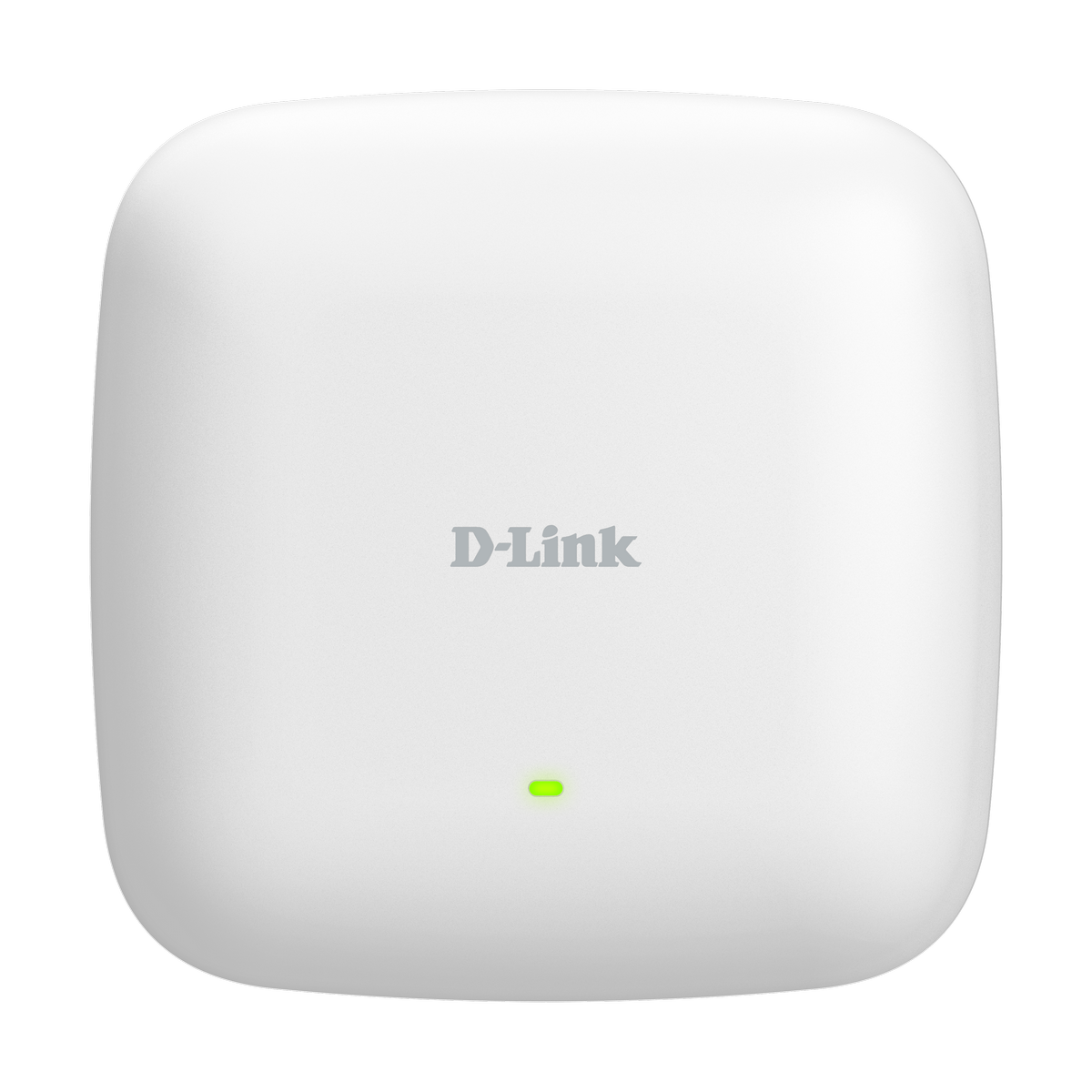

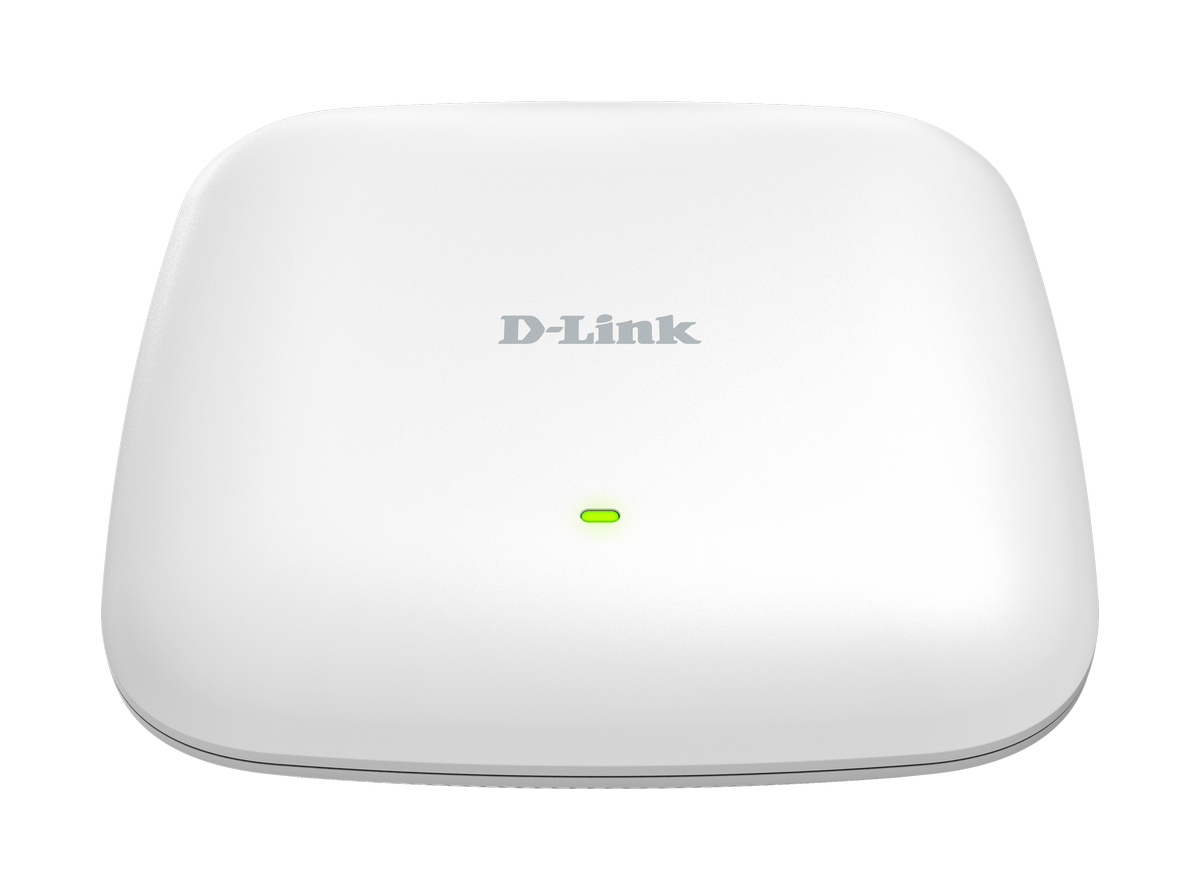

The Wi-Fi 6-enabled DAP-X3060 delivers incredible speeds, significantly increased capacity, and interference-free coverage for business environments of all sizes.
Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.
Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards
Superior security with WPA3™ wireless encryption, and high throughput with dual-band, 2x2 MU-MIMO technology, band steering & airtime fairness that intelligently manages users.
Supports Power over Ethernet (802.3at) for simpler installation with less cable clutter, offers wall-mount or ceiling design options to suit diverse installation needs.
Works as a standalone AP or as part of a centralised, scalable multi-device deployment in line with business demand.
Empower admins to work efficiently & effectively with role-based options that enable delegated access across your network. You can deploy, configure, update and expand rapidly.
A branded Captive Portal with industry-standard authentication for enhanced access management.
Centralized management through Nuclias Connect enables seamless connectivity for guests who connect to D-Link EAP within the same organization, eliminating the need for users to re-authenticate after the initial login.

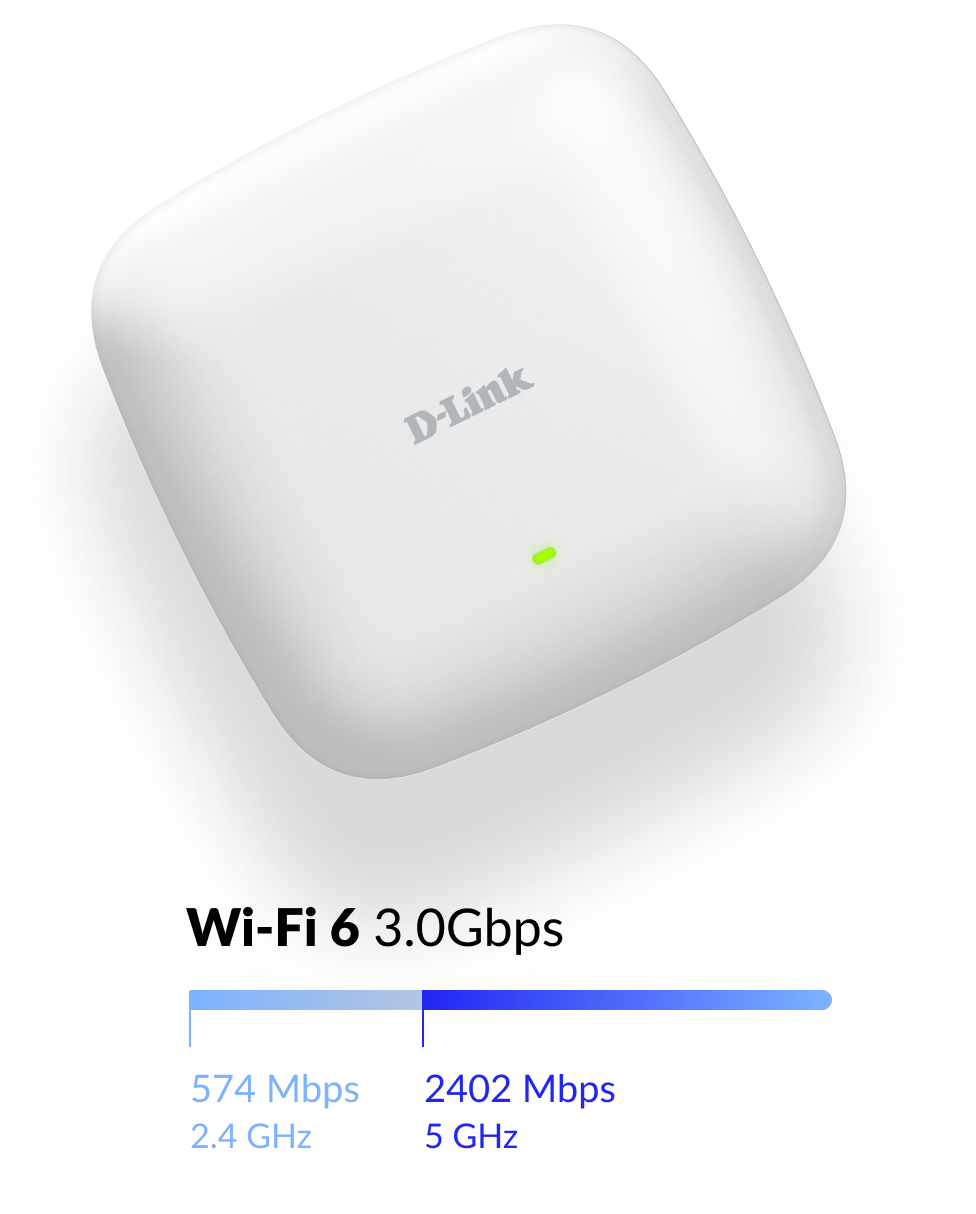

With combined Wi-Fi 6 802.11ax speeds of up to 3,000 Mbps, the DAP-X3060 provides lightning-fast connectivity, enabling large data transfer and superior quality video streaming, even in highly congested environments.
As the next-generation of connectivity, Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards.
The DAP-X3060 supports Band steering, 2x2 MU-MIMO and beamforming - all designed to work together to alleviate congestion.

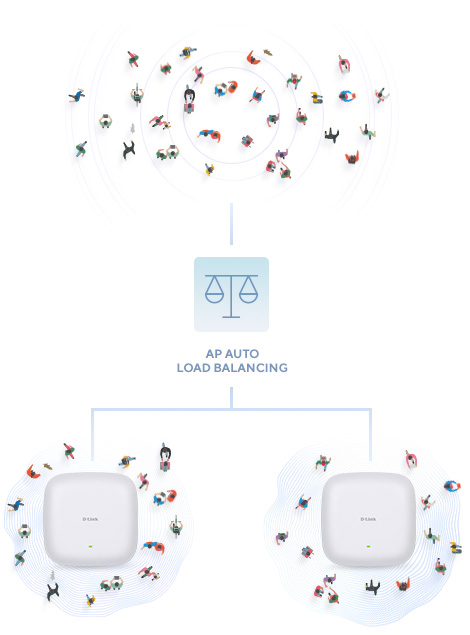

And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.
The DAP-X3060 can be configured to fit the needs of your network and optimise performance.
- Access point
- Wireless distribution system
(WDS) with access point
- WDS/bridge (no AP broadcasting)

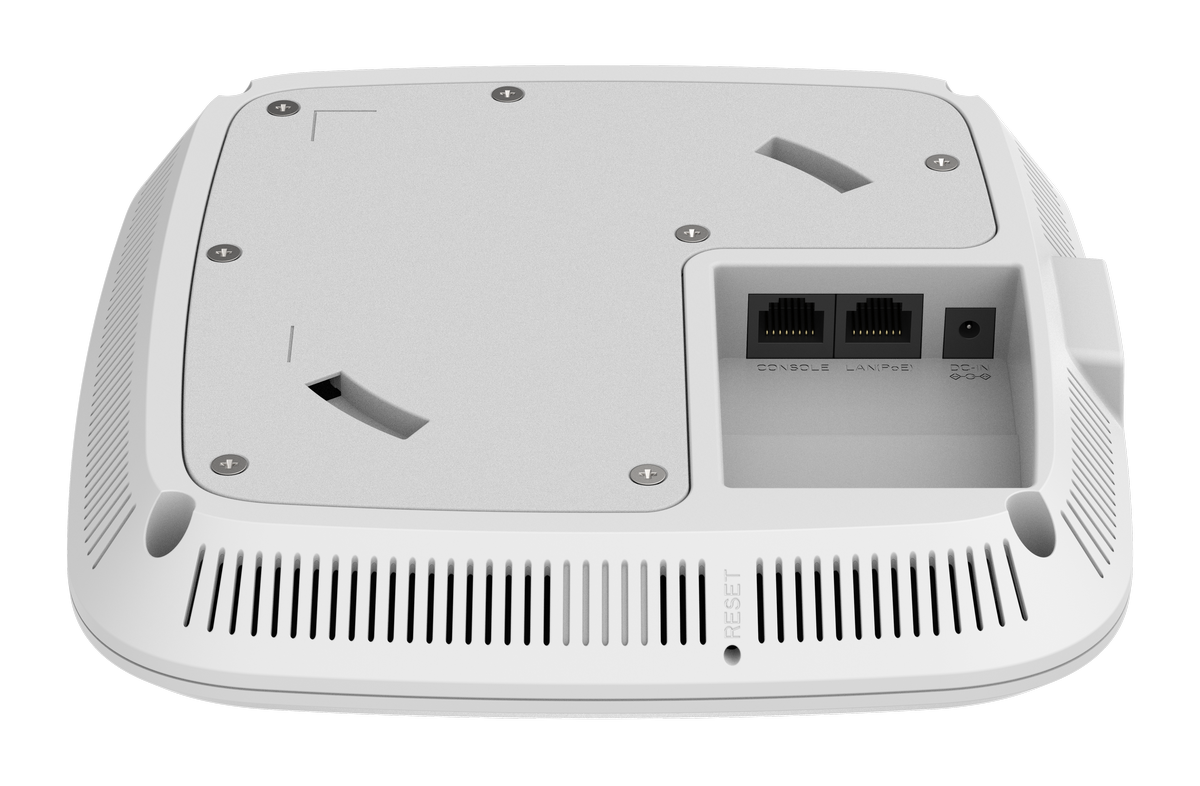

It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X3060’s PoE function allows for an easy installation. No need to run extra power lines and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

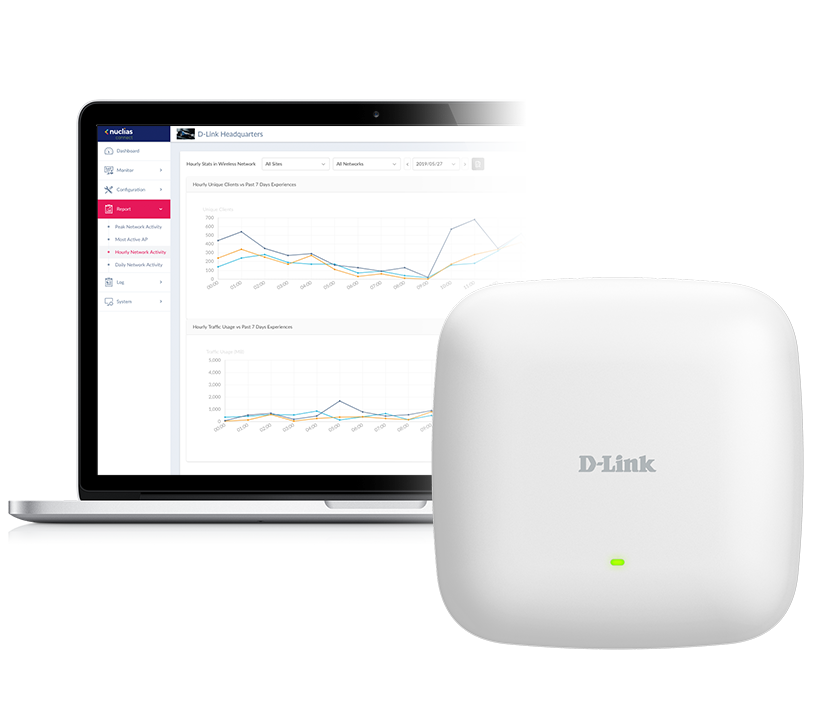

The DAP-X3060 works with our Nuclias Connect software-based management platform, allowing you to manage and control your business network from anywhere with an internet connection. This enables easy access, automation, and network scalability.
With Nuclias Connect's traffic analytics and status reports, insights derived from this data can be used to create business value. Traffic can be viewed across the entire network and down to the level of a single Access Point.
Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access, and an intuitive dashboard make life easier for network admins, whilst functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.
Nuclias Connect is a comprehensive network management platform designed to administer D-Link's access points and switches. This integrated solution, tailored for on-premises deployment, encapsulates a rich spectrum of functionalities aimed at enhancing network oversight and control.

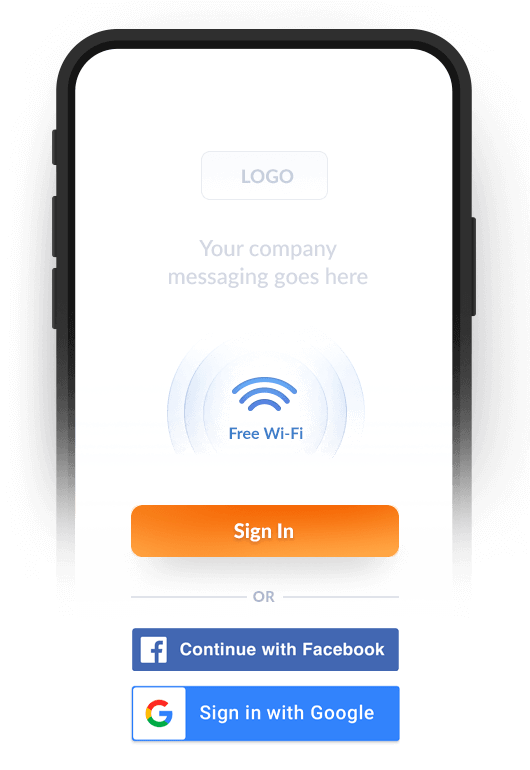

Not only can your guests connect using just their email address, Facebook or Google account, our Captive Portal also gives your business the opportunity to increase brand awareness, advertise promotions and collate user insights that enable businesses to better understand their customers.
Gain valuable insights into your business, manage multiple sites, ensure critical data doesn't leave your premises, and customise the network to your needs.
Create a secure and reliable wireless network for retailers of any size. Connect all POS devices and create fast Guest Wi-Fi networks for customers, ensuring business runs smooth.
Provide a scalable and robust network for students, with full web control and filtering. Keep management centralised and data secured on your premises.
Delight guests with in-room high-capacity, fast Wi-Fi. Drive customers to your marketing funnel, and increase re-engagement and customer loyalty.
|
Wireless Standard
|
802.11ax Wi-Fi 6 |
|---|---|
|
Advanced Features
|
802.11k/r Roaming MU-MIMO |
|
Antenna gain
|
3 dBi for 2.4GHz 3 dBi for 5GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Indoor/outdoor
|
Indoor |
|
Maximum number of SSIDs
|
16 |
|
Power-over-Ethernet
|
Supported
|
|
Type
|
Software Managed AP |
|
Wireless Speed
|
574 Mbps 2.4GHz 2402 Mbps 5GHz |
|
Wired interface
|
1 x 2.5 Gigabit Ethernet LAN |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point(AP) WDS bridge WDS with AP |
|
802.1X authentication
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
Auto channel selection
|
Supported
|
|
CLI
|
Supported
|
|
Console Port
|
Supported
|
|
DHCP server
|
Supported
|
|
L2 roaming
|
Supported
|
|
IGMP Snooping
|
Supported
|
|
IPv6
|
Supported
|
|
MAC address filtering
|
Supported
|
|
SNMP
|
Supported
|
|
SSH
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Station isolation
|
Supported
|
|
Syslog
|
Supported
|
|
Telnet
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WEB
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
WLAN partition
|
Supported
|
|
WMM-PS/802.11e(U-APSD)
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WPA3-Personal/Enterprise
|
Supported
|
|
Frequency band mode
|
Dual-band simultaneous |
|
Management platform
|
Nuclias Connect |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
