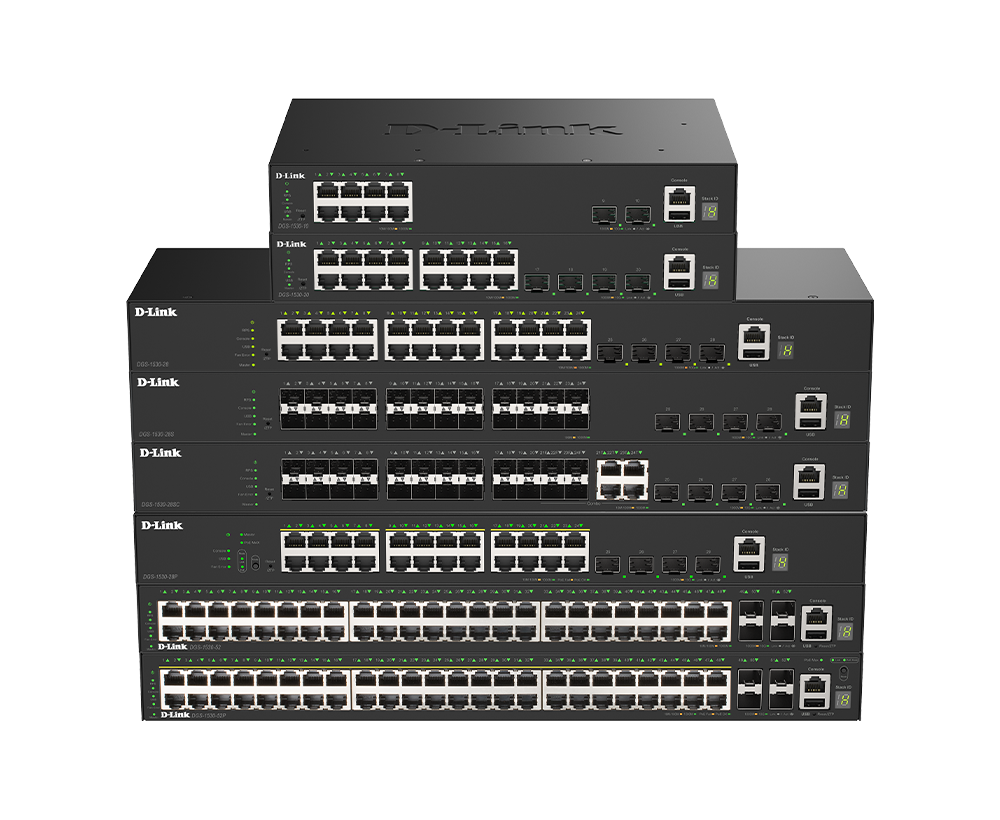

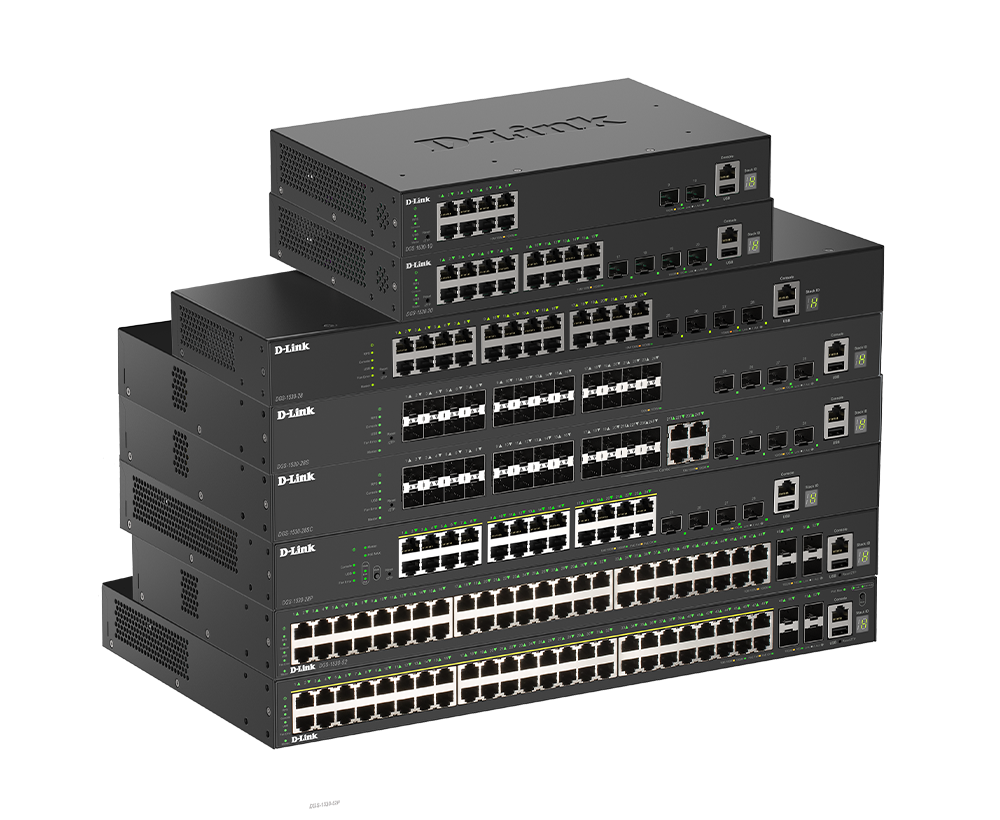

Gigabit Stackable Smart Managed Switches

DGS-1530 Series

  • Product Status (A1 v1.00): Live
  • Support 1G for downlink ports
  • Support 10G SFP+ for uplink ports
  • PoE IEEE 802.3af/at with a robust power budget
  • 6kV surge protection on all Gigabit Ethernet ports
  • Physical stack of up to 9 units via 10G ports
  • Supports 802.3ad LACP for link aggregation
  • Support Static Routing and Loopback Detection
  • AAA support for RADIUS/TACACS+
  • Support D-Link Safeguard Engine
  • Manage through the Nuclias Network Controller

*Nuclias Network Controller only include DNC-5000


Download the datasheet.

Where to buy

Why You Need It​

Physical Stacking

Physical stacking enables simplified management and scalable network expansion

Stay Connected

ERPS ensures fast, reliable network recovery and minimal downtime and ensure the continuous connectivity

Rich OAM Support

Comprehensive OAM streamlines monitoring, troubleshooting, and boosts network performance

Effortless Protection

Robust security strengthens safety, simplifies control, and prevents attacks for efficient operations

Static Routing

Static routes offer simplicity, stability, control, and enhanced security for network management

Uninterrupted Flow

Redundant power supply ensures uninterrupted services by backing up the built-in power and boosting PoE power

DGS-1530 Series Comparison

Products DGS-1530-10DGS-1530-20DGS-1530-28DGS-1530-28PDGS-1530-28SDGS-1530-52 DGS-1530-52P






 Interface

8 x 1GE
2 x 10G SFP+

16 x 1GE
4 x 10G SFP+

24 x 1GE
4 x 10G SFP+

24 x 1GE
4 x 10G SFP+

24 x 1G SFP
4 x 10G SFP+

24 x 1G SFP
4 x 10G SFP+

48 x 1GE
4 x 10G SFP+
 PoE---PoE+, with 370 W
Power Budget		--PoE+, up to 740 W
(with DPS-700 RPS)
Power Budget
Learn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn More

Related Products

Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Find out more

　

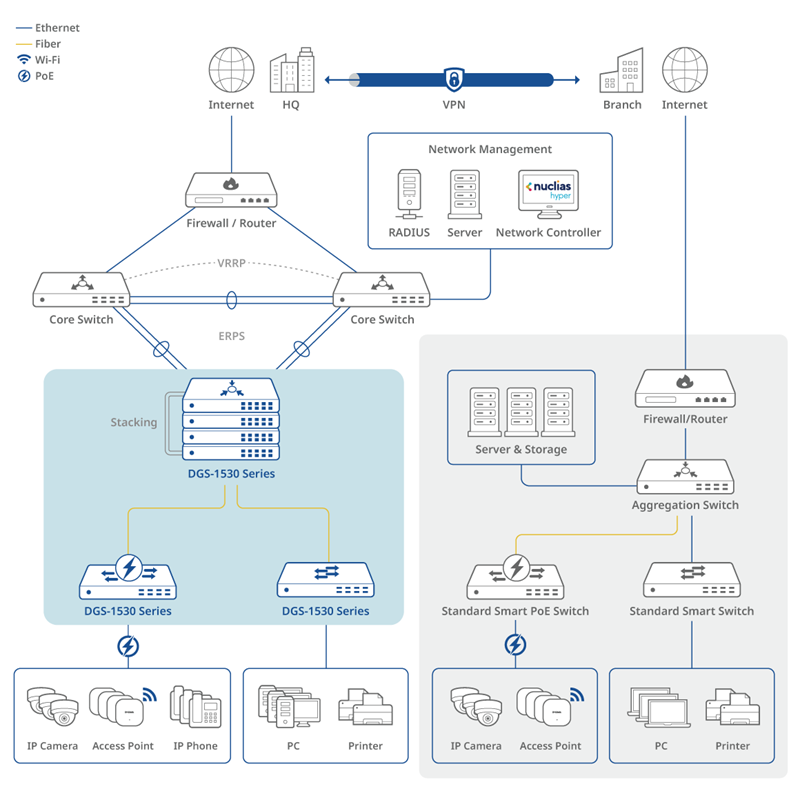

Connection Diagram

The DGS-1530 series offers scalable connectivity with 10 to 52 ports, including PoE and fiber options. It's perfect for IP surveillance, VoIP, and smart office networks, featuring VLAN, QoS, stacking and robust security like ACLs and 801.1X authentication.

Network Controller

Learn More

Aggregation Switch

Learn More

Standard Smart Switch

Learn More

Access Point

Learn More

Applications

Enterprise

  • Flexible deployment
  • Centralized control
  • Redundancy support
  • Scalable growth

Education

  • Multi-building flexibility
  • Segmentation control
  • Simplified maintenance
  • High uptime

Business

  • Device connectivity
  • Easy expansion
  • Secure access
  • Smart management

Building

  • Room-to-room scalability
  • Guest and staff isolation
  • Reliable service
  • Energy efficient

DGS-1530 Series Specification

Products

DGS-1530-10DGS-1530-20DGS-1530-28DGS-1530-28PDGS-1530-28SDGS-1530-52DGS-1530-52P





Interface

 8 x 1GE
 2 x 10G SFP+

 16 x 1GE
 4 x 10G SFP+

 24 x 1GE
 4 x 10G SFP+

 24 x 1GE PoE
 4 x 10G SFP+

 24 x 1G SFP
 4 x 10G SFP+

 48 x 1GE
 4 x 10G SFP+

 48 x 1GE PoE
 4 x 10G SFP+

Performance
Switch Capacity 56 Gbps 112 Gbps 128 Gbps 128 Gbps 128 Gbps 176 Gbps 176 Gbps

Max. Packet
Forwarding Rate

 41.67 Mpps 83.33 Mpps 95.24 Mpps 95.24 Mpps 95.24 Mpps 130.95 Mpps 130.95 Mpps
PoE
PoE Standard - - - IEEE802.3af/at - - IEEE802.3af/at
PoE Ports - - - Port 1 ~ 24 - - Port 1 ~ 48
PoE Budget - - - 370 W - - 370 W (no RPS)
 740 W (with DPS-700)
Technical Specification
Surge Protection 6kV Surge Protection on all ethernet ports
Fan Fanless Fanless 1 Internal Fan 3 Internal Fans 2 Internal Fans 2 Internal Fans 3 Internal Fans
Console Port Yes Yes Yes Yes Yes Yes Yes
Power Supply Type
 Internal Internal Internal Internal Internal Internal Internal
Learn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn More

Support

Version Date Type File Size
DGS-1530 Series Datasheet - PDF 0.87mb Download
