10G multi-Gigabit Ethernet connections for low-latency, to easily meet high-bandwidth demands, and device flexibility across the network.
8 x 100/1000/2.5GBASE-T PoE/PoE+ ports for rapid and reliable Ethernet connections and power to devices via a single cable.
Intuitive remote management interface makes setups and configurations easier, and reduces switch deployment times.
Includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).
Rich QoS controls, including bandwidth control, and Auto Surveillance VLAN.
D-Link’s Safeguard Engine™ helps protect against traffic flooding from malicious attacks.
Supports LED shutoff, and complies with IEEE 802.3az Energy Efficient Ethernet (EEE).
Add 10-Gigabit Ethernet connectivity to your network with this cost-effective switch. Integrate it into existing Gigabit Ethernet network infrastructures while simultaneously futureproofing the network.
You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.
Utilise a full line up of Layer 2 features such as: port mirroring, Spanning Tree Protocol (STP/MSTP/RSTP),Link Aggregation Control Protocol (LACP), IGMP and MLD Snooping, auto voice and surveillance VLAN 2.0, and LLDP and LLDP-MED.
Includes a high-power budget for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability.
This switch also features support for traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, and DoS attack prevention.

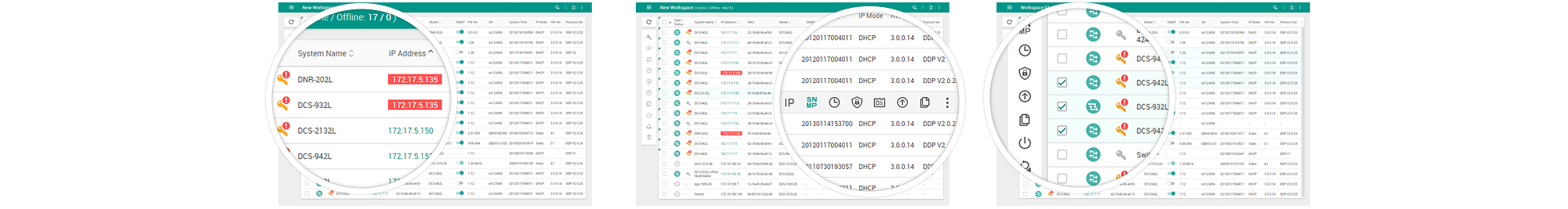

The DMS-1100-10TP can be configured quickly and easily through the web-based management interface. Built-in smart wizard and dual configuration give network administrators more options and flexibility.
Also supports D-View Network Management Software that allows central management of critical network characteristics such as availability, reliability, resilience, and security.
|
Type
|
Smart managed |
|---|---|
|
Number of ports
|
5 to 14 ports |
|
Layer
|
Layer 2 |
|
Main type of ports
|
2.5GBASE-T Ethernet |
|
Type of uplink ports
|
10GbE SFP+ |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
8 |
|
PoE power budget
|
See datasheet |
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form factor
|
Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Ethernet ring protection switching (ERPS)
|
Supported
|
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
MAC-based Port-based |
|
Advanced VLAN
|
Auto Surveillance VLAN Voice VLAN Asymmetric VLAN |
|
Number of QoS queues per port
|
8 |
|
Bandwidth control
|
1 Kbps minimum granularity |
|
SNMP (v1/v2c/v3)
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
