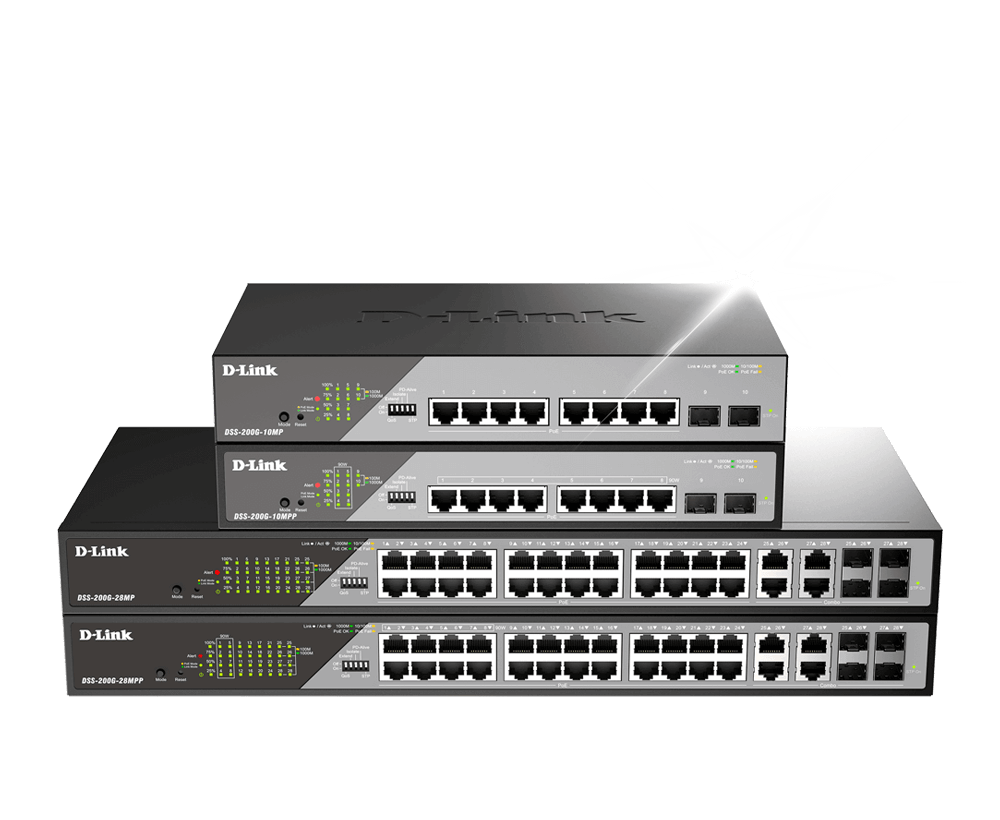

Enhance your surveillance environment with the DSS-200G, a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.
 DSS-200G-10MP |  DSS-200G-10MPP |  DSS-200G-28MP |  DSS-200G-28MPP | |
|---|---|---|---|---|
| Port Count |
8*GE PoE + 2*GE SFP
|
8*GE PoE + 2*GE SFP
|
24*GE PoE + 4*GE Combo
|
24*GE PoE + 4*GE Combo
|
| Dimension |
11”
|
11”
|
19”
|
19”
|
| Surge Protection |
6KV Full port & Power Supply
|
6KV Full port & Power Supply
|
6KV Full port & Power Supply
|
6KV Full port & Power Supply
|
| PoE power Budget |
130 W
|
242 W
|
370 W
|
518 W
|
| PoE Standard |
|
|
|
|
| Smart Fan |
Fanless
|
1
|
2
|
2
|
| DIP switch |
Working Modes x 4
|
Working Modes x 4
|
Working Modes x 4
|
Working Modes x 4
|
| QoS (Port priority) |
Ports 1-8
|
Ports 1-8
|
Ports 1-24
|
Ports 1-24
|
| Extend (Up to 250M) |
Ports 1-4
|
Ports 1-4
|
Ports 1-8
|
Ports 1-8
|
| Isolate |
Ports 1-8
|
Ports 1-8
|
Ports 1-24
|
Ports 1-24
|
| PD-Alive |
Ports 1-8
|
Ports 1-8
|
Ports 1-24
|
Ports 1-24
|
|
Acoustic
|
53 dB(A) |
|---|---|
|
Dimensions
|
440 x 208 x 44 mm (17.32 x 8.18 x 1.73 in) |
|
FAN
|
2 |
|
Interfaces
|
24 x 10/100/1000 Mbps PoE 4 x Combo 1000 Mbps |
|
Maximum Forwarding Rate
|
41.67 Mpps |
|
Maximum Heat Dissipation
|
190.74 BTU/hr |
|
Max Power Consumption
|
425.9 W (PoE on) 25.5 W (PoE off) |
|
PoE Power Budget
|
370 W 30 W max. per PoE port |
|
MTBF
|
331,732 hours |
|
Standby Power Consumption
|
15.12 W |
|
Switching Capacity
|
56 Gbps |
|
Weight
|
2.86 kg (6.30 lbs) |
|
MAC Address Table Size
|
8K entries |
|
Packet Buffer Size
|
4.1Mbits |
|
LEDs Link/Active/Speed (per port)
|
Yes |
|
LEDs Alarm
|
Yes |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: -40 to 70 °C (-40 to 158 °F) |
|
Humidity
|
Operating: 0% to 95% non-condensing Storage: 0% to 95% non-condensing |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
