Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.
Seamless failover between Ethernet WAN and 4G for reliable connectivity.
Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Conveniently manage devices from anywhere via the D-ECS management platform.

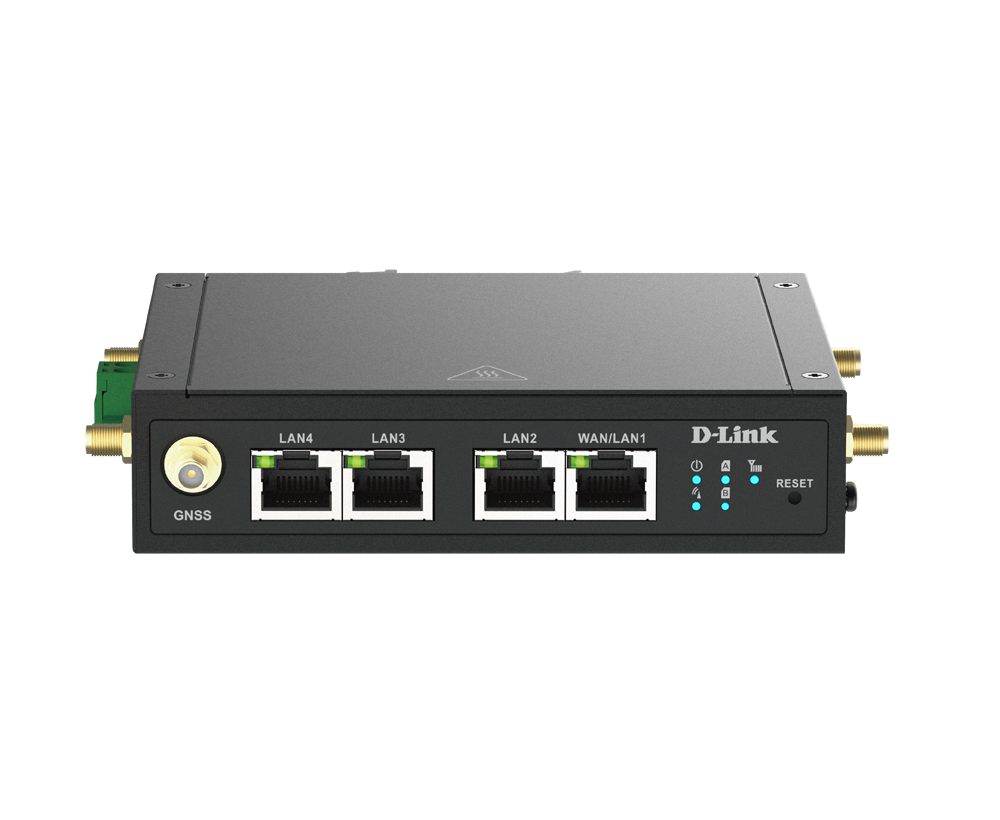

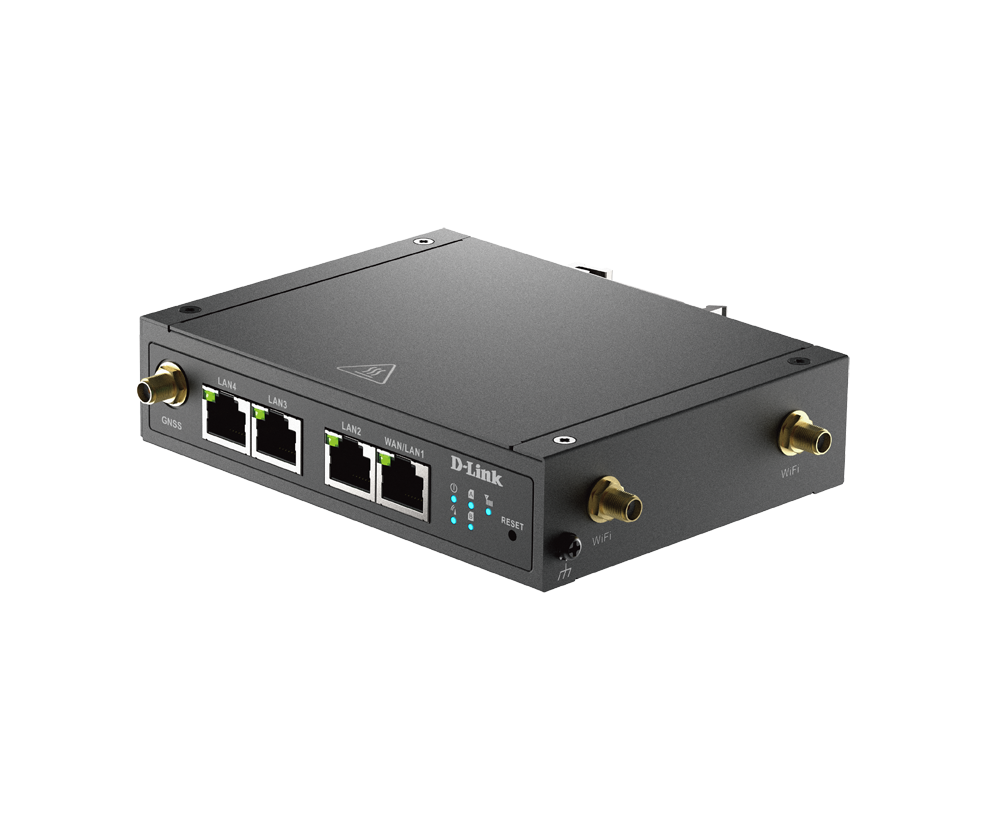

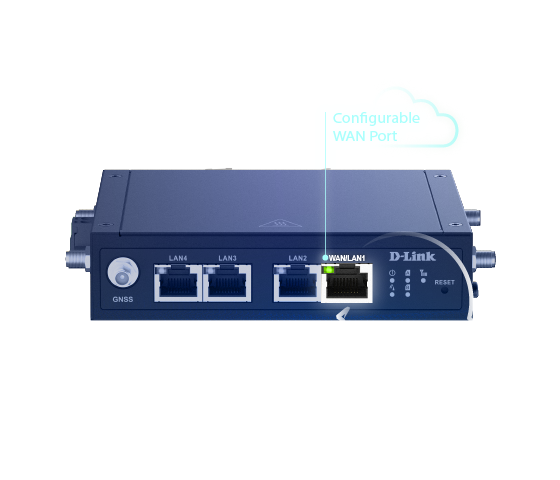

The DWM-530-T 4G M2M Router ensures continuous service with Dual SIM (Micro-SIM 3FF) support for enhanced carrier diversity and network redundancy. Reliable connectivity even in locations with limited coverage is now possible. Additionally, it includes four LAN ports, one configurable as a WAN, giving you flexible options to seamlessly switch between Ethernet WAN and LTE connections, ensuring you always have the best network access.
The DWM-530-T 4G M2M Router boosts network security with robust VPN support, offering protocols such as IPSec, OpenVPN, PPTP, L2TP, and GRE. These features enable encrypted connections, versatile tunneling, and secure remote access to protect sensitive data effectively. Ideal for retail operations, small shops, pop-up booths, and smart parking systems, the DWM-530-T ensures that financial transactions and customer information are securely managed and transmitted.

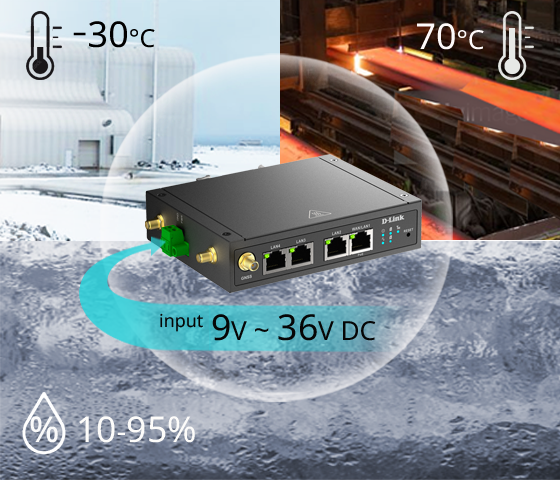

The DWM-530-T is designed to maximize M2M connection reliability and availability, featuring a corrosion-resistant zinc-plated steel casing, wide voltage input range, wide operating temperature range and humidity tolerance, making it suitable for the most demanding M2M applications in virtually any environment. Convenient DIN-rail mounting allows the DWM-530-T to be mounted virtually anywhere to optimize signal quality.

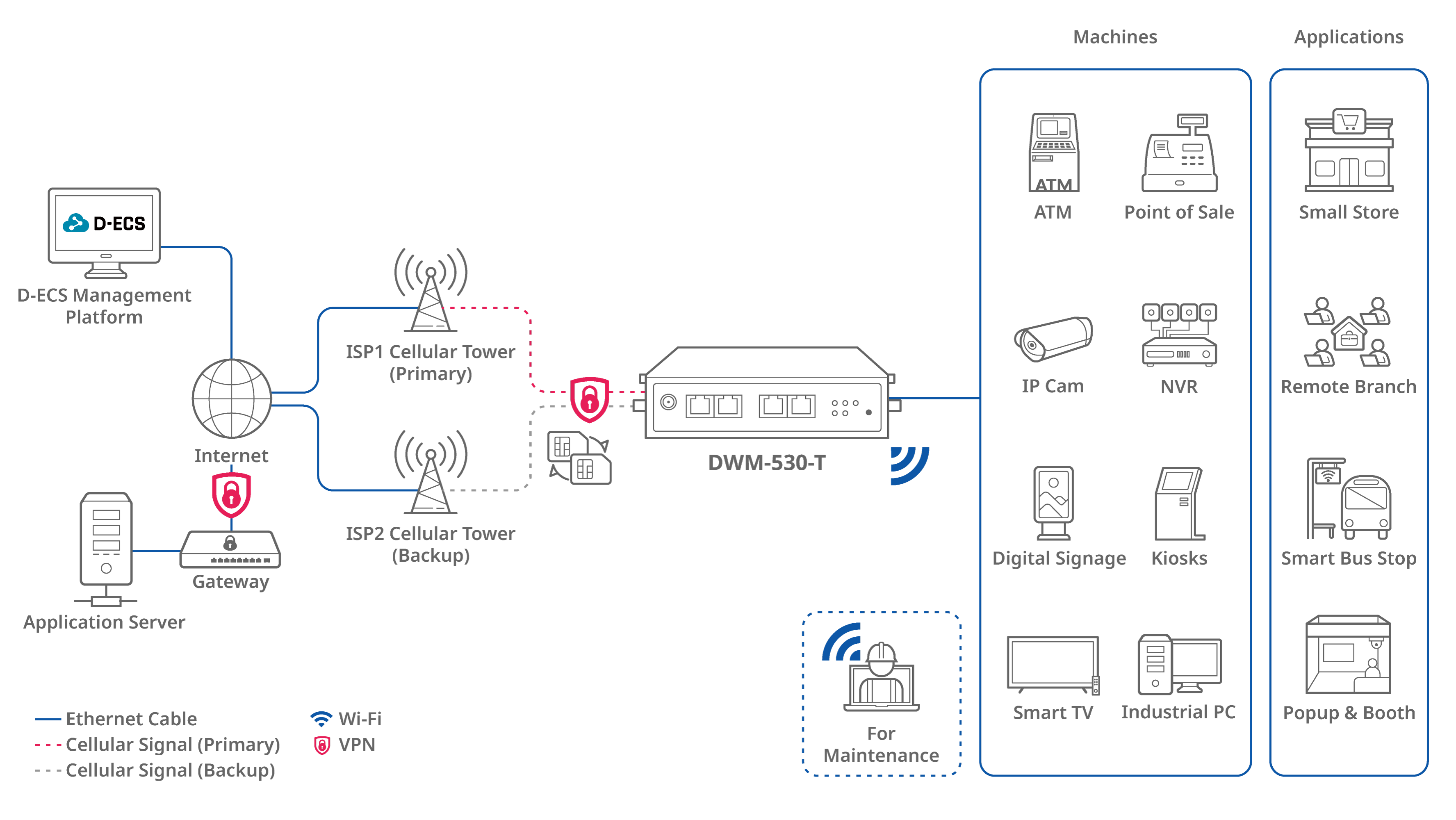

Discover the DWM-530-T M2M Router, designed for robust IoT connectivity. It offers dual cellular networks for reliable connections, even during network outages, and features VPN for secure data transfers. Centralized management is simplified via the D-ECS platform.
Ideal for various applications including ATMs, NVRs, kiosks, and industrial PCs, this router supports extensive IoT needs in sectors like retail stores and mobile offices. Its versatility and reliable performance make it suitable for both small and large IoT deployments, ensuring efficient operations and security.
Kiosk
Remote access for kiosks ensures secure and continuous operation while minimizing service interruptions.
EV Charger
Remote management of charging information and usage status to optimize operations.
Smart Bus Stop
Remote access for real-time bus info and ad updates, enhancing commuter experience.
Vending Machine
Remote access to inventory and sales data optimizes machine status monitoring and restocking efficiency.
|
Cellular
|
4G LTE |
|---|---|
|
SIM
|
Dual SIM |
|
Ethernet Ports
|
4 x LAN |
|
Ethernet Speed
|
10/100 Mbps Ports |
|
GNSS
|
GPS / GLONASS |
|
Network
|
IPv4/v6 Port Forwarding DHCP Server/Relay VLAN NAT Bridge |
|
Management
|
Web UI SMS D-ECS |
|
Power Input
|
DC 9V-36V |
|
Storage
|
1 x Micro SD card slot |
|
VPN
|
IPSec, OpenVPN, PPTP, L2TP, GRE |
|
WAN
|
Cellular Ethernet |
|
Wi-Fi
|
Wi-Fi N300(2.4GHz) |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
