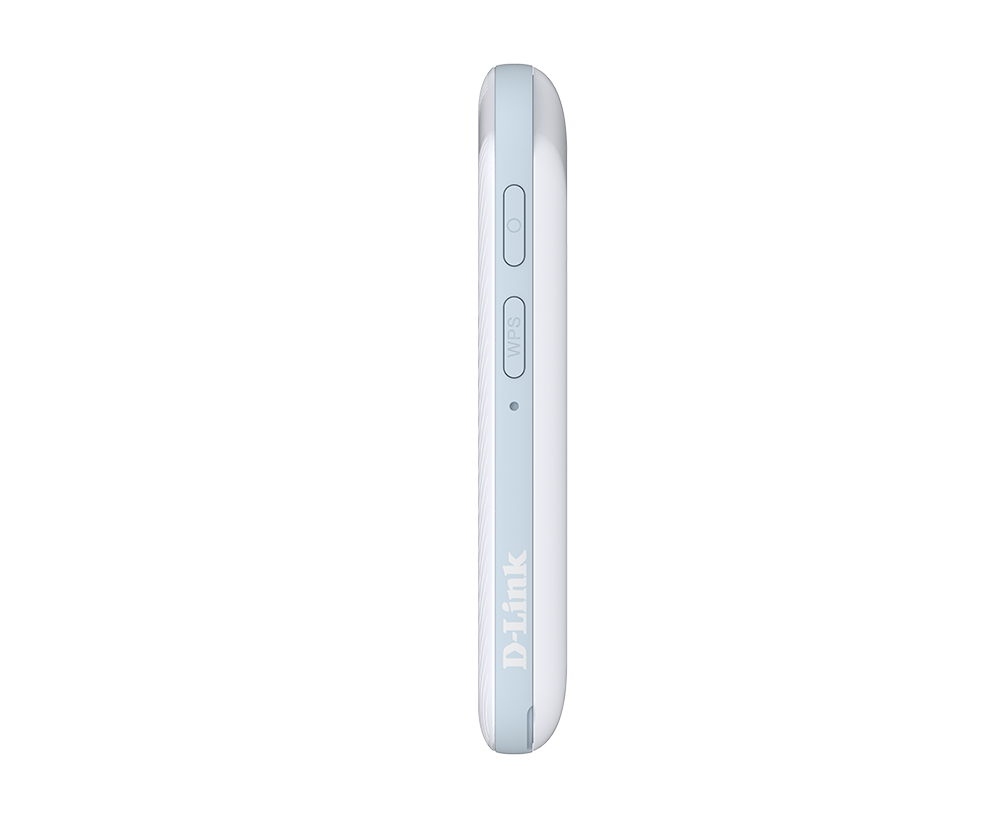

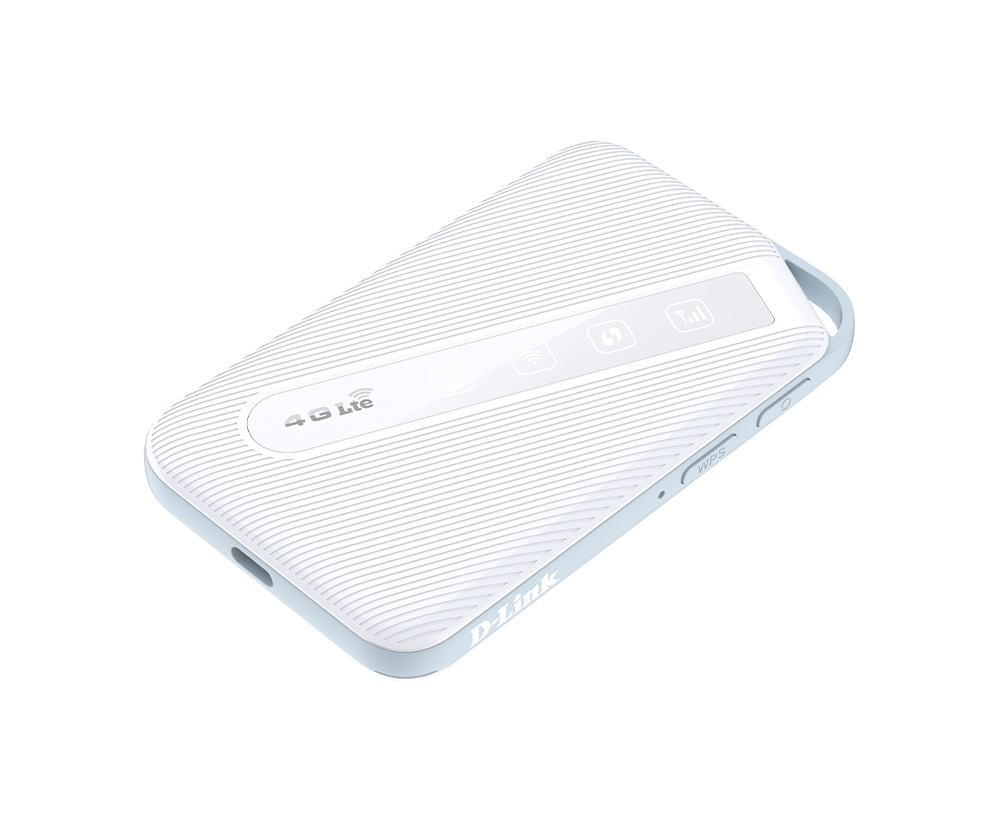

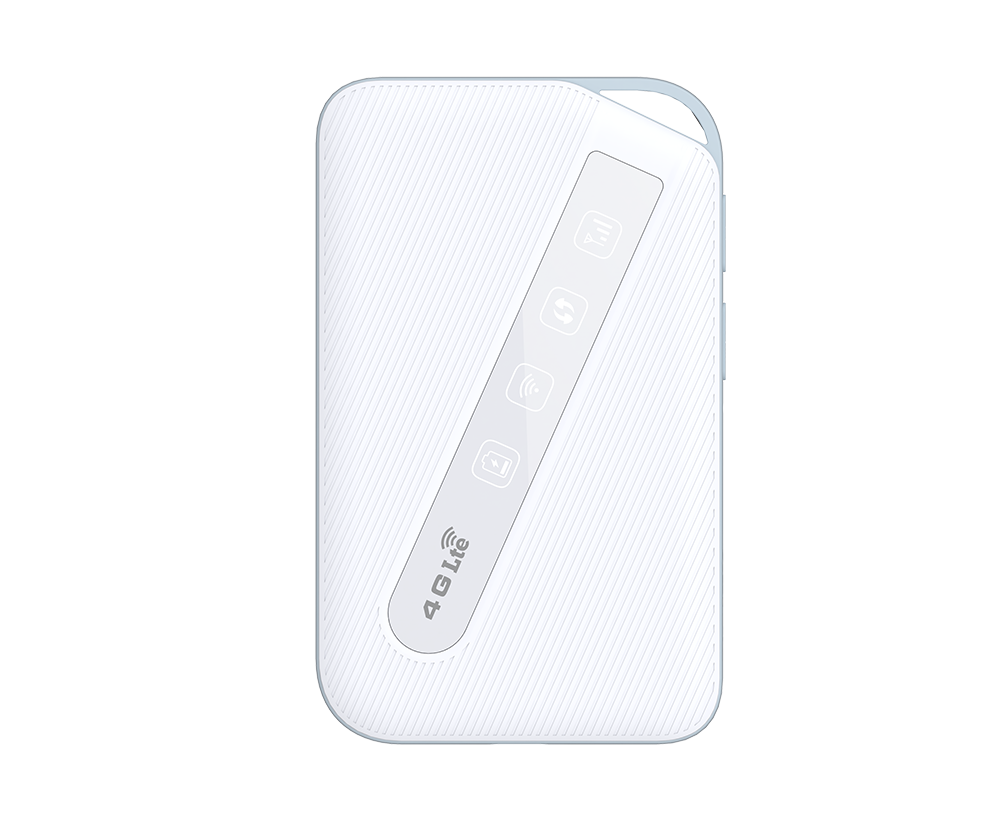

4G LTE AX300 Wi-Fi 6 Mobile Hotspot

DWR-932W

  • Product Status (DWR932W_B1_Datasheet_v1_00 WW): Live
  • 4G LTE Connectivity: Supports 4G LTE Cat 4 with speeds of up to 150 Mbps downlink / 50 Mbps uplink1
  • AX300 Wi-Fi 6 Technology: Delivers speeds up to 286.8 Mbps1, providing ample bandwidth for browsing, email, and social media
  • Connect More Devices: Allows users to create a personal hotspot and share it with up to 32 devices
  • Up to 16 Hours2 Battery Life: A rechargeable 3000mAh Li-ion battery keeps users connected longer
  • Enhanced Security and Privacy: Supports WPA3, the latest Wi-Fi security protocol, and cybersecurity certification
  • Ease of Use: Enables easy SIM card insertion via the onboard slot to start sharing mobile Internet
  • Clear Signal Indicators: Color-coded blinking LEDs provide instant, easy-to-understand status updates
  • Portable Design: Slim and lightweight, it fits easily into a pocket (103 x 63 x 13.35 mm)

Download the datasheet.

Where to buy

Stay Connected,　　　Wherever Life Takes You

Turn any location into your personal Wi-Fi zone with the DWR-932W 4G LTE AX300 Wi-Fi 6 Mobile Hotspot. Leverage 4G LTE Cat 4 to instantly create your own hotspot by inserting a SIM card, connect and share your Internet anytime, anywhere.

Internet in Your Pocket

Compact, lightweight, and travel-ready. The DWR-932W is slim, light and slips easily into your pocket. No bulk, no hassle, and stay connected anywhere the day takes you.

Experience Wi-Fi 6 Technology

Get the speeds up to 286.8 Mbps1 with efficiency, and stability of Wi-Fi 6, providing ample bandwidth for Internet surfing, email, and social media.

Learn More about Wi-Fi 6

Connect Up to 32 Devices

Instead of tethering one device via USB dongle, easily create your own Wi-Fi hotspot to share your Internet connection with up to 32 wireless devices simultaneously. Ideal for group travel or sharing data with friends and family on the go.

Up to 16 Hours Battery Life

Equipped with a 3000mAh rechargeable Li-ion battery, the DWR-932W keeps you connected for up to 16 hours2, built to handle even your longest days, without interruptions.

Safer Network Everywhere

Your network stays protected with a customizable password. WPA3 encryption, the latest Wi-Fi security protocol, safeguards your traffic from eavesdropping. The built-in firewall adds an extra layer of protection against unauthorized access, and WPS lets you create a secure Wi-Fi network with just the touch of a button.

Hassle-Free Connectivity

No software installation or complex settings. Simply insert your SIM card in the on-board slot, and ready to share your connection.

Internet That Fits Your Lifestyle

The DWR-932W leverages a 4G LTE Internet connection to keep you connected wherever you are. With speeds up to 150 Mbps downlink / 　　　　50 Mbps uplink1, you can create and share a personal hotspot instantly, whether you're catching up on emails at the airport, working or studying at a café, or staying online at a campsite.

Business Trip or Travel

Keep your connection alive at airports, hotels, or in transit

Outdoor Activities

Perfect for camping trips, festivals, or field events

Remote Work

Keep productivity flowing during away from the office

Study Online

Study, lectures, or group chat from any location

1. Maximum wireless signal rates are based on IEEE 802.11ax/ac/n/g/b standards. Actual data throughput may vary depending on the specific network environment and conditions.　　　　　　　　　　　　　　　　　　　　　　　　　　2. Factors including the number of connected devices and strength of mobile network signal may affect battery life.

Specification

Download the datasheet.

Mobile Data Rates
Downlink: 150 Mbps
Uplink: 50 Mbps
Standards
IEEE 802.11be/ax/n/g/b (2.4 GHz)
Cat 4
Wireless Speed
2.4 GHz up to 286.8 Mbps
Antenna
2 x cellular internal antennas
1 x Wi-Fi internal antenna
Interfaces
1 x Nano SIM card slot (4FF)

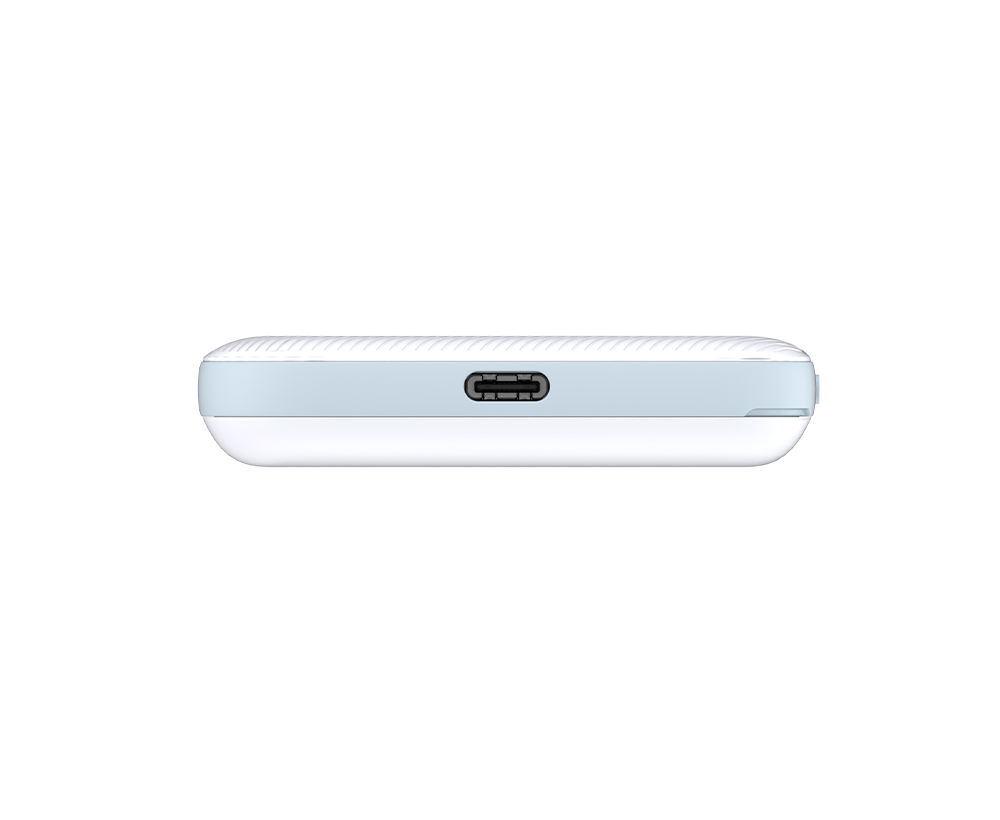

1 x USB 2.0 Type-C
Power Input
USB 2.0 Type-C (5V/1A)
LED Status Indicators
Signal
WPS
Wi-Fi
Battery
Dimensions
103 x 63 x 13.35 mm (4.06 x 2.48 x 0.53 in)
Weight
102 g (3.6 oz)
Wireless Encryption
WPA/WPA2/WPA3
Body SAR
1.266 W/kg

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.

Download the datasheet.
