MLAG support. Hot-swappable power supplies and fans.
10G and 40G port combinations for high bandwidth Leaf-Spine, ToR, or EoR network architecture topologies.
ONIE provides the option to install a preferred Network Operating System, such as Pluribus Netvisor OS, or activate the pre-loaded D-Link OS.
Supports OpenFlow v1.0/1.3 and Software-Defined Networks, like Cumulus Networks.
Mini-USB console port. RJ-45 dedicated management port. USB-2.0 port. Industry-standard full CLI.
Register and enjoy Limited Lifetime Warranty support from one of the global leaders in the industry.

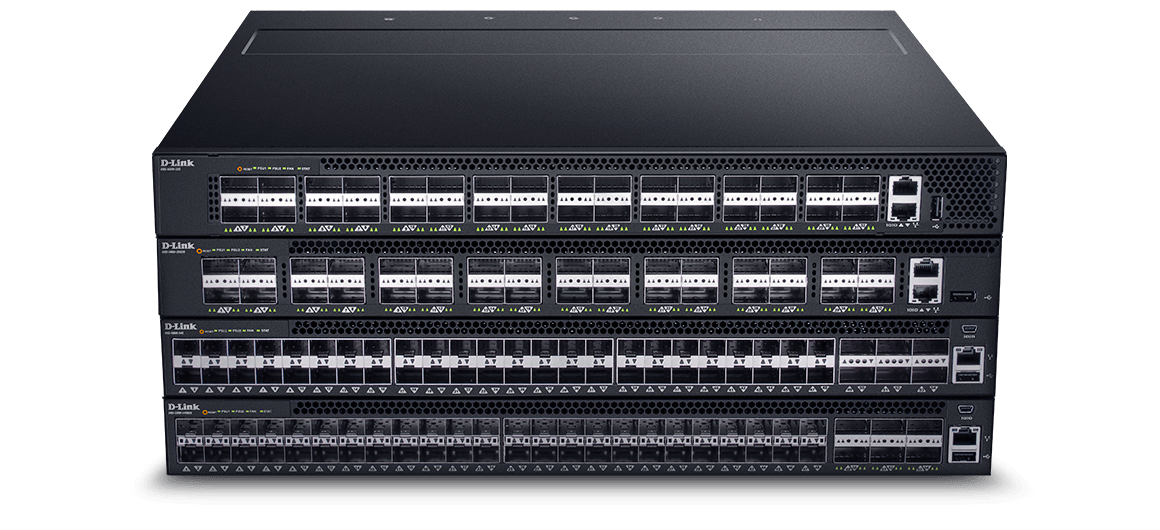

Designed with up to 1.44 Tbps of simultaneous high throughput, high port density, and ultra-low latency to accommodate scale and requirements. Ideal as aggregation switches in enterprise environments, as well as Top-of-Rack, Leaf-Spine, or End-of-Rack core Ethernet switches in data centers.

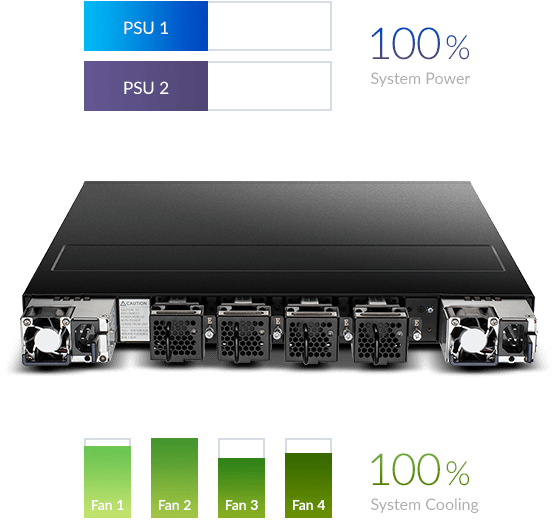

Both the fans and PSUs are hot-swappable to increase uptime, and front-to-back airflow allows the creation of optimal cooling configurations.
MLAG enables efficient network topologies that also increase uptime with dual-management, control planes, and upgrades that don’t affect services.
Load Sharing
Enables both PSUs to evenly distribute the load to increase reliability and lifetime.
1+1 redundancy
Maintains uptime even if a power supply fails.
L2 features include L2 switching, L2 multicast, advanced Quality of Service (QoS), and robust security features.
Advanced L3 routing for enterprise integration, including OSPF, BGP, Graceful Restart, Bidirectional Forwarding Detection (BFD), and L3 multicast.
And support for MLAG, MLD Snooping, IP interface, DVMRP v3, PIM-DM, and includes data center features like 802.1Qaz, 802.1Qau, and 802.1Qbb.
VXLAN allows deployments of larger and more flexible VLAN architectures by using a 24-bit ID, which enables deployments of up to 16 million isolated logical networks across Layer 3 subnets to accommodate the increasing scale of virtualized cloud environments.
| 24-bit ID VXLAN Uses this network identifier to address L2 segments. |
16 million |

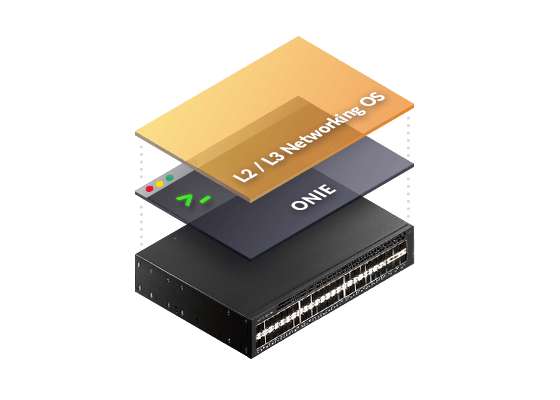

The DXS-5000 supports Open Networking, which provides innovative third-party operating systems and software options. This lowers costs by separating software from hardware and increases network agility and flexibility.
ONIE gives you the option to install a preferred Network OS, such as the Pluribus Netvisor OS, or activate the pre-loaded D-Link OS.
With support for standards-based tools and standards-based applications, Open Networking simplifies scalability and future-proofs the network.
Whether it's a completely new network or an upgrade to an existing site, a free no-obligation project survey from one of our highly-skilled engineers will help you to assess your network.
Speak to an expert
|
Type
|
Managed SDN |
|---|---|
|
Number of ports
|
48 to 54 ports |
|
Layer
|
Layer 3 |
|
Main type of ports
|
10GbE SFP+ |
|
Type of uplink ports
|
40GbE QSFP+ |
|
Switching capacity
|
1.44 Tbps |
|
Form factor
|
Rackmountable |
|
Jumbo frame
|
Supported
|
|
MAC address
|
288K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
Port-based |
|
Advanced VLAN
|
Double VLAN (Q-in-Q) ISM VLAN |
|
IPv4/IPv6 routing table
|
IPv4 - 8K IPv6 - 2K |
|
IPv4/IPv6 forwarding table
|
IPv4 - 2K IPv6 - 2K |
|
IP interfaces
|
128 |
|
Static route for IPv4/IPv6
|
IPv4 - 64 IPv6 - 64 |
|
IPv6 tunneling
|
Supported
|
|
Multicasting
|
Supported
|
|
PIM-SM
|
Supported
|
|
OSPF
|
Supported
|
|
BGP
|
Supported
|
|
OSPFv3
|
Supported
|
|
Number of QoS queues per port
|
8 |
|
CoS based on contents
|
Supported
|
|
Bandwidth control
|
1% of port speed minimum granularity |
|
ACL type
|
Egress Ingress VLAN-based |
|
Time-based ACL
|
Supported
|
|
Encryption protocol supported
|
SSH |
|
BPDU attack protection
|
Supported
|
|
802.1X access control
|
Supported
|
|
RADIUS/TACACS+ authentication
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1
|
Supported
|
|
sFlow
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
