Optimization
Coverage
Connectivity
Security
The R04 has the smarts to handle multiple wireless devices and enable smooth streaming and sharing across your entire home network. Proven cost-effective Wi-Fi 4 (802.11n) technology with 300 Mbps speed provides you the power you need for essential tasks on the internet — from 4K streaming to VoIP calls.
The R04 supports the latest WPA3 Wi-Fi Security Protocol, which can help prevent brute-force password hacks, allows for more natural passwords, and secures past transmissions from being read, even if your password is exposed.
AI Wi-Fi Optimizer continuously scans the environment to keep you connected to the cleanest channel available.
The Quality of Service (QoS) is evaluated data size and data size is used to filter the High and Lower priority data transmission. So, the users can set the manual priority based on their essentials in EAGLE PRO AI App.
AI Parental Control lets you designate online hours for little ones and restrict website access to keep their learning experience a safe and healthy one.
The EAGLE PRO AI App managing your W-Fi has never been easier,
AI Assistant to continuously monitor data usage and provide actionable recommendations and weekly report.

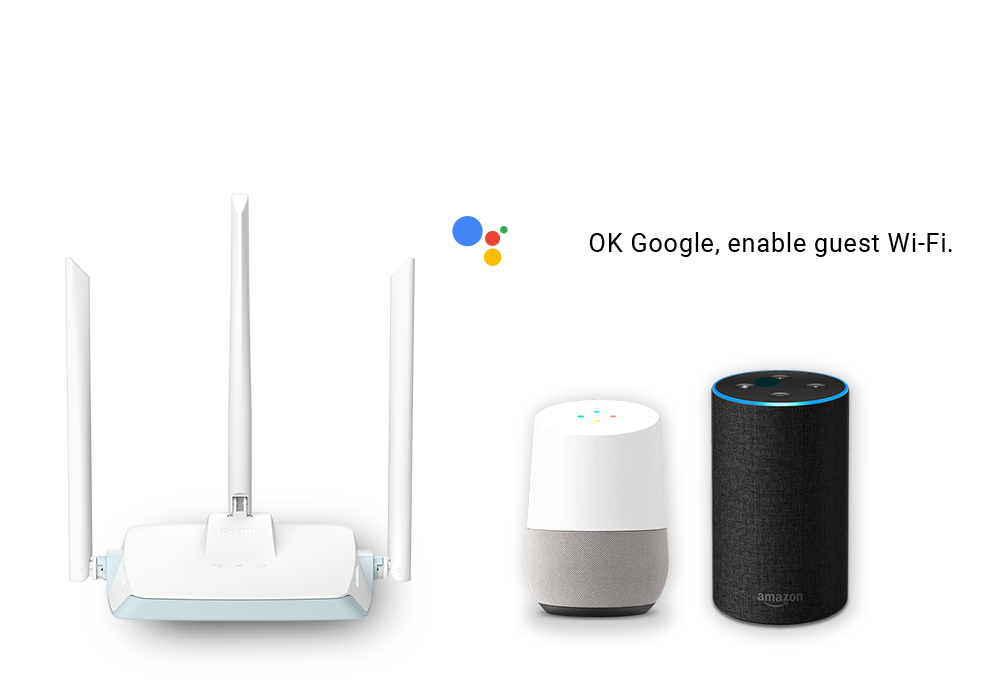

Easily integrates with Amazon Echo’s Alexa
or the Google Assistant for convenient hands-free voice control.
*Please check availability in your region
|
Interfaces
|
4 x 10/100 Mbps LAN ports 1 x Reset/WPS button 1 x power connector 1 x 10/100 Mbps Ethernet WAN port |
|---|---|
|
Antenna
|
3 x external dipole antennas (5 dBi) |
|
Wi-Fi Data Rate
|
2.4 GHz Up to 300 Mbps |
|
Wireless Standard
|
IEEE 802.11k/v IEEE 802.11n/g/b IEEE 802.3u/b |
|
WAN
|
PPPoE PPTP L2TP DS-Lite Supports 802.1p & 802.1q VLAN tagging and Priority bit Concurrent session: 32,000 |
|
Security Protocol
|
WPA/WPA2-Personal WPA2-Personal only WPA2/WPA3-Personal (WPS not supported) WPA3-Personal only (WPS Not supported) |
|
Firewall
|
DoS Stateful Packet Inspection Anti-spoofing Checking IP/MAC Address Filtering 1 x DMZ |
|
QoS
|
D-Link QoS Technology |
|
Device Management
|
EAGLE PRO AI app (iOS and Android) Web UI |
|
Voice Assistant
|
Amazon Alexa Google Assistant |
|
Hardware version
|
A1 |
|
Dimensions
|
158 x 131.35 x 43.73 mm (L*W*H) |
|
Weight
|
168 g |
|
Power Input
|
12 V 1A |
|
Maximum Operating Voltage
|
12V |
|
Operating Temperature
|
0 to 40 °C (32 to 104 °F) |
|
Storage Temperature
|
-20 to 65 °C (-4 to 149 °F) |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Storage Humidity
|
5% to 95% non-condensing |
|
Certifications
|
CE FCC |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
