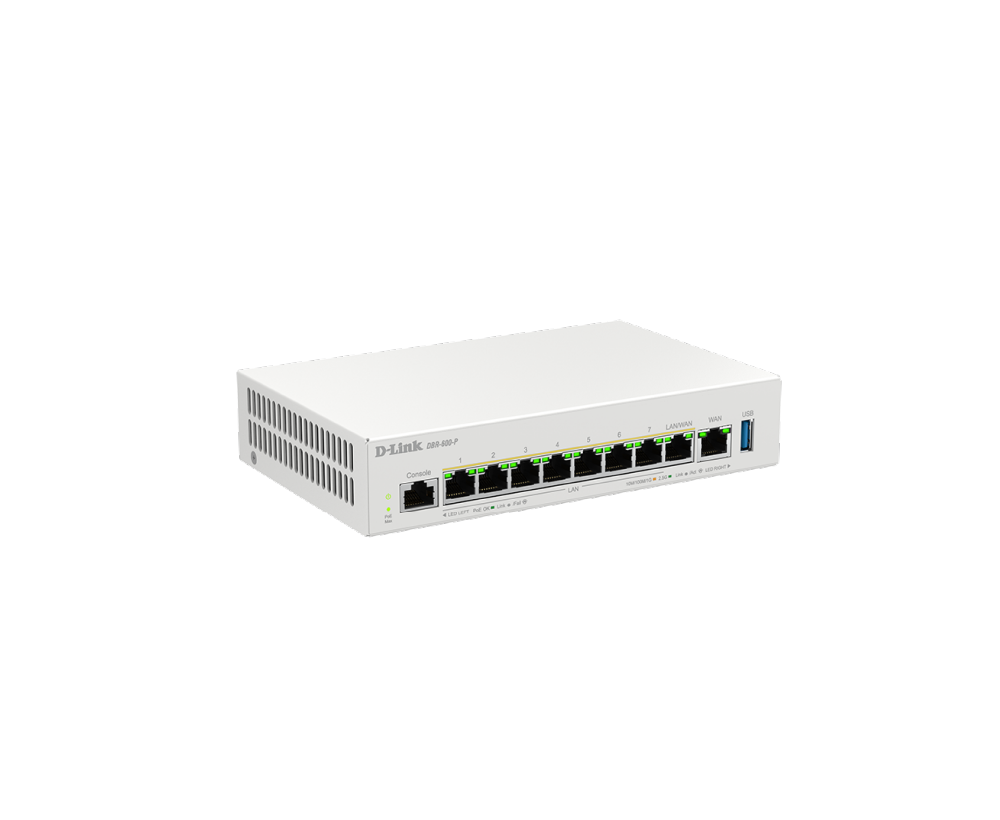

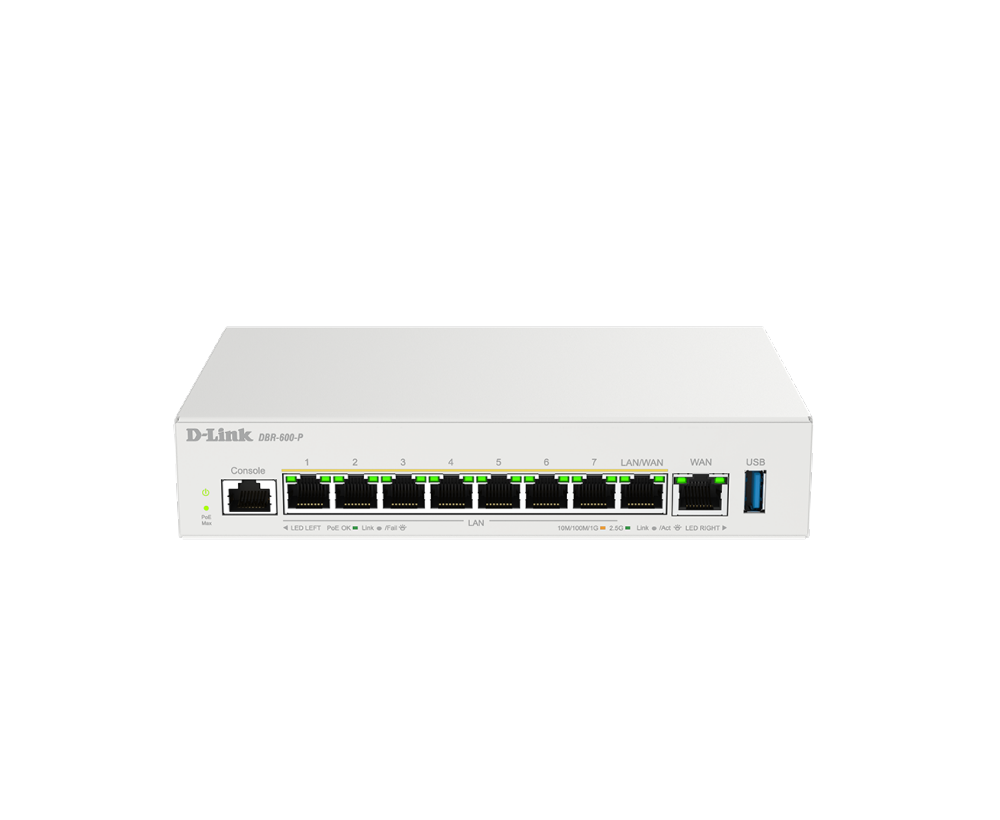

Multi-Gig PoE+ Business Router
DBR-600-P
- Product Status: Live
Your network in one box. Plug it in, power your devices, get on-line - no fuss.
- Built for small offices, shops, classrooms, and studios: replaces a separate router, PoE switch, and Wi-Fi controller with one compact unit
- 2.5 Gbps WAN port: matches multi-gig fiber or cable plans, moving large uploads quickly and keeping video calls smooth
- Eight 2.5 GbE PoE+ ports: up to 30 W each (123 W total) power access points, cameras, and phones over existing cables
- Multi-WAN fail-over and load balancing: shifts traffic to a backup link and balances demand for steadier connectivity
- Firewall and IDS/IPS: help prevent network threats, while up to 50 IPsec or WireGuard® VPN tunnels protect remote traffic
- Intuitive WiFi management: discover and manage up to ten D-Link Smart Access Points (DBR-X3000-AP) from the same dashboard
- Smart QoS: prioritizes voice, payment, or video traffic when the network is busy
- Intuitive web dashboard: handle setup, monitoring, and tweaks from a clean interface
- TAA / NDAA compliant: suitable for public-sector and security-focused deployments
- Limited-Lifetime warranty: coverage with registration in North America
All-in-One Network Solution: Multi-Gig PoE+ Business Router
Setting up a small business network or replacing aging gear should be simple and straightforward
The DBR-600-P combines key network solutions into one compact unit for small offices, storefronts, classrooms, and studios: a 2.5 Gbps router; an eight-port 2.5 GbE PoE+ switch that supplies (30 W per port, 123W budget total); built-in control for up to ten D-Link DBR-X3000-AP access points; VPN connectivity for up to fifty tunnels, and dual-WAN failover that keeps traffic moving when the primary link drops. Together, these features deliver multi-gig wired speed, power for devices, one-screen Wi-Fi management, and reliable link backup, no extra hardware required.
The DBR-600-P turns day-one networking into a tidy, future-ready, affordable setup you can configure in just a few steps, getting your business online quickly.
Send Large Files in a Snap
Enjoy faster 2.5Gbps data transfers, saving time and reducing wait
Reliable Multi-WAN Connectivity
up to 3 WAN ports for uninterrupted connectivity and optimized traffic
PoE Ports for Hassle-Free Deployment
PoE-enabled ports simplify installation and power up 8 devices
Comprehensive and Robust VPN
Powerful VPN ensures secure access for business offices and remote workers
Access Under Protection
Firewall protection keeps your network safe from unauthorized access and cyber threats
One-stop APs Management
Monitor and control smart access points easily via the built-in management platform
USB Port More Than Just a Port
Extend service with D-Link 4G/5G dongles as a backup WAN connection or additional external storage
Smart Performance Optimization
Prioritizing critical applications and balancing traffic to avoid congestion

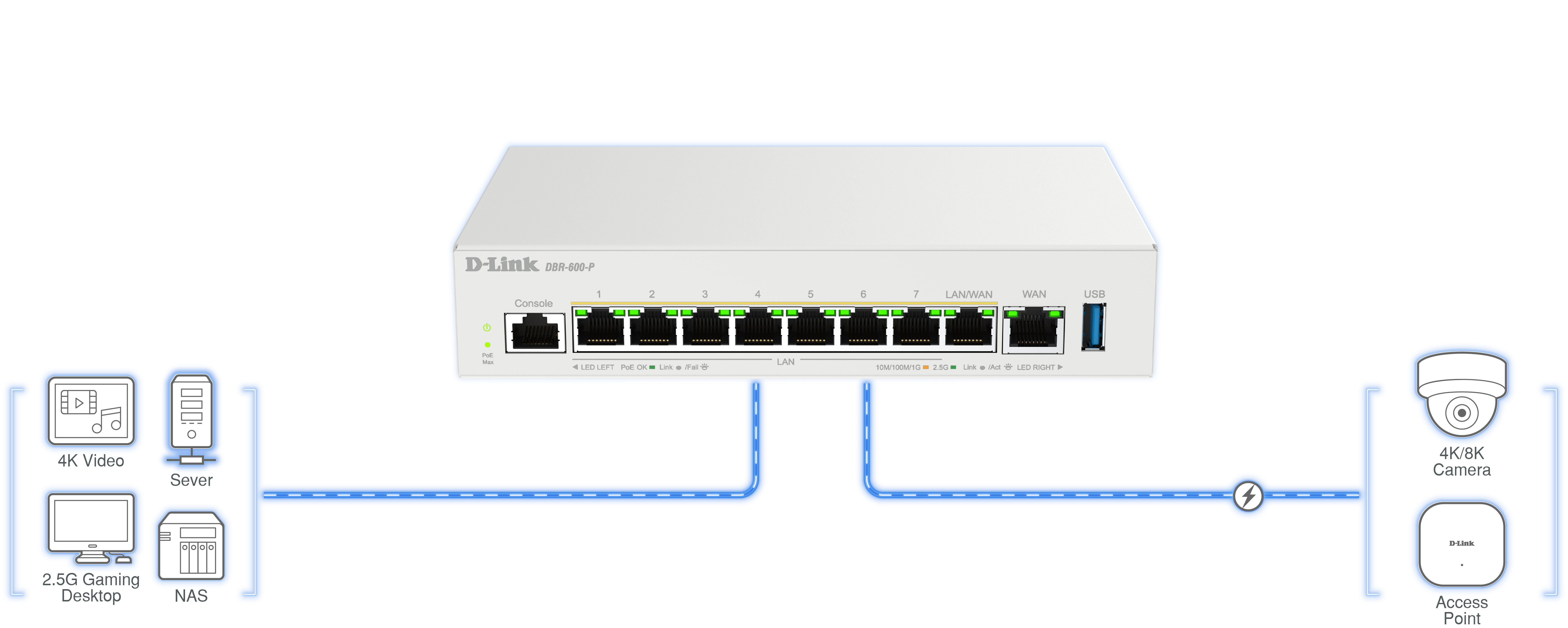

2.5G Connectivity
Drive Tomorrow's Success with Enhanced Performance
Drive Tomorrow's Success with Enhanced Performance
Each DBR-600-P port supports 2.5 Gbps, giving workstations, servers, and media streams breathing room for large file transfers and real-time traffic. All eight LAN ports also supply PoE+, up to 30 W per port, 123 W total so Wi-Fi access points, security cameras, and phones receive power and data through the same cable, trimming installation time and cabling costs.

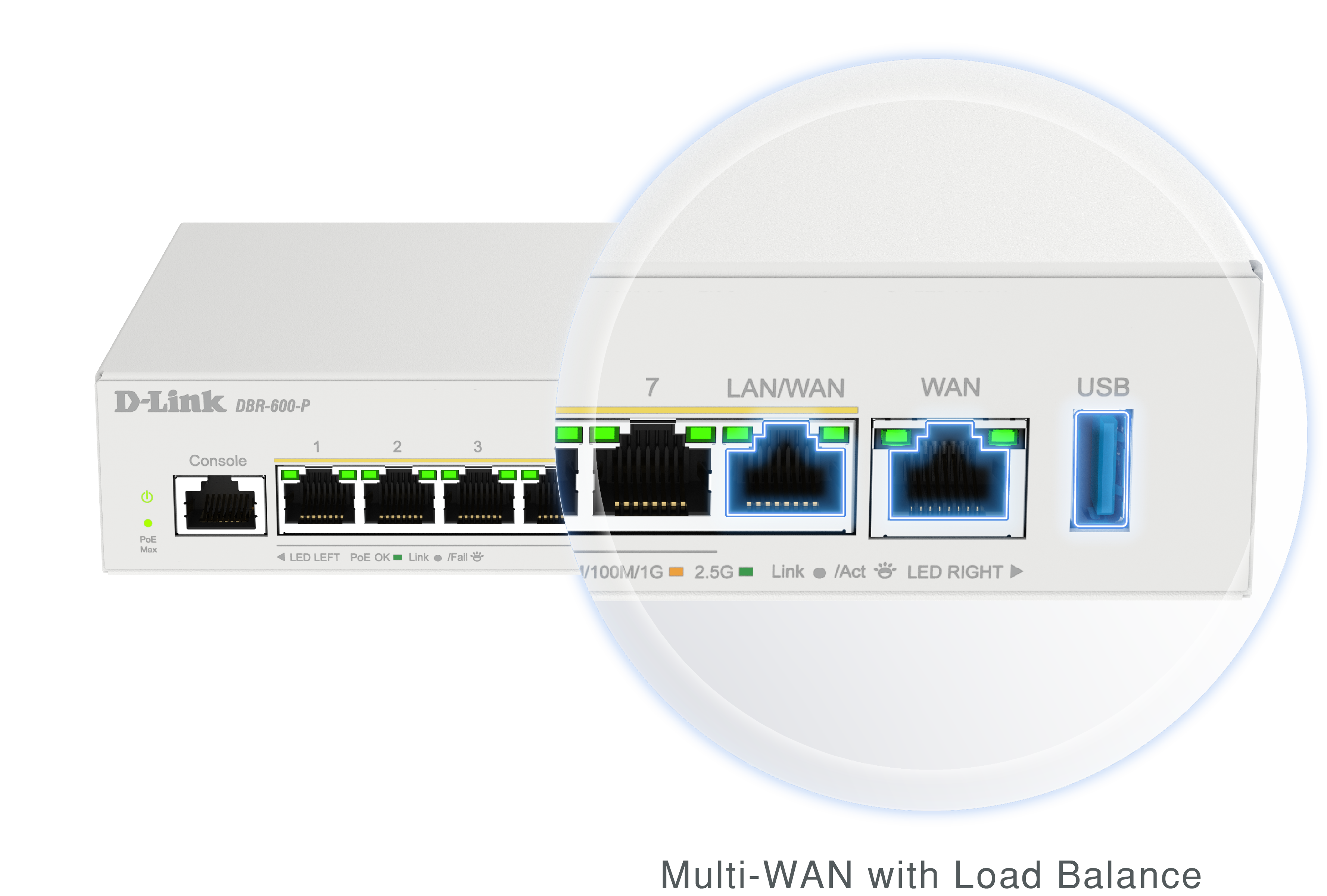

Multi-WAN
Connections for Steady Uptime
Connections for Steady Uptime
With up to three WAN ports, the DBR-600-P keeps traffic moving when the primary link drops - automatic fail-over shifts connections to a backup line. When all links are active, load-balancing spreads bandwidth across them, smoothing performance and improving throughput without manual intervention.

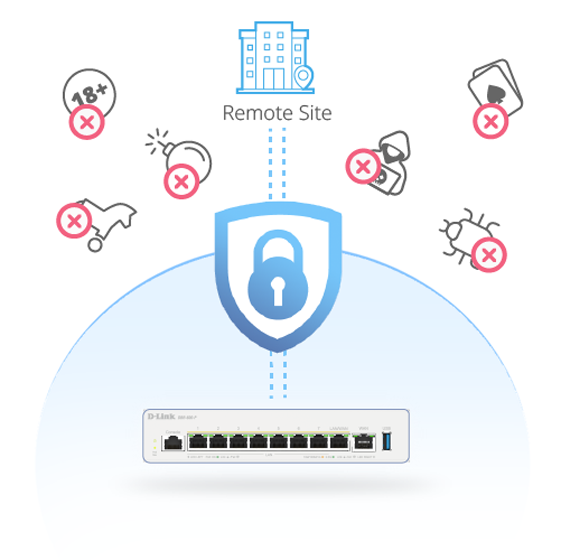

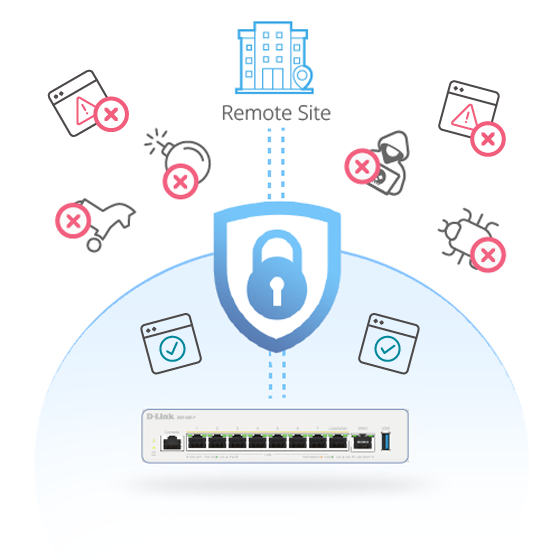

Layered Security
Comprehensive built-in advanced security features, such as a firewall, IPS, and web filtering helps protect internal resources from unwanted traffic and suspicious content. Enhanced VPN interoperability and strong encryption make remote connections more secure, helping safeguard data and maintain privacy across network interactions.

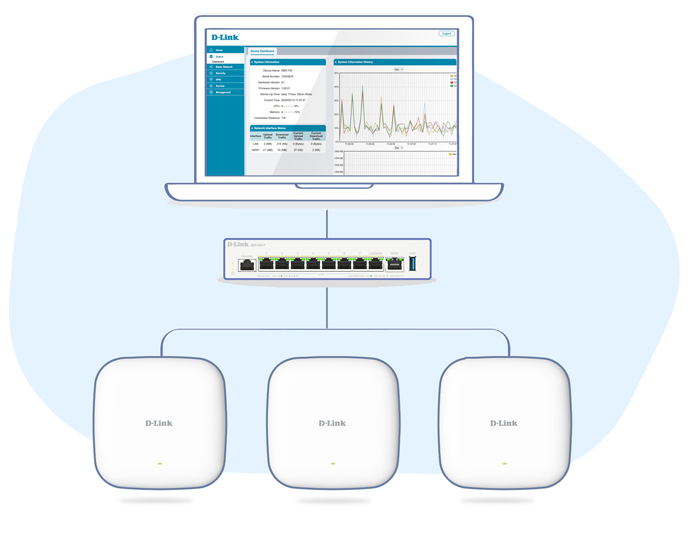

One-stop WiFi Management
Through an intuitive web UI, the DBR-600-P centrally monitors the entire network status and easily manages the configuration of advanced features. Integrated wireless management supports up to 10 Smart Access Points (DBR-X3000-AP) devices, simplifying administrative tasks such as radio settings, client monitoring, and access control. Hassle-free management and real-time insights into network activity help small business owners enhance overall operational efficiency.
Related Products

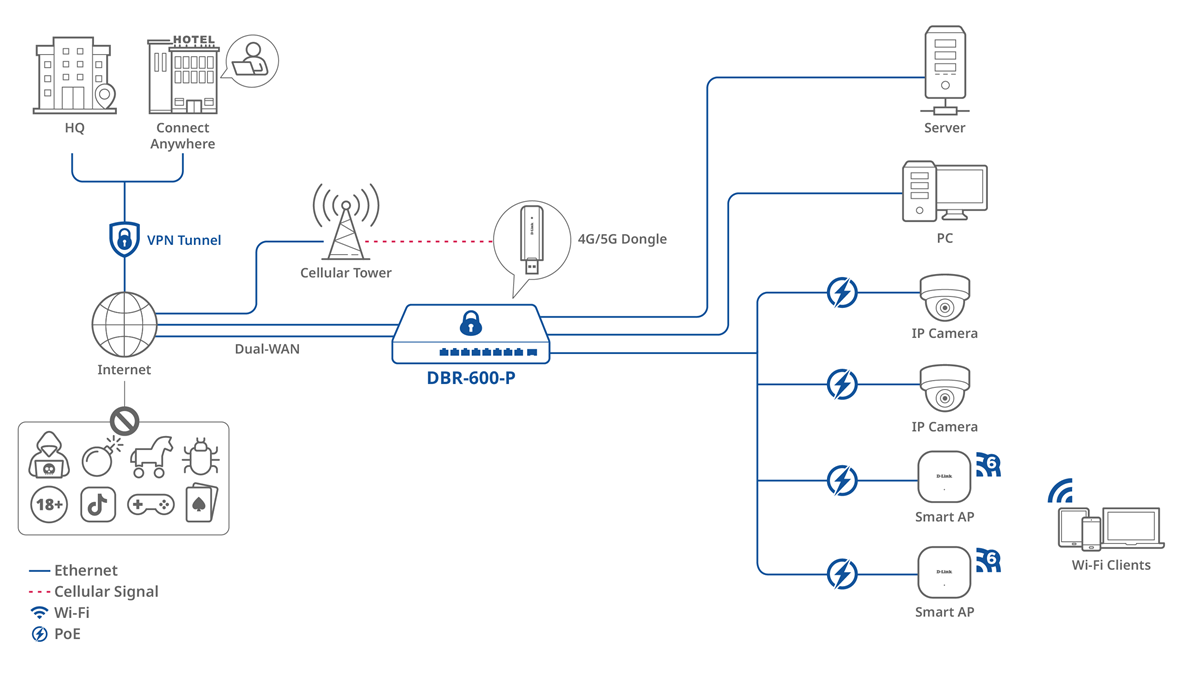

Connection Diagram
Discover the DBR-600-P business router's capabilities through our detailed topology diagram.
It offers high port density with 2.5G-speed connectivity and can rapidly and flexibly expand network capacity through its diverse interface. For teleworkers, the DBR-600-P helps ensure seamless access to the office network anytime, anywhere. For small offices, layered security helps block malicious traffic and protect your network. Additionally, the built-in management platform simplifies AP management, boosting efficiency and overall performance.

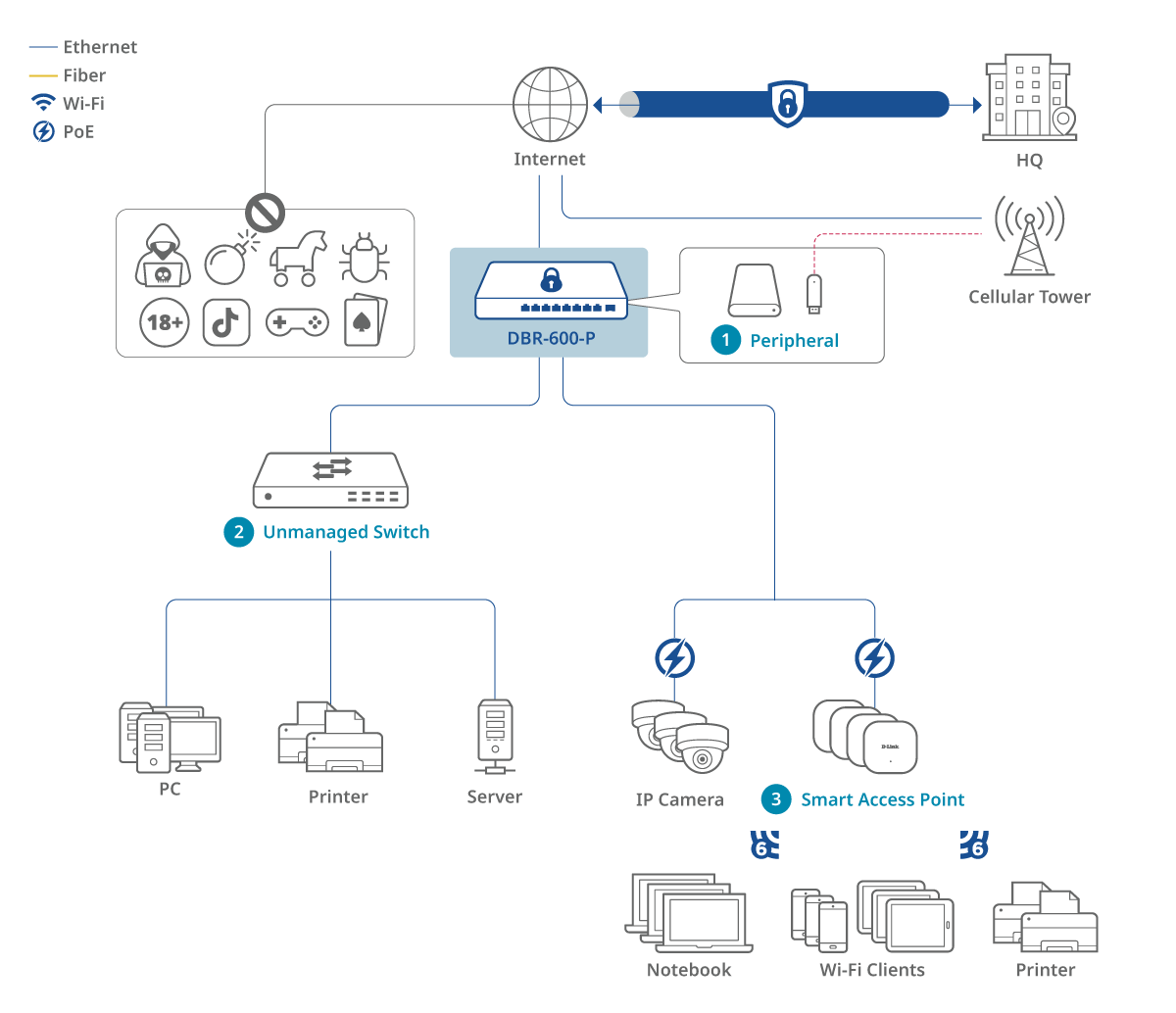

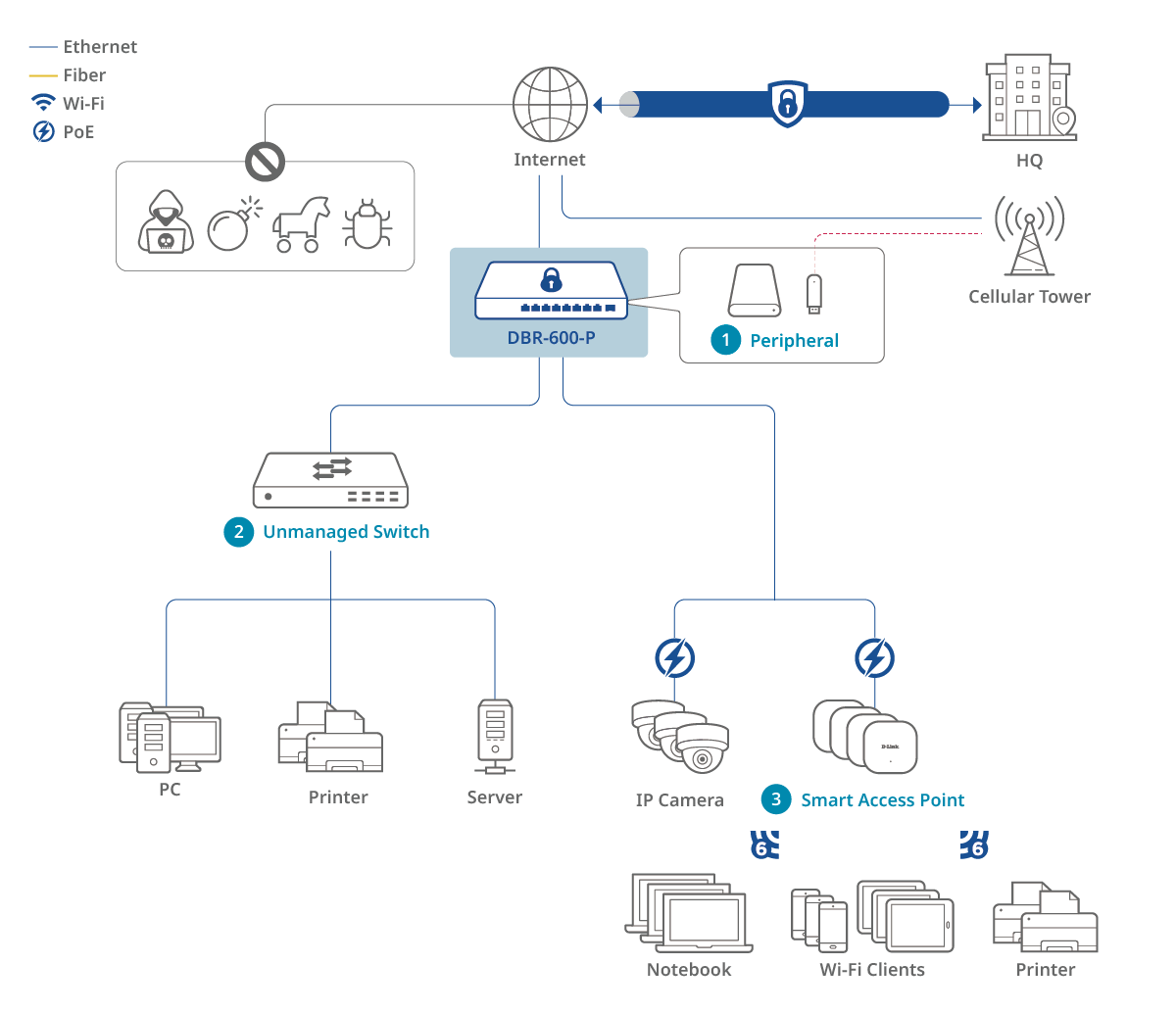

Startup Office
User benefits :
- 2.5G high-speed connectivity for efficient productivity
- Multi-WAN offers non-stop network services
- Effortless and budget-friendly PoE deployment
- Centralized wireless monitoring and management
Learn more :
- Peripheral : D501 (Coming Soon)
- Unmanaged Switch : DMS-1016
- Smart Access Point : DBR-X3000-AP

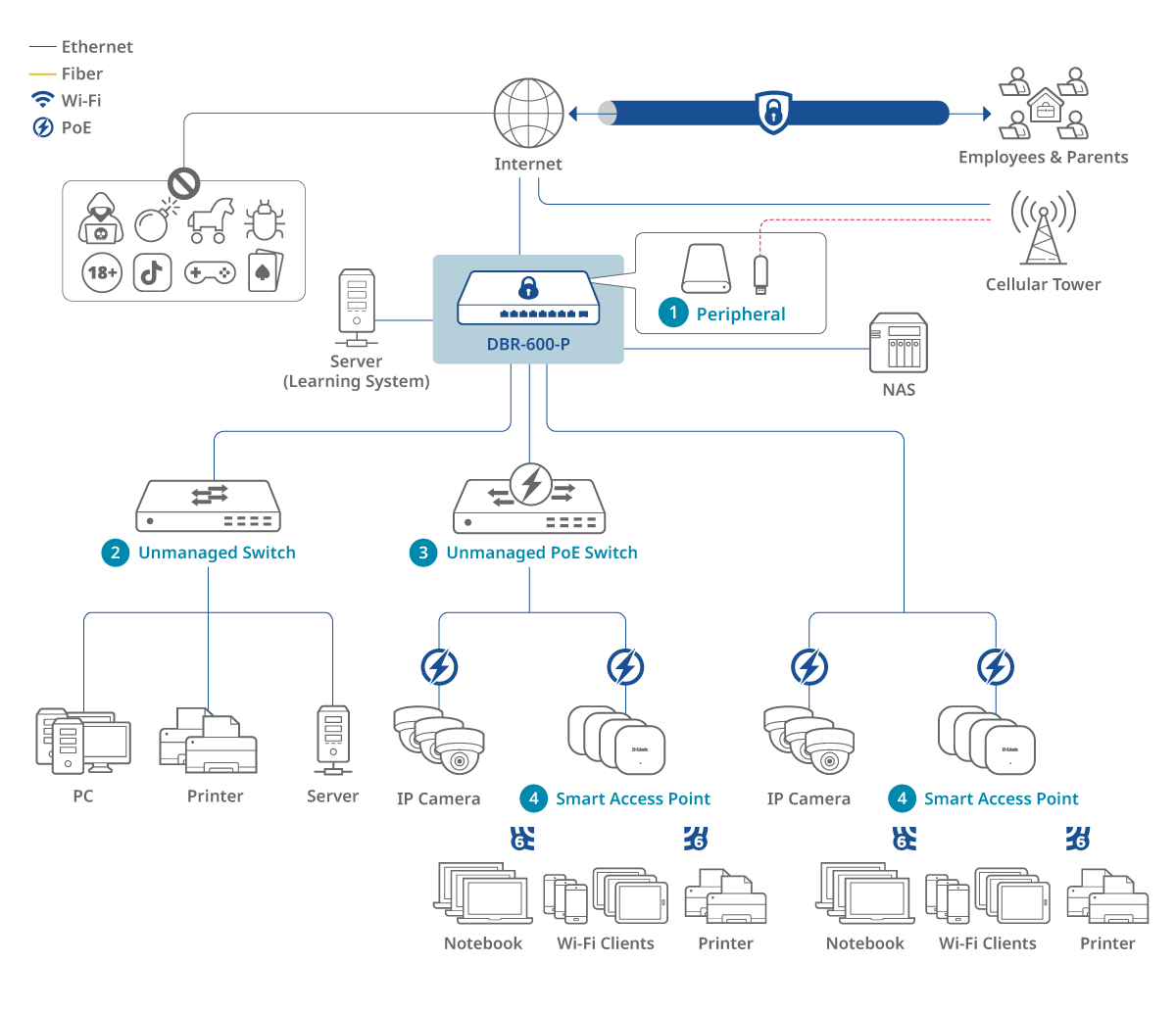

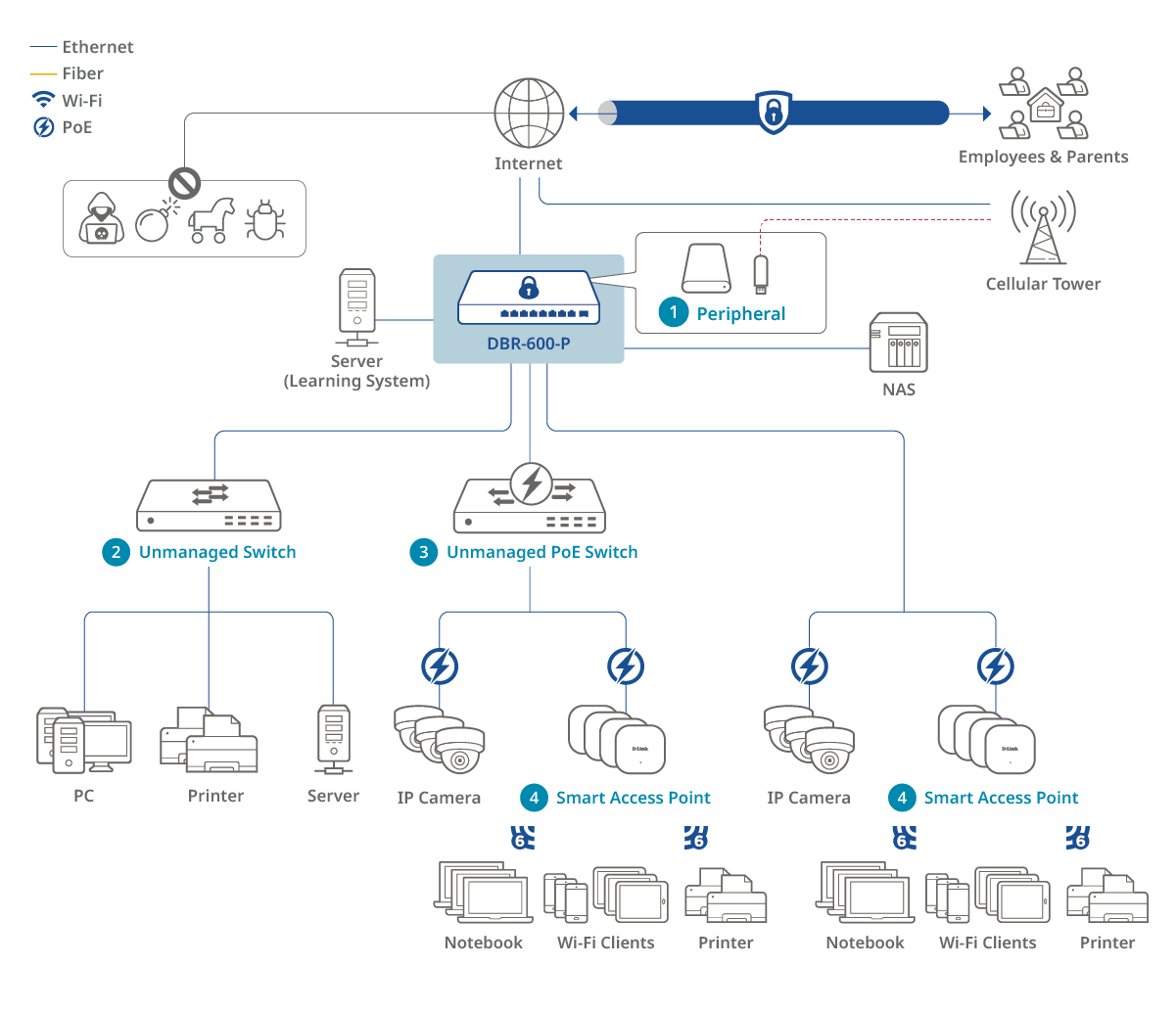

Kindergarten
User benefits :
- Multi-WAN with load balancing for uninterrupted service
- Enhanced Security parent access to the learning system and camera footage
- Set browsing levels to help safeguard children's online behavior
- Unified configuration of wireless devices for easy management
Learn more :
- Peripheral : D501 (Coming Soon)
- Unmanaged Switch : DMS-1024
- Unmanaged PoE Switch : DMS-108P
- Smart Access Point : DBR-X3000-AP
Specification
|
Interfaces
|
1 x 10/100/1000/2.5G WAN port 1 x 10/100/1000/2.5G WAN/LAN Configurable ports 7 x 10/100/1000/2.5G LAN port 1 x USB 3.0 |
|---|---|
|
WAN load balance
|
Yes |
|
PoE Standards
|
IEEE 802.3at |
|
PoE Power Budget
|
123 W |
|
Firewall throughput
|
2Gbps |
|
IPsec Tunnel
|
50 |
|
Firewall
|
IPS/IDS SPI Firewall MAC/IP Filtering URL Blocking |
|
VPN tunnels
|
IPSec PPTP OpenVPN L2TP WireGuard |
|
IPS/DoS/DDoS
|
Yes |
|
AP Management
|
Up to 10 DBR-X3000-AP |
|
Captive Portal
|
Yes |
|
Dimensions
|
120 x 190 x 38 mm |
|
Temperature
|
Operating: 0 to 40 °C (32 to 104 °F) Storage: -10 to 70 °C (14 to 158 °F) |
|
Humidity
|
Operating: 10% to 90% non-condensing Storage: 0% to 95% non-condensing |
