5 km Long Range Wireless AC Bridges

DAP-3711

  • Product Status (EU_RevA1): Live
  • Connect wirelessly at up to 5 km distance with up to 867 Mbps speed
  • Point-to-point or point-to-multipoint deployment
  • IP66-rated water-resistant and dust-tight housing
  • TDMA Technology, 8 kV surge protection
  • 128-bit personal and enterprise wireless encryption
  • PoE support and comes with PoE injector

Download the datasheet.

Where to buy

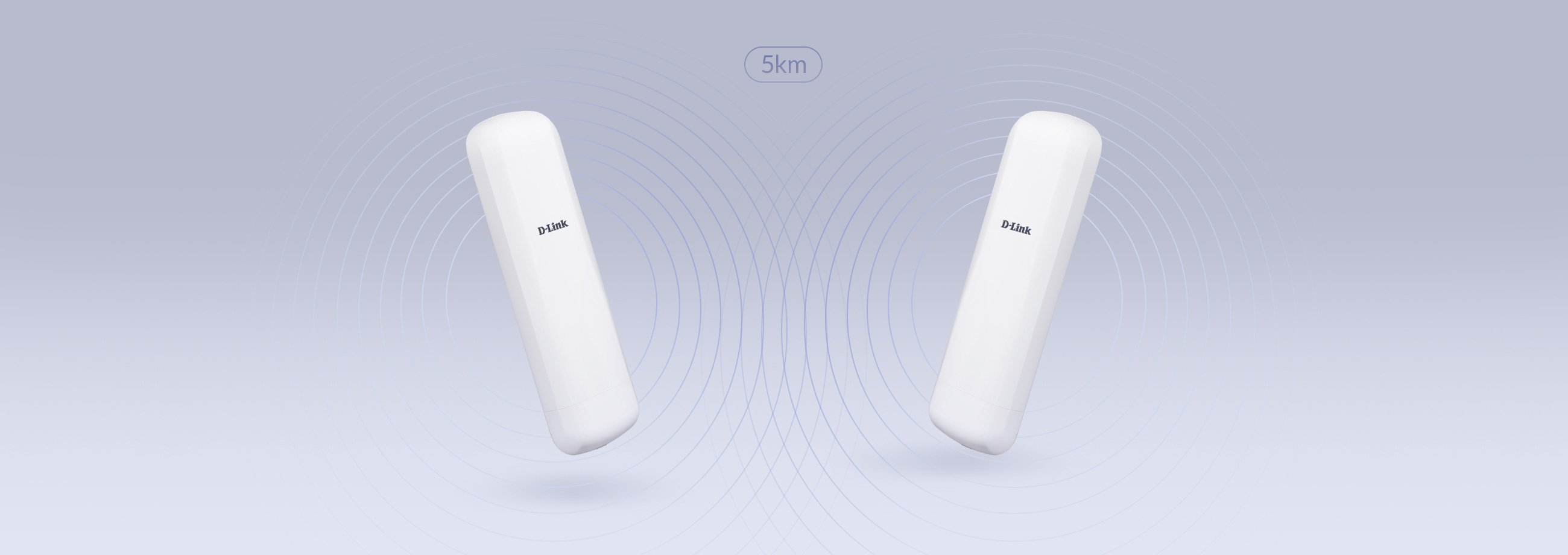

The power to deliver long-distance connectivity

The DAP-3711 is the essential infrastructure wireless solution in providing a reliable solution for outdoor wireless networking.

High-Gain Directional Antenna

Fast, stable, and long-range wireless coverage for up to 5 km

TDMA Technology

High speeds and consistent coverage that filters out interference

IP66 Rated

Water-resistant and dust-tight housing boasts a longer product life

Point-to-Point and Point-to-Multipoint

Distribute connectivity to single or multiple locations wirelessly over long distances

8 kV Surge Protection

Your device and network are protected against unexpected surges, such as lightning

High-Speed Wi-Fi

Blazing speeds of up to 867 Mbps

Wi-Fi Security

128-bit personal and enterprise wireless encryption

PoE Ready

Power over Ethernet makes for an easier installation with a single cable

Designed for Wireless ISPs

Rapid and cost-effective Internet distribution to get customers connected



The power to withstand tough weather

The DAP-3711 is enclosed in an unobtrusive IP66-rated housing, protecting it from rain and dirt. With built-in 8 kV surge protection, the DAP-3711 has protection against unexpected surges (such as lightning strikes), enabling it to be deployed where it’s needed, even in harsh environments and tough conditions.

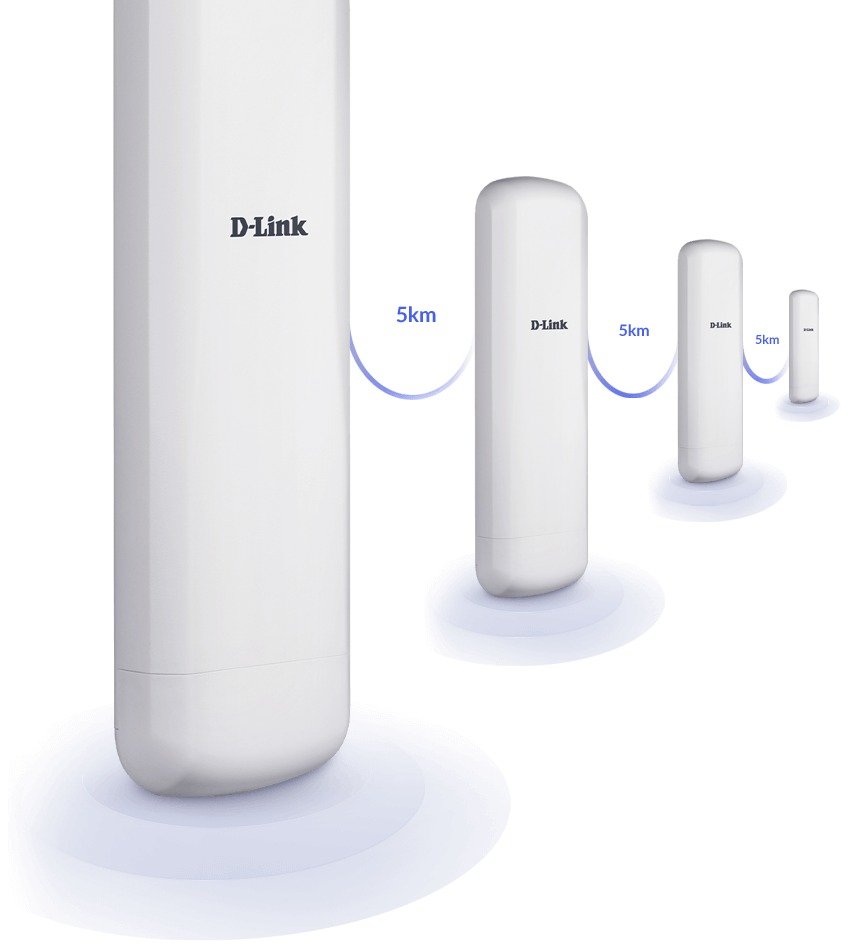

Bring connectivity to areas with limited or no access to fixed internet.

The DAP-3711 features state-of-the-art hardware, including powerful high-gain 15 dBi directional antennas that effortlessly extend the coverage of 5GHz wireless AC speeds of up to 867Mbps to distances of up to 5 km away.

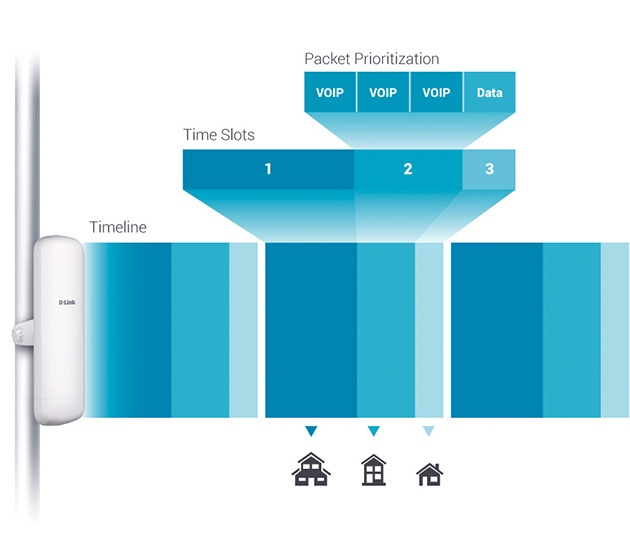

Consistent coverage that filters out interference

The DAP-3711 supports TDMA technology, creating a schedule for the bridge's access point and the client. The sender and receiver are allocated a time slot for transmissions, eliminating hidden node data collisions, maximising airtime efficiency, significantly cutting down interference, and dramatically improving the transfer rate.

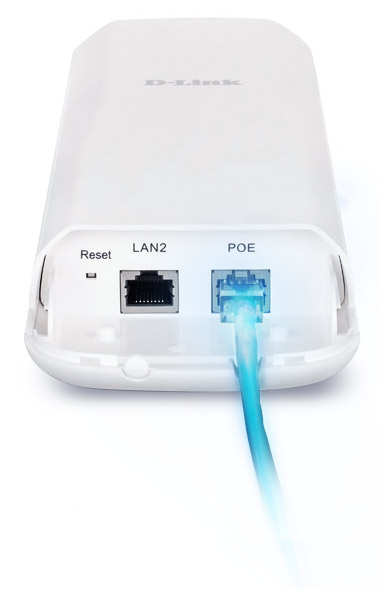

Simple installation with Power over Ethernet (PoE)

The DAP-3711 comes with a PoE injector included. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

20 km Long Range Wireless AC Bridges
DAP-3712
Find out more
Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points
DAP-3666
Find out more
Type
Infrastructure AP
Software Managed AP
Wireless standard
Wireless AC
Frequency band mode
Single-band
Wireless speed
867 Mbps 5 GHz
Antenna type
Embedded sector antenna
Antenna gain
15 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
2 x Gigabit Ethernet LAN
Indoor/outdoor
Outdoor
Type of housing
Plastic
IP rating
IP66
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Maximum number of SSIDs
1
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
SSID broadcast disable
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
WEB
Supported
Syslog
Supported
