How do I configure an MLO SSID on my Wi-Fi 7 compatible devices?

Multi-Link Operation (MLO) allows Wi-Fi 7 devices to simultaneously send and receive data across multiple Wi-Fi frequency bands and channels. MLO is disabled by default. If you want to create an MLO SSID especially for your Wi-Fi 7 client devices, please follow the steps below:

Step 1: Launch the AQUILA PRO AI app and then log in with your D-Link account.

Step 2: Tap to choose the Location where your D-Link router is located.

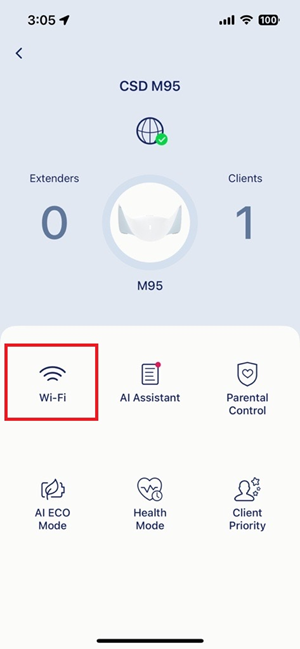

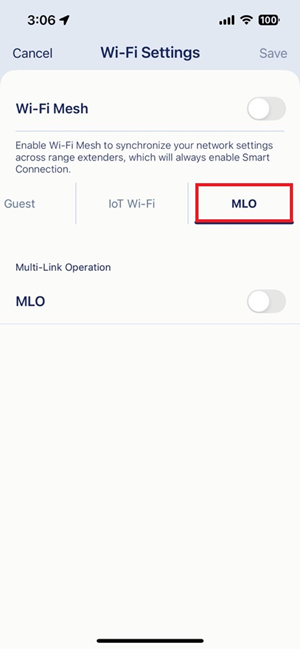

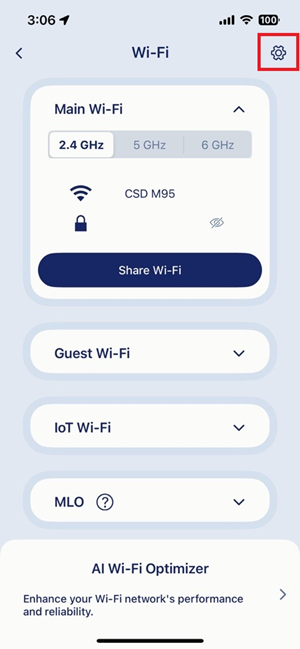

Step 3: Tap the device you’d like to configure. Then, tap Wi-Fi > Settings > MLO.

MicrosoftTeamsimage 317 MicrosoftTeamsimage 318 MicrosoftTeamsimage 319

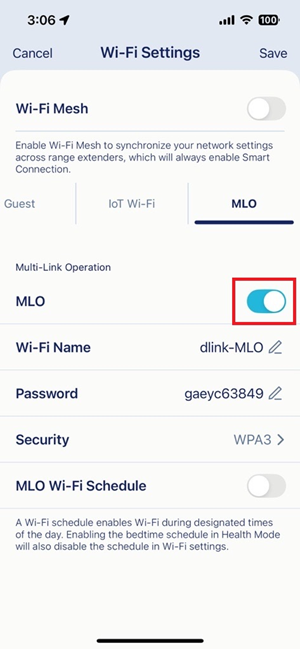

Step 4: To enable Multi-Link Operation, move the slider to the right. Then, you can configure a SSID name, Wi-Fi password and security, and set when to broadcast the SSID.

MicrosoftTeamsimage 320

Step 5: Tap Save to complete the settings. You can now connect your Wi-Fi 7 client devices to the MLO SSID name you’ve just created.
