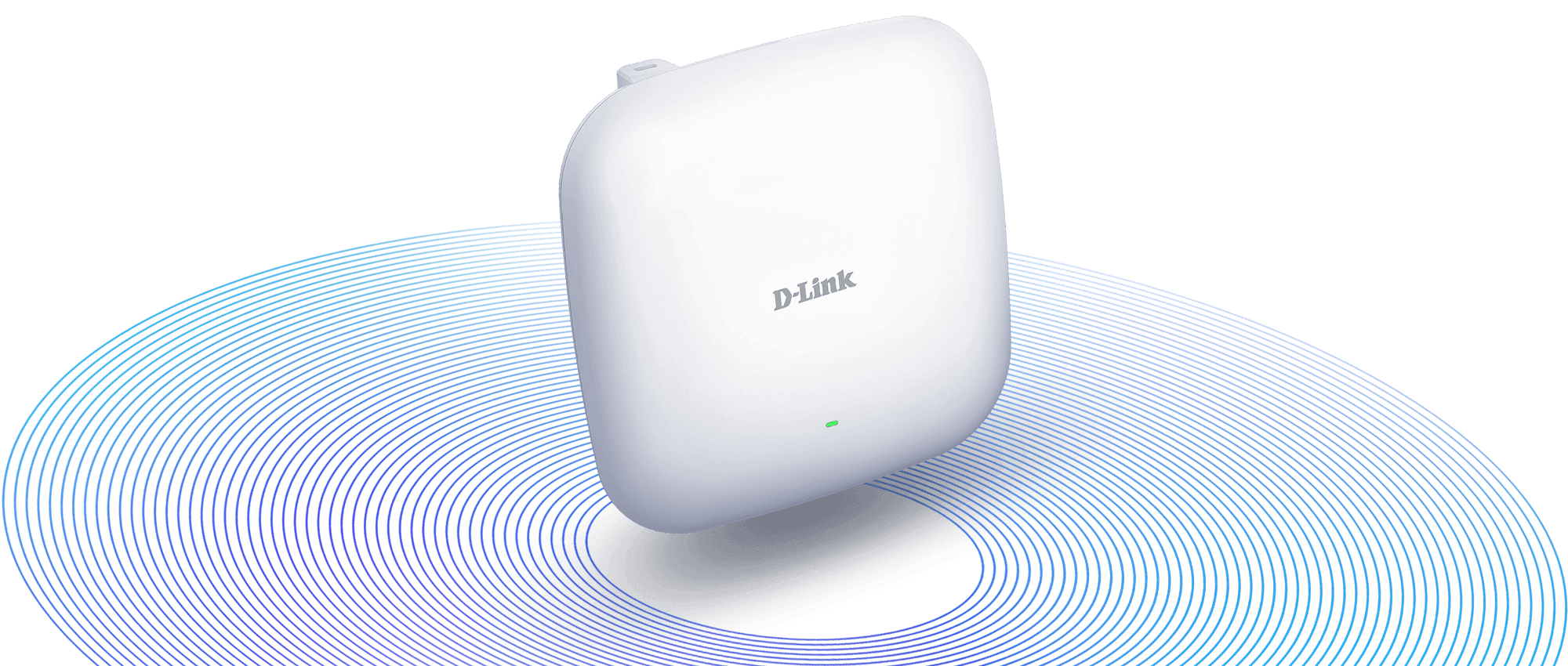

Wireless AC1200 Wave 2 Dual-Band PoE Access Point

DAP-2662

  • Product Status (Revision A1): Live
  • 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
  • WiFi4EU ready, 2x2 MU-MIMO with beamforming
  • Gigabit, PoE-capable LAN port
  • Free Nuclias Connect network management software
  • Limited Lifetime Warranty & Free Next Business Day Service

Download the datasheet.

Where to buy
WiFi4EU Ready

Meets or exceeds all WiFi4EU requirements. Supports all required IEEE standards. Complies with Hotspot 2.0 (Wi-Fi CERTIFIED Passpoint®).

Wave 2 Wi-Fi with Band Steering

Fast wireless speeds of up to 1200 Mbps1. Automatically steers traffic to the fastest, least congested band.

MU-MIMO & Beamforming

Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.

Multiple Operational Modes

Use as an access point (AP), wireless client, Wireless Distribution System (WDS) or Wireless Distribution System with AP (WDS+AP).

Strong security, with centralised network management

Use as a standalone AP or manage centrally via free Nuclias Connect software. Supports WPA2/WPA, wireless LAN segmentation and VLAN.

Network Security & Data Privacy

All communications over the system are encrypted. User data never leaves your possession.

Easy-mount setup with PoE

802.3at Power over Ethernet (PoE) enables the device to be deployed with a single cable and where power outlets aren't available.

Limited Lifetime Warranty & Next Day Service

Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.

Learn more

Perfect for WiFi4EU municipalities. Ticks all of the boxes.

Deliver wireless connectivity for public places, such as buildings, libraries, health centres and museums, with secure and centrally manageable dual-band Wi-Fi. Connect people to better Wi-Fi with cutting-edge 802.11ac Wave 2 speeds, and greater network efficiency and security.

Reliably faster Wireless AC performance.

Designed for reliable, high-speed wireless connectivity using the latest 802.11ac Wave 2 technology. It uses maximum wireless signal rates of up to 867 Mbps over the 5 GHz band and 300 Mbps over the 2.4 GHz band1.



 Band SteeringBand steering
Detects dual-band capable devices and automatically connects them to the less congested, faster 5 GHz band.
 MU-MIMOMU-MIMO
Sends high-bandwidth Wi-Fi to multiple devices at the same time, for greater network data efficiency and a superior Wi-Fi experience for your clients.
 Quality of Service (QoS)Quality of Service
The Wi-Fi Multimedia (WMM) Quality of Service (QoS) feature enables you to create rules for automatically prioritising audio, video, and voice traffic for even greater efficiency.
 Load balancingLoad Balancing
Distribute the workload between two or more APs to optimise resource utilisation, throughput and response times.

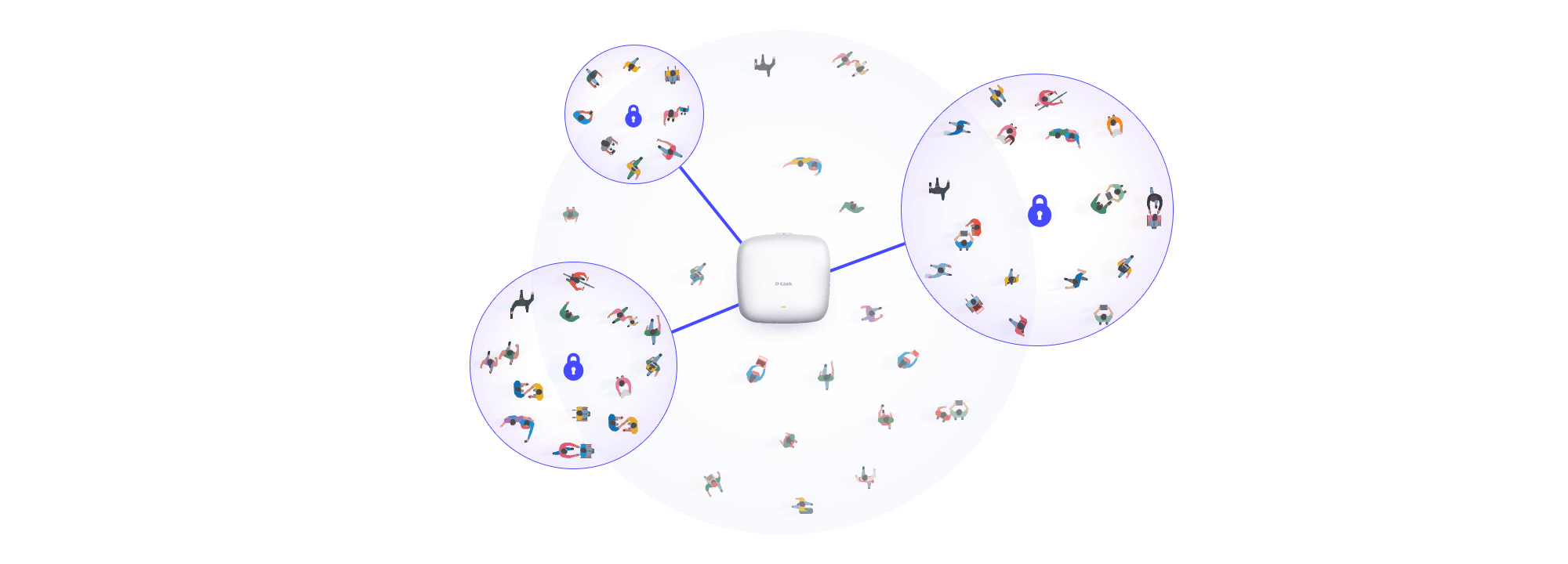

Connect entire crowds to a safer and faster internet.

It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. Includes a wireless client isolation mechanism, which limits direct client-to-client communication. Moreover, Network Access Protection (NAP), a feature of Windows Server® 2008 and upwards, allows multiple levels of network access to be defined based on a client’s needs.

Bring free Wi-Fi to Europeans with our WiFi4EU range.

In order to promote free Wi-Fi connectivity in public spaces, the European Commission’s WiFi4EU initiative aims to provide EU municipalities with funding for Wi-Fi equipment.

We have over 30 years of experience in helping people get connected, so we’ve designed products specifically for this initiative.

Our WiFi4EU ready range of indoor and outdoor access points include:

£120M

Allocated funding
Over the period of 5 application rounds between 2018 and 2020.

For more info, please visit: www.wifi4eu.eu

€15,000

Per municipality
Granted to 6,000 - 8,000 towns and cities


Versatile deployments.

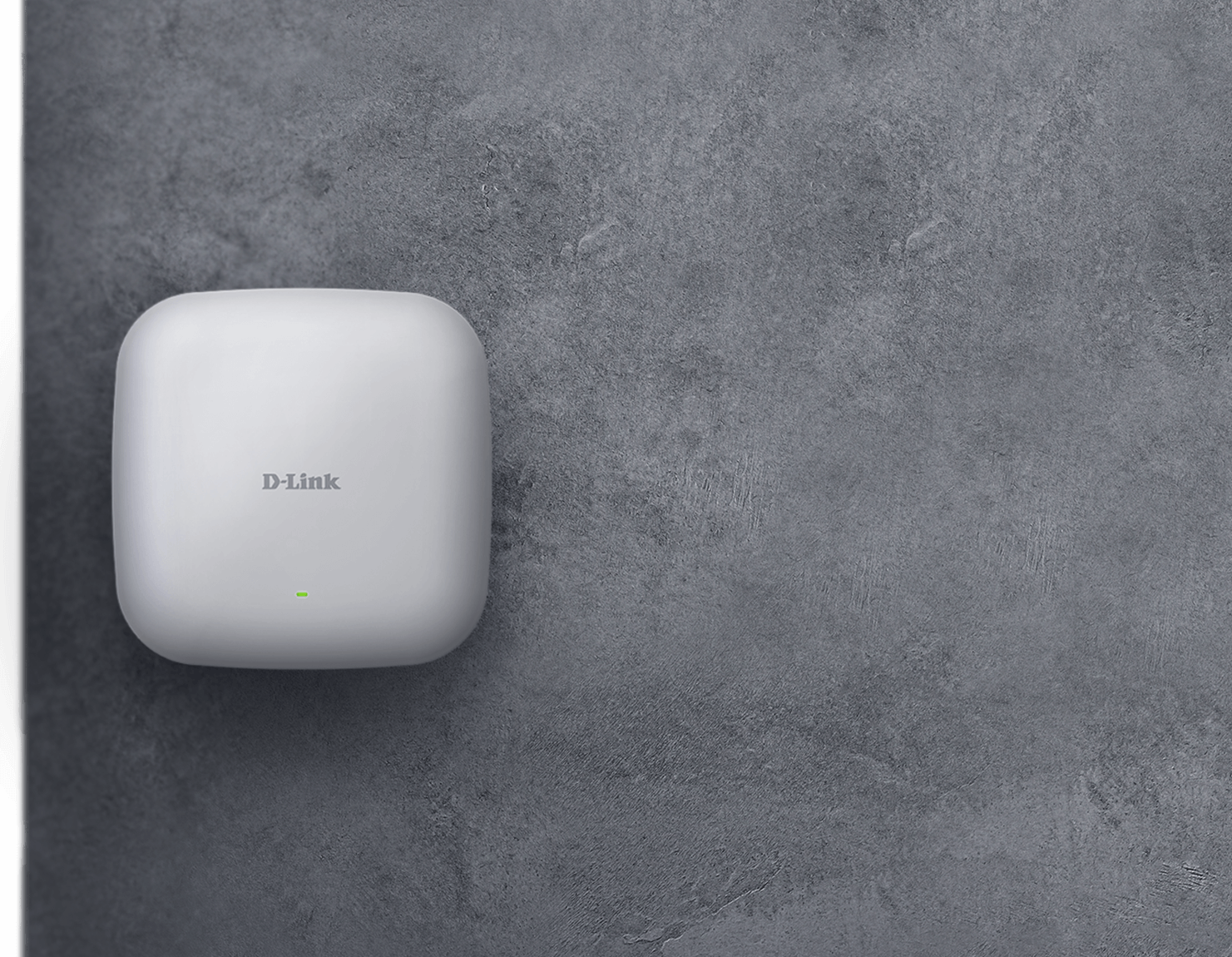

It can be ceiling-mounted, wall-mounted, or placed on a desk. Integrated 802.3af Power over Ethernet (PoE) support makes for more convenient indoor deployments using a single Ethernet cable.

Best-in-class security.

Create highly secure wireless networks with Personal and Enterprise versions of WPA and WPA2.

The AP also supports a built-in RADIUS server, RADIUS server (backend), MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling to protect the network.

Your network, your way.

Customise your network the way you need it to perform. The AP can be used as a standalone AP or part of a centralised, scalable, multi-device deployment.

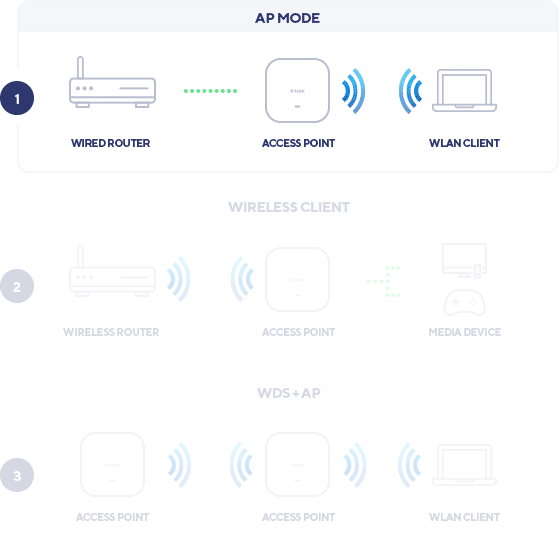

Configure the AP to optimise network performance based on any one of its multiple operational modes:

Access Point
Add wireless connectivity to an existing wired network.

Wireless Client
Add wireless connectivity to one device which doesn’t have a Wi-Fi adapter.

WDS
Wirelessly combine two separate networks.

WDS with AP
Wirelessly combine two separate networks while also providing wireless connectivity to both networks.

Nuclias hardware controller

The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

Learn more

Free Nuclias Connect remote network management software.

Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.



Learn more

We're here to help.

Πάνω από 35 χρόνια στη βιομηχανία δικτύακων συσκευών

Καινοτόμοι εμπειρογνώμονες ολοκληρωμένων λύσεων για μικρές επιχειρήσεις σε μεγάλες εταιρείες σε όλο τον κόσμο.

Η επικοινωνία μαζί μας είναι εύκολη

Ειδικευμένη τεχνική υποστήριξη σε 16 χώρες. Οι ομάδες υποστήριξής μας είναι έτοιμες να σας βοηθήσουν.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Nuclias Connect
DNC-100
Find out more
Nuclias Connect Hub
DNH-100
Find out more
Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points
DAP-3666
Find out more
DAP 2610 Wireless AC1300 Wave 2 DualBand PoE Access Point
DAP-2610
Find out more
Wireless AC1750 Wave 2 Dual-Band PoE Access Point
DAP-2680
Find out more
Type
Software Managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz
867 Mbps 5 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz
4 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
802.11k/r Roaming
MU-MIMO
SmartBeam
WiFi4EU
Maximum number of SSIDs
16
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
IPv6
Supported
Management platform
Nuclias Connect
WEB
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported

1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
2 This unit is designed for indoor environments, you might violate local regulatory requirements by deploying this unit in outdoor environments.
3 Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-2660 may not support the 5.25-5.35 GHz and 5.47-5.725 GHz frequency ranges in certain regions.
This product is based on draft IEEE 802.11ac specifications and is not guaranteed to be forward compatible with future versions of IEEE 802.11ac specifications. Compatibility with 802.11ac devices from other manufacturers is not guaranteed. All references to speed and range are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
5 Number of wireless access points supported depends on the specification of the computer on which DNC is installed. To support 1000 APs, a computer with at least an Intel Core i7 with 16 GB RAM and 4 TB hard drive, and 20 Mbps uplink bandwith is recommended. To support 100 APs, a computer with at least an Intel Core i5 3.2GHz with 8 GB RAM and 2 TB hard drive, and 10 Mbps uplink bandwith is recommended.

Version Date Type File Size
Datasheet EN - PDF 1.27mb Download
Version Description Date Type File Size
Manual 1.02 RevA1 Product Manual 2/9/2022 - - Download
Manual 1.01 RevA1 Product Manual 13/4/2020 - - Download
Manual 1.00 RevA1 Product Manual 6/2/2020 - - Download
Version Description Date Type File Size
QIG 3.00 RevA1 Quick Installation Guide 6/2/2024 - - Download
QSG 2.01 RevA1 Quick Setup Guide 14/5/2021 - - Download
QIG 1.01 RevA1 Quick Installation Guide 13/4/2020 - - Download
QSG 2.00 RevA1 Quick Setup Guide 30/12/2019 - - Download
QIG 2.00 RevA1 Quick Installation Guide 16/12/2019 - - Download
QSG 1.01 RevA1 Quick Setup Guide 4/10/2019 - - Download
QSG 1.00 RevA1 Quick Setup Guide 11/9/2019 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 1.05 RevA1 Important : Read me First ! 15/12/2021 - Download
FW 1.01 RevA1 Firmware 4/8/2020 - Download
FW 1.00 RevA1 Firmware 17/12/2019 - Download
Version Description Date
Nuclias Connect Free remote centralised network management software 9/9/2019 Download
Version Description Date
CE doc UKCA 1.01 Revision A1 CE document 14/7/2022 Download
CE doc UKCA 1.00 Revision A1 CE document 15/4/2021 Download
CE doc 2.00 RevA1 CE document 8/7/2020 Download
