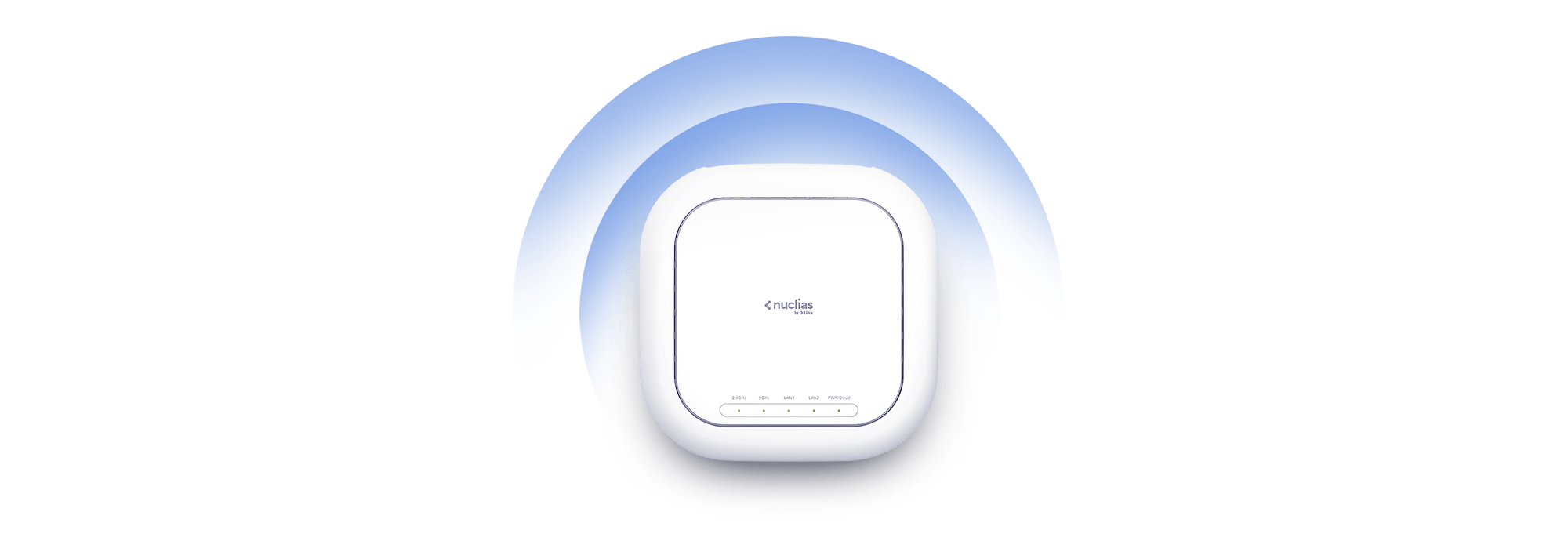

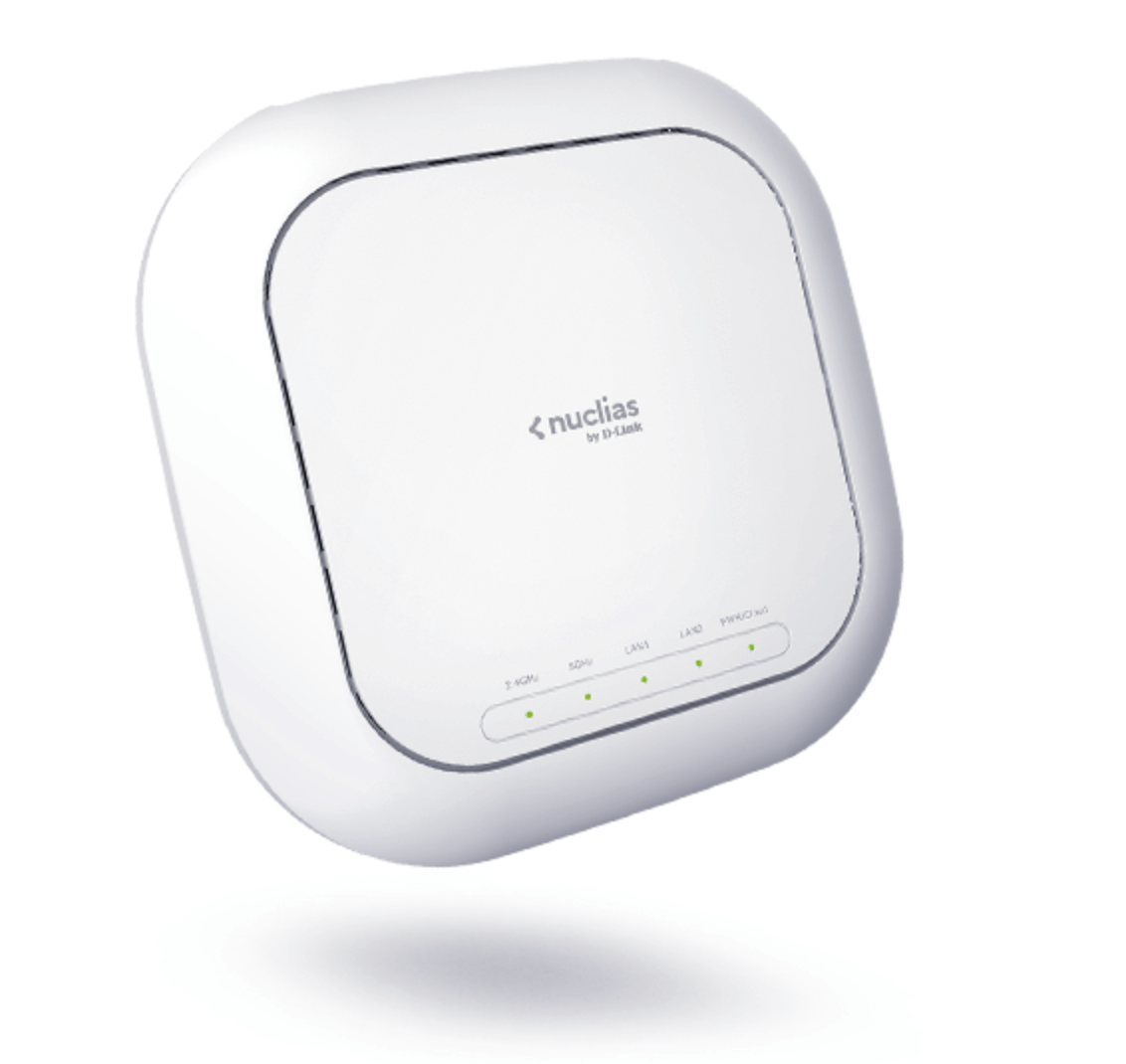

Manage your wireless network from anywhere in the world with this Nuclias Cloud Wi-Fi 6 indoor access point. Designed to give you the latest technology and efficiency in any setup, it’s ideal for SMB, retailers, hospitality, campuses, and managed service providers. Deliver high-combined data rates of up to 3,600 Mbps2 over 2 dedicated wireless bands with the latest WPA3 wireless security.

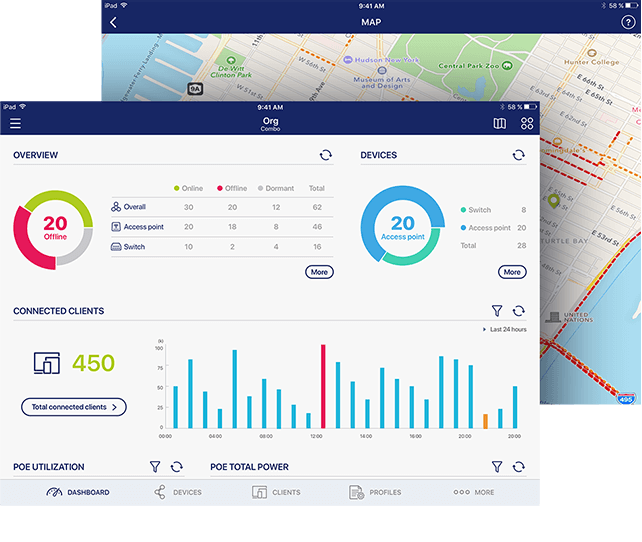

Manage your network from one place from a browser or through the tablet app, anywhere, anytime.1
1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.
Combined dual-band 802.11ax Wi-Fi CERTIFIED 6™ speeds of up to 3.6Gbps.2
Plug and play, cloud-based auto-configuration.
Easy to add or scale back in line with demand.
Power the device over Ethernet without the need for nearby power outlets.
Nuclias Cloud is our simplest solution available and allows any organisation with any level of IT resources to quickly set up, manage and troubleshoot the entire network via a web browser, or the dedicated Nuclias Cloud app.
Uses the latest Wi-Fi technology to deliver reliable wireless performance and reduce congestion, with maximum wireless signal rates of up to 1147 Mbps in the 2.4 GHz band and 2402 Mbps in the 5 GHz band2.

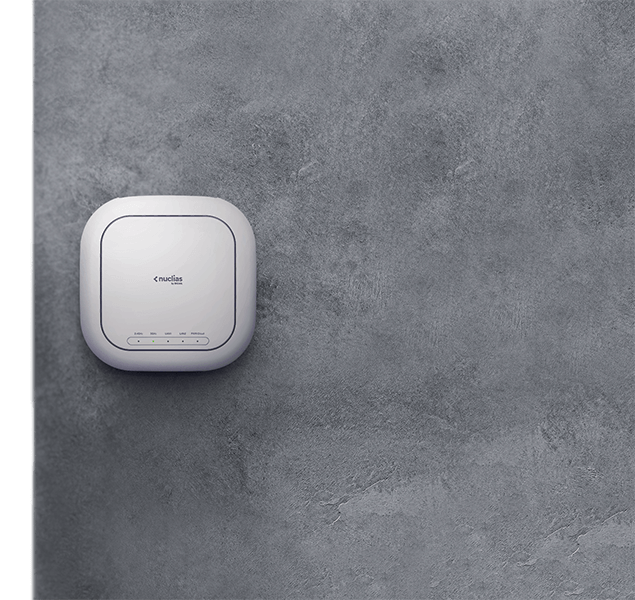

It can be ceiling-mounted, wall-mounted, or placed on a desk, and PoE support allows for easy and simple installation. No need to run extra power lines, and no-hassle configuration thanks to the Nuclias Cloud management and auto-configuration options. Perfect for advanced installations where technicians may not be readily available.

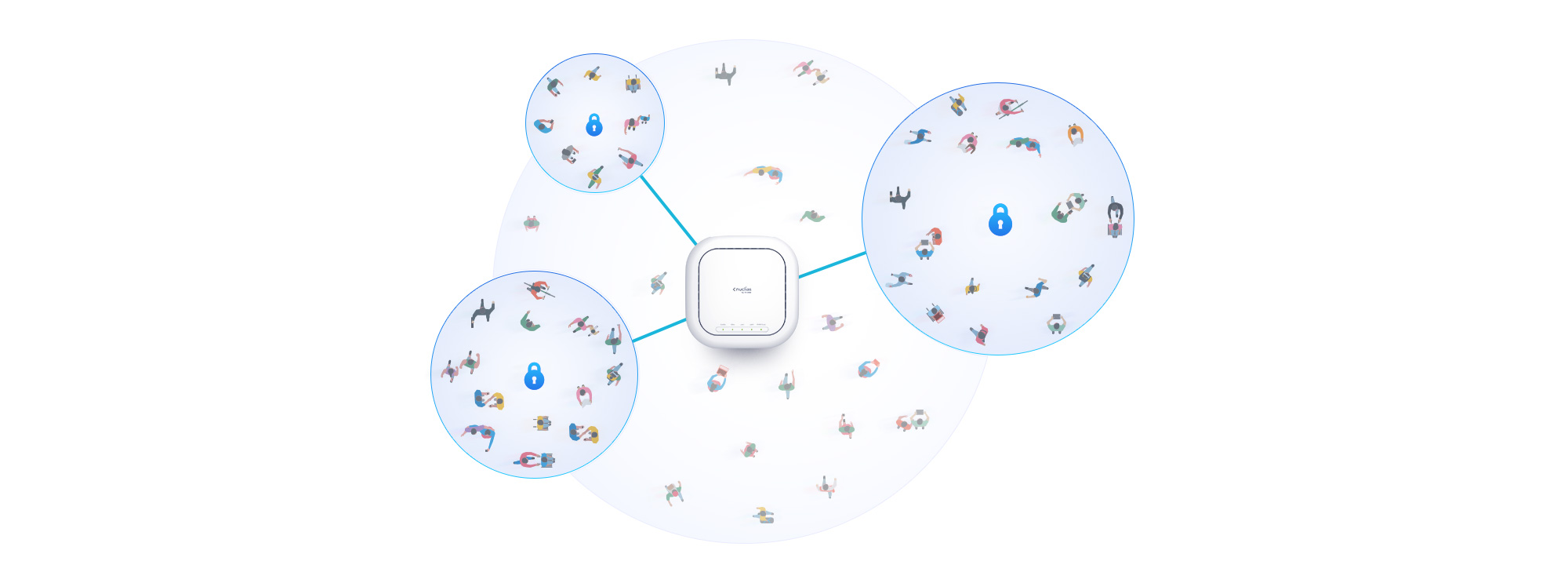

It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. It features wireless client isolation, which limits direct client-to-client communication for added privacy. Moreover, Network Access Protection (NAP) allows multiple levels of network access to be defined based on a client’s needs.

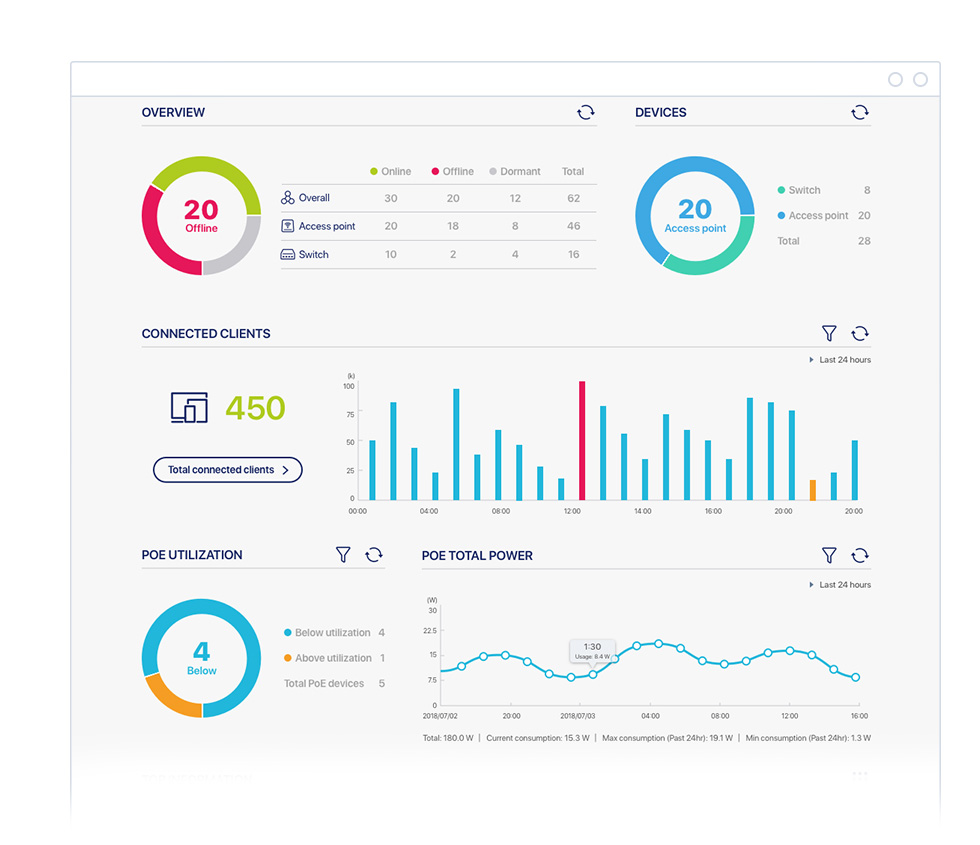

With D-Link Nuclias Cloud, businesses can organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. This enables you to focus more on providing reliable connectivity and services and spend less time managing devices.

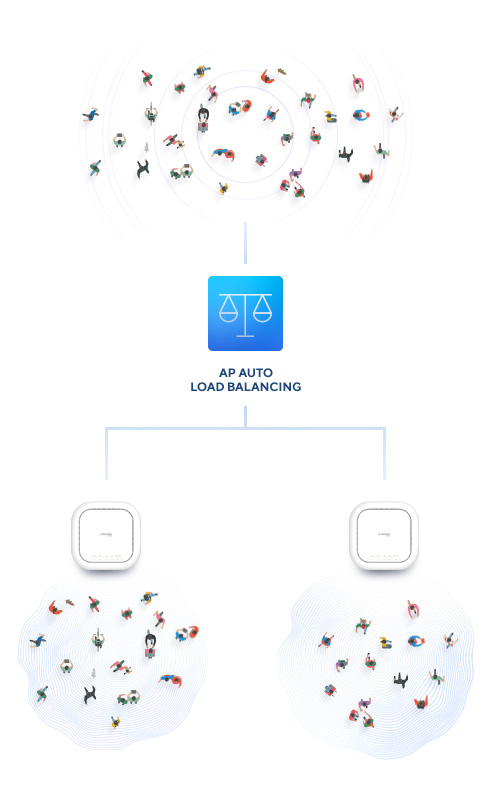

Load-balancing optimisation effectively eliminates the need for the dedicated hardware and RF expertise that would otherwise typically be required to tune a wireless network. And BSS Colouring, OFDMA, and MU-MIMO all increase wireless network capacity and efficiency.

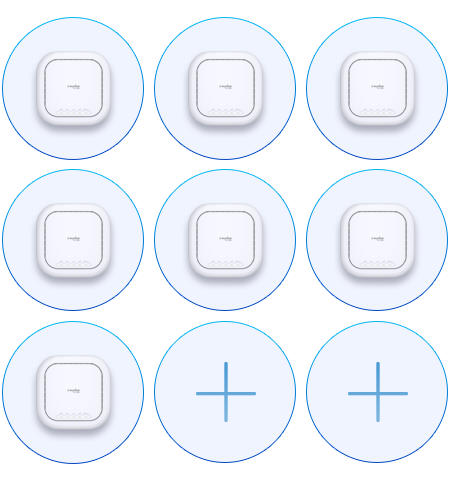

Nuclias Cloud is designed with unlimited scalability, so you can always tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy thanks to all management and configuration being done through the cloud, with access points being ready to deploy straight out of the box.

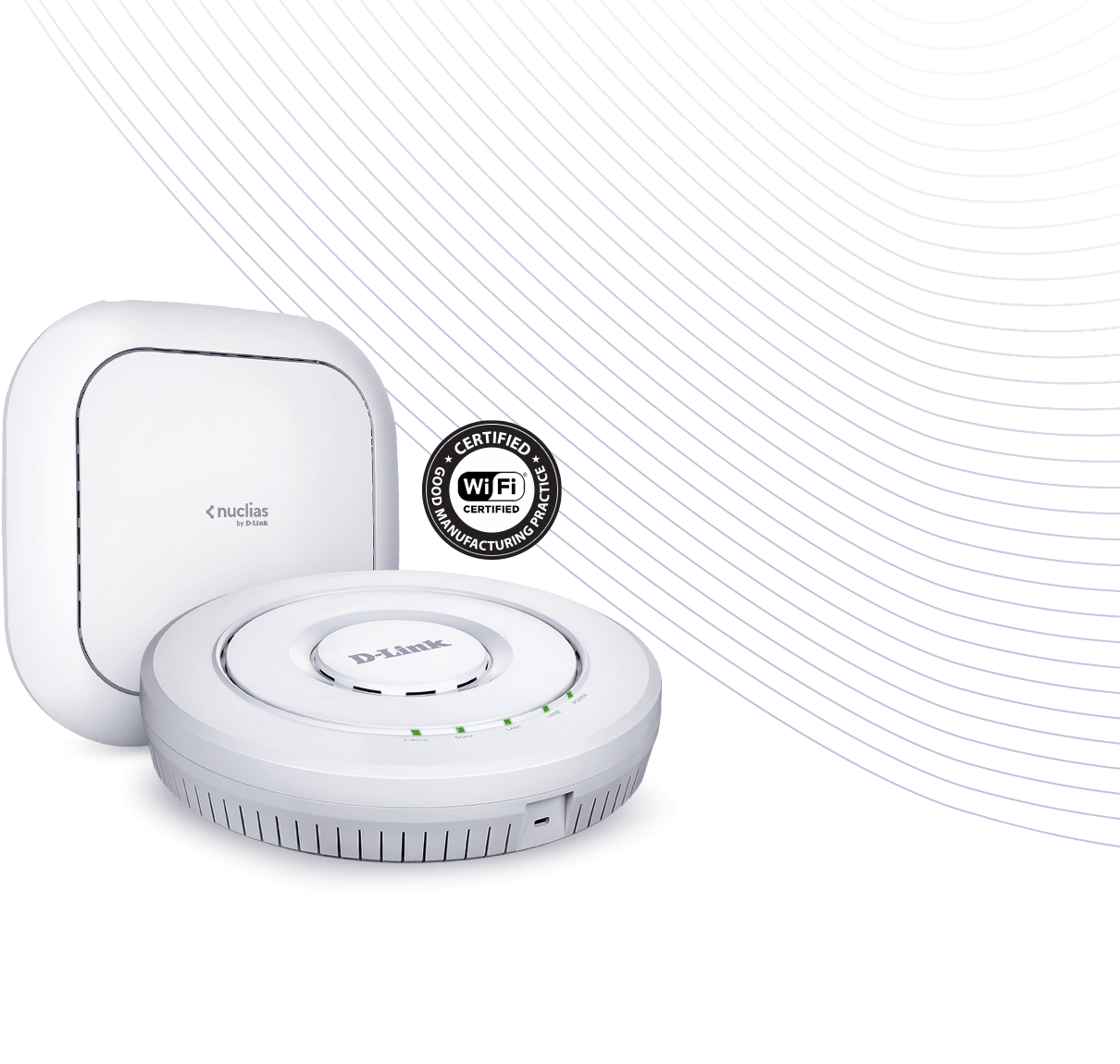

The Wi-Fi CERTIFIED 6™ seal is a declaration of having passed a series of rigorous tests performed by the Wi-Fi Alliance - an internationally recognised organisation. It's only granted to products that adhere to the strict industry-agreed standards for interoperability.
With this, purchasing a D-Link Wi-Fi CERTIFIED 6™ device ensures increased speeds, advanced Wi-Fi 6 capability, backwards compatibility and improved security.
Real time analytics help you tailor customer’s Wi-Fi experience, as well as further drive sales.
Deploy an efficient network built for the future. Easily manage multiple sites, and see detailed reports.
Create a secure and fast Wi-Fi experience for all your guests throughout all your premises.
Ensure staff and student online safety while supporting a digital learning experience.
1 Active D-Link Nuclias account and valid device license required. 1-year license included.
2 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
|
Type
|
Cloud-managed AP |
|---|---|
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
2400 Mbps 5 GHz 1200 Mbps 2.4 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
1 x 2.5GBASE-T LAN 1 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Type of housing
|
Plastic |
|
Plenum rated (UL-2043)
|
Supported
|
|
Wireless modes
|
Access Point (AP) |
|
Advanced features
|
MU-MIMO 802.11k/r Roaming |
|
Maximum number of SSIDs
|
16 |
|
Auto channel selection
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
WPA3-Personal/Enterprise
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
Auto-channel, auto-RF management AP load balance Captive portal |
|
IPv6
|
Supported
|
|
Management platform
|
Nuclias Cloud Networking Solution |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
