48 x 25G SFP28 and 8 x 100G QSFP28 ports deliver massive bandwidth for data-intensive workloads
SONiC-based open platform enables seamless integration, modular design, and long-term adaptability
Support BGP-EVPN, VxLAN, MC-LAG, VRF, OSPF and ECMP for L3 routing and resilient network operation
Enable VxLAN and EVPN to simplify network virtualization and deliver efficient multi-tenant segmentation
Automates routing, security, and QoS with RIP, OSPF, VLAN, and ACL – improving efficiency and reducing overhead

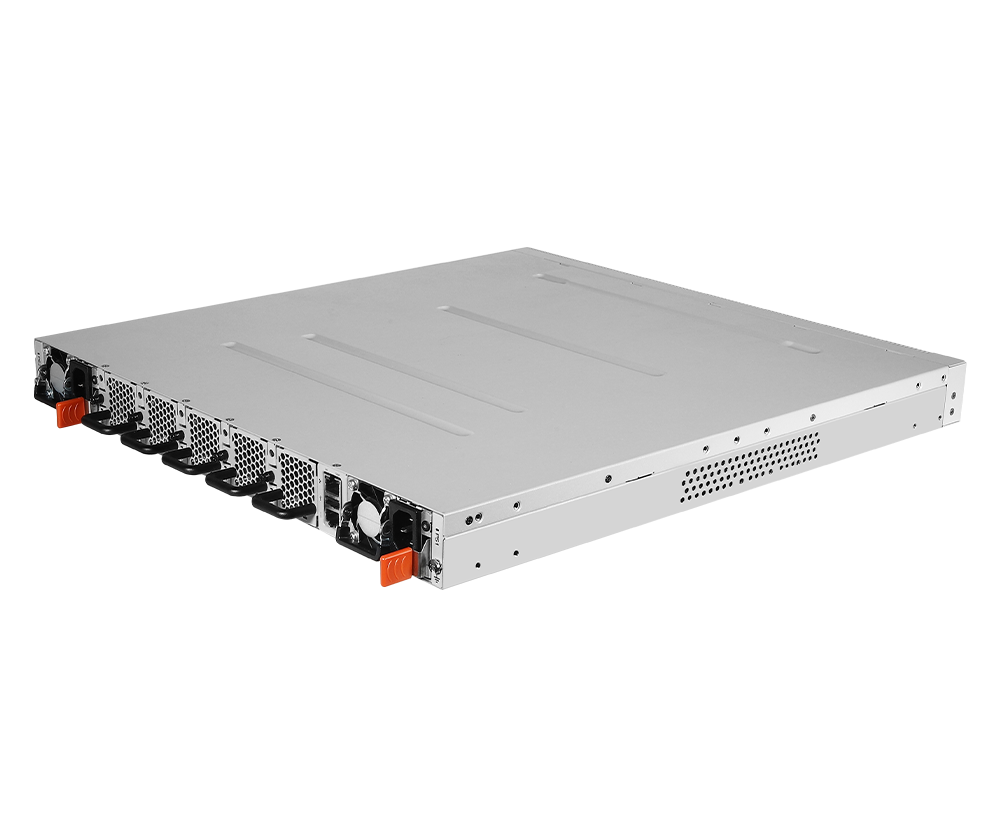

Front-to-back airflow, 1+1 hot-swappable PSUs, and N+1 fans ensure cooling and uptime reliability

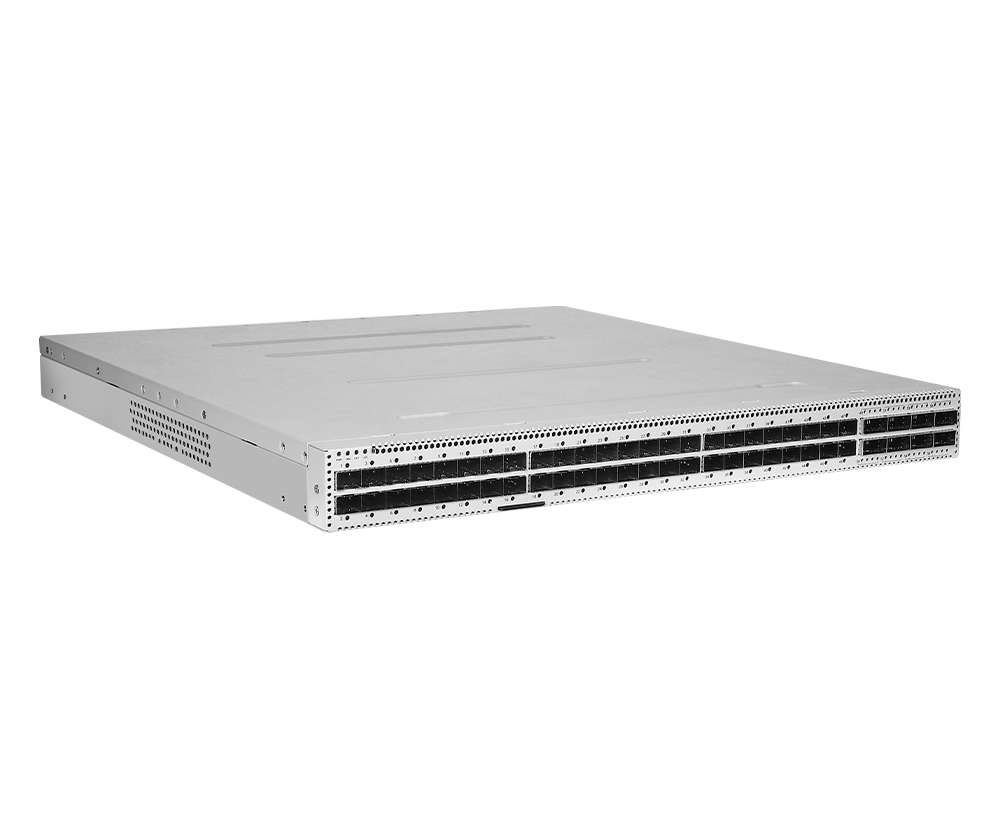

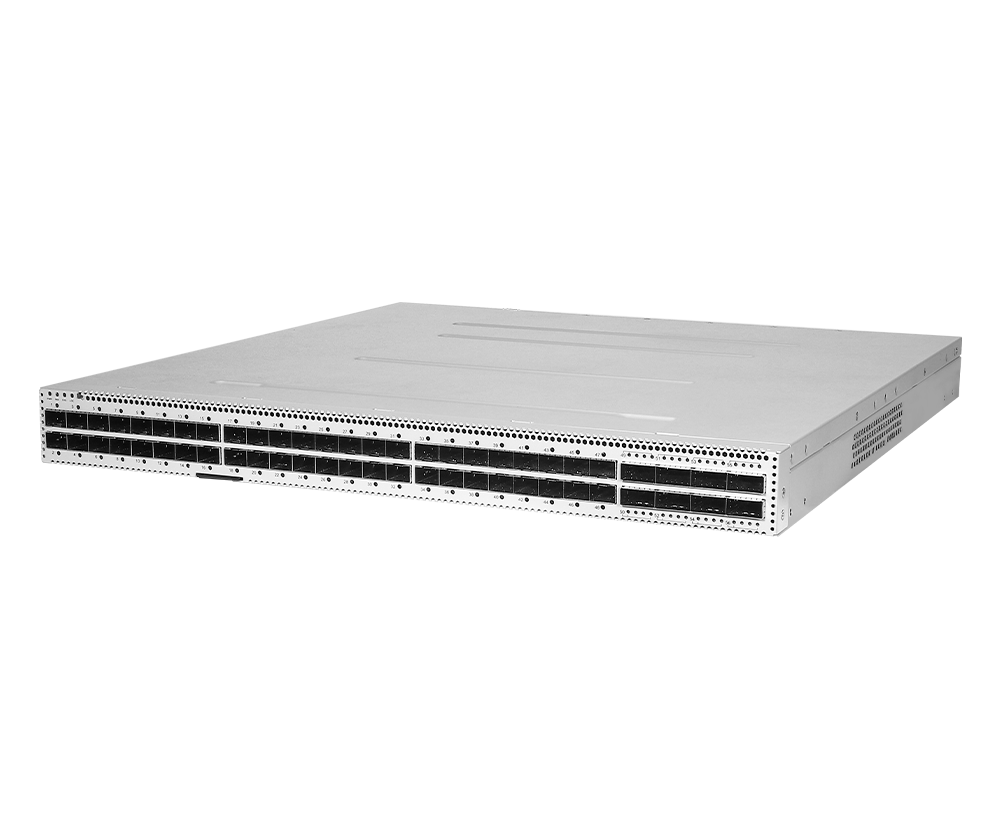

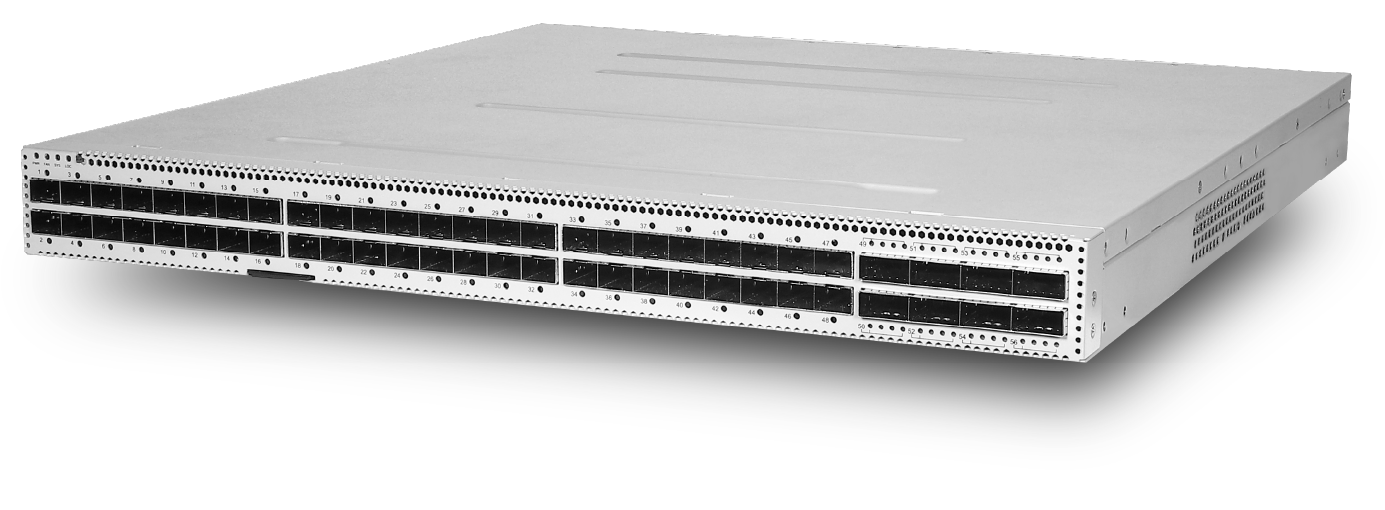

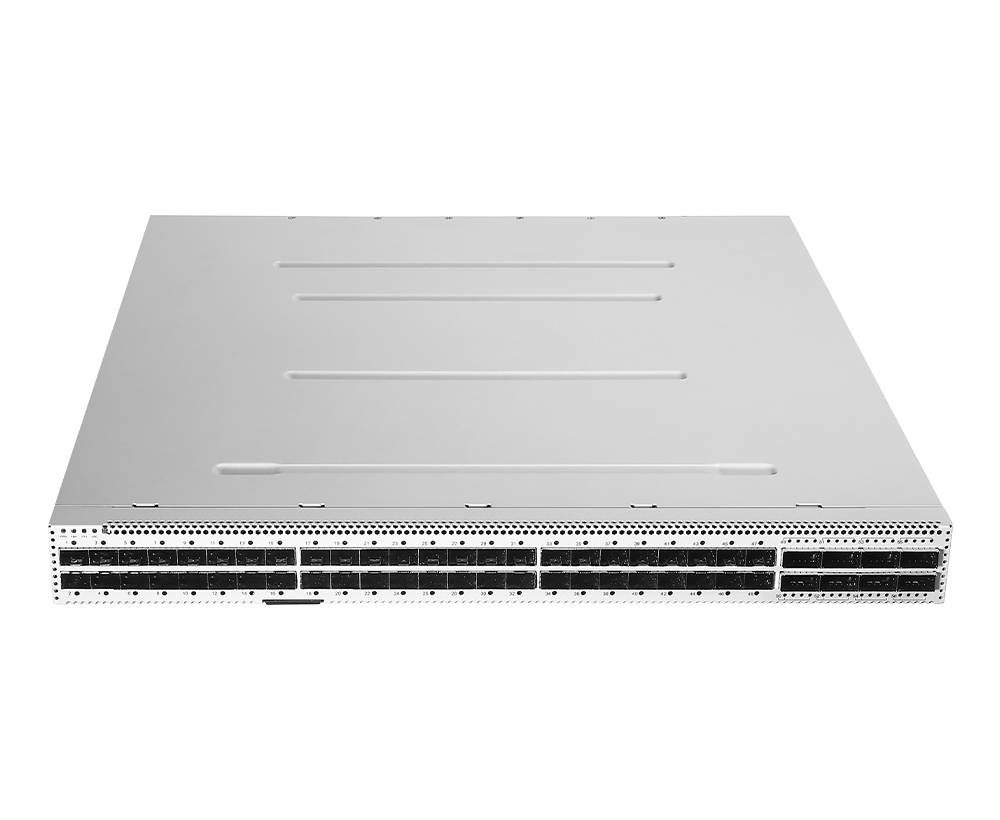

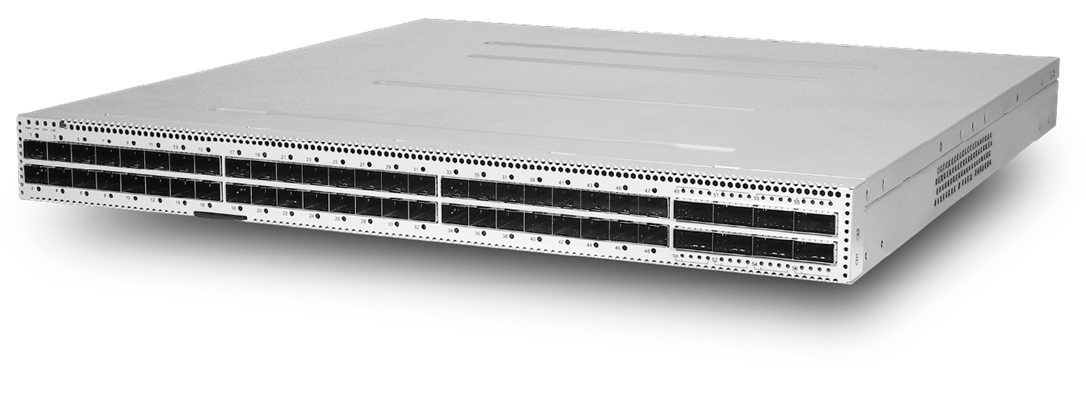

Equipped with 48 x 25G SFP28 and 8 x 100G QSFP28 ports, this compact 1RU switch delivers up to 2.0 Tbps (4.0 Tbps full duplex) of non-blocking switching capacity, ideal for high-density aggregation or core roles. Front-to-back airflow, 1+1 hot-swappable redundant power supplies, and N+1 hot-swappable fans ensure optimal thermal performance and reliability. Making it a perfect fit for micro data centers and space-constrained environments.
As enterprise micro data center networks become increasingly dynamic and data-intensive, soaring bandwidth demands are driving the need for high-density 25G and 100G Ethernet switching across both leaf and spine tiers to ensure seamless scalability, low latency, and optimized performance.
The DQS-5000-56ZS – Purpose-built for micro data centers, optimized for high-speed Layer 3 traffic with ultra-low latency in a compact design. It delivers the speed, scalability, and efficiency needed for agile, future-ready data centers, integrating seamlessly with Layer 3 topologies, overlay networks, and both virtualized and traditional architectures.

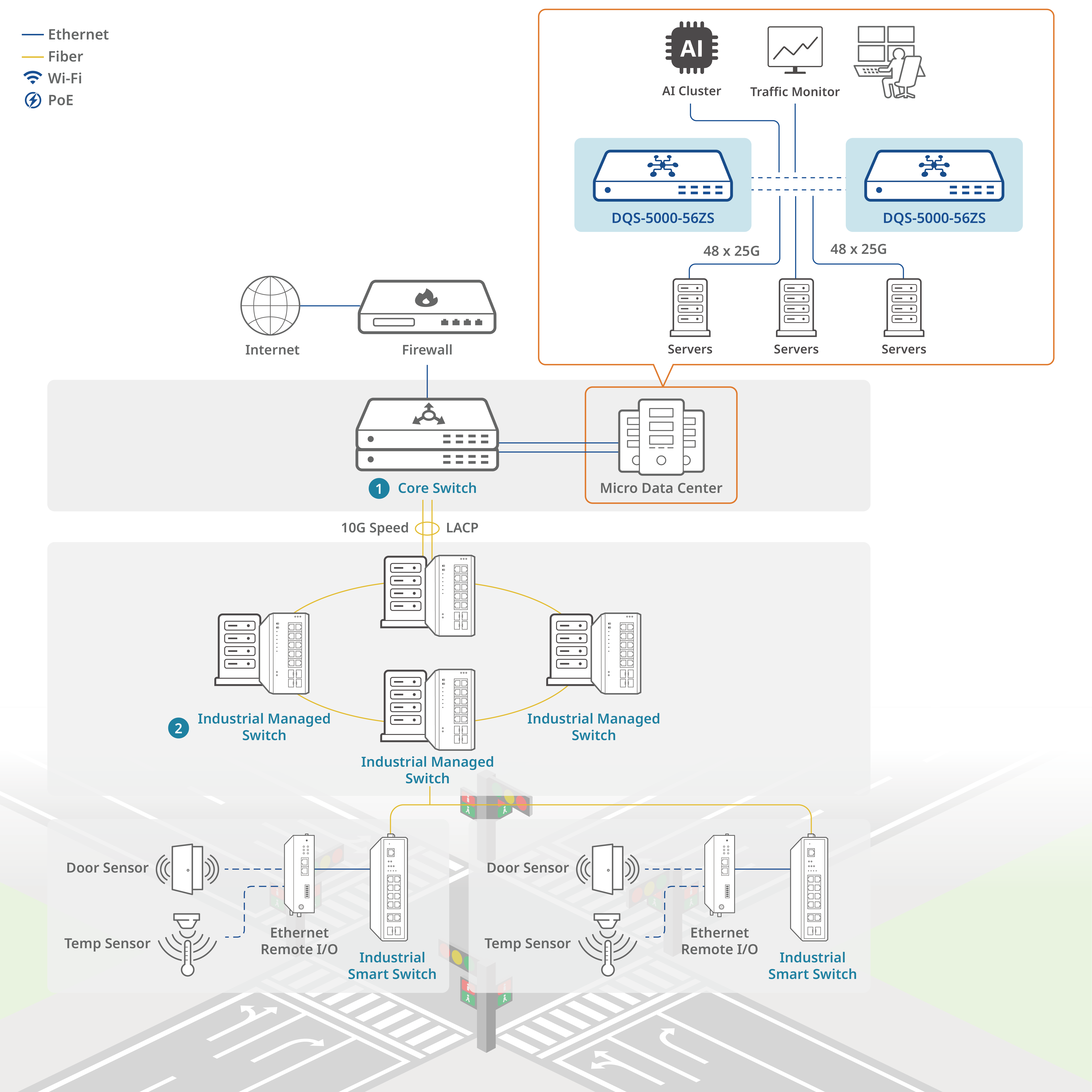

Traffic monitoring demands high-availability, high-performance network infrastructure. The DQS-5000-56ZS meets these needs with MC-LAG, hot-swappable PSU and fans, 25G downlinks for endpoint aggregation, and 100G uplinks for database and storage connectivity.
It ensures uninterrupted data transfer, precise data retrieval, and intelligent event-based traffic forwarding. This enables seamless connectivity across racks or sites, supporting multi-tenant environments and virtualized workloads with the following benefits :

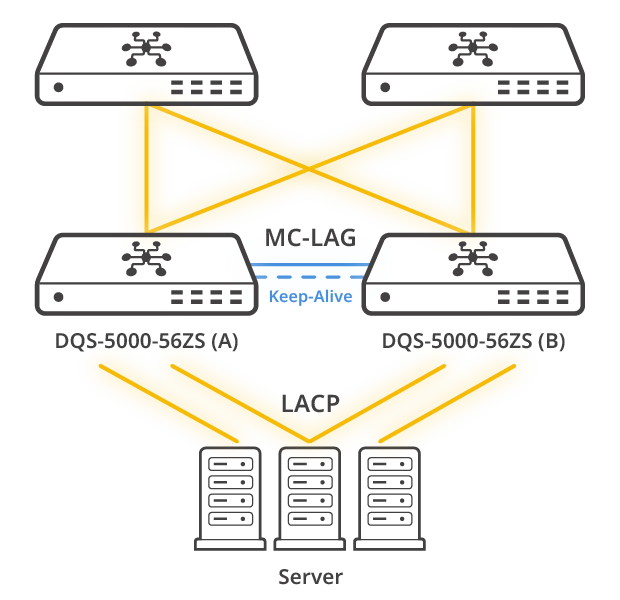

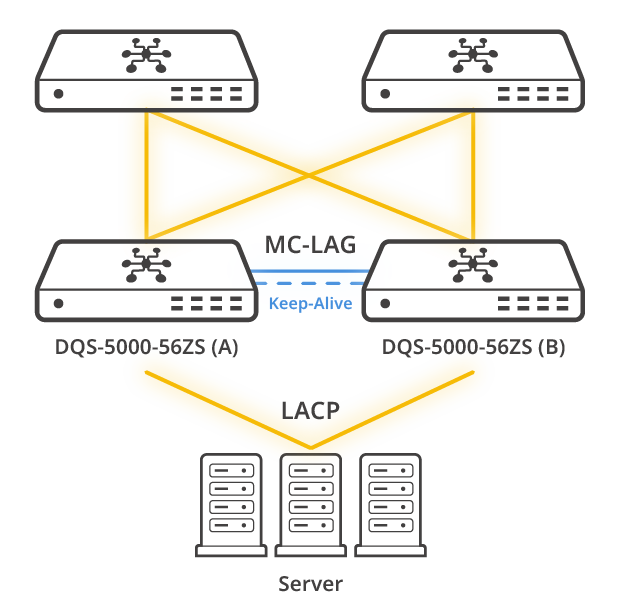

Multi-Chassis Link Aggregation Group (MC-LAG) is widely adopted in enterprise and data center networks to enhance network resiliency, bandwidth utilization, and seamless failover protection.
Unlike traditional LAG, MC-LAG allows devices to connect to two independent switches simultaneously, ensuring service continuity even if one switch becomes unavailable.
User benefits :
Learn more :
User benefits :
Learn more :
User benefits :
Learn more :
|
Interfaces
|
48 x 25G SFP28 8 x 100G QSFP28 |
|---|---|
|
Switch Capacity
|
2.0 Tbps (4.0 Tbps full duplex) |
|
Max. Packet Forwarding Rate
|
2380 Mpps |
|
Max Power Consumption
|
550W |
|
Dimensions
|
440 x 470 x 44 mm (17.32 x 18.50 x 1.73 in) |
|
Weight
|
9.7 kg |
|
Power Supply
|
CRPS, 1+1 Redundancy, Hot-Swappable |
|
FAN
|
5 (n+1) Redundancy, Hot-Swappable |
|
Operating Temperature
|
0 - 40 °C (32 - 104 °F) |
|
Operating Humidity
|
5% to 95% relative humidity |
|
Storage Humidity
|
5% to 90% relative humidity |
|
Console Port
|
1 x 10/100/1000Base-T RJ-45 |
|
USB Port
|
1 x USB Type A |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
