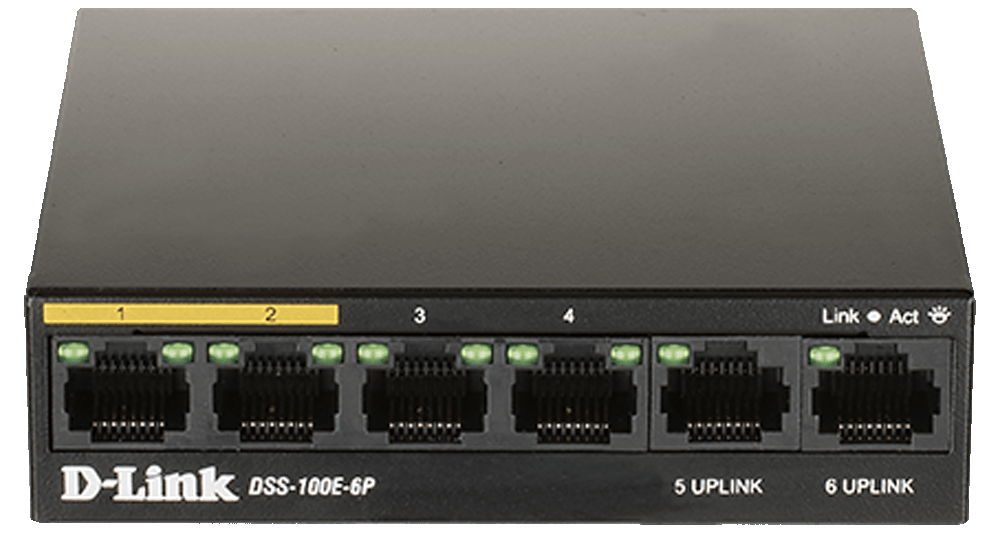

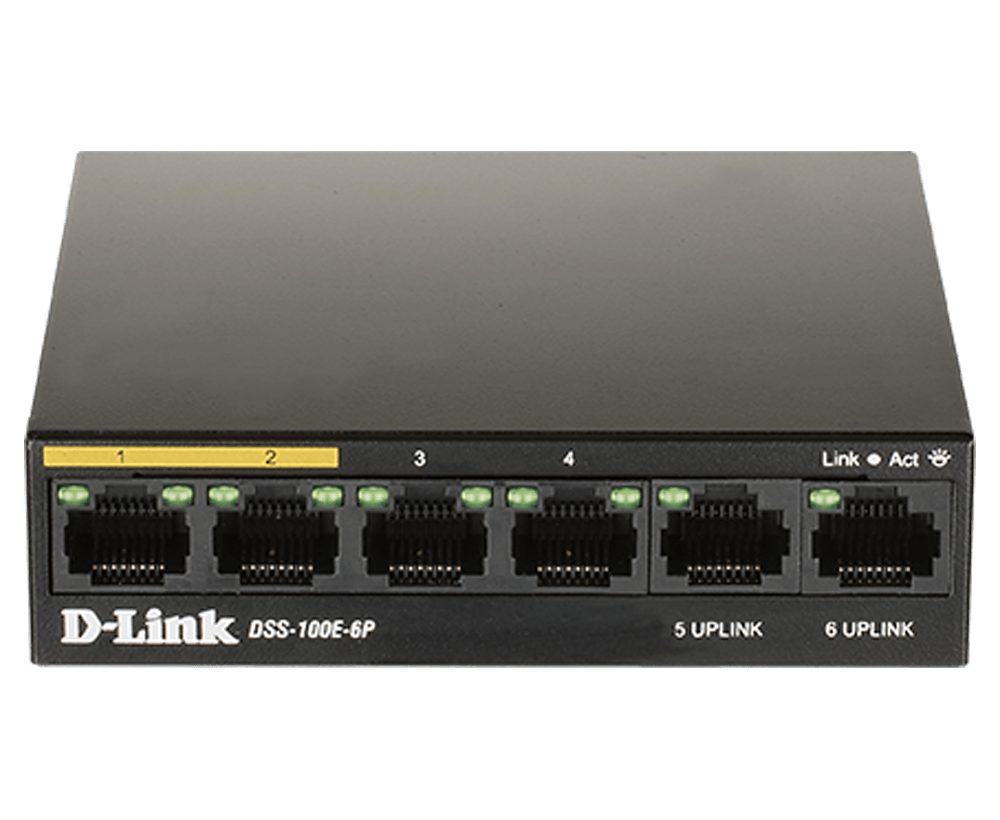

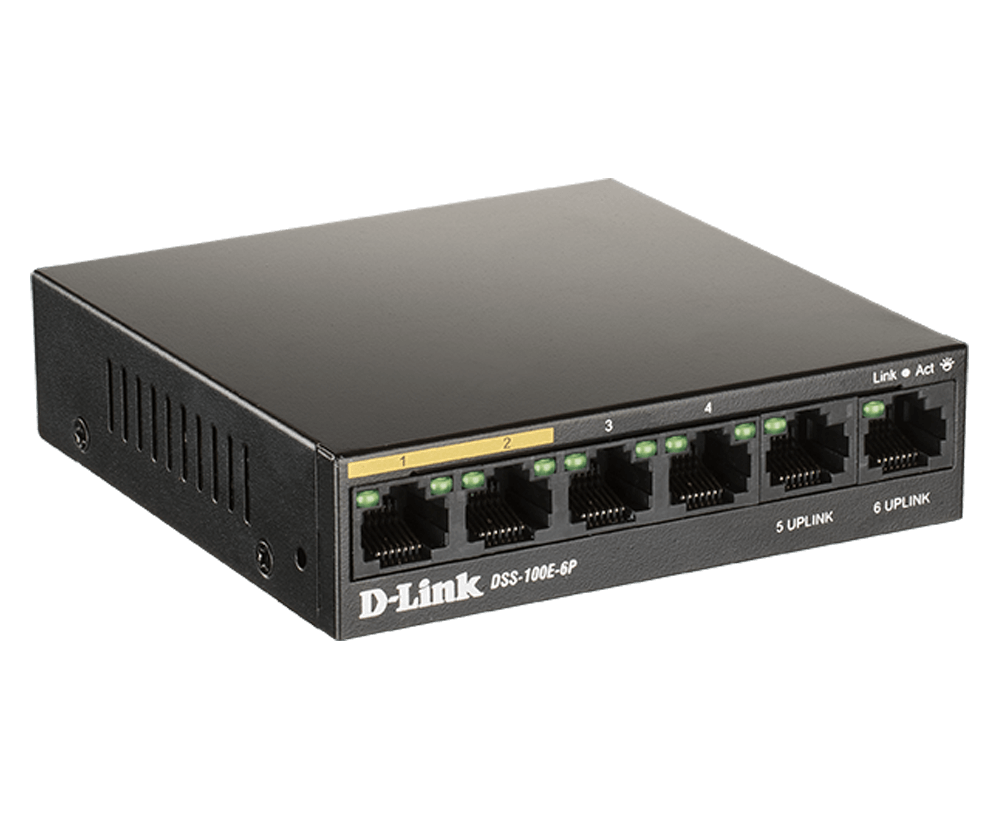

The DSS-100E-6P has a total PoE power budget of 55W, meaning it’s ready to power your PoE-ready cameras and other devices. Simply connect your PoE supported devices and you’ve got a capable surveillance network with minimal wiring required. Meanwhile, it has an extended PoE range of 250m, reaching devices further than before. Finally, it has 2 Fast ethernet uplink ports which provides ample bandwidth. This ensures smooth transmission of footage when connecting to Network Video Recorder (NVR) or core switch.

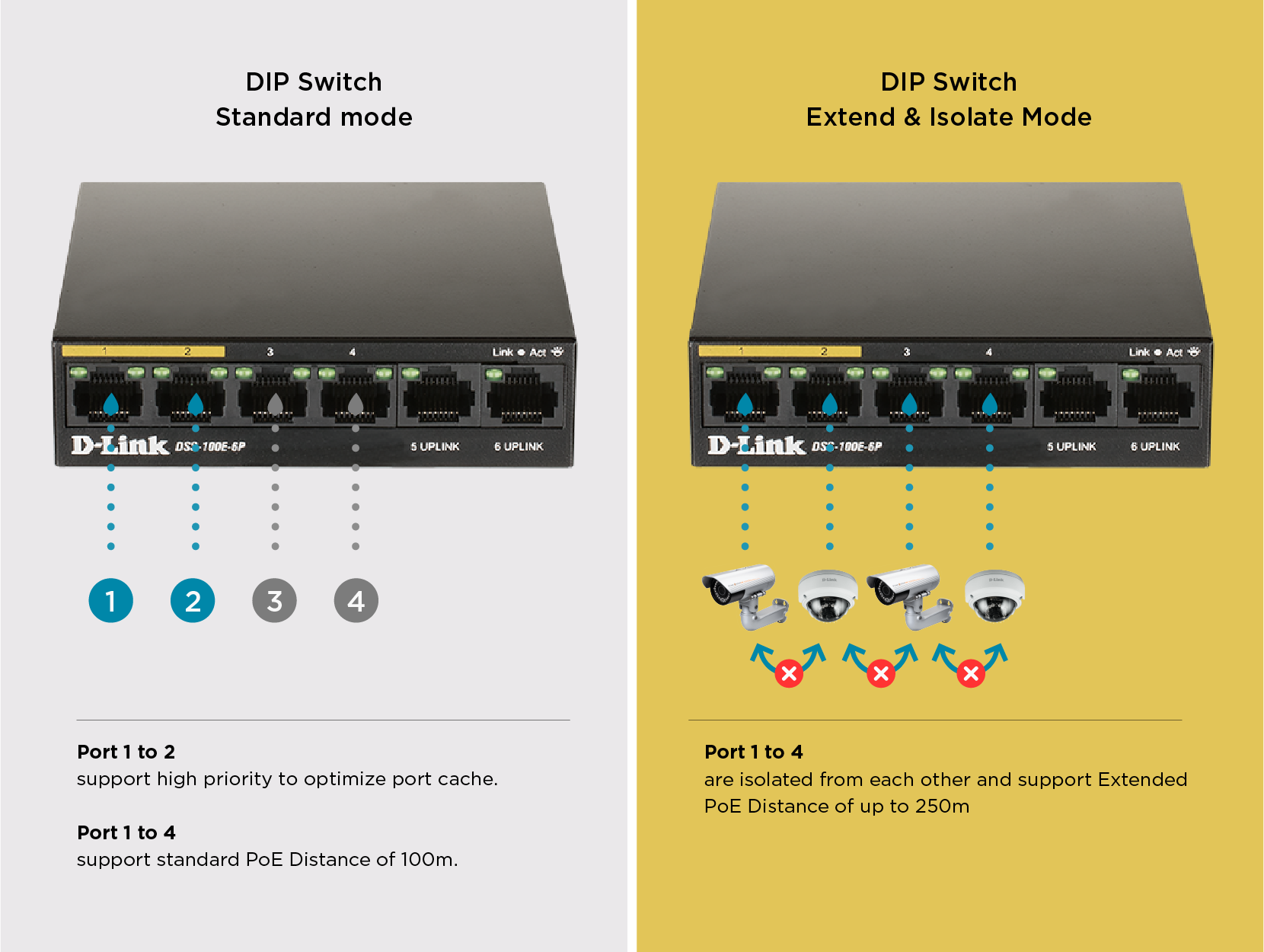

The DSS-100E-6P surveillance switch can maximize your PoE camera deployment distance to virtually anywhere, drastically lowering the cost for installing any PoE Ethernet devices. It provides you huge time and cost savings and greater flexibility of endpoint device positioning.
．Power your device up to a distance of 250 meters at 10 Mbps
．Innovative design reduces long distance power transmission loss
．Leverages existing copper twisted-pair cabling to deliver electrical power over the same network connection

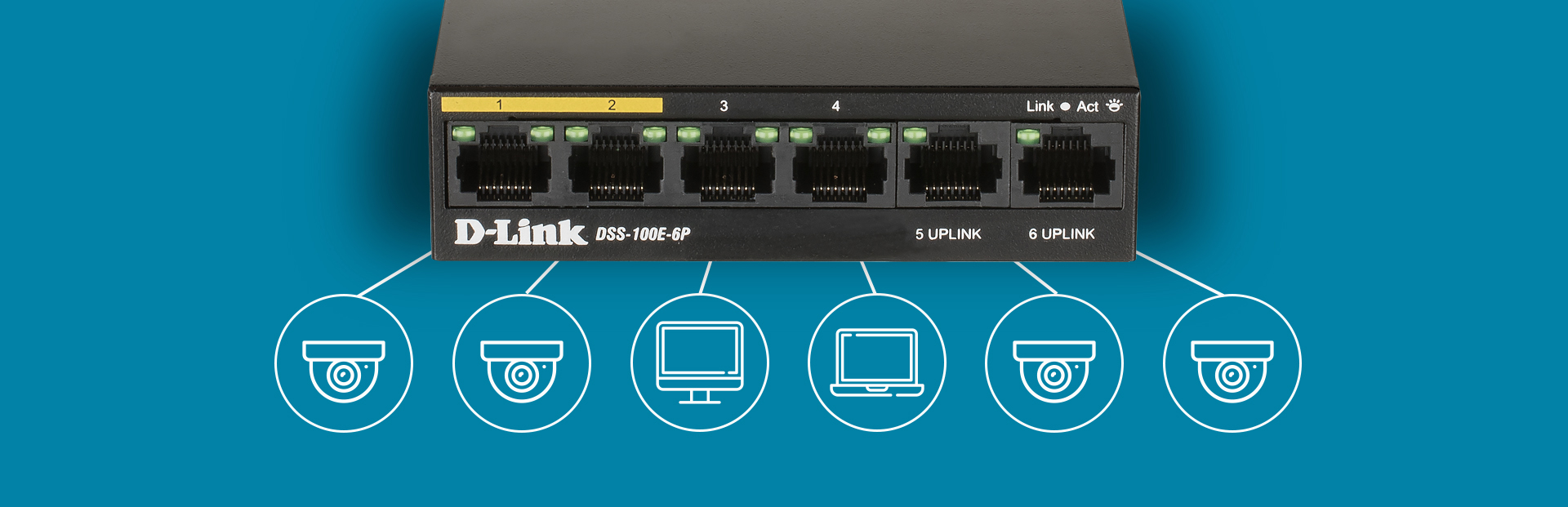

The DSS-100E-6P is not just for cameras, it’s ready to support other surveillance-related devices as well. Simply plug in the devices you need to complete your setup; the switch can then automatically detect what has been connected. It then adjusts accordingly to provide optimal performance. Ideal for a power surveillance with minimal management fuss.
- Network Attached Storage
- Laptops & Desktops
- Indoor/Outdoor IP Cameras
- PoE Extenders
The DSS-100E-6P is equipped with 6kV surge protection. This keeps the switch safe against lightning strikes or other power related incidents. This shield will prevent PoE devices from damage, ensuring your vital surveillance systems continue functioning uninterrupted.
The DSS-100E-6P is developed with simple setup in mind. No configuration is required, simply connect the switch to your network and you are ready to go. You can start adding IP cameras, IP phones and other PoE and non-PoE capable devices to your network. Meanwhile, the switch will automatically detect what has been connected and intelligently adjust to offer optimal performance. It is ideal for those who want a powerful network, without the fuss of managing it.
Our switches are highly compatible with a variety of cameras. You can be safe in the knowledge that the cameras and devices you choose will easily integrate into your surveillance network.
To further cut OPEX, the DSS-100E-6P supports IEEE 802.3az Energy Efficient Ethernet. The switch can automatically detect when network traffic is being passed through ports. Those that are not in use are powered down. Not just good for cutting operating costs, but better for the environment too.
| Product |  DSS-100E-6P |  DSS-100E-9P |  DSS-100E-18P |  DSS-100E-26P | |
|---|---|---|---|---|---|
| Interface |
|
|
|
| |
| Performance | |||||
| Switch Capacity | 1.2 Gbps | 3.8 Gbps | 7.2 Gbps | 8.8 Gbps | |
| Max. Packet Forwarding Rate | 0.89 Mpps | 2.6784 Mpps | 5.36 Mpps | 6.55 Mpps | |
| PoE | |||||
| PoE Budget | 55 W | 92 W | 230 W | 230 W | |
| Technical Specification | |||||
| Maximum Power Consumption | Maximum: 64.20 W (PoE on), 1.57 W (PoE off) | Maximum: 113.4 watts (PoE on), 4.57watts (PoE off) | Maximum: 265 watts (PoE on), 16.89 watts (PoE off) | Maximum: 269.28 W (PoE on), 14.84 W (PoE off) | |
| Power Feature | 100 - 240 VAC | 100 - 240 VAC | 100 - 240 VAC | 100 - 240 VAC | |
| Surge/Lightning Protection | 6kV | 6kV | 6kV | 6kV | |
| Dimension | 177 x 104 x 26 mm | 177 x 104 x 26 mm | 440 x 178 x 44 mm | 440 x 178 x 44 mm | |
|
Switching Capacity
|
1.2 Gbps |
|---|---|
|
Packet Buffer Size
|
0.45 Kbits |
|
Transmission Method
|
Store-and-Forward |
|
MAC Address Table Size
|
1K |
|
PoE Standard
|
IEEE802.3at IEEE802.3af |
|
PoE Power Budget
|
55W |
|
Power Input
|
100 to 240 V AC |
|
Max Power Consumption
|
PoE ON: AC: 64.20 W, DC: 56.47 W PoE OFF: AC: 1.57 W, DC: 1.39 W |
|
Operating Temperature
|
0 - 40 °C (32 - 104 °F) |
|
Operating Humidity
|
10% - 95% RH |
|
Storage Temperature
|
-40 - 70°C (-40 - 158 °F) |
|
Storage Humidity
|
5% - 95% RH |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
